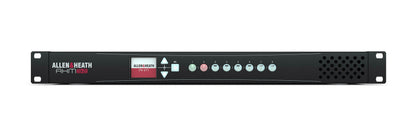

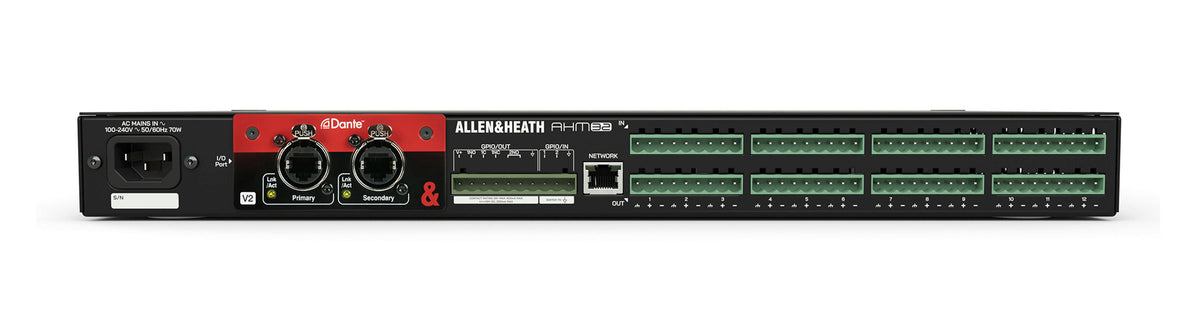

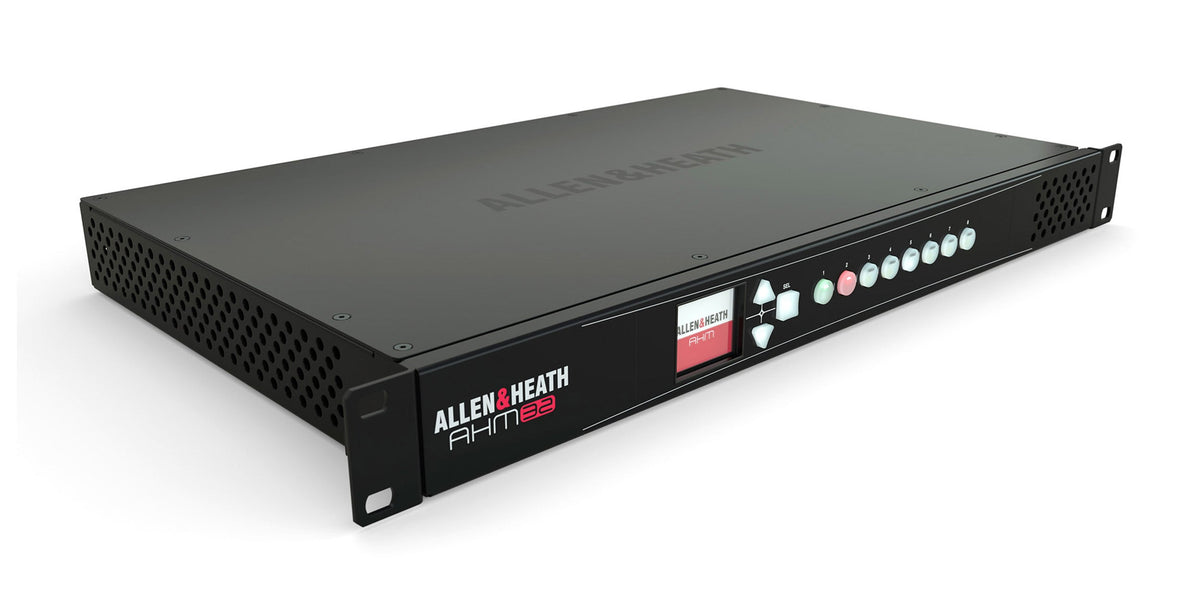

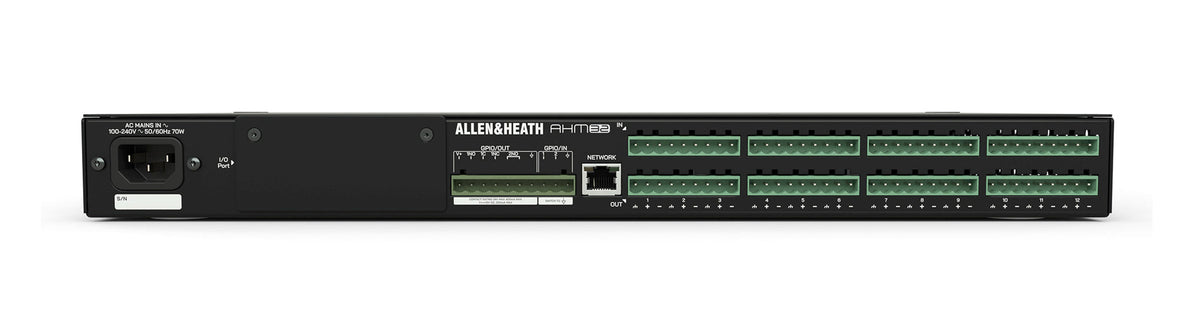

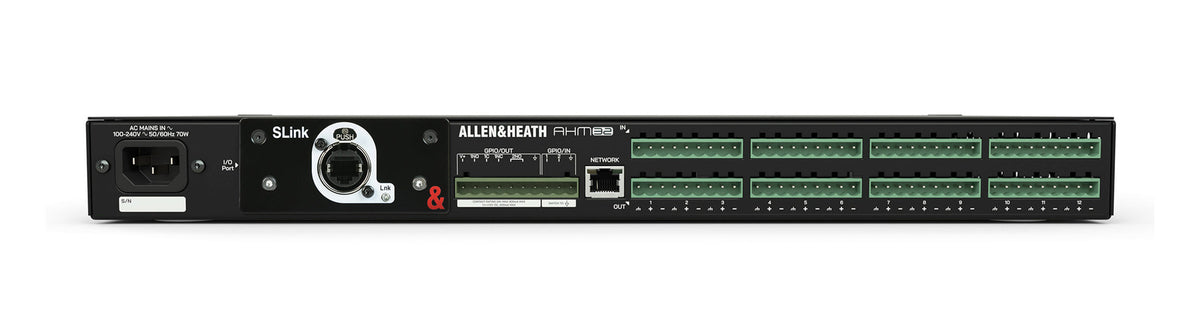

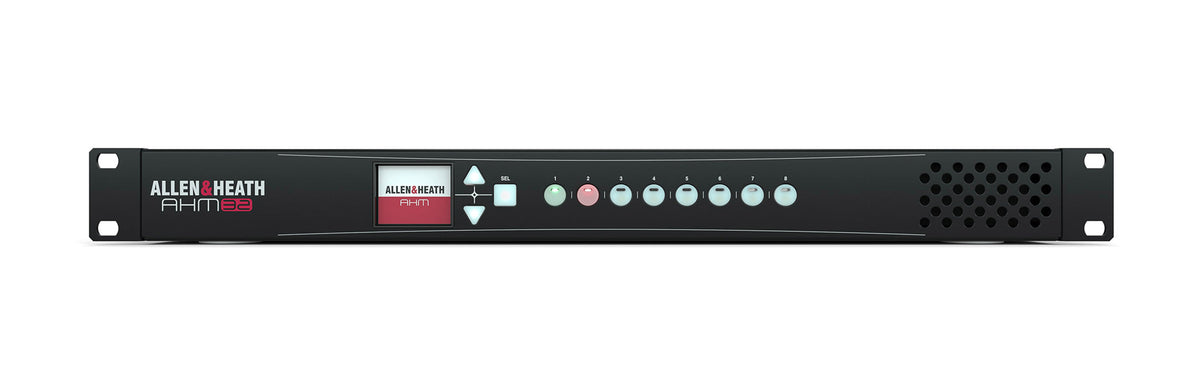

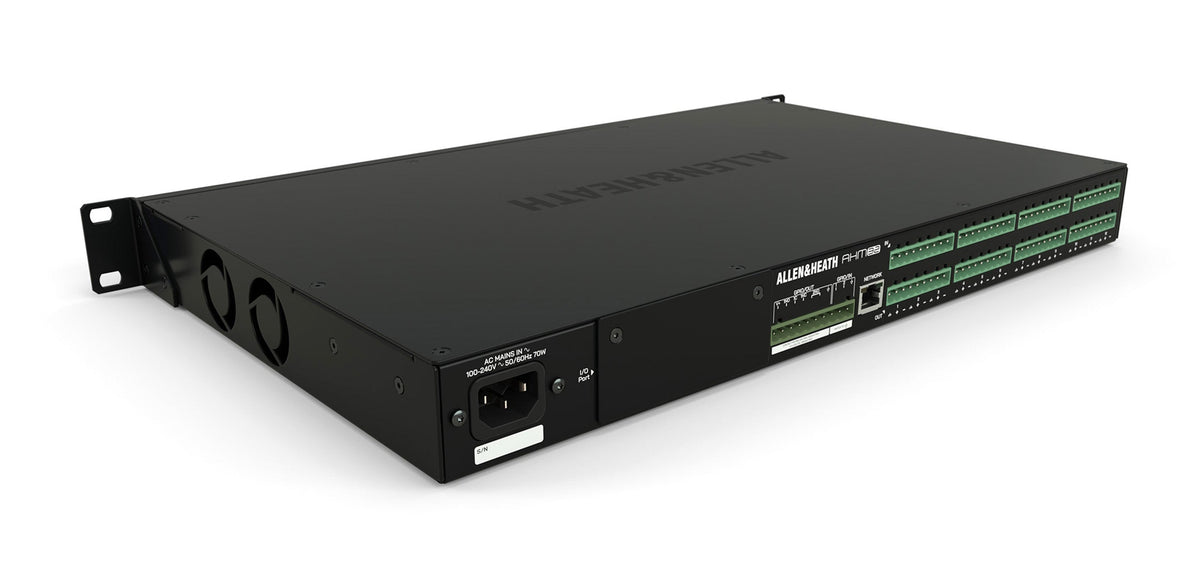

Allen & Heath AHM-32 1RU 32x32 Audio Matrix Processor 12x12 Local

The Allen & Heath AHM-32, 1RU 32x32 Audio Matrix Processor with 12x12 Local Analog I/O is an audio matrix processor for sound management and installation. It is designed for audio distribution, paging, conferencing and speaker processing in a multitude of environments including corporate, hospitality, education, event and multi-purpose venues, retail, theatres, cruise ships and sports venues.

The AHM-32 processor is complemented by an extended ecosystem of remote audio expanders, remote controllers, interfaces, apps and software. A family of portable, rack-mountable or wall mount audio expanders is available with a choice of proprietary point-to-point Layer-2 or Dante transport protocols.

A range of IP remote controllers is available for volume control, music source selection, preset recall and more. AHM can also integrate with third party devices over GPIO, TCP/IP, or industry standard control systems. The Custom Control editor and app from Allen & Heath offer more control options and tailored user interfaces for multiple users and device types, with kiosk and BYOD capability.

Product Specifications:

Compatibility: Not Specified by Manufacturer

Audio I/O

12 x Block 3-Pin Line/Mic Input

12 x Block 3-Pin Line Output

Power Source: AC Input (Included)

AC Input Power: 100 to 240 VAC, 50 / 60 Hz

Power Consumption: 70 W (Maximum)

Operating Temperature: 32 to 72°F / 0 to 40°C

Color: Black

Cable Length: Not Specified by Manufacturer

Dimensions: 19 x 10.6 x 1.7" / 48.3 x 26.9 x 4.3 cm

Weight: 8.8 lb / 4 kg

Package Weight: 12.135 lb

Box Dimensions (LxWxH): 22.2 x 16.4 x 5.6"
