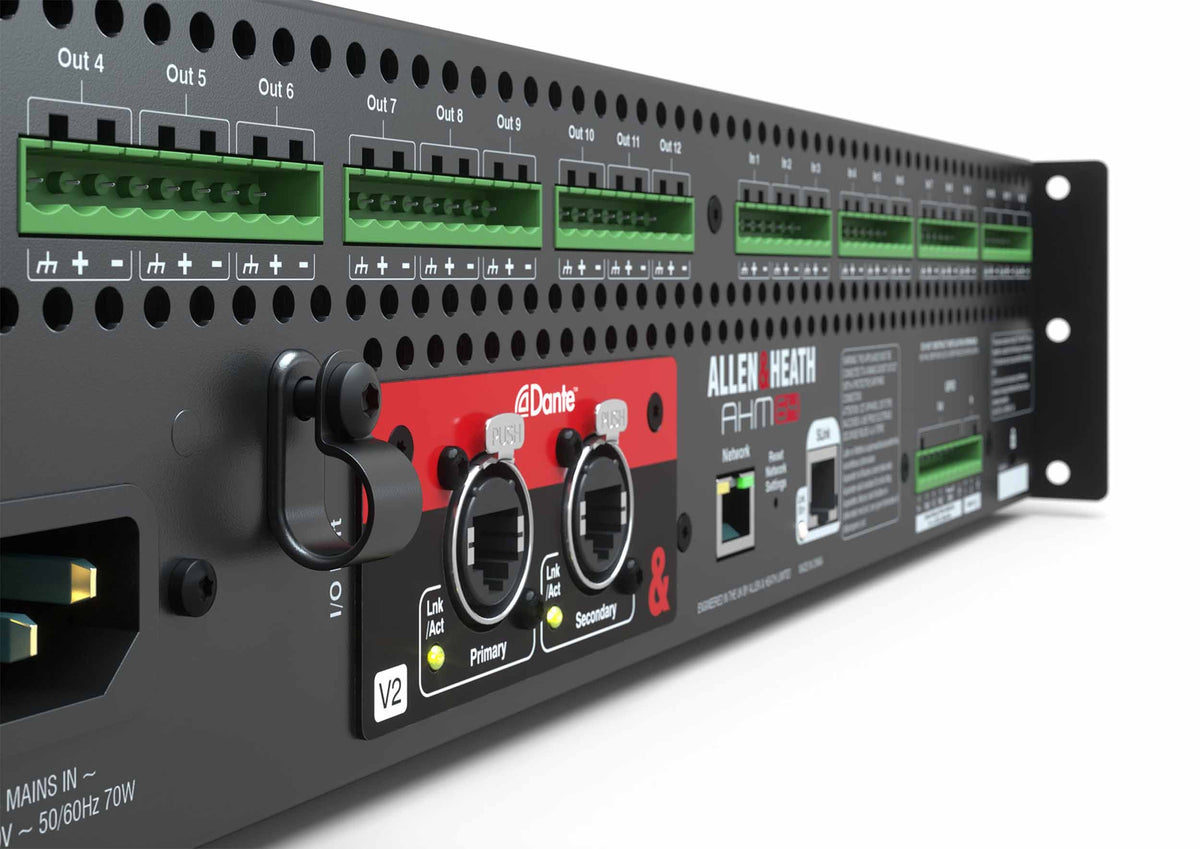

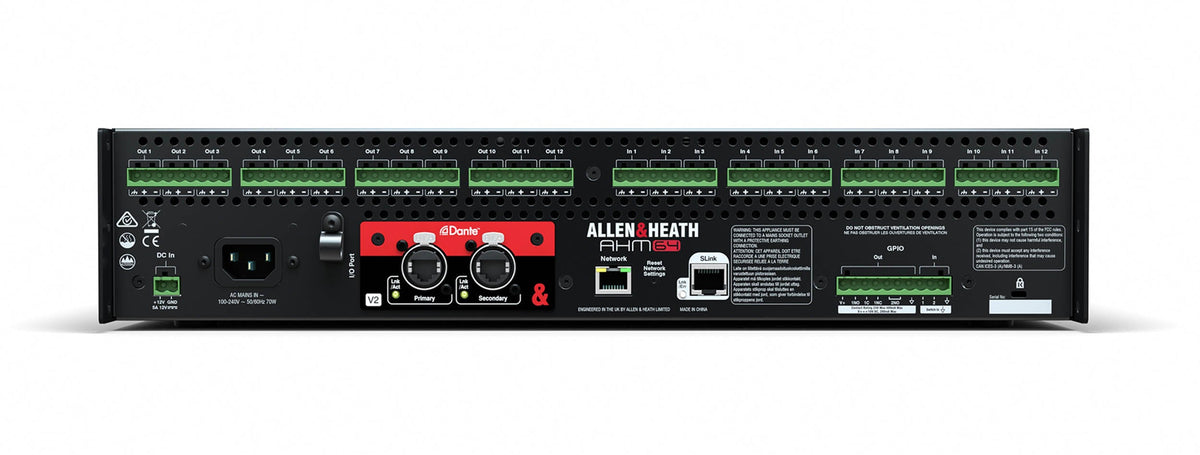

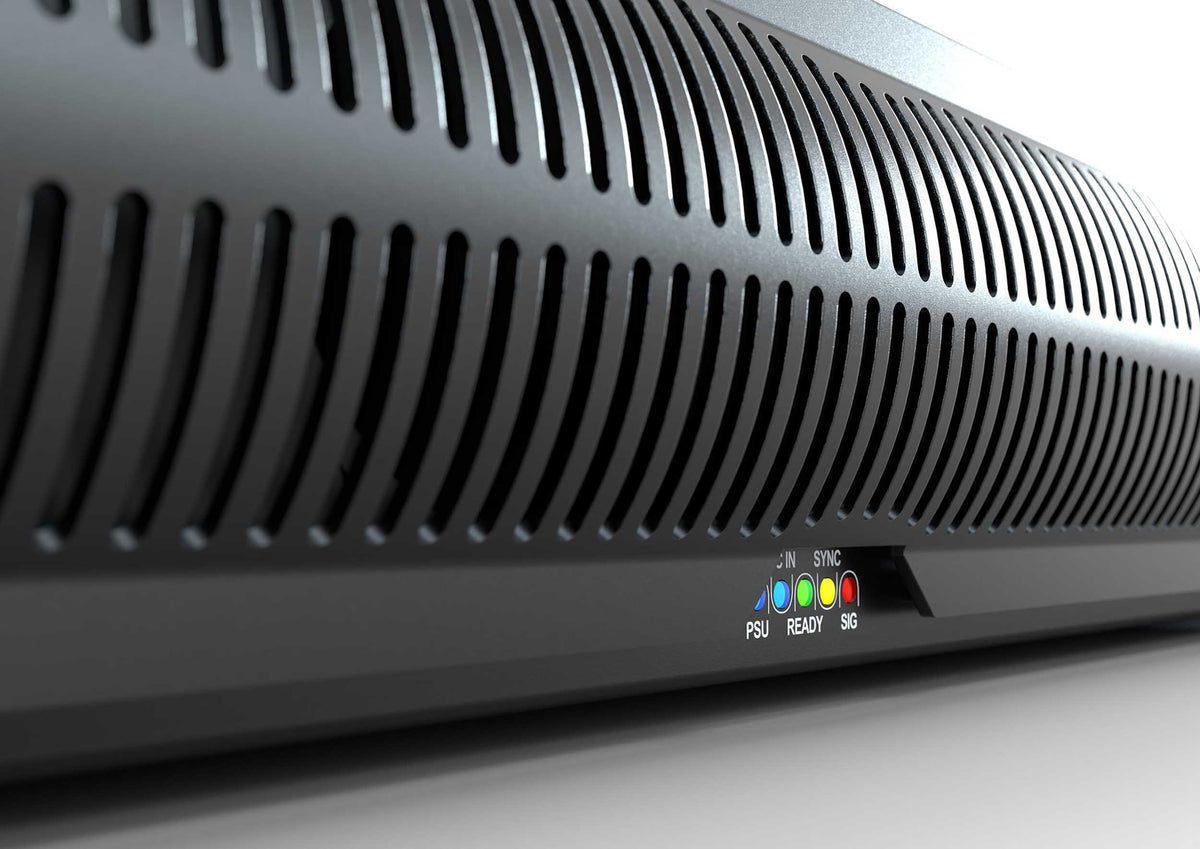

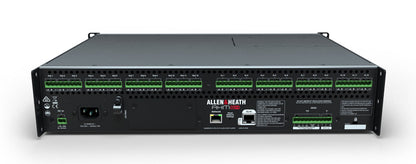

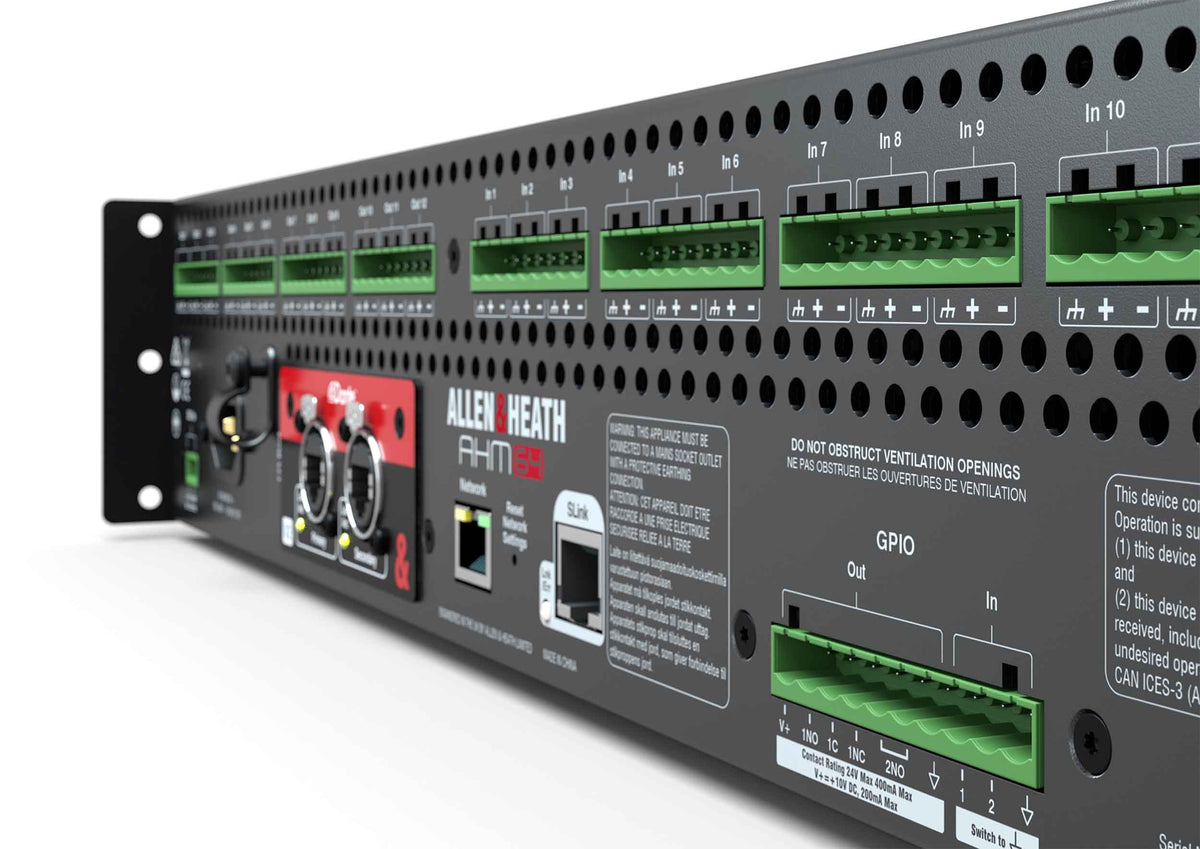

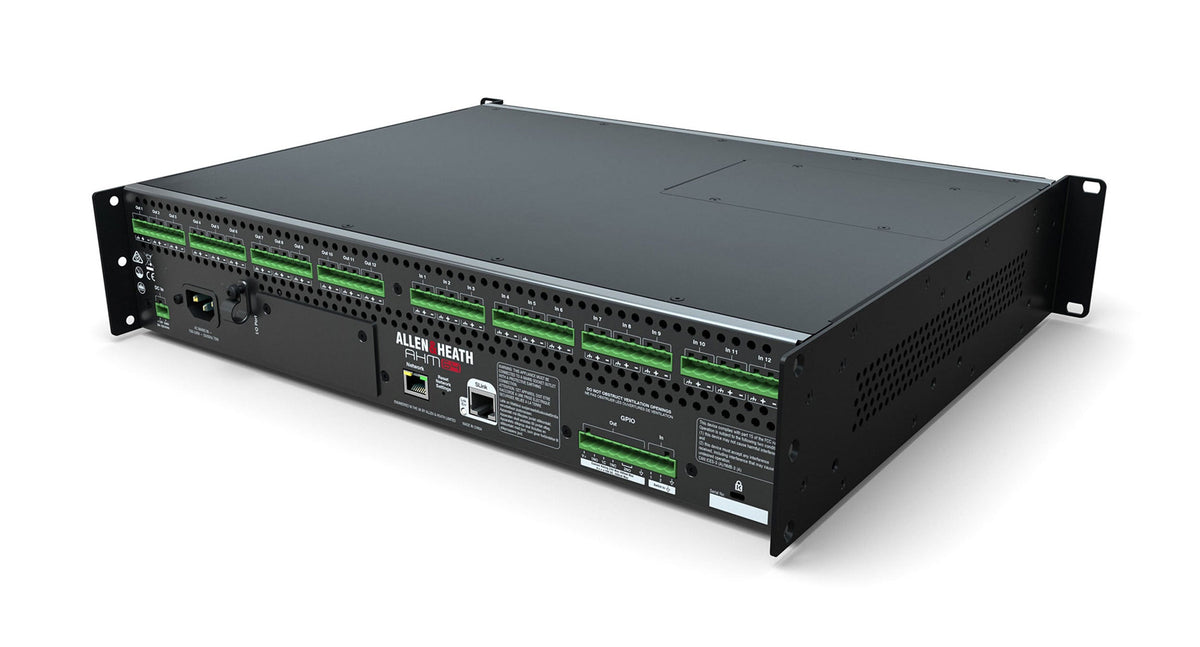

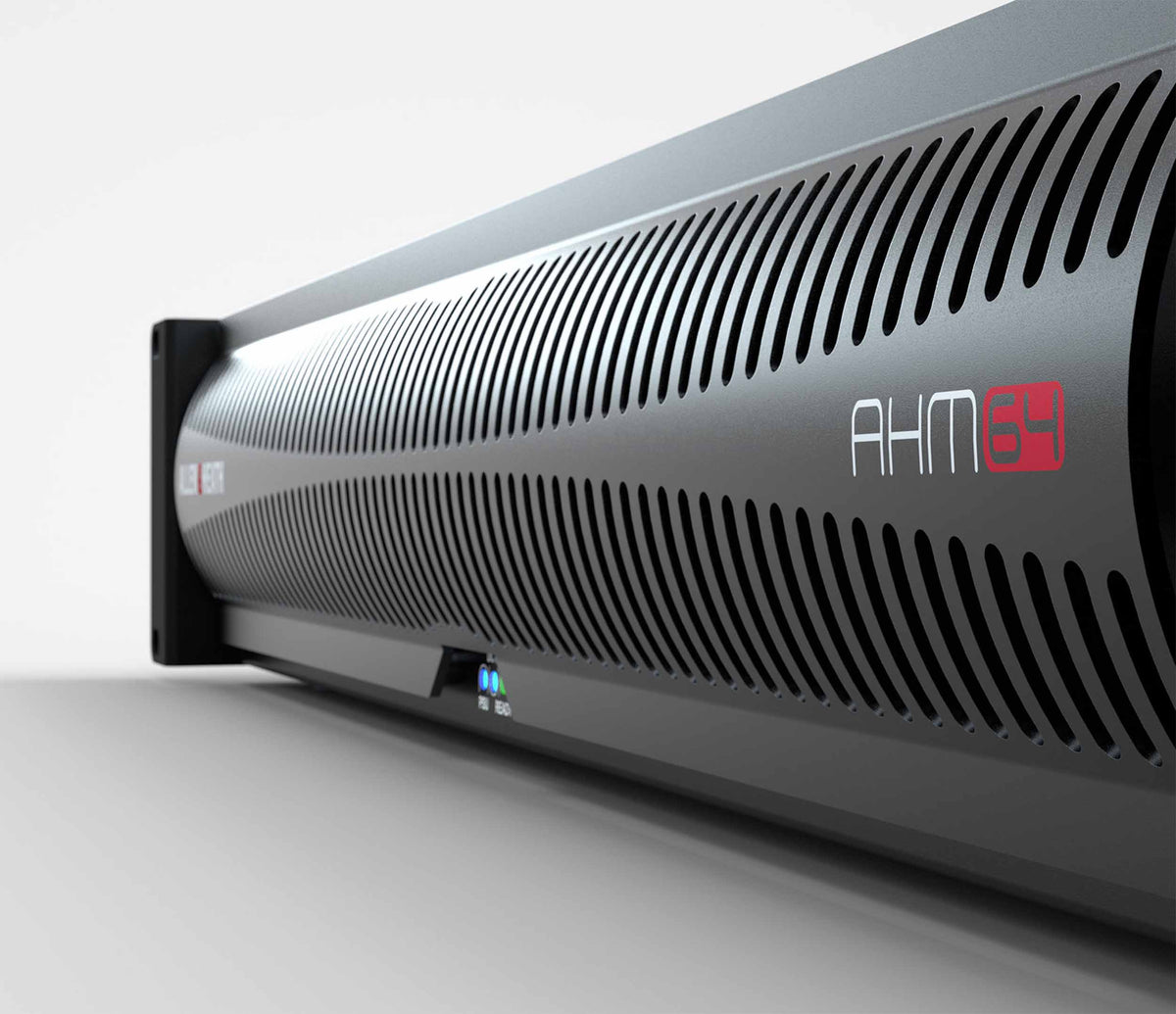

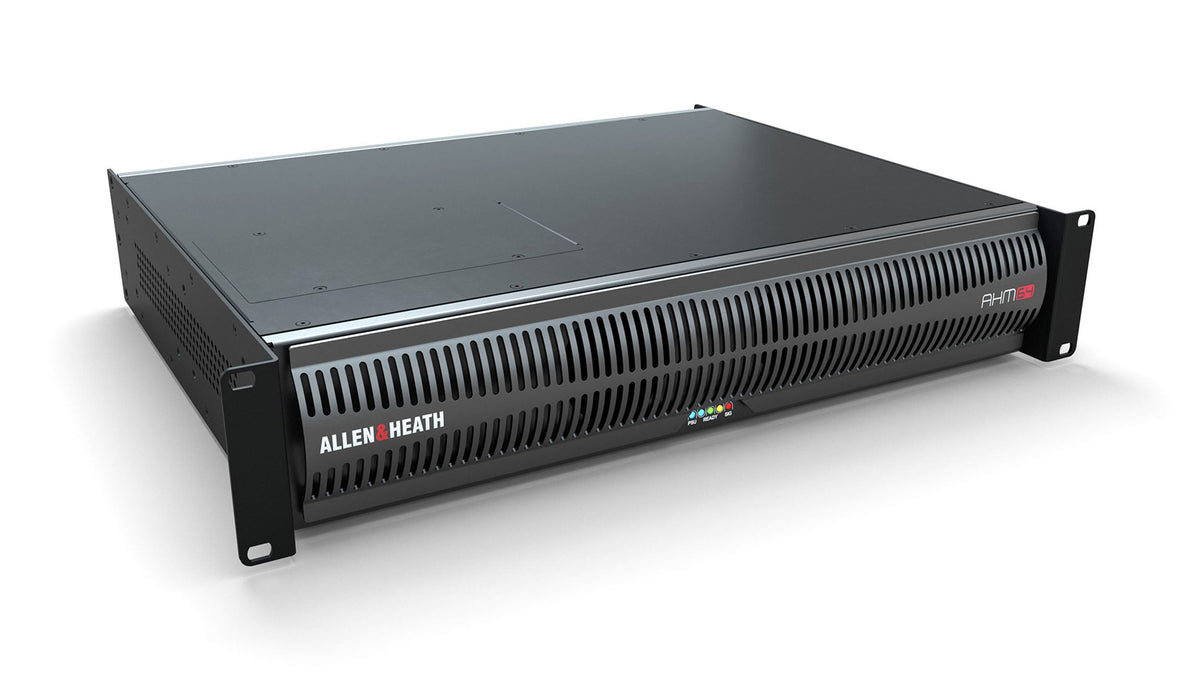

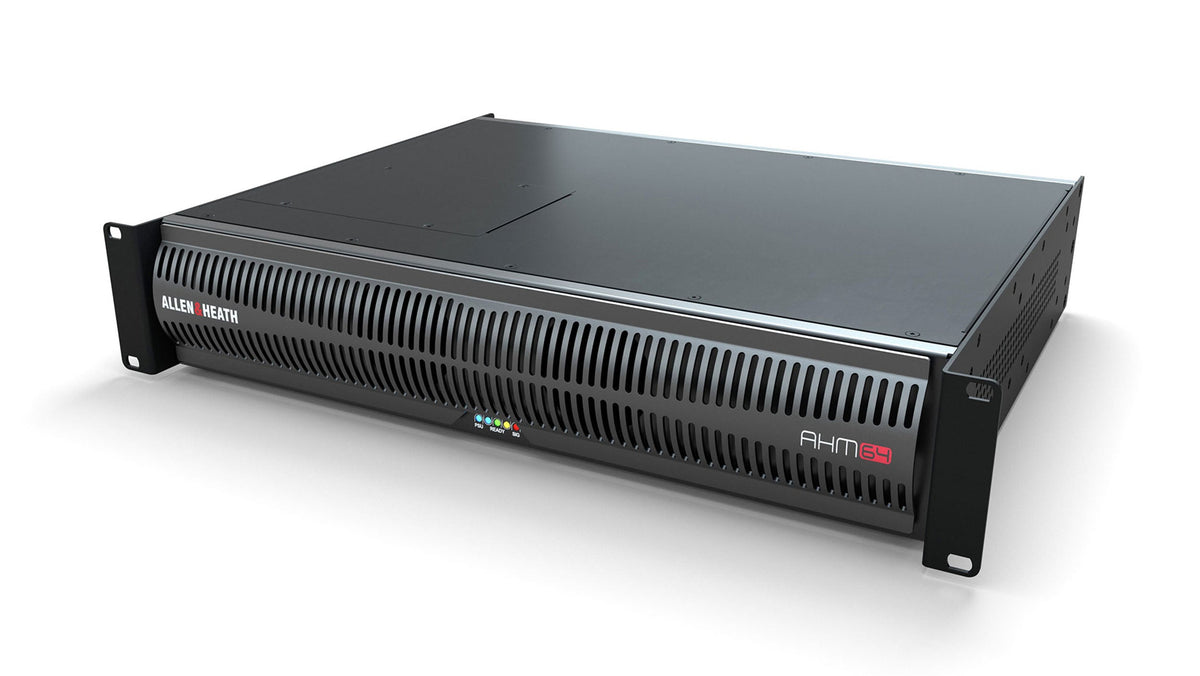

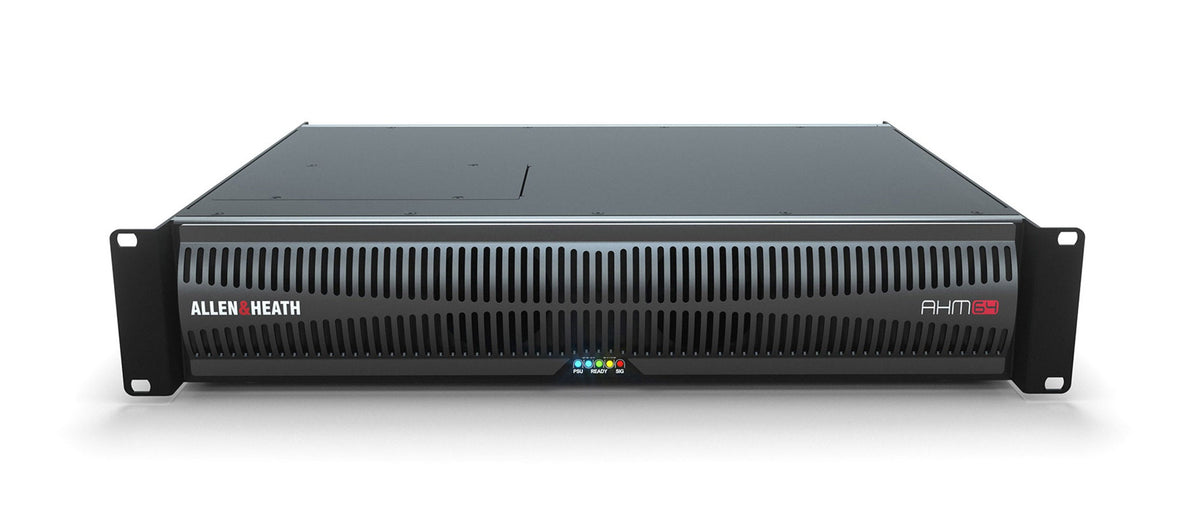

The Allen & Heath AHM-64, 64x64 Audio Matrix Processor with 12x12 I/O supported by a comprehensive ecosystem of scalable I/O, control and Dante solutions. Designed to excel in corporate, retail, hospitality and education environments, AHM-64 allows integrators to quickly create systems that build from a single boardroom to a complete campus.
AHM-64’s SLink port allows plug 'n play connection to up to eight remote expanders from Allen & Heath’s extensive Everything I/O range, which includes wall mount, rack and portable options. With up to 268 routable system inputs and outputs, AHM-64 can cater for projects ranging from a single room to large, distributed spaces.
An AHM-64 system can be controlled using our range of remote controllers, GPIO and 3rd party devices. With up to 96 IP remote controllers over a standard TCP/IP network, every room can enjoy local volume control, source select and preset recall. Designing the perfect user interface for each type of user has never been so easy. Custom Control is a customizable, cross-platform control app, providing elegant, bespoke control over an AHM-64 system.
Product Specifications:
Compatibility: Not Specified by Manufacturer:

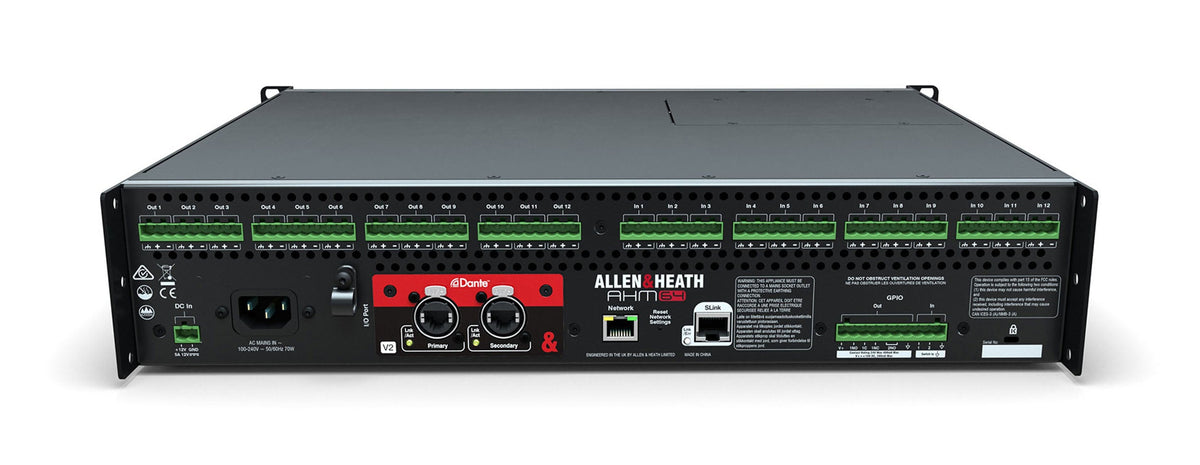

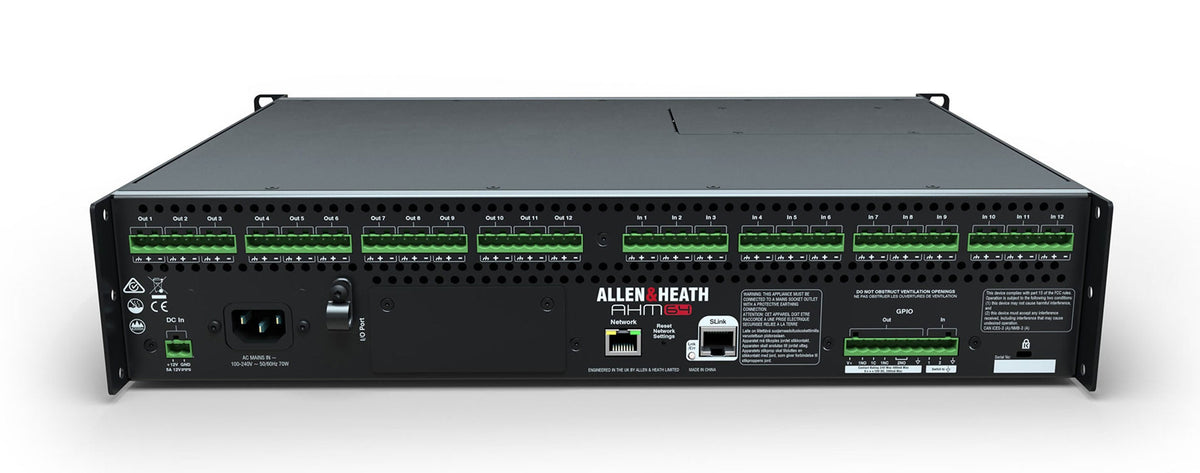

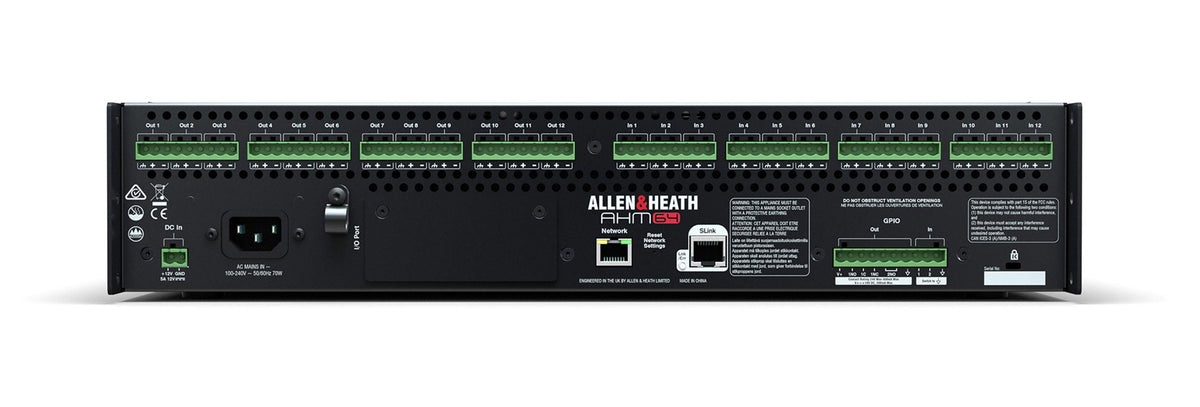

Audio I/O
12 x Block 3-Pin Line/Mic Input
12 x Block 3-Pin Line Output
Power Source: AC Input (Included)
AC Input Power: 100 to 240 VAC, 50 / 60 Hz
DC Input Power: 12 VDC at 8 A
Power Consumption: 70 W (Maximum)
Operating Temperature: 32 to 72°F / 0 to 40°C
Color: Black
Cable Length: Not Specified by Manufacturer
Dimensions: 19 x 14.3 x 3.6" / 48.3 x 36.3 x 9.1 cm
