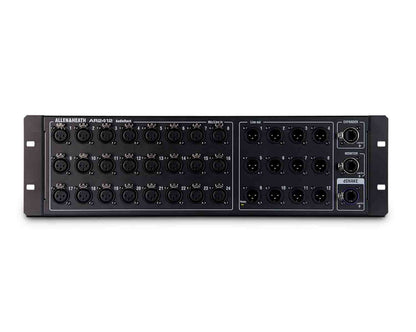

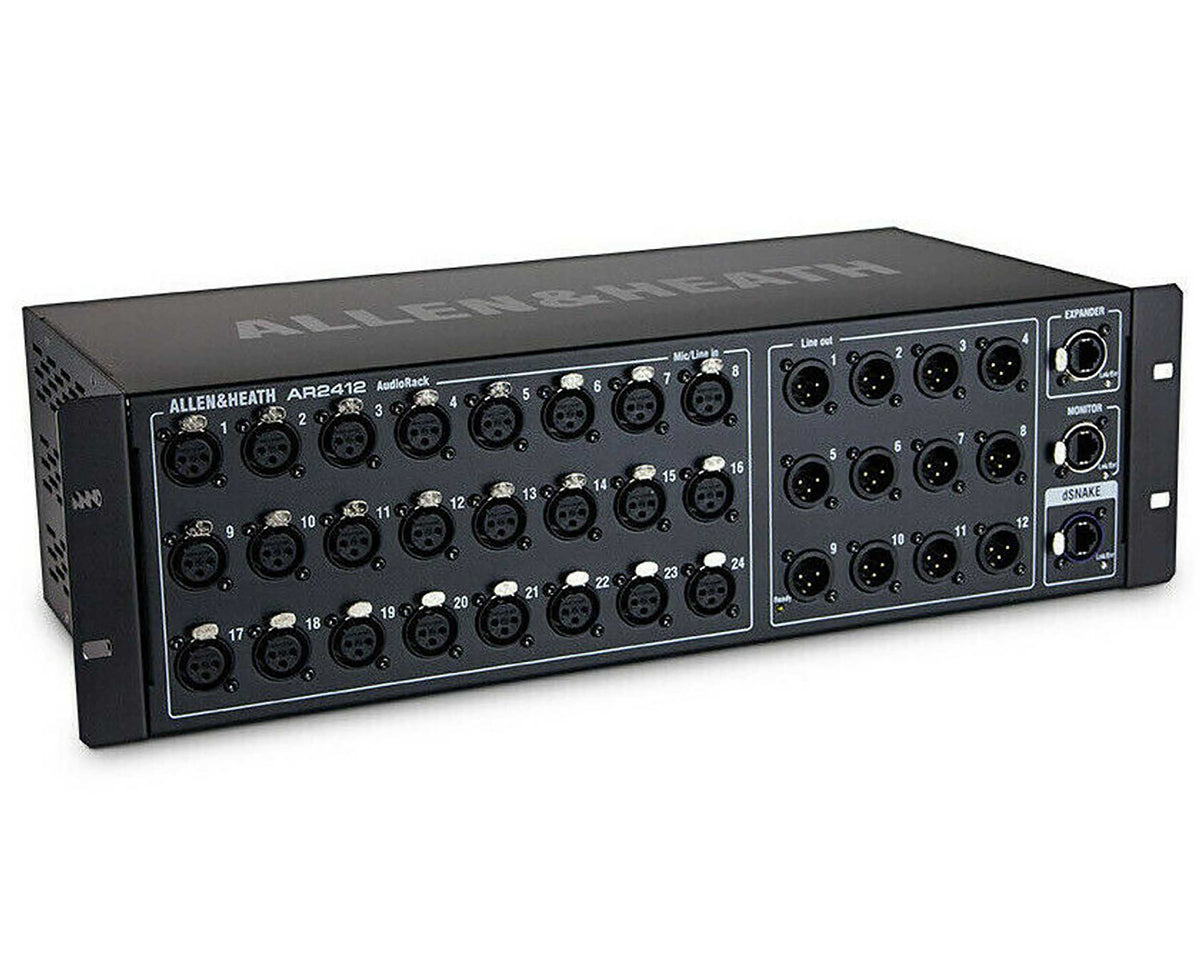

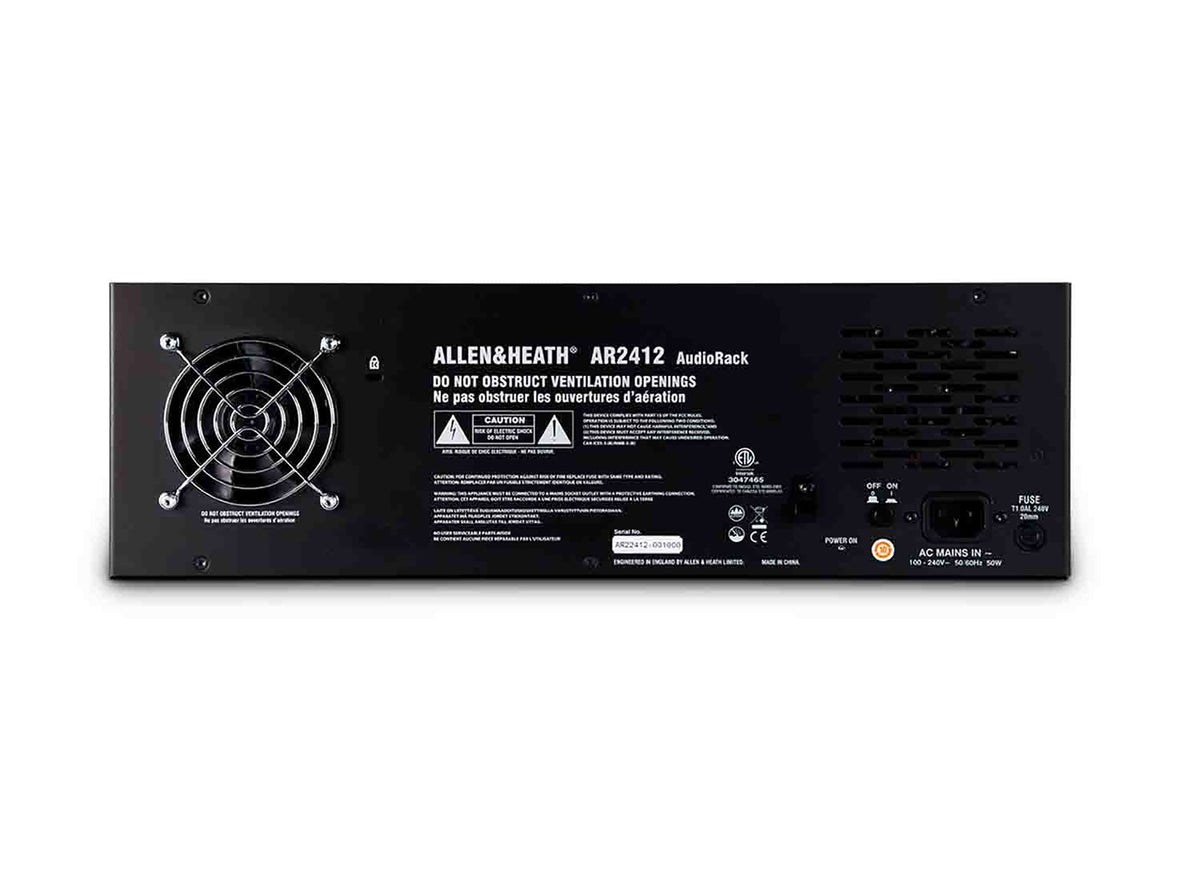

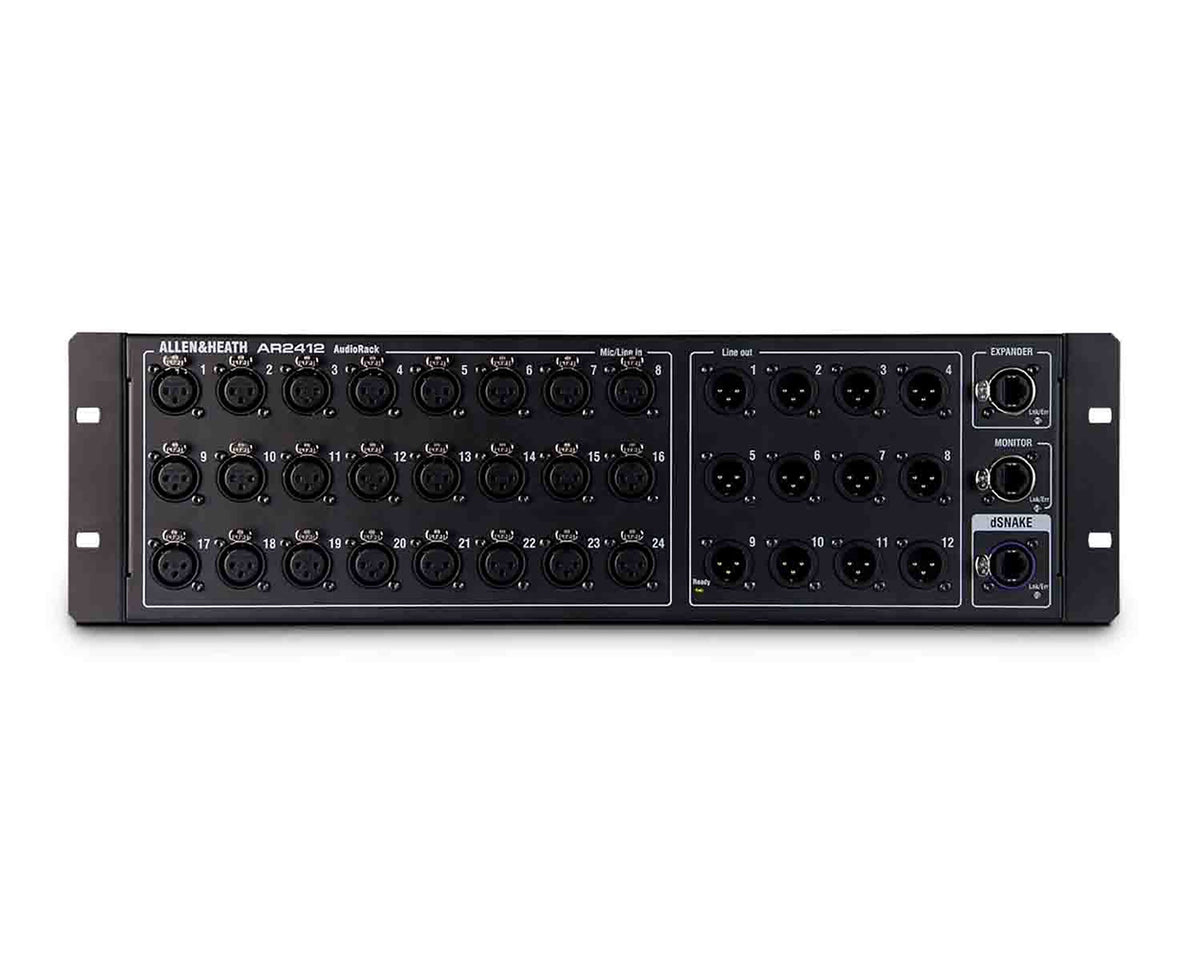

Allen & Heath AR-2412 24x12 Main Remote Stage Rack for GLD & SQ & Qu
Allen & Heath AR-2412 24x12 Main Remote Stage Rack for GLD & SQ & Qu
Model / SKU: H-ALLE-AR2412
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The Allen & Heath AR-2412, 24x12 Main Remote Stage Rack for GLD, SQ and Qu Mixers - Black a 48kHz, 24 XLR input, 12 XLR output AudioRack, compatible with Qu, Avantis and SQ mixers, and with the AHM-64 audio matrix processor. Adding an AR2412 to your system lets you position some or all of your I/O up to 100m from the mixer, connected over a single Cat5 cable running Allen & Heath’s dSNAKE protocol. dSNAKE provides control to the remote preamp, and all mic preamps are scene recallable.
AR2412 also includes a Monitor port for connection to ME-1 personal mixers, and an Expander port for daisy chaining to an AR84 or AB168.
Product Specifications:
Type: Stage box Interface
Channels: 24 x 12
Inputs - Mic Preamps: 24 x XLR (mic/line)
Phantom Power: Remote controlled from mixer
Outputs - Main: 12 x XLR
Data I/O: 1 x Ethernet (dSnake), 1 x Ethernet (ME personal mixers), 1 x Ethernet (additional racks)
Rackmountable: Yes, 3U
Power Source: Standard IEC AC cable
