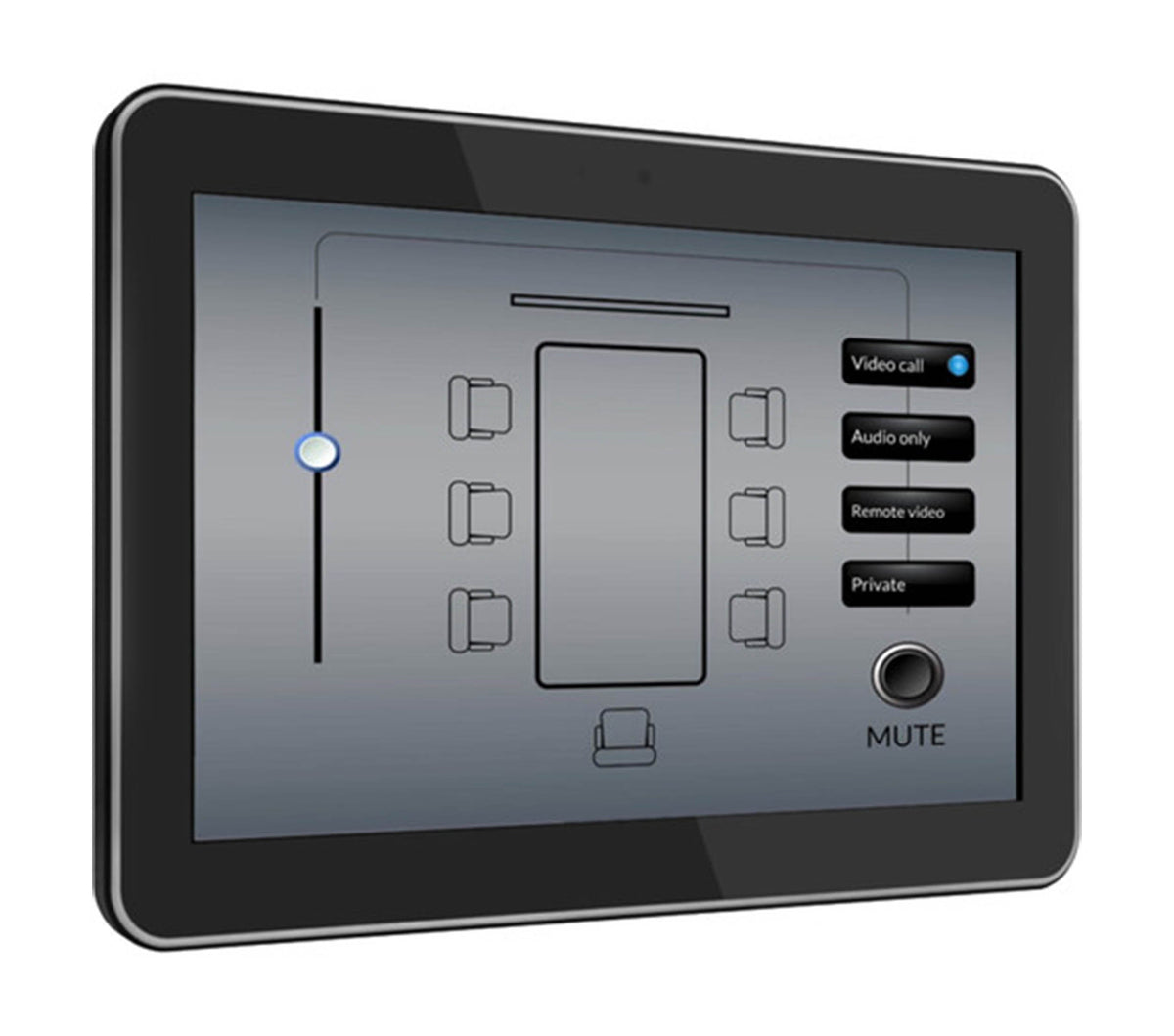

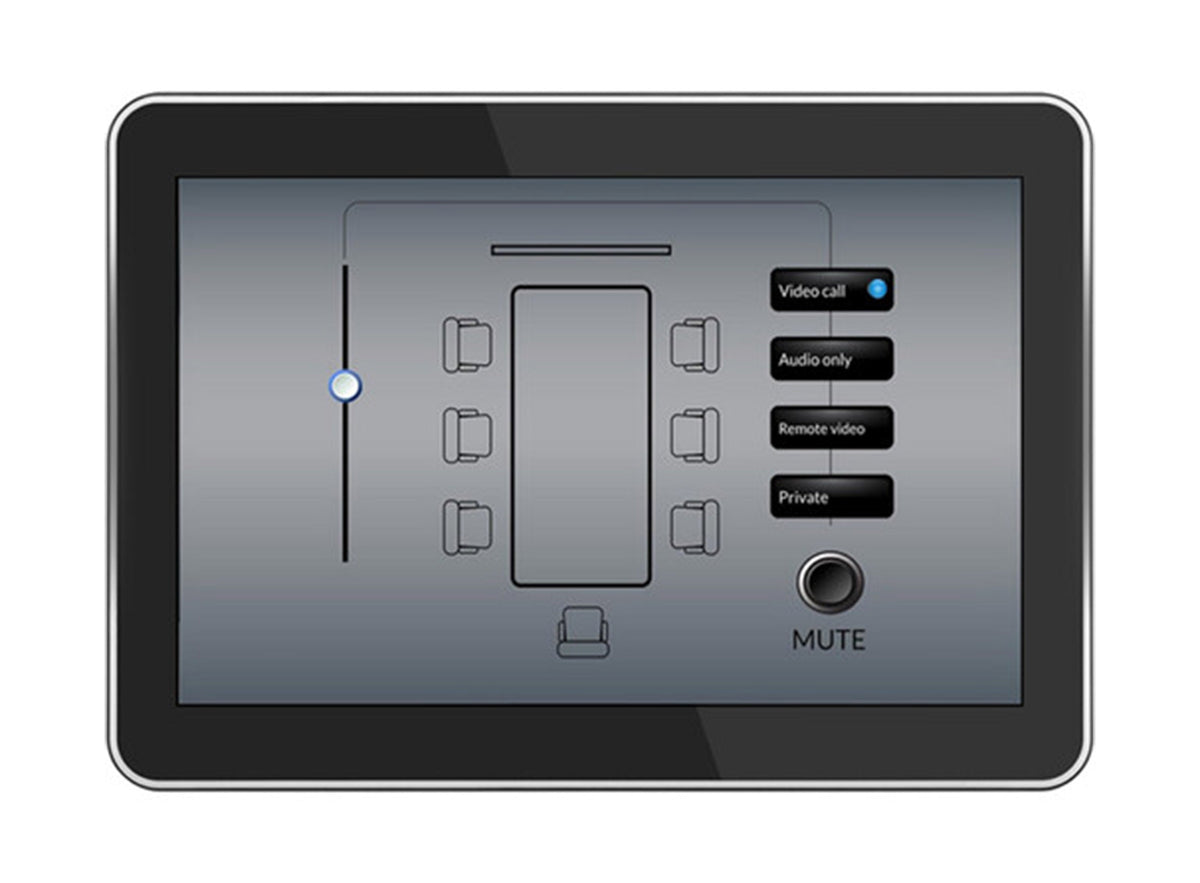

The Allen & Heath CC-10, 10-Inch Touch Panel for Custom Control App is designed as the perfect control companion for your installed AHM matrix processors, dLive, or Avantis systems. Powered by the Allen & Heath Custom Control App, the CC-10 connects to your system via Ethernet and can be powered over Ethernet or via an included DC adapter. It utilizes a 75x75mm VESA mount pattern and can be wall or desktop mounted. Allen & Heath offers the dedicated CC-STN desktop stand, or CC-BRK wall mount bracket (sold separately).
Product Specifications:
Display Size: 10"
Aspect Ratio: 16:10
Display Orientation: Landscape
Resolution: 1280 x 800
Maximum Brightness: 500 nits / cd/m2
HDR Compatibility: None
Contrast Ratio: 800:1
Refresh Rate: Not Specified by Manufacturer
Bit Depth / Color Support: Not Specified by Manufacturer
Viewing Angle (H x V): 160 x 160°
Pixels Per Inch (ppi): 151 ppi
Touchscreen Technology: Projected Capacitive
Multi-Touch Points: 5
TV Tuner: No
Wireless: None

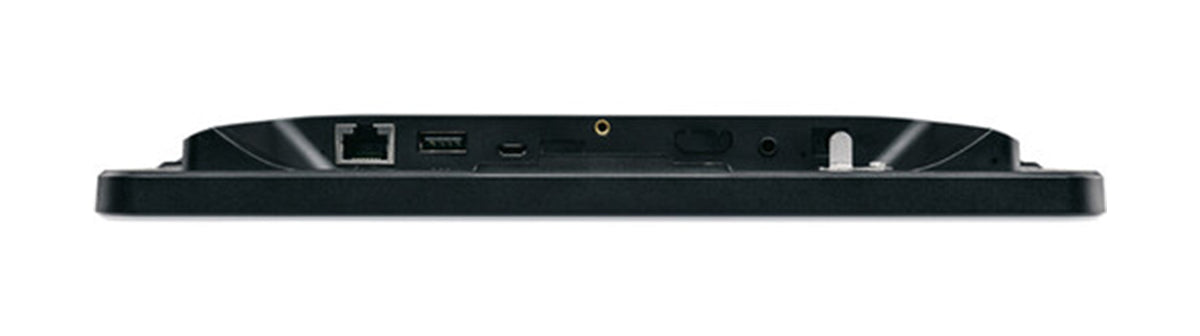

USB I/O: 1 x USB-A 2.0 (Service/Control)
Ethernet I/O: 1 x RJ45 Gigabit Ethernet
Multi-Input Support (PIP/PBP): None
Built-In Speakers: No
Media Card Reader: None
Operating Temperature: 32 to 104°F / 0 to 40°C
DC Input Power: 12 VDC at 2 A
Power Adapter Type: External

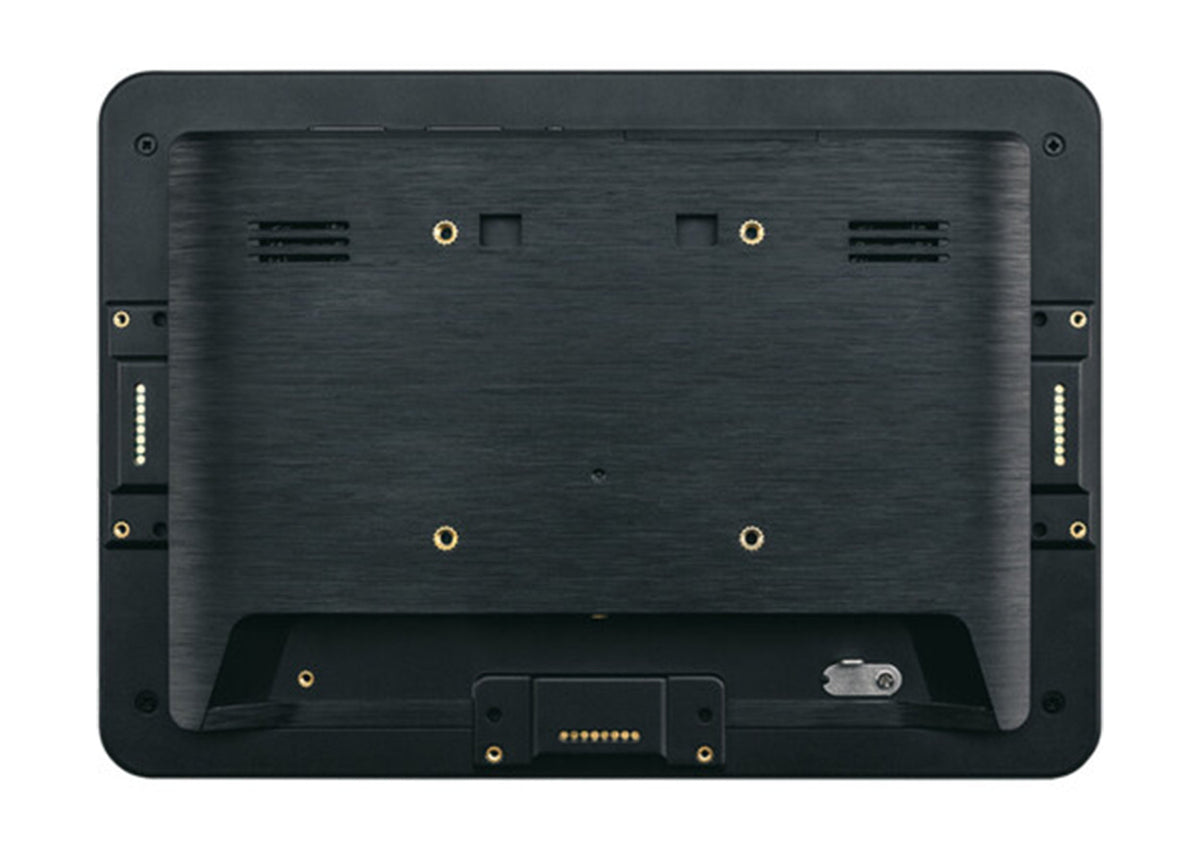

Mounting-Hole Pattern: 75 x 75 mm
Bezel Thickness
22.3 mm (Bottom/Top)
18.9 mm (Right/Left)
Dimensions: 10.1 x 7.1 x 1.1" / 255.3 x 181 x 26.7 mm
Package Weight: 2.37 lb
Box Dimensions (LxWxH): 14.9 x 9.9 x 2"
