The Allen & Heath SQ-Rack 96kHz Digital Mixer sets a new standard for compact professional mixing systems. Designed for live sound, AV production, and installation environments, this powerful 4U rackmount mixer combines premium audio quality with advanced digital processing and flexible connectivity.
At its heart lies Allen & Heath’s acclaimed 96kHz XCVI FPGA core, delivering ultra-high-resolution audio, stunning clarity, and sub-0.7ms latency. With 48 input channels, each featuring full DEEP processing capability, SQ-Rack ensures precise control over every sound source. It also includes 16+1 high-quality mic preamps and 3 stereo line inputs, providing exceptional headroom and transparency for any performance or installation setup.
The SQ-Rack’s SLink port enables seamless integration with Allen & Heath’s “Everything I/O” ecosystem, allowing effortless expansion for larger systems. A 64×64 I/O port supports networking options such as Dante, Waves, and MADI for flexible routing and system integration.

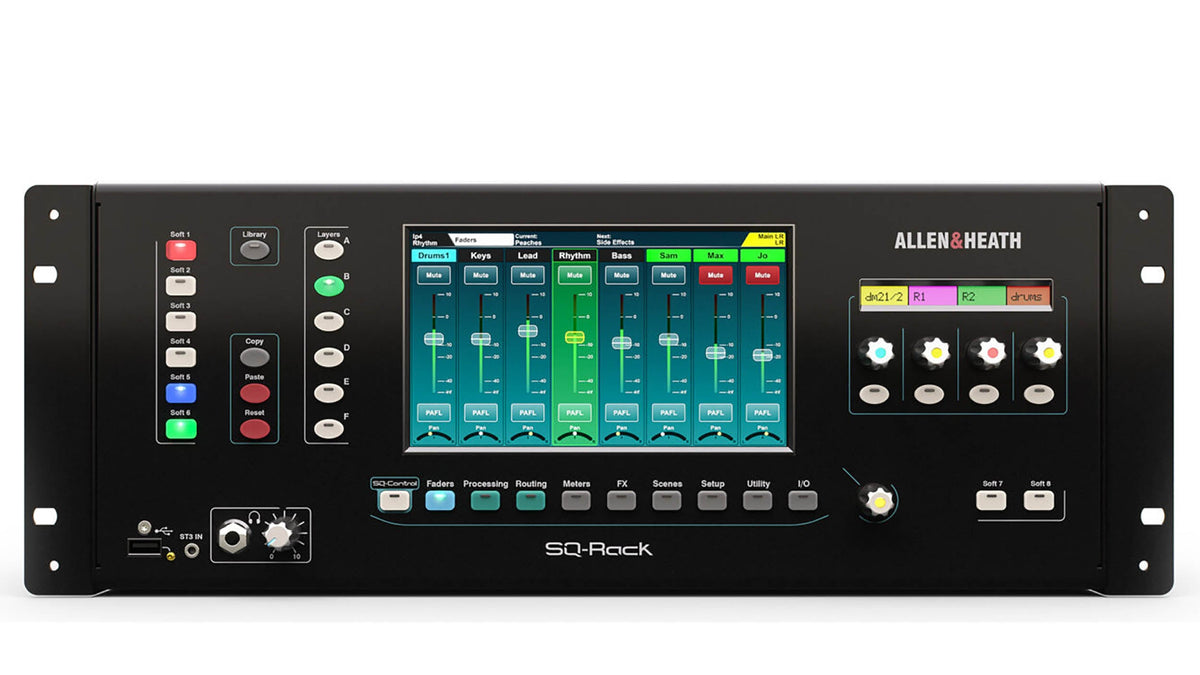

Control is intuitive and customizable through the 7-inch capacitive touchscreen, assignable SoftKeys, soft rotaries, and full compatibility with SQ remote apps, including SQ-MixPad, SQ-Control, and SQ4You, giving engineers hands-on control from anywhere in the venue.
For recording and streaming, the built-in SQ-Drive enables direct multitrack recording to USB at 96kHz, while the 32×32 USB audio interface ensures high-quality DAW integration. Compact yet incredibly powerful, the Allen & Heath SQ-Rack is the ultimate tool for professionals seeking pristine sound, flexible workflow, and total control all in one rackmount solution.
Product Specifications:
Processing Engine: 96kHz XCVI FPGA
Input Channels: 48
Mic Preamps: 16 + 1
Line Inputs: 3 stereos

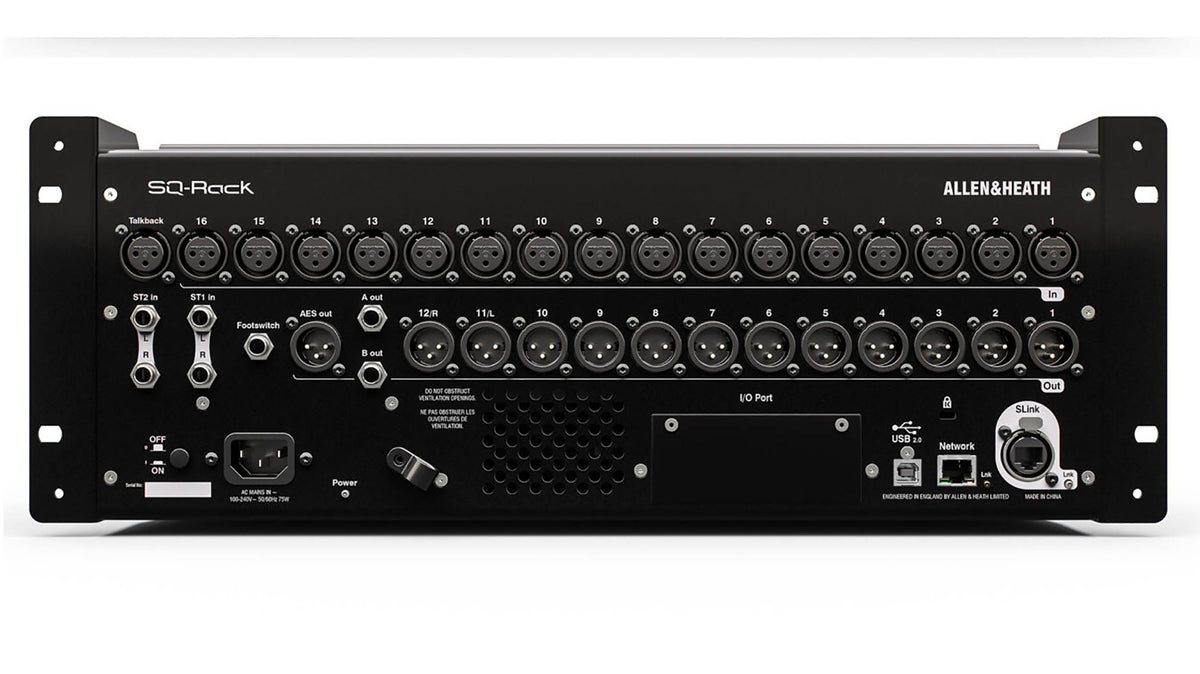

Outputs: 12 XLR line, 2 TRS line, 1 AES digital out
Mix Buses: 12 stereos + LR, 3 stereo matrices
FX Engines: 8 stereos
Latency: <0.7ms
Mounting: 19" Rackmount (4U)
Connectivity: SLink, 64×64 I/O card slot, USB, AES
Control Options: Touchscreen, SoftKeys, Soft Rotaries, SQ Apps
Recording: SQ-Drive USB direct recording, 32×32 USB interface
Shipping Weight: 17.46 lbs.
Shipping Weight: 23 × 14 × 11″
