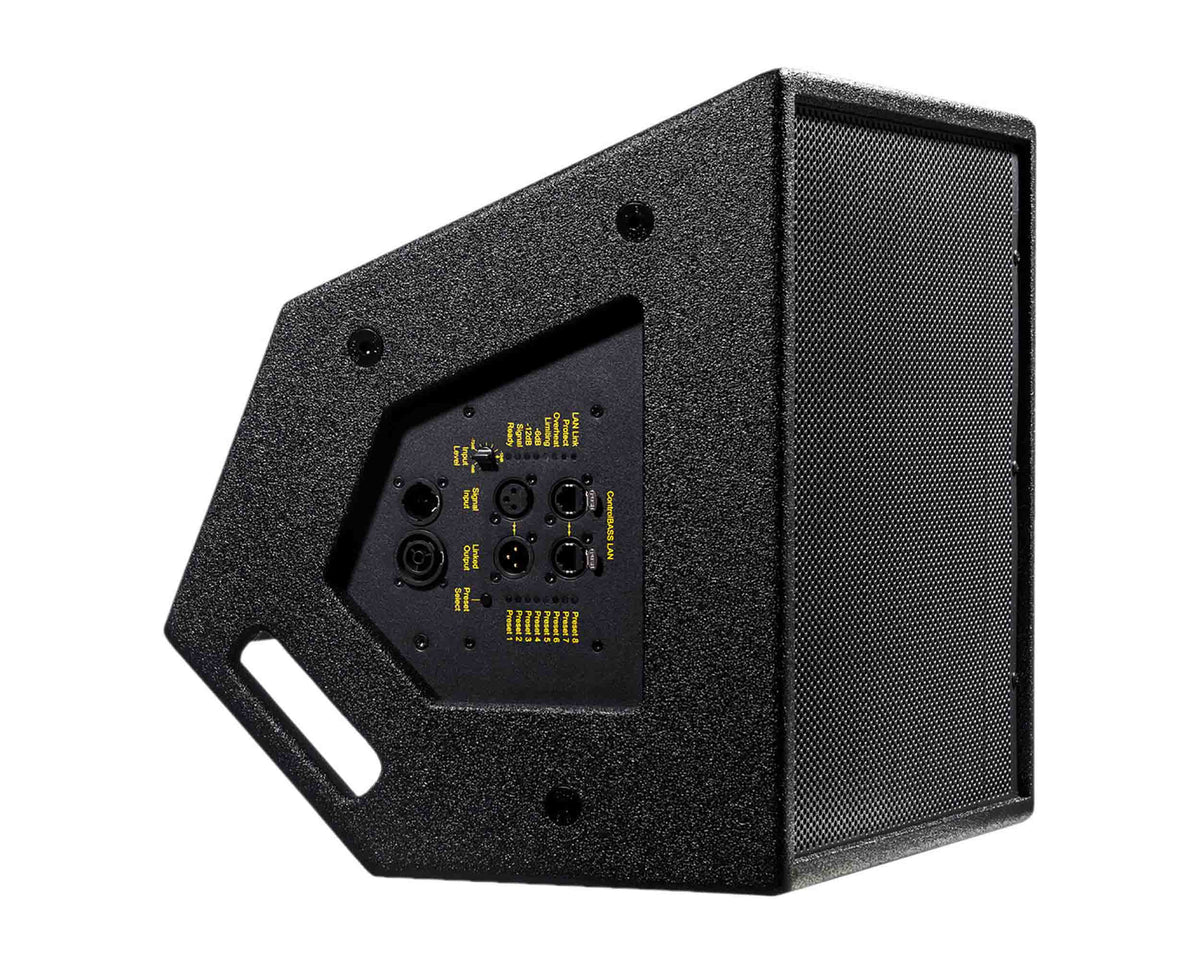

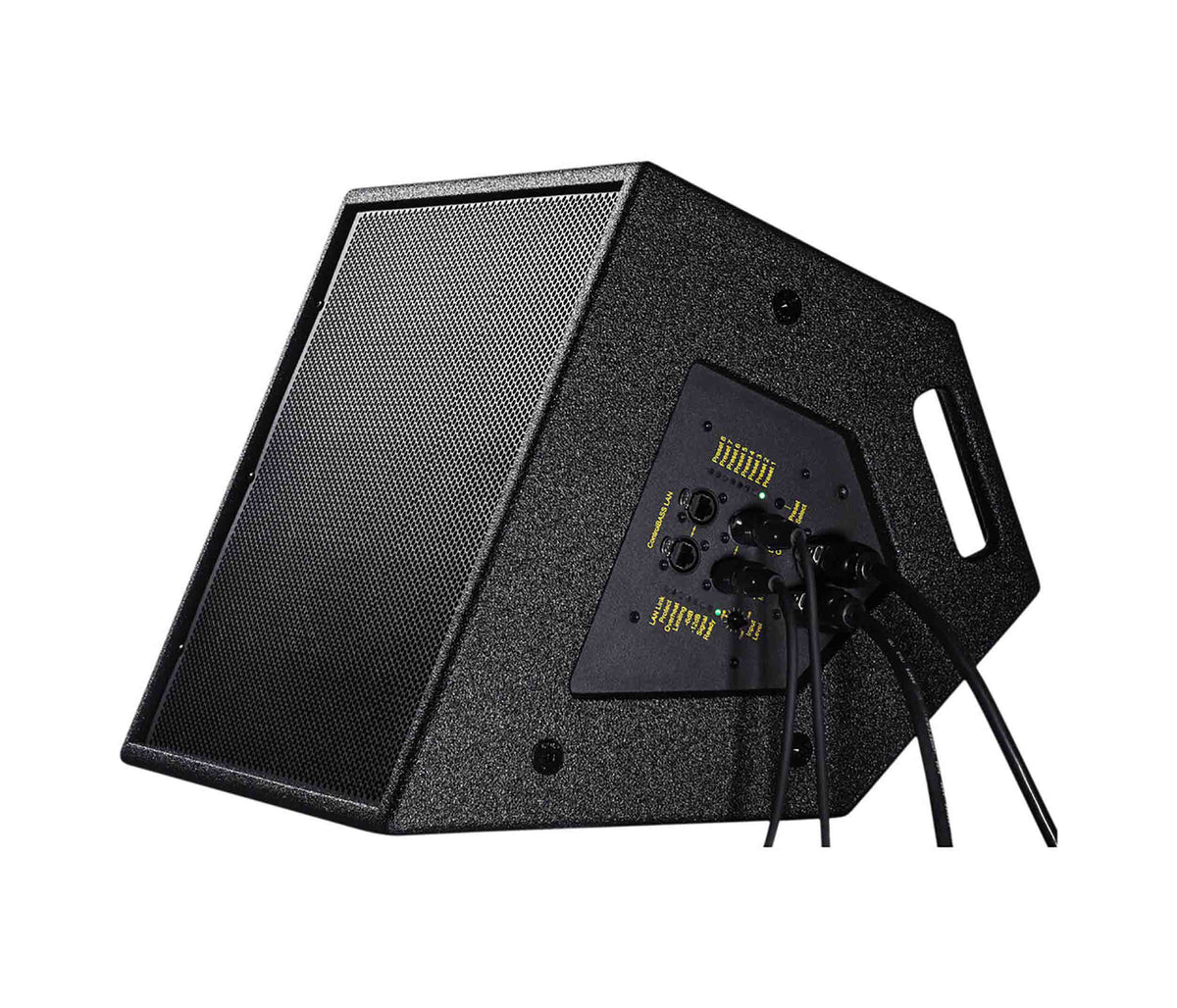

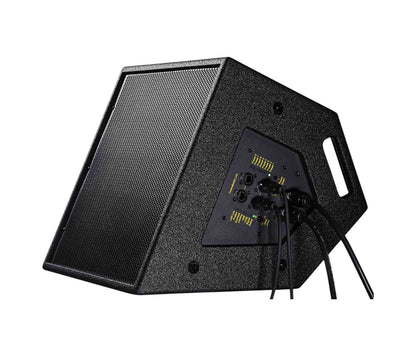

BASSBOSS CCM12-MK3 12-Inch 2-Way Coaxial Powered Monitor - 1200 Watt

The BASSBOSS CCM12-MK3 is a powerful and compact coaxial stage monitor designed to deliver clear, high-output sound in demanding live environments. Equipped with a 1200W Class-D amplifier (900W LF / 300W HF), it offers a wide frequency response from 50 Hz to 19 kHz and reaches a maximum SPL of 126 dB. The coaxial design ensures exceptional phase accuracy and consistent 80° conical coverage, making it ideal for performers who move around the stage.

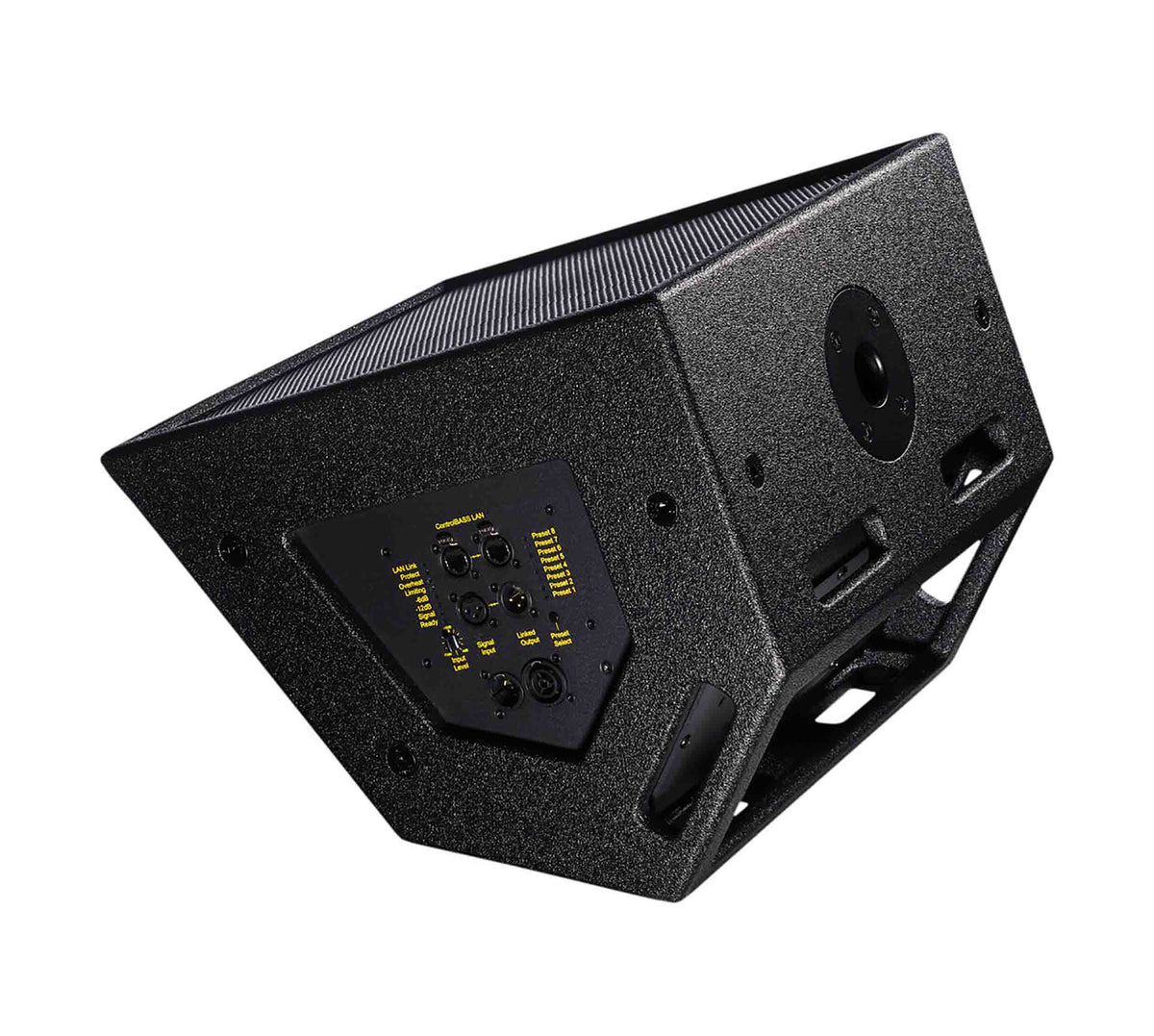

Its small footprint and lightweight Birch plywood construction make it easy to place in tight spaces, while its sealed enclosure enhances low-frequency response and transient accuracy. With flexible mounting and angle options, including three wedge positions, pole mount, and M10 fly-points, the CCM12-MK3 is perfect for stage monitoring, front-fills, or flown installations.

Onboard DSP with eight presets allows for quick optimization for different applications, from floor monitoring to high-SPL performance with subwoofers. Built-in protections, low-noise processing, and premium components ensure reliable, professional-grade audio in a compact and rugged form factor.

Product Specifications:

Configuration: 2-Way

Enclosure Type: Sealed

Total Output Power: 1200 W

Amplifier Power Rating:

Low Frequency (LF): 900 W

Mid Frequency (MF): 300 W

Amplifier Class: Class-D

Drivers:

LF Driver:

1x 12" / 30.5 cm Woofer

Voice Coil: 3" / 7.6 cm

Magnet: Neodymium

HF Driver:

1x 3" / 76.2 mm Horn-Loaded Compression Driver

Throat: 1.4" / 35.6 mm

Magnet: Neodymium

Performance:

Frequency Range/Response: 50 Hz to 19 kHz (±3 dB)

Maximum SPL:

123 dB (Continuous)

126 dB (Peak)

Coverage Angle: 80° Conical

Signal Processing:

EQ & Filters: No

Dynamic Processing: Limiter

Alignment Delay: No

Digital Signal Processing: User Settings, Venue Settings, Voicing Modes (Adjustable via Optional Software)

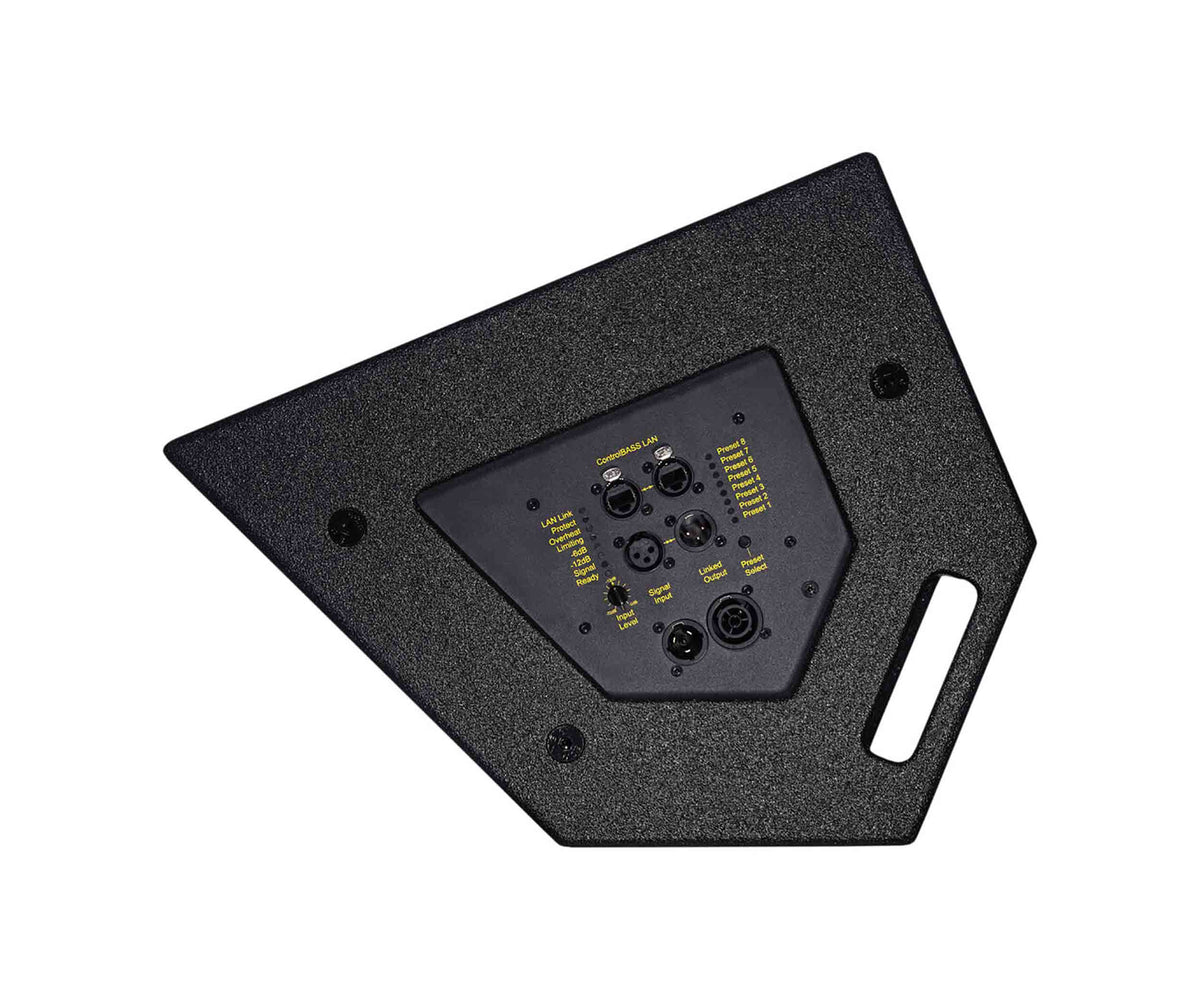

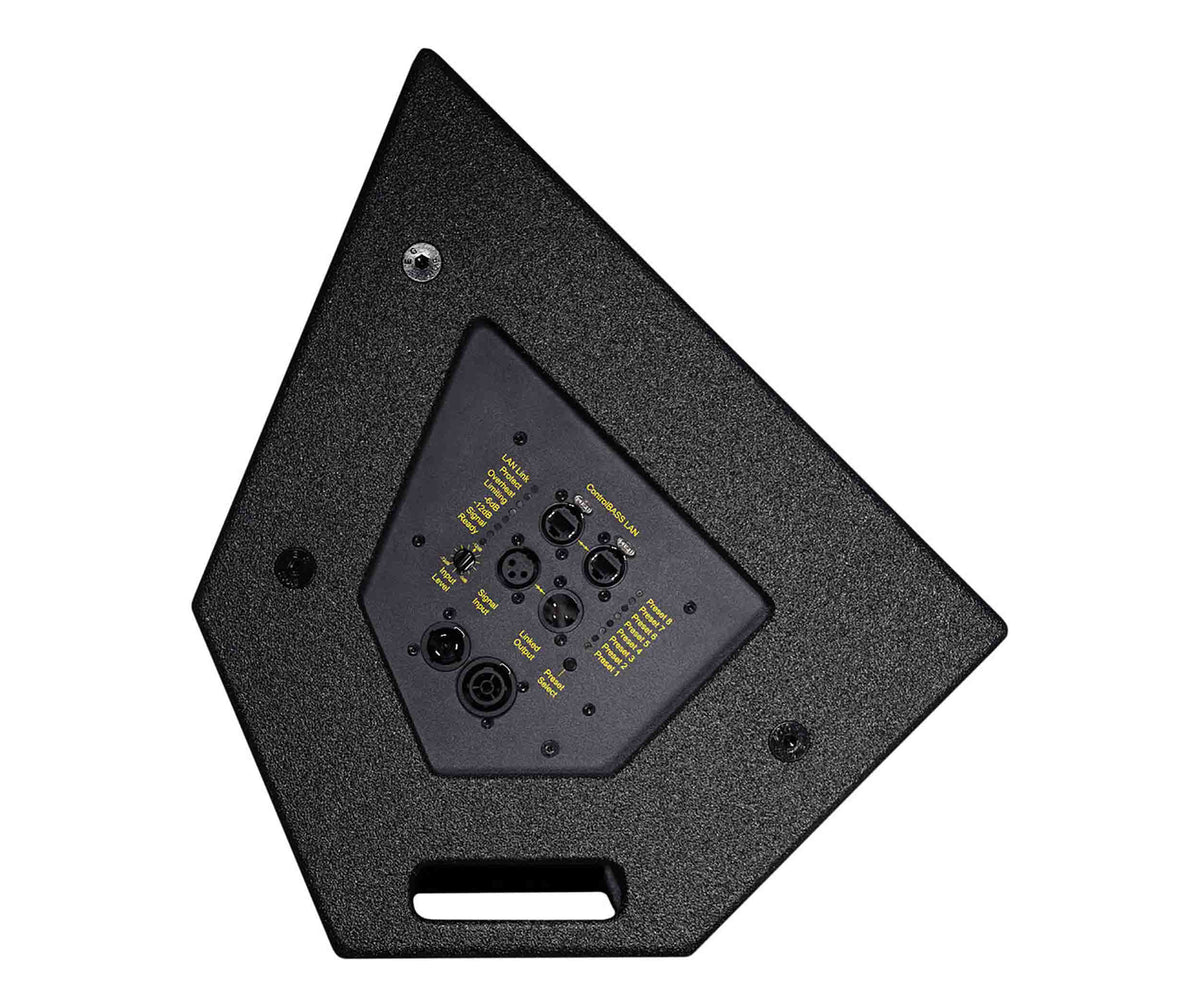

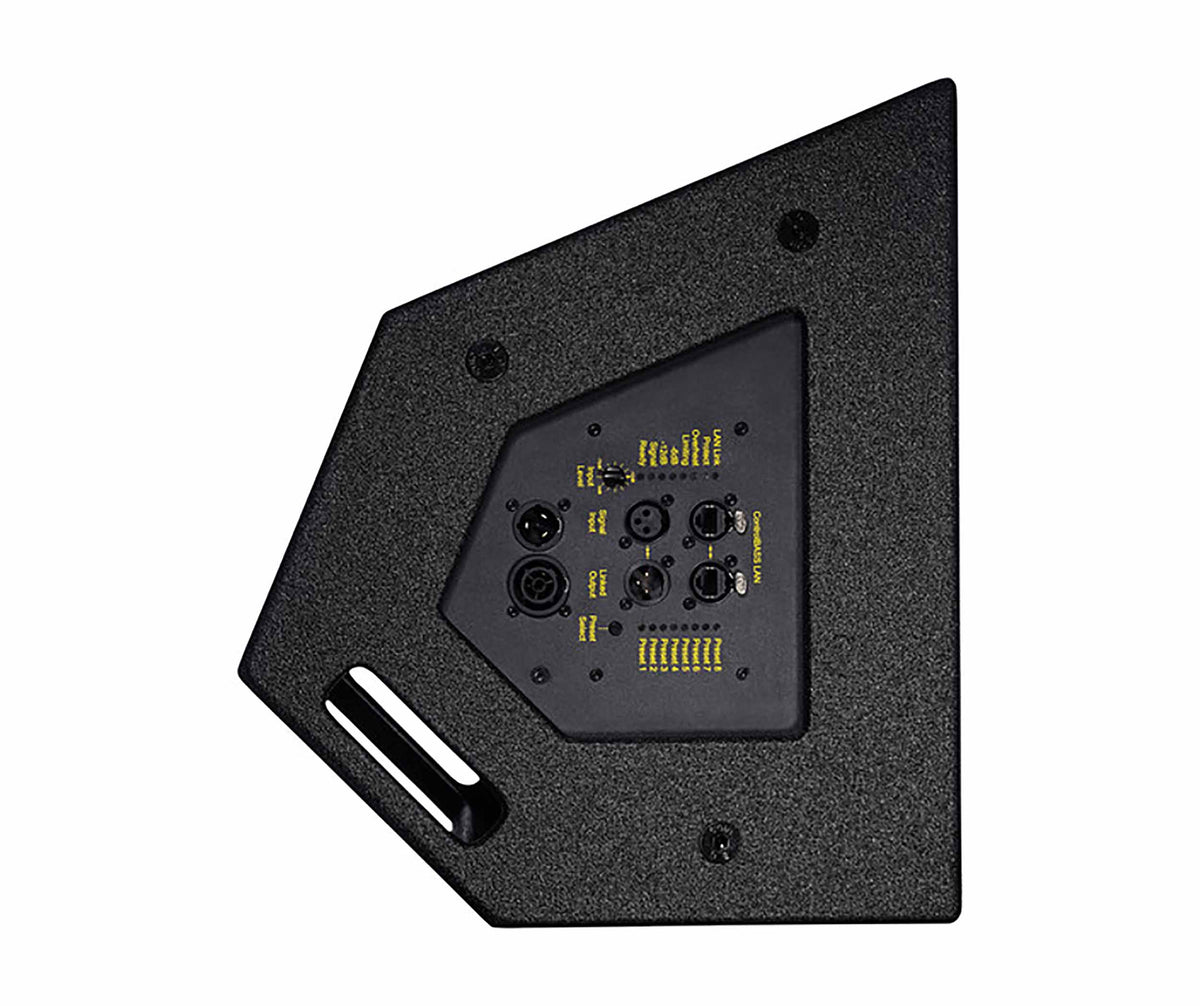

Connectivity:

Audio I/O:

1x XLR 3-Pin Line Input

1x XLR 3-Pin Line Thru

Network I/O: 2x etherCON/RJ45 (Ethernet/Milan AVB)

USB I/O: No

Wireless: No

Mobile App Compatible: No

Power:

AC Input Power: 100 to 240 VAC, 50 / 60 Hz

AC Power I/O: 1x powerCON TRUE1 Input

Current Consumption:

120 VAC: 1.4 A

240 VAC: 0.7 A

Color: Black

Mounting: 1 x 1.38" / 35 mm Pole Socket (Bottom)

Handles: No

Construction Material: Plywood, Polyurethane, Steel

Environmental Resistance: No

Dimensions: 16.5 x 15.8 x 14" / 41.9 x 40.1 x 35.6 cm

Weight: 35 lb / 15.9 kg

Shipping Weight: 39.345 lb

Shipping Dimensions (LxWxH): 19.7 x 19.6 x 16.2"
