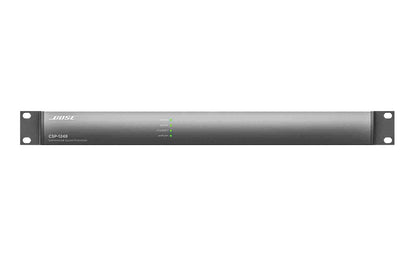

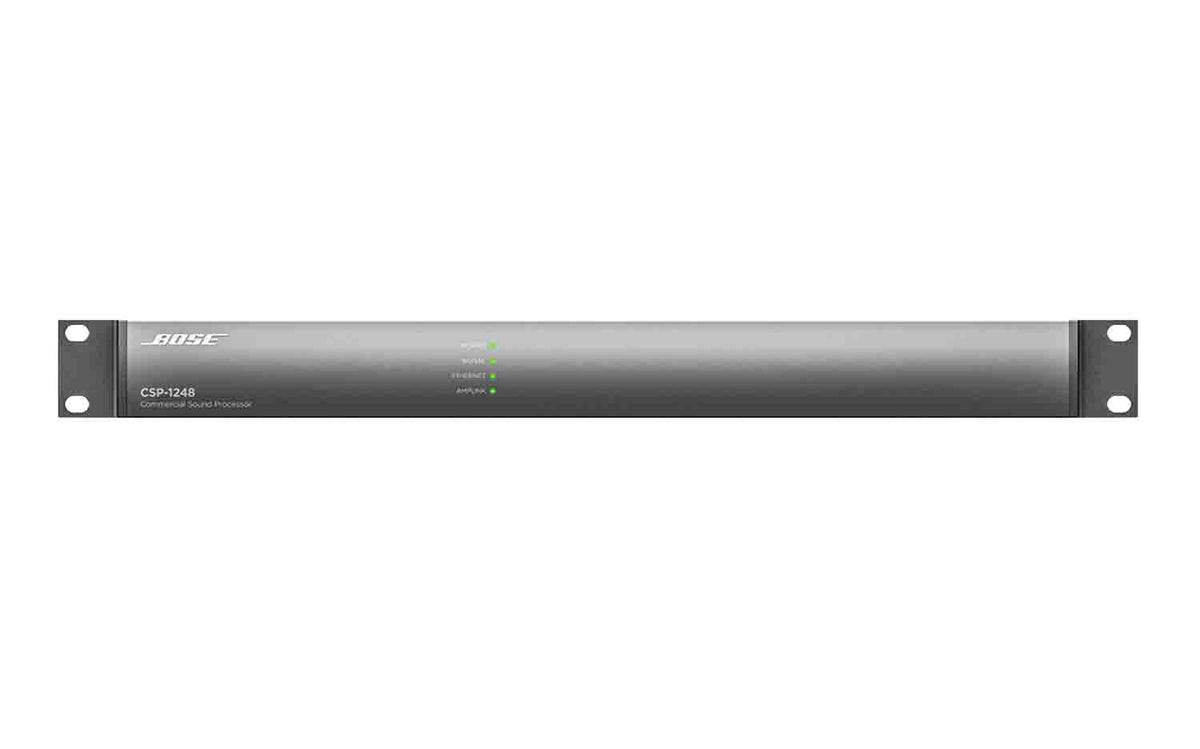

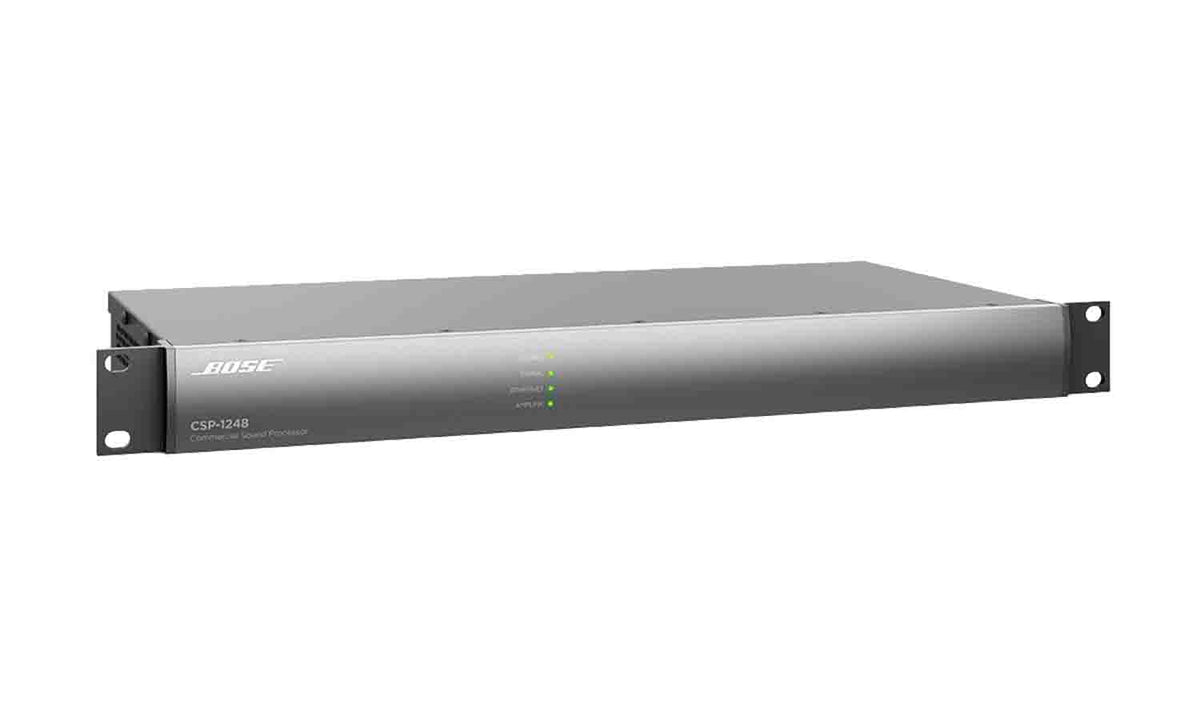

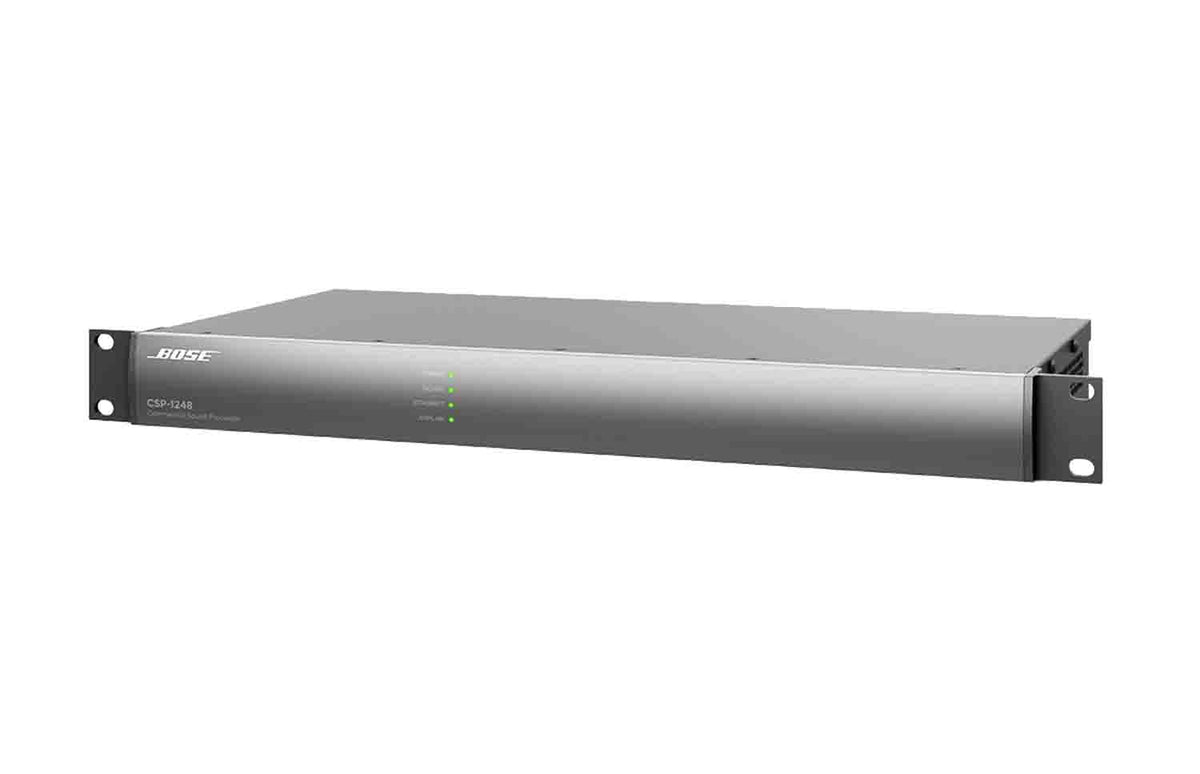

Bose CSP-1248 Commercial Sound Processor Balanced Analog I/O
Bose CSP-1248 Commercial Sound Processor Balanced Analog I/O
Model / SKU: H-BOSE-CSP1248
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The Bose CSP-1248 is a Commercial Sound Processor with 8 x 4 Balanced Analog I/O. The DSP for quick-turn installations. Bose commercial sound processors are part of a comprehensive platform that includes loudspeakers, controls, and software that help installers deliver premium sound systems efficiently. An onboard CSP configuration utility and intuitive browser-based UI provide a quick-setup workflow. Common tasks are presented in a logical manner, so you can configure the system faster, reducing installation time while increasing setup accuracy. Once installed, Bose-proprietary algorithms offer predictable performance while optional interfaces such as ControlCenter digital zone controllers and the ControlSpace Remote app make operation easy for end-users.
Right-Sized Connectivity
Cost-effective commercial installation 8 x 4 balanced analog I/O, 4 pair mono-summed RCA inputs, 8 control inputs, 1 control output, mute contact, Ethernet port, and Bose AmpLink connectivity.
CSP Configuration Utility
Browser-based UI facilitates real-time display and control of levels, routing, thresholds, priorities, scheduled events, Bose loudspeaker EQs, plus input and area EQs.
Rear-Panel Ethernet Port
PC/Mac configuration; also allows for connection to networks supporting ControlCenter digital zone controllers and the ControlSpace Remote app.
AutoVolume Compensation
Continuously adapts zone output level based on ambient noise when paired with the Bose AVM-1 sense microphone (sold separately).
Intuitive End-User Operation
Optional ControlCenter CC-1D, CC-2D, and CC-3D digital zone controllers and the ControlSpace Remote app provide easy volume control and source selection.
Applications
Retail stores
Restaurants
Hospitality venues
Product Specifications:
Signal Processor/CPU: 32-bit fixed/floating-point DSP + ARM, 456 MHz
Input Channels:
8 analog (balanced, Mic/Line Level/Page-In)
4 analog (unbalanced, RCA Line-in, summed to mono)
Dynamic Range: 115 dB, A-weighted 20 Hz to 20 kHz, analog through, 600 Ω load Ω
Output Channels:
4 analog (balanced, Line Level)
8 digital (AmpLink output)
PC Configuration Software: Integrated web server with configuration utility
