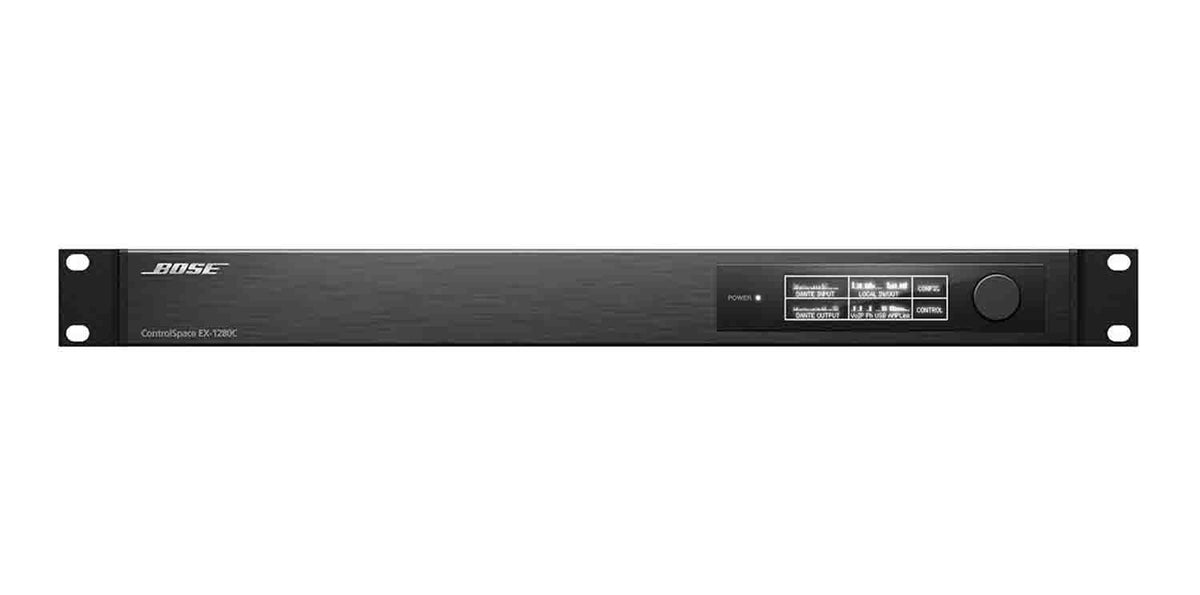

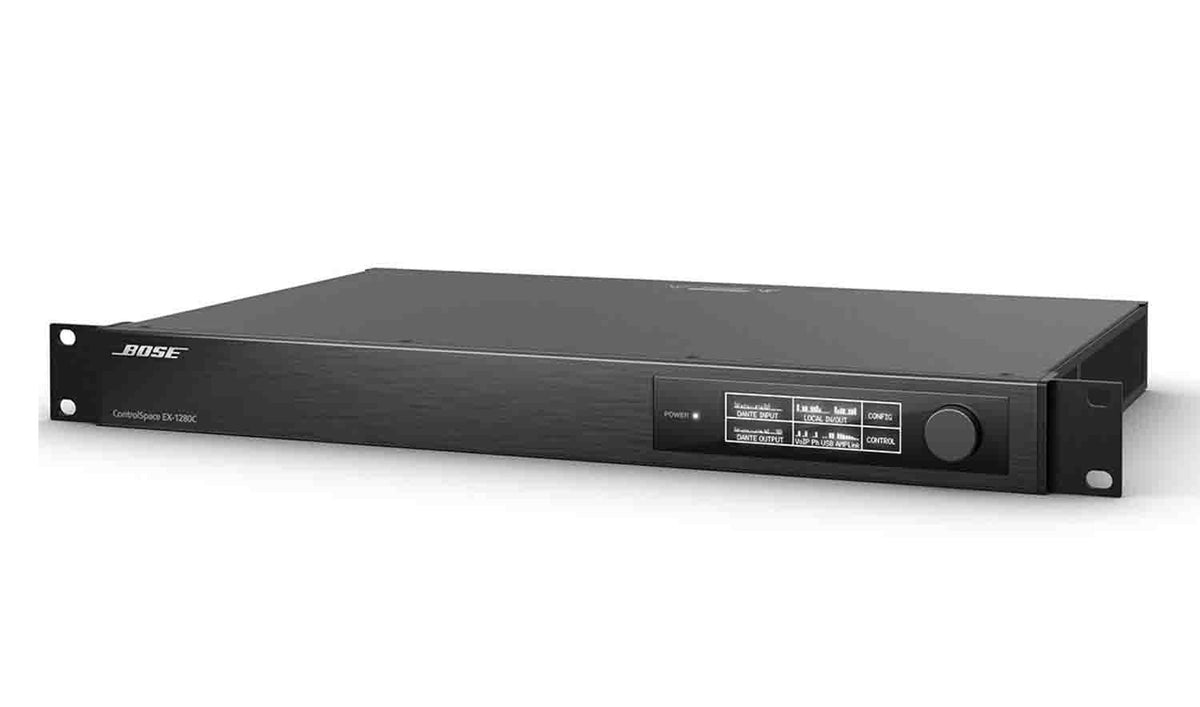

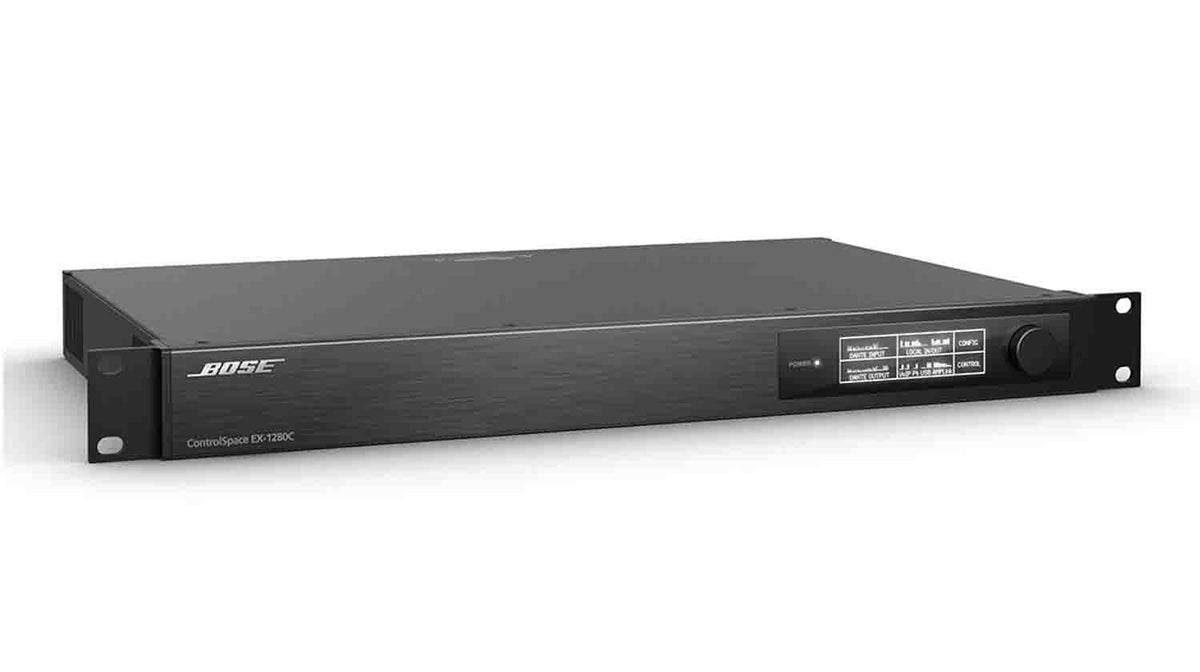

The Bose EX-1280C is a ControlSpace Conferencing Sound Processor. A flexible DSP platform for scalable systems, ControlSpace EX conferencing processors have the features to support rooms of various sizes and the flexibility to meet future needs. With an open-architecture, all-in-one design, the ControlSpace EX-1280C offers signal processing for integrated-microphone audio conferencing applications. As the highest-capability processor of the ControlSpace EX family, the EX-1280C includes 12 mic/line analog inputs, 8 analog outputs, 8 AmpLink digital outputs, 12 acoustic echo cancellers (AEC), and 64 x 64 Dante connectivity. ControlSpace Designer software simplifies the setup process with drag-and-drop programming, making configuration quick and easy.
Applications
Performance venues
Stadiums and arenas
Places of worship
Resorts and Hospitality Venues
Multipurpose spaces
Product Specifications:
Signal Processor: 32-bit fixed/floating-point DSP 456 MHz/ARM Cortex-A8 600 MHz
Dynamic Range: > 115 dB A-weighted 20 Hz, 20 kHz, analogy input to analog output
Output Channels: 8 balanced, line-level
Frequency Response: 20 Hz to 20 kHz (+0.3 dB/-0.1 dB)
Input Channels: 12 balanced, mic/line level
PC Configuration Software: ControlSpace Designer software version 5.5 or later
