Bose IZA 2120 HZ, 120V Free Space Zone Amplifier
Bose IZA 2120 HZ, 120V Free Space Zone Amplifier
Model / SKU: H-BOSE-IZA2120HZ
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The Bose IZA 2120 HZ, 120V FreeSpace Zone Amplifier elevates the audio experience when using Freespace loudspeakers. Optimized for commercial applications, FreeSpace IZA amplifiers feature selectable Loudspeaker EQ to enrich audio quality, Opti-voice paging for clear speech intelligibility while providing seamless transitions and Dynamic EQ that ensures full and balanced music at any volume level.
True two-zone capability:
Provides two independent outputs that each support volume/source selection remotes, EQ, tone controls, and paging/auxiliary routing options.
Opti-Voice Paging:
Equalizes the vocal frequency range for clear speech intelligibility while providing seamless transitions.
Dynamic EQ:
Ensures full and balanced music at any volume level.
Independent Loudspeaker EQ Per Output:
Enriches audio quality and simplifies connection to Bose Professional loudspeakers: FreeSpace® 3 systems, FS3 subwoofer, FS2, FS4 and DesignMax DM2.
Dual Remotes:
Support optional volume/source selection for independent, or combined, zone control which eliminates the need for bulky, inefficient, and sound-altering 70/100V in-line volume controls.
Reliable 2 X 120 W:
Class-D amplification optimized for 70/100V high-impedance applications.
Intuitive Feature Setup:
Enables the amplifier to be configured without a PC for remote, paging, auxiliary input/output and automatic standby options.
Auto-Standby Feature:
Allows the amplifier to consume less power when not in use.

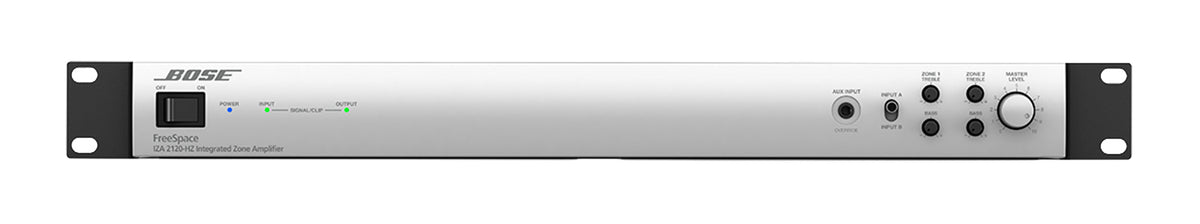

Simplified Front Panel Interface:
Provides end users with tone, source selection and master volume controls as well as a connection to mobile sources via a 3.5 mm connector.
Remote Muting:
Allows the amplifier to be muted via a centralized control system.
Product Specifications:
Frequency Response
55 Hz - 20 kHz (+0/, 3 dB, @ 1 W reference 1 kHz)
Amplifier Power
2 x 120 W @ 70/100V
THD+N
≤ 0.3 % (at rated power)
Dynamic Range
88 dB
Built-in Loudspeaker EQ
Bose Professional FreeSpace 3 systems
FS3 subwoofer
FS2, FS4 and DesignMax DM2

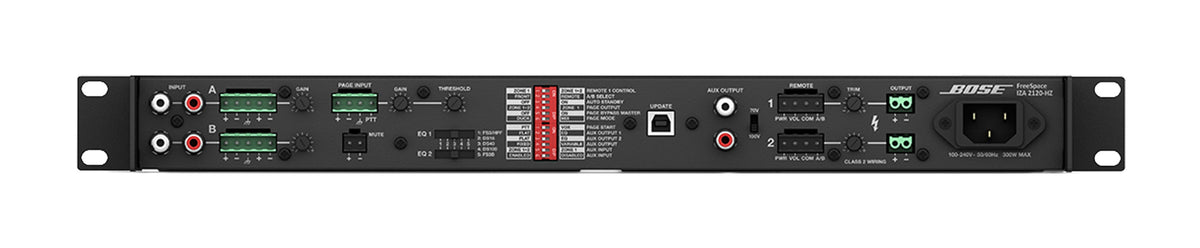

Input Channels
Line Inputs: 2 unbalanced, 2 balanced
Page Input: 1 balanced mic/line
Auxiliary Input: 1 unbalanced line
Shipping Weight: 13 lbs
Shipping Dimension (L, W, H): 23, 15, 5
