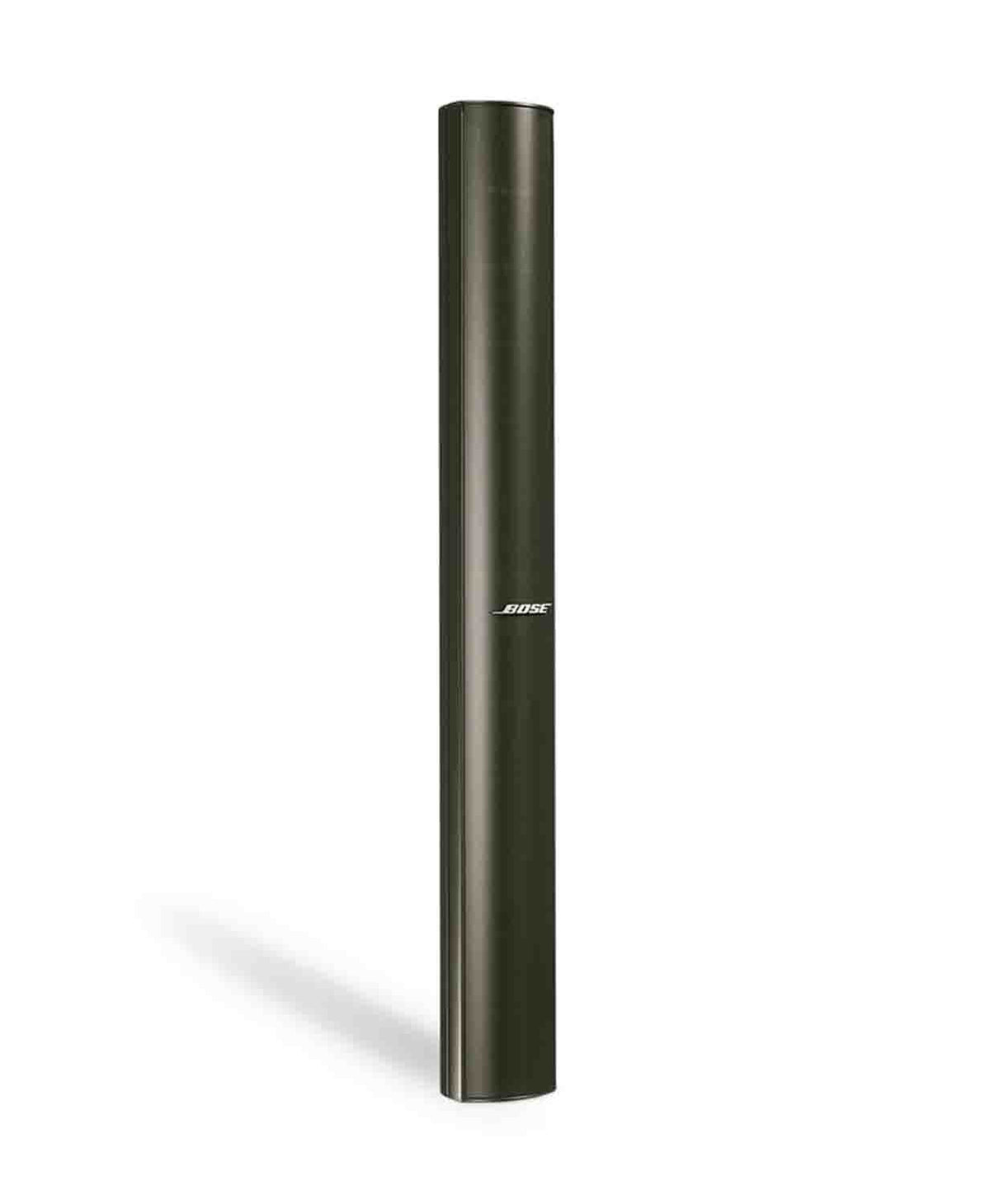

Bose MA12 BLACK, Panaray Modular Line Array Loudspeaker - Black

The Bose MA12 BLACK is a Panaray Modular Line Array Loudspeaker. Wide 145° horizontal coverage. Designed to provide outstanding vocal intelligibility in acoustically demanding spaces. Slim column enclosure blends with almost any décor.

Twelve 2.25" (64 mm)

Drivers mounted in a vertical line array deliver wide horizontal coverage with narrow vertical pattern control.

Modular Design

Allows stacking of multiple enclosures in a line array configuration to provide increased vertical pattern control which improves “throw” distance and reduces unwanted floor/ceiling reflections.

145° Horizontal X 20° Nominal Coverage

Coverage for a single module. Vertical coverage varies with the number of modules stacked in the line array configuration.

Mid/High Configuration

Allows bass management and design flexibility. Use with Bose MB4, MB12, or MB24 modular bass loudspeakers for full-range reinforcement.

Optional Brackets

Allow easy installation of single-, double- or triple-stack line array modules.

Applications:

Houses of worship

Multi-purpose spaces

Recreation

Restaurants and bars

Auditoriums

Transportation facilities

Gymnasiums

Atriums and malls

Product Specifications:

Frequency Response (+/-3 dB): 155 Hz - 12 kHz

Frequency Range (-10 dB): 100 Hz - 16 kHz

Nominal Dispersion: 145° H x 20° V

Long-Term Power Handling: 300 W (1200 W peak)

Sensitivity (SPL / 1 W @ 1 m): 88 dB SPL

Maximum SPL @ 1 m: 113 dB SPL (119 dB SPL peak)

Nominal Impedance: 8 Ω
