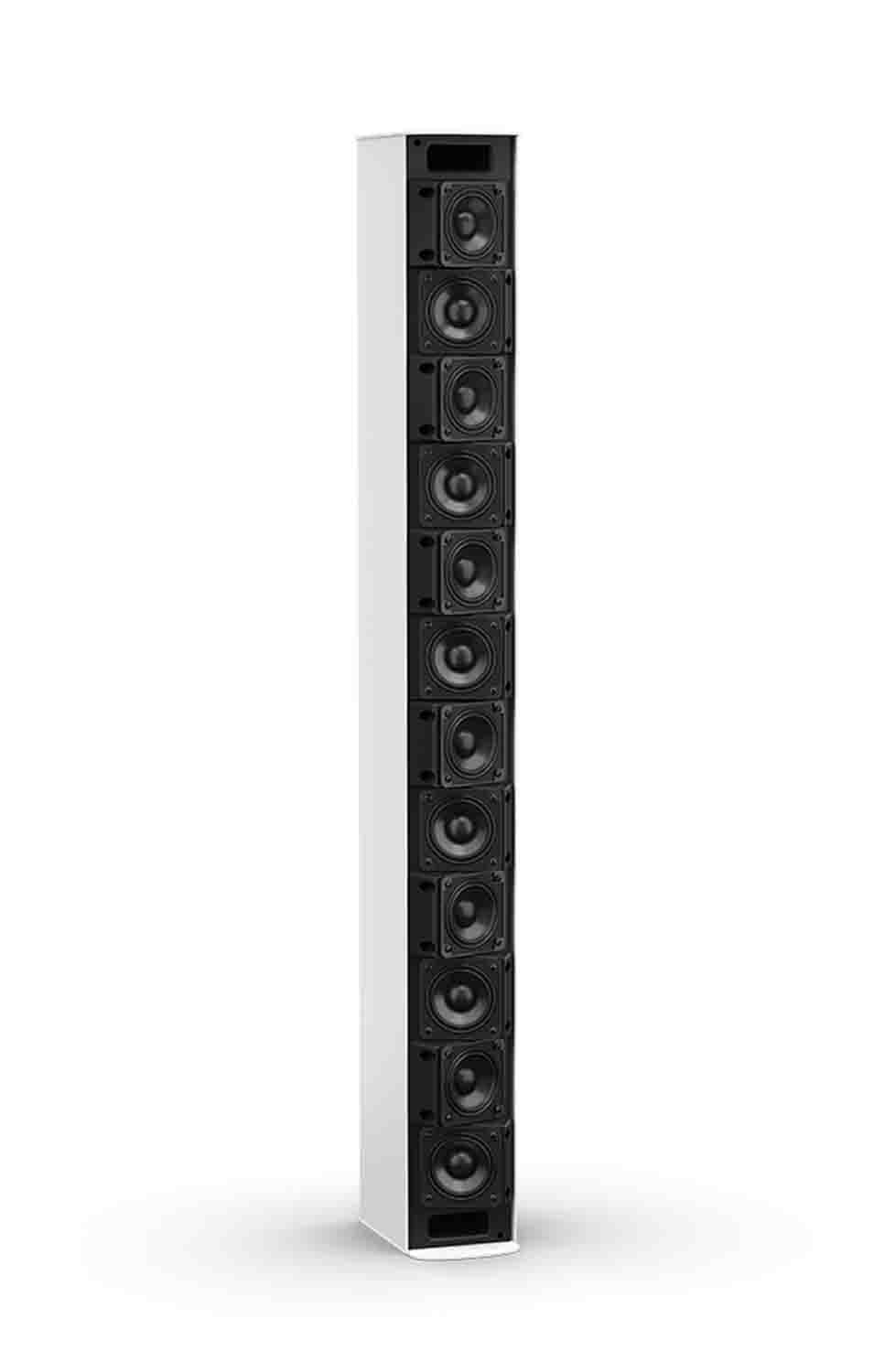

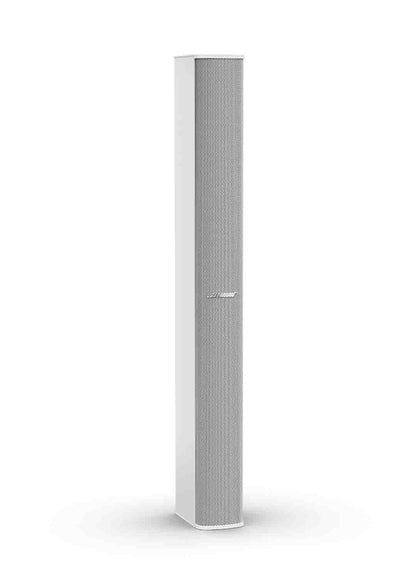

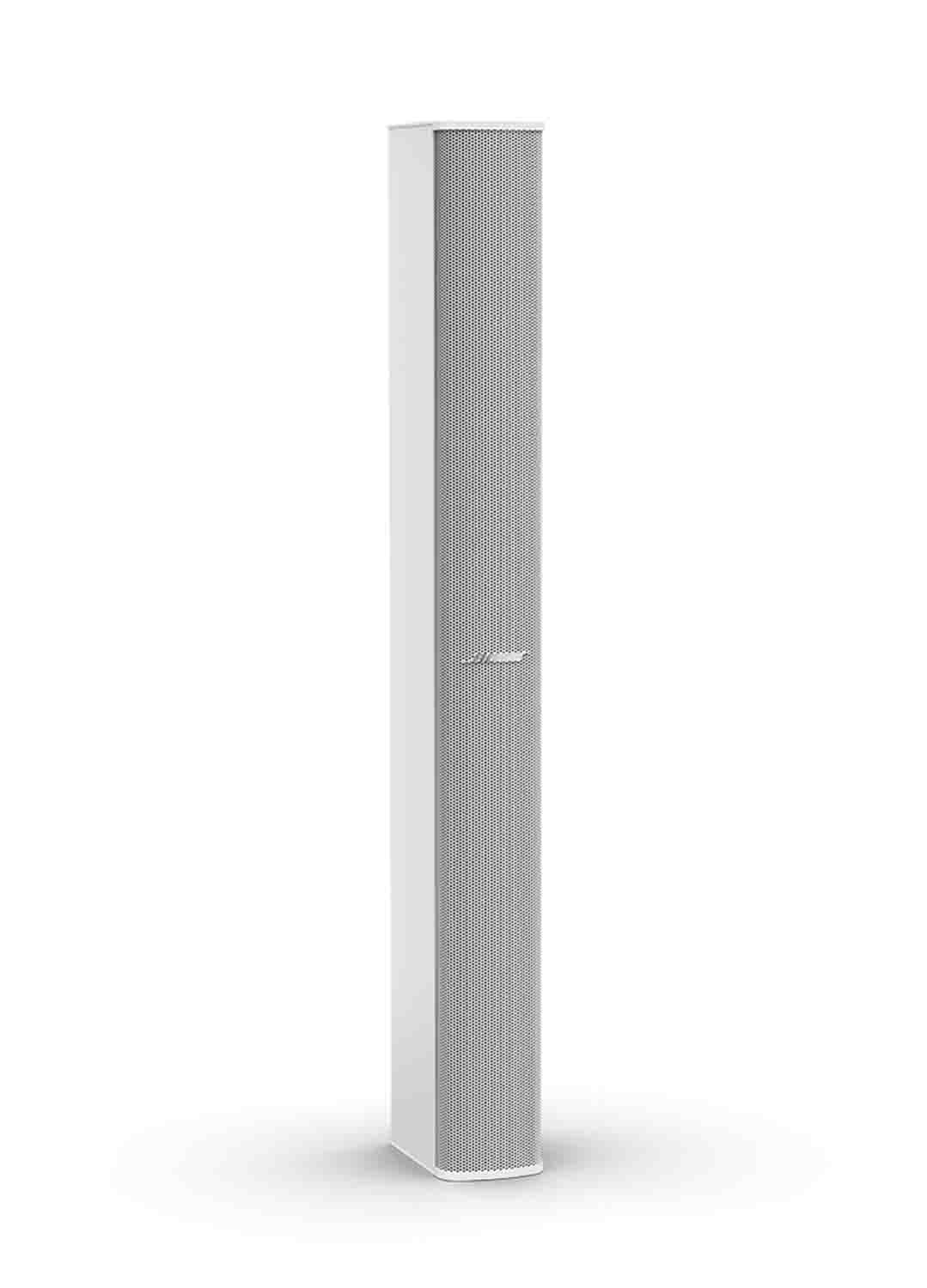

Bose MSA12X Panaray Pro Digital Beam-Steering Speaker - White
Bose MSA12X Panaray Pro Digital Beam-Steering Speaker - White
Model / SKU: H-BOSE-MSA12XWHITE
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The Bose MSA12X WHITE is a Panaray Professional Digital Beam-Steering Loudspeaker. The Bose Professional Panaray MSA12X is a self-powered digital beam-steering loudspeaker that enables improved room aesthetics, with outstanding vocal intelligibility and tonal consistency. The proprietary Articulated Array transducer configuration allows wide, 160° horizontal coverage throughout the room, and MSA12X’s modular design allows the building of vertical arrays using 1-3 units. Dante’s digital audio network interface comes standard for connection with other Dante-enabled products over Ethernet-based networks.
Applications
Houses of worship
Auditoriums
Transportation facilities
Conference Rooms
Lecture Halls
Product Specifications:
Frequency Range (-10 dB): 58 Hz, 18 kHz
Horizontal Dispersion: 160° H
Vertical Opening Angles: Software Adjustable: 1 module: up to 30°, 2-3 modules: up to 40°
Vertical Beam Steering Angles: + / - 20°
Driver Compliment: Twelve (12) x 2.25-inch full-range transducers
Amplifier Power Handling: 600 W (12 x 50 W)
Maximum SPL @ 1 m: 112 dB SPL (118 dB SPL peak)
