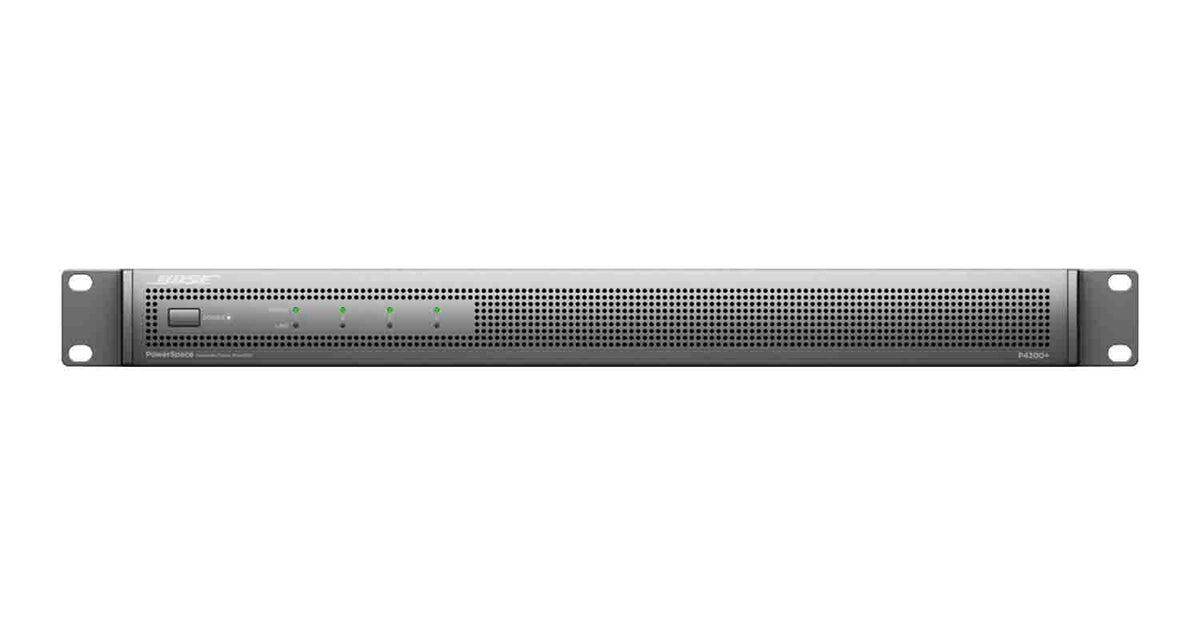

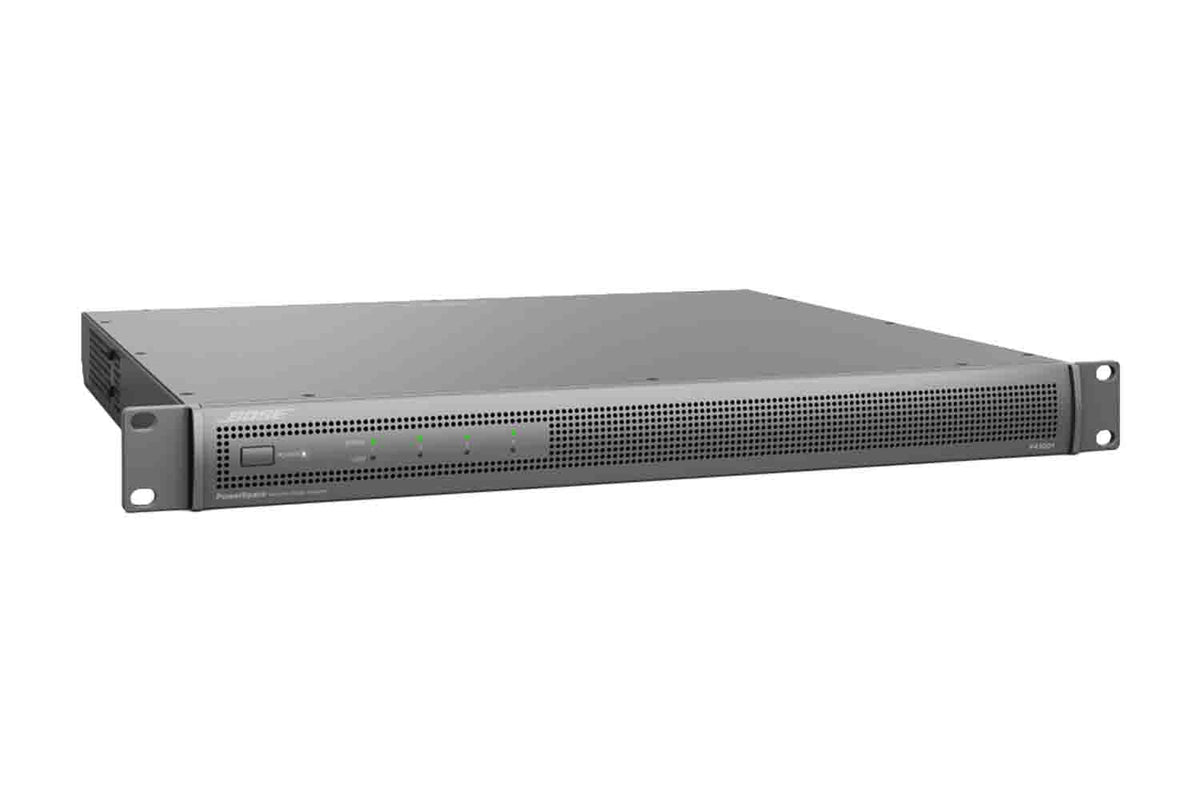

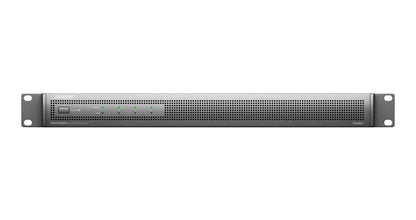

Bose P4300+ PowerSpace 4-Channel 300W Power Amplifier

The Bose P4300+ is a PowerSpace 4-Channel 300W Power Amplifier. The Bose PowerSpace P4300+ amplifier combines power and DSP into a 1RU, four-channel design for quick-turn installations. Part of a comprehensive platform of loudspeakers, controls, and software that help installers deliver premium commercial sound systems efficiently, Bose PowerSpace+ amplifiers feature a quick-setup workflow. An onboard configuration utility and intuitive browser-based UI present common tasks in a logical manner, so you can configure the system faster, reducing installation time while increasing setup accuracy. Once installed, Bose-proprietary algorithms offer predictable performance while optional interfaces such as ControlCenter analog zone controllers make operation easy for end-users. For premium commercial applications, Bose PowerSpace+ models provide amplification and DSP in one integrated, easy-to-configure package.

300 watts per channel and works seamlessly with Bose loudspeakers and controls to create complete commercial sound systems. Built-in DSP, including SmartBass processing, routing, level control, delays, limiters, Bose loudspeaker EQs, plus input and area EQs. PowerSpace configuration utility facilitates setup with an integrated webserver and intuitive browser-based UI, including real-time control with signal and thermal monitoring. Opti-voice paging provides a smooth transition between music and announcements. Integrated features to simplify commercial installations: Dedicated input for 600-ohm telephone or mic paging, independent 600-ohm music-on-hold and line-level aux outputs, and a NO/NC mute connection.

Load-independent outputs deliver full channel power to either low-impedance loads (4-8 Ω) or high-impedance (70/100V) loads without bridging. I-Share outputs deliver 2x power level by combining the current of two channels. Auto-standby mode saves power when the audio signal falls below a set threshold, then wakes when audio returns.0020Intuitive end-user operation optional ControlCenter CC-1, CC-2, and CC-3 analog zone controllers provide easy volume control and source selection.

Applications

Retail stores

Restaurants and bars

Hospitality venues

Conference centers

Schools

Auxiliary zones

Product Specifications:

Maximum Rated Power: 4 x 300 W (THD+N < 0.04%, 1 kHz, 4-8 Ω, 70/100V)

Output Channels:

4 speaker

2 auxiliary

Input Channels:

4 balanced

2 unbalanced
