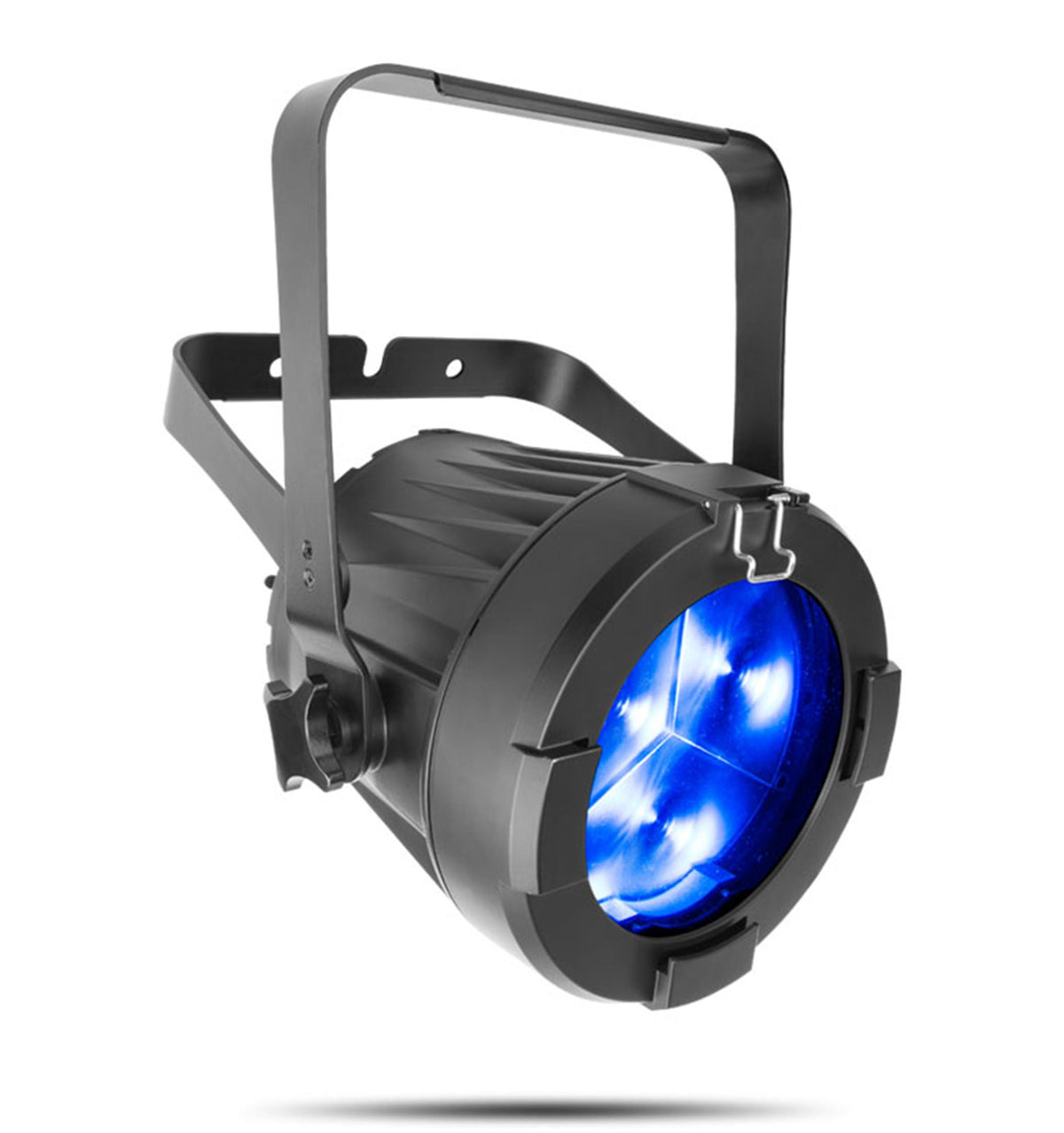

Chauvet Pro COLORado 3 Solo RGBW LED Lighting Fixture
Chauvet Pro COLORado 3 Solo RGBW LED Lighting Fixture
Model / SKU: H-CHAU-COLORADO3SOLO
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The Chauvet Pro COLORado 3 Solo RGBW LED Lighting Fixture uses an advanced fast and smooth zoom and three 60 W RGBW LEDs to project an intense and fully homogenized beam through precision optics. This indoor/outdoor wash light has IP rated power and data connectors, and full convection cooling to ensure a reliable and silent performance in a wide range of applications, from theatrical stages to outdoor festival productions.
Product Specifications:
Optical
Light Source: 3 LEDs (quad-color RGBW) 60 W, (4.4 A), 50,000 hours life expectancy
Beam Angle: 4° to 34°
Field Angle: 8° to 45°
Zoom Range: 4° to 45°
Illuminance (4°): 15,280 lux @ 5 m
Illuminance (34°): 313 lux @ 5 m
Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 2400 Hz, 6000 Hz, 25,000 Hz
Dynamic Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 25 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 5
Built-in Automated Programs: Yes
Customizable Programs: Yes
Recall Custom Programs: Yes
Construction / Physical
Dimensions: 9.84 x 12.36 x 16.25 in (250 x 314 x 413 mm)
Weight: 19.8 lb (9 kg)
Exterior Color: Black
Housing Material: Magnesium
Accessory Holder/Gel Frame Size: 7.5 in (191 mm)
Connections
Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin IP65 XLR
Cable Length (power): 5 ft (1.5 m)
Control
Protocol(s): DMX, RDM
DMX Channels: 9, 12, or 17
Modes/Personalities: 4 personalities (HSIC, SSP, TOUR, TR16, STD.Y)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 8 units @ 120 V; 14 units @ 208 V; 15 units @ 230 V
Power and Current: 187 W, 1.580 A @ 120 V, 60 Hz
Power and Current: 181 W, 0.909 A @ 208 V, 60 Hz
Power and Current: 175 W, 0.869 A @ 230 V, 50 Hz
Certifications / Qualifications
CE, MET, FCC
IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE® valve
What's Included
COLORado 3 SOLO
Seetronic Powerkon IP65 power cord
Optional Accessories
Professional Clamps: CTC-50HC, CTC-50HCN
Neutrik TRUE1 power linking cables
5-pin DMX Cables
Color Blending Filters: DF60X1D, DF20D
