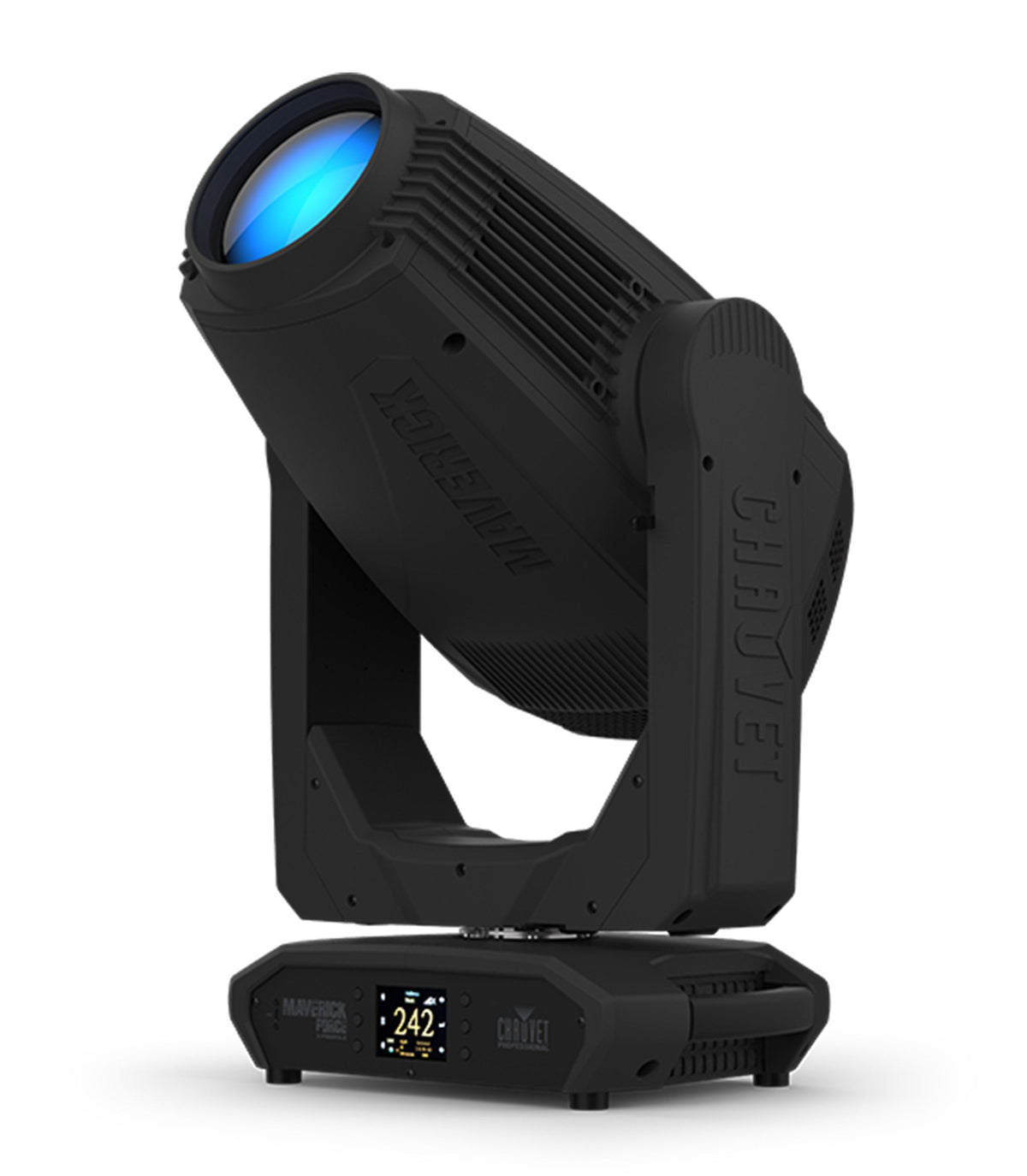

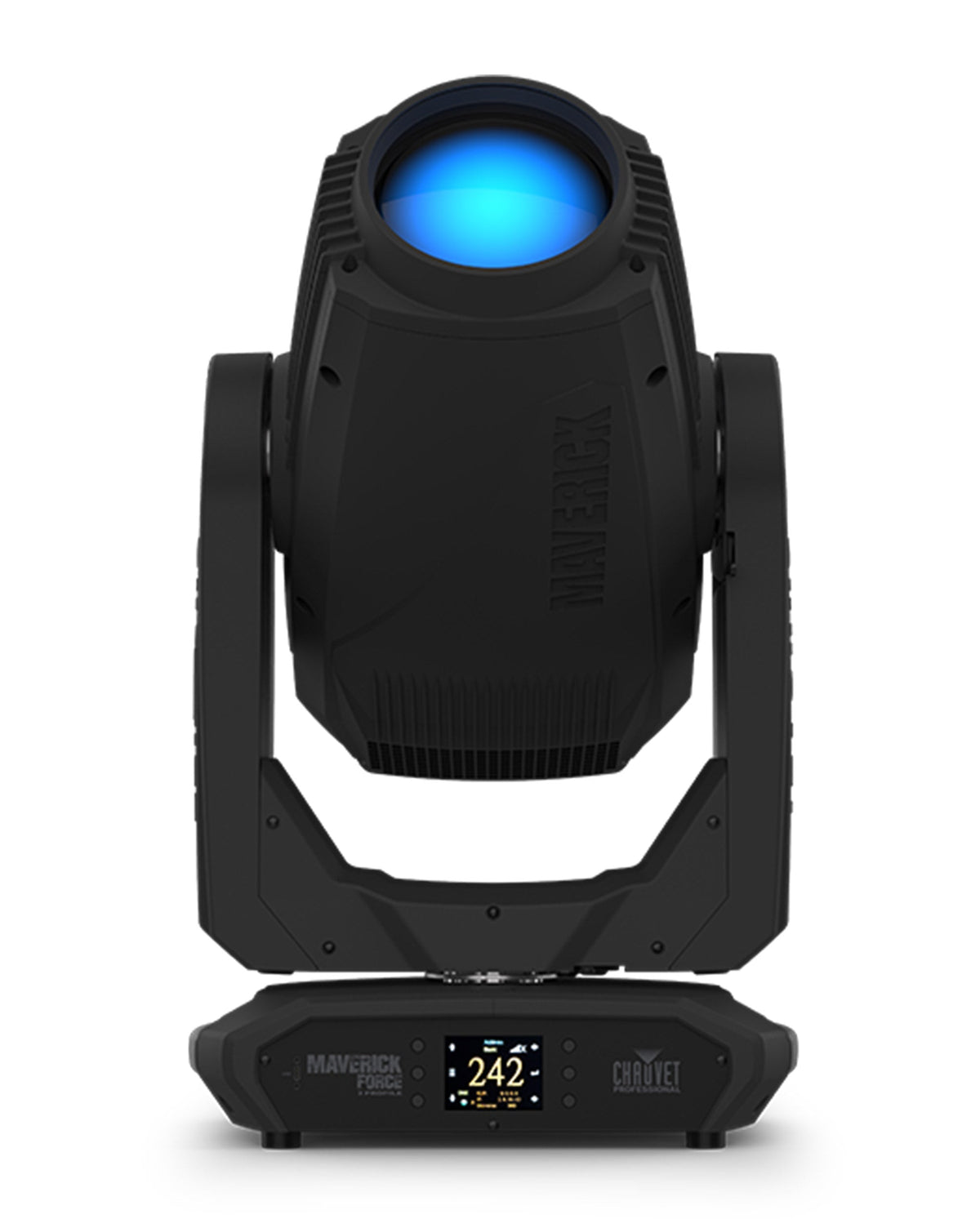

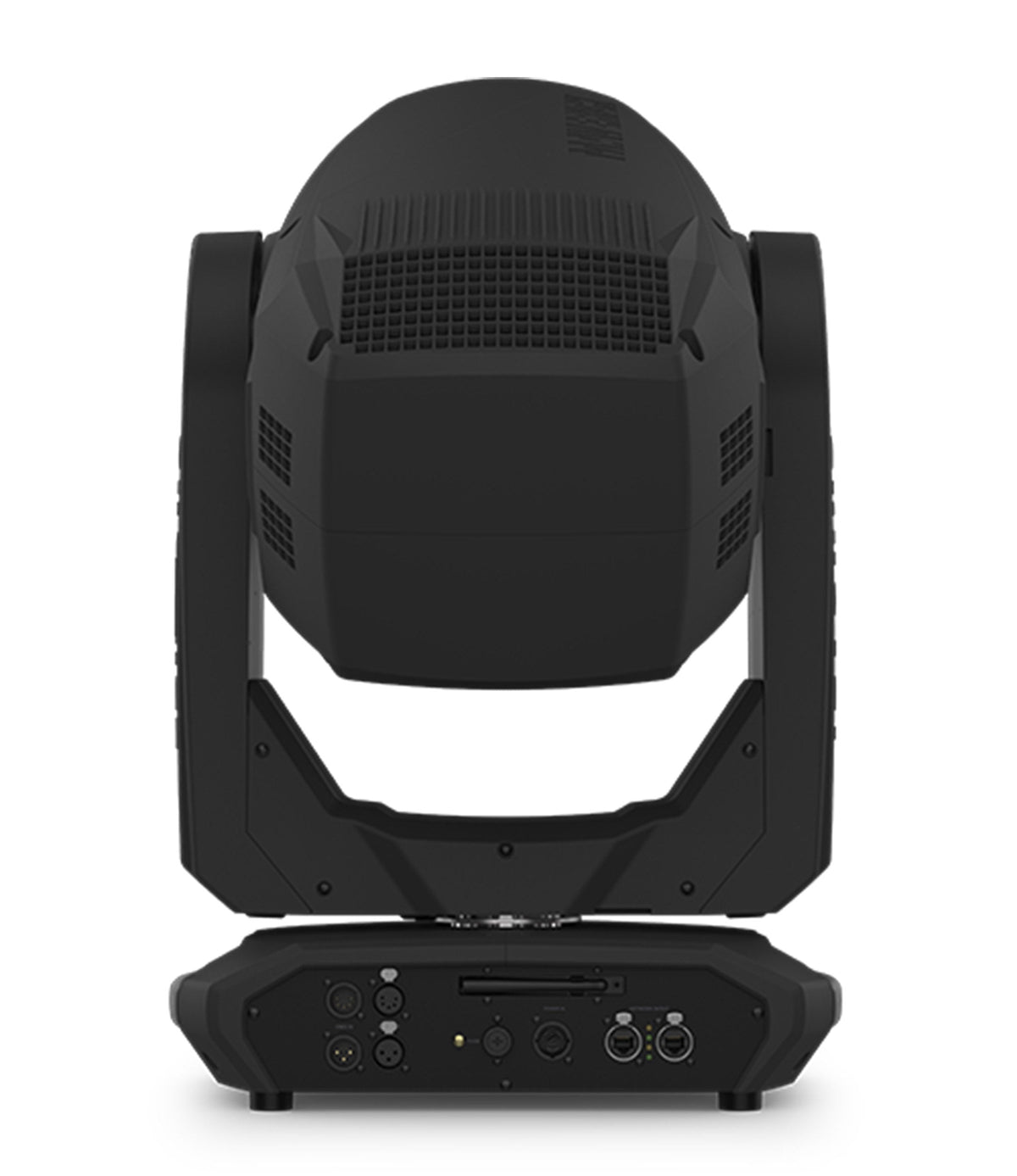

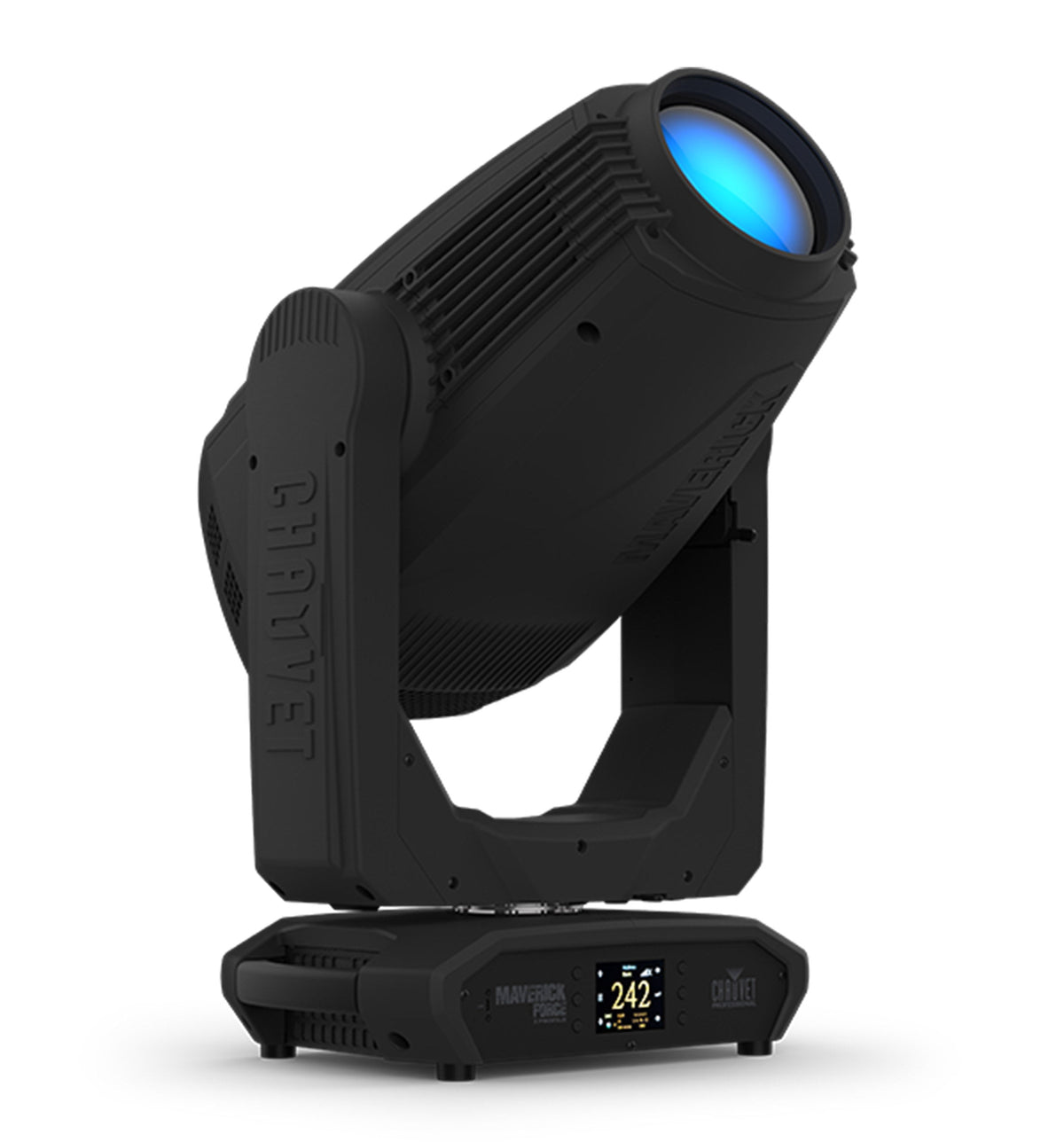

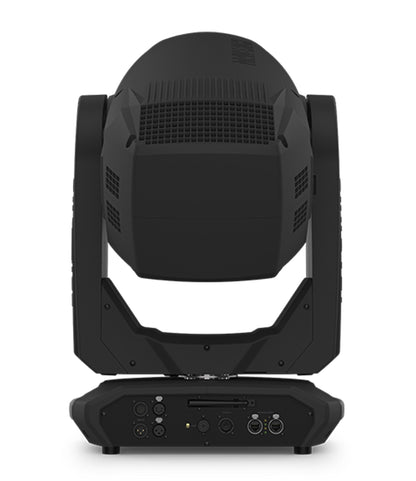

Chauvet Pro Maverick Force 3 Profile Led Fixture

The Chauvet Pro Maverick Force 3 Profile Led fixture brings quick movement and fast effects together in a blazingly bright LED yoke profile fixture that harnesses the latest technology to deliver 40,906 lumens of output. Precision optics capture the depth of a CMY + CTO color mixing system renowned for its real reds and maintain a flat field of focus even when taking its 10:1 zoom fully wide. Color calibration and gobo selection comes matched to other Force fixtures in the rig, along with the advanced 4-blade shutter frame system and effects wheelhouse that delivers the great static, rotating, and animation effects the Force series is known for. Take control with DMX, RDM, sACN, Art-Net, or W-DMX.

What's Included

Maverick Force 3 Profile

Seetronic Powerkon IP65 power cord

Omega bracket with mounting hardware

Product Specifications:

Optical

Light Source: 1 LEDs (CW) 915 W, (4.3 A), 7500 K, 50,000 hours life expectancy

Color Temperature (at full): 7228 K

CRI: 70.9

CRI with CRI Filter: 89.4

Front Lens Diameter: 65 mm

Beam Angle: 4.9 ° to 42.8°

Field Angle: 5.8° to 49.4°

Cutoff Angle 6.5° to 53.6°

Zoom Range: 4.9° to 53.9°

Lumens, Source: 62,000

Lumens, Output: 40,906

Illuminance (4.9°) 130,582 lux @ 5 m

Illuminance (53.9°) 3,792 lux @ 5 m

Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

Pan and Tilt: 540°/270°

Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt

Framing Shutter rotation: +/- 60° rotation.

Dimmer: Electronic

Shutter/Strobe: Electronic

Zoom: Motorized

Focus: Motorized

Frost: Motorized

Iris: Motorized

Prism: 5 Linear Facets, motorized, rotating

Prism: 5 Circular Facets, motorized, rotating

Strobe Rate: 0 to 26 Hz

Move-in-Black: Yes

Dim Curves: 4

Construction / Physical

Dimensions: 16.73 x 10.98 x 30.47 in (425 x 279 x 774 mm)

Weight: 84.2 lb (38.2 kg)

Exterior Color: Black

Housing Material: High-impact flame-retardant polymer

Connections

Power Connection: Edison plug to Seetronic Powerkon IP65

Power Input: Seetronic Powerkon IP65

Cable Length (power): 5 ft (1.5 m)

Control

Control Protocol: Art-Net, DMX, RDM, W-DMX, sACN

DMX Channels: 37 or 53

Art-Net Channels: 37 or 53

Modes/Personalities: 2 personalities (37, 53)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power and Current: 1320 W, 11.29 A @ 120 V, 60 Hz

Power and Current: 1270 W, 6.32 A @ 208 V, 60 Hz

Power and Current: 1260 W, 5.76 A @ 230 V, 50 Hz

Fuse Size: F20 A, 250 V

Certifications / Qualifications

CE, MET, FCC, UKCA

IP Rating: IP20, dry location

Noise Level (ambient): 37.1 dB level @ 1 m

Noise Level (static - Full): 46.1 dB level @ 1 m

Noise Level (static - ECO): 47.6 dB level @ 1 m

Noise Level (Static - Auto): 55.0 dB level @ 1 m

Noise Level (Static - Max): 58.7 dB level @ 1 m

Noise Level (Static, TV25): 47.5 dB level @ 1 m

Noise Level (Static, TV35): 47.4 dB level @ 1 m

Temperature (startup): -4 °F to 113 °F (-20 °C to 45 °C)

Temperature (operating): -22 °F to 113 °F (-30 °C to 45 °C)

Optional Accessories

Clamps

Barn Doors

Neutrik powerCON cables

Neutrik etherCON cables

DMX Cables

Flight Cases

CP Rack
