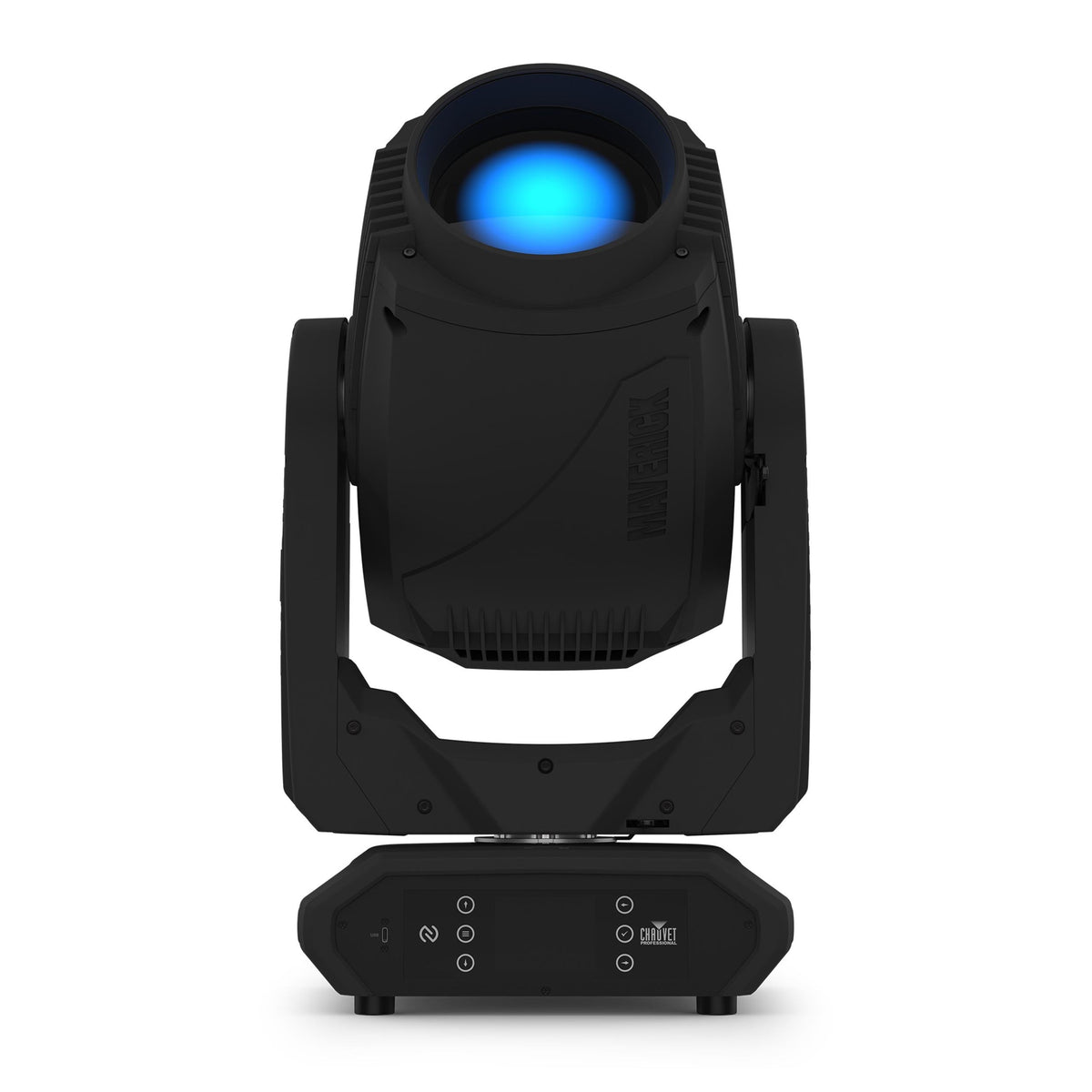

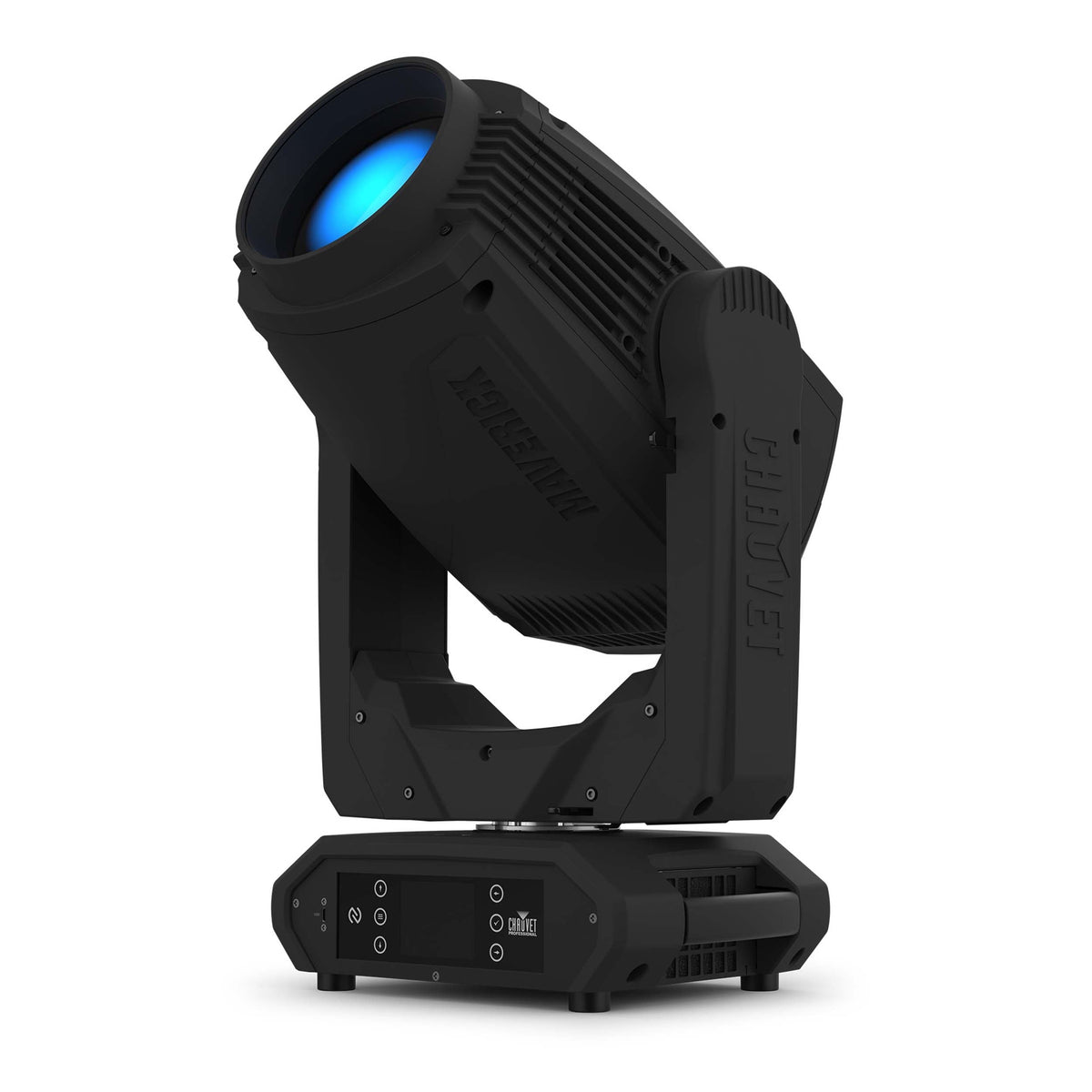

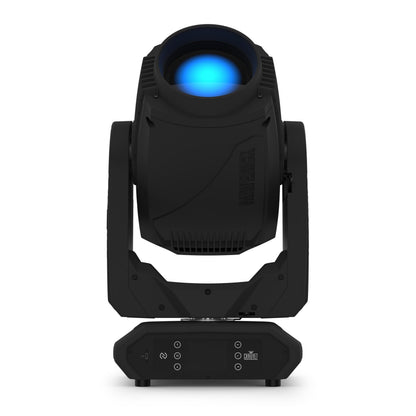

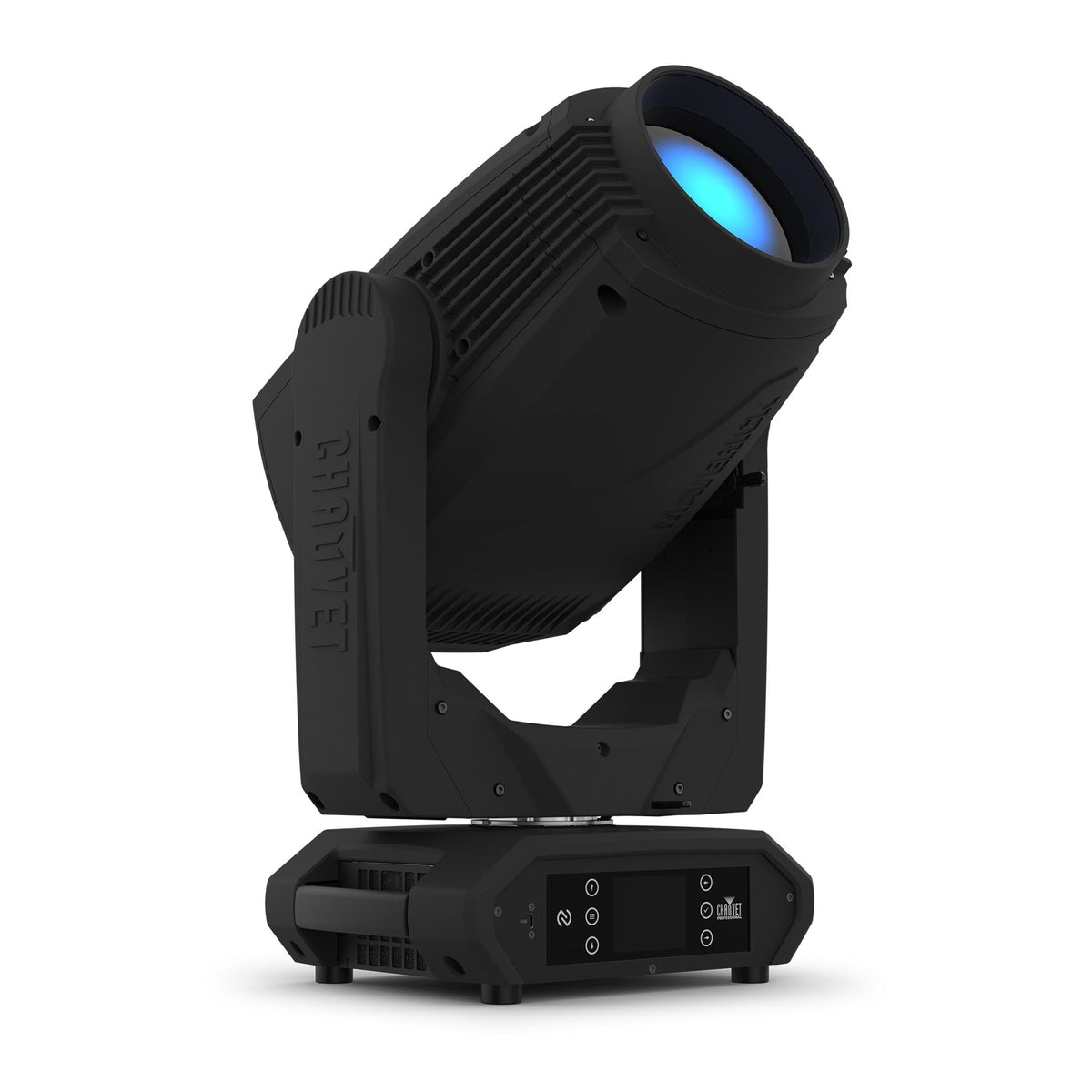

Chauvet Pro Maverick Force X Spot, 520W CMY LED Moving Head Fixture with Zoom and Gobo System

The Chauvet Professional Maverick Force X Spot is a compact, high-performance LED moving spot fixture designed for touring, theatre, broadcast, and corporate productions that require powerful output, precision optics, and versatile control. Equipped with a 520W cool white LED engine, it delivers an impressive 17,325 lumens of output while maintaining a clean, flat field of focus across its beam range. Lightweight yet robust, it is built as a true workhorse fixture capable of handling both short-throw and long-throw applications in demanding professional environments.

At its core, the Maverick Force X Spot features an expansive 3.5° to 57.7° zoom range, enabling seamless transitions from tight aerial beams to wide stage coverage. Its variable CMY color mixing system produces a broad, smooth color palette with accurate tonal rendering, supported by a color wheel with CRI and CTB filters for enhanced color temperature control. Dual gobo wheels-one rotating and one static-offer extensive pattern options, while the built-in iris, five-facet prism, and frost filter allow for detailed beam shaping and atmospheric effects.

The fixture also delivers advanced performance features such as smooth 16-bit dimming and high-speed 65,000 Hz PWM for flicker-free operation in broadcast and camera environments. A comprehensive control suite supports DMX, RDM, sACN, Art-Net, and CRMX, ensuring seamless integration into any lighting system. Additional usability features include True1 power input, USB software updates, NFC fixture setup, battery-backed auto-rotating display, easy setup presets, and failsafe Ethernet connectivity. Altogether, the Maverick Force X Spot combines power, precision, and reliability in a compact design built for modern professional lighting workflows.

Product Specifications:

Light Source: 1 × 520W Cool White LED (6462K)

LED Lifespan: 50,000 Hours

Color Temperature (Full): 6462K

CRI: 72.2 (90 with CRI Filter)

CQS: 69.6 (89.8 with CRI Filter)

TLCI: 50 (78 with CRI Filter)

CTB: 7946K

Lumens Output: 17,325 lm

Beam Angle: 3.5° to 51.3°

Field Angle: 3.7° to 56.3°

Cutoff Angle: 3.9° to 57.7°

Zoom Range: 3.5° to 57.7° (Motorized)

Front Lens Diameter: 145 mm

Dimmer: Electronic (5 Curves)

Strobe Rate: 0 to 25 Hz

Pan: 540° / 360° / 180° selectable

Tilt: 270° / 180° / 90° selectable

Color System: 7 Colors + White + CMY Wheels + CMY Macros

Gobos (Wheel 1): 7 + Open (Rotating, Interchangeable, Indexing)

Gobos (Wheel 2): 9 + Open (Continuous Scroll)

Gobo Size: 24 mm outer / 14 mm image / 1.1 mm max thickness

Focus: Motorised

Zoom: Motorised

Iris: Motorised

Frost: Motorised

Prism: 5-Facet Motorised Rotating

Strobe Rate: 0 to 25 Hz

Control Protocols: DMX, Art-Net

DMX Channels: 22 / 29

Power Consumption: 541-554W (varies by voltage)

Input Voltage: 100-240V AC, 50/60Hz

Power Linking: 2 units @ 120V / 4 units @ 208V / 5 units @ 230V

Power Connector: Seetronic PowerCON IP65

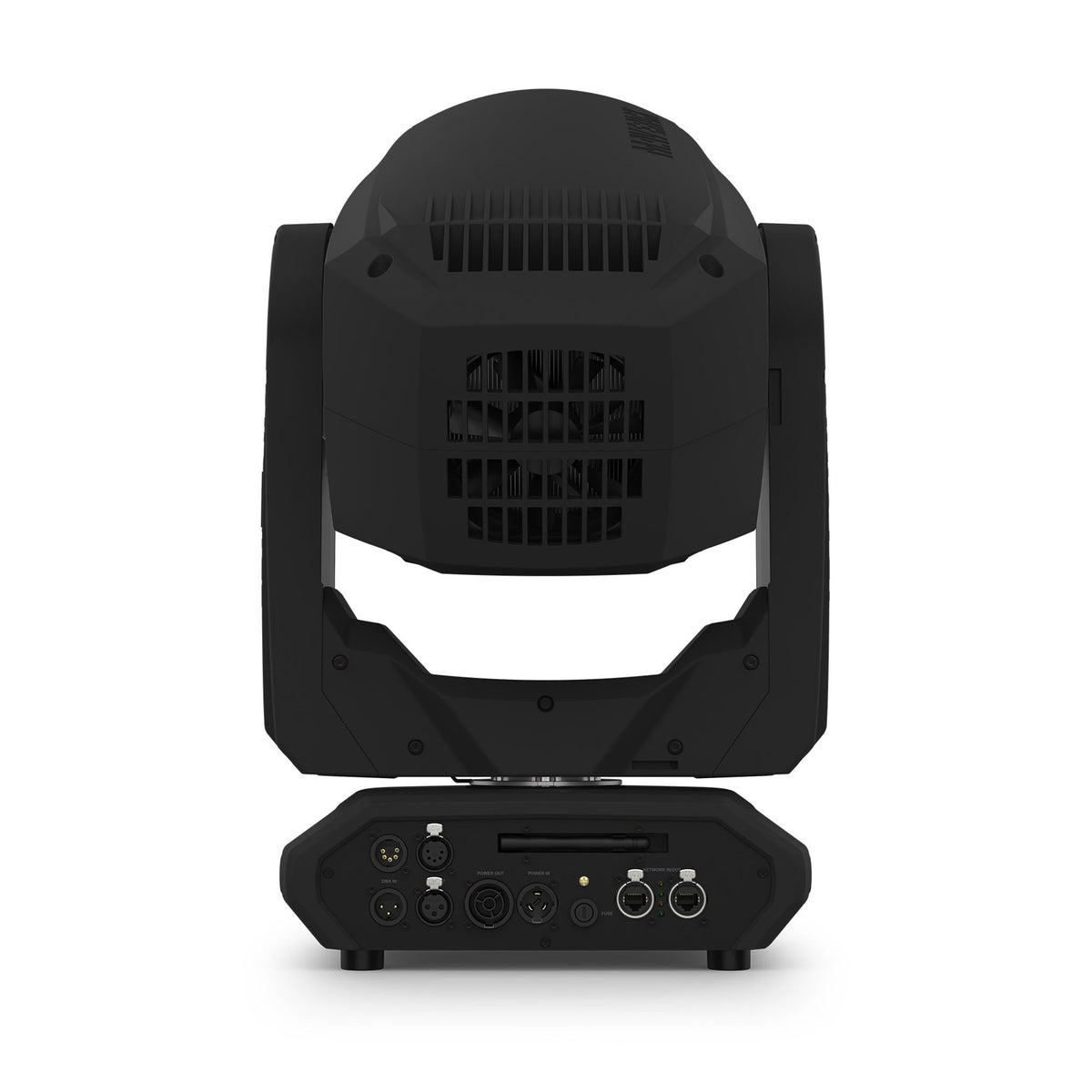

Data Connectors: 3-pin & 5-pin XLR, etherCON IP65

Battery Type: Lithium-Ion (Display Backup)

Battery Life: 1 Hour

Battery Charge Time: 5 Hours

IP Rating: IP20 (Dry Location)

Housing Material: Aluminum Die-cast, Steel, Flame-Retardant Polymer

Noise Level (Max): 42.4 dB(A) @ 1m

Certifications: CE, MET, FCC, UKCA

Weight: 20 kg (44.2 lbs)

Dimensions: 361 × 239 × 646 mm (14.21 × 9.40 × 25.43 in)

Shipping Weight: 54.01 lbs.

Shipping Dimensions (L x W x H): 28.54 x 13.19 x 16.93 in
