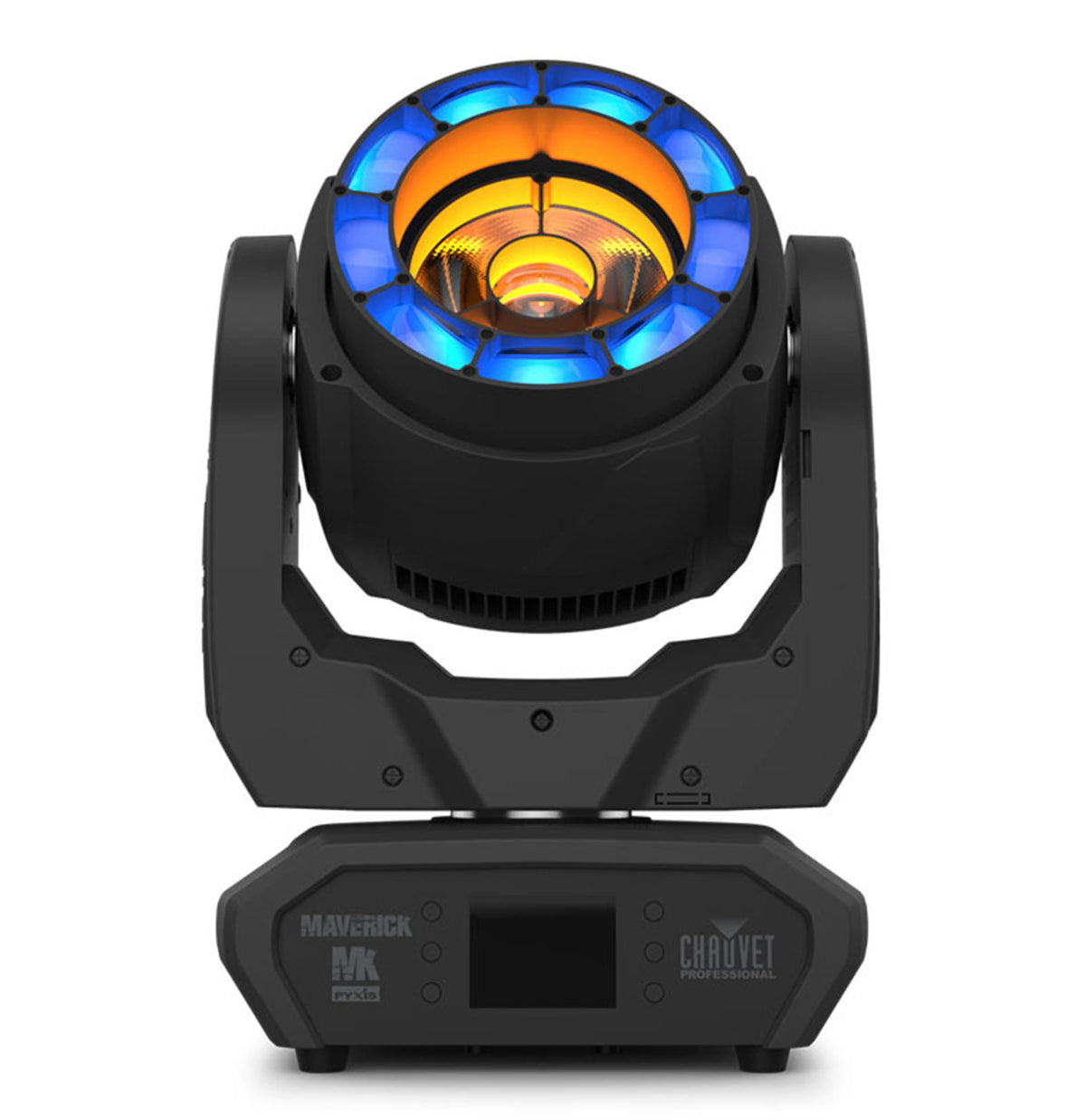

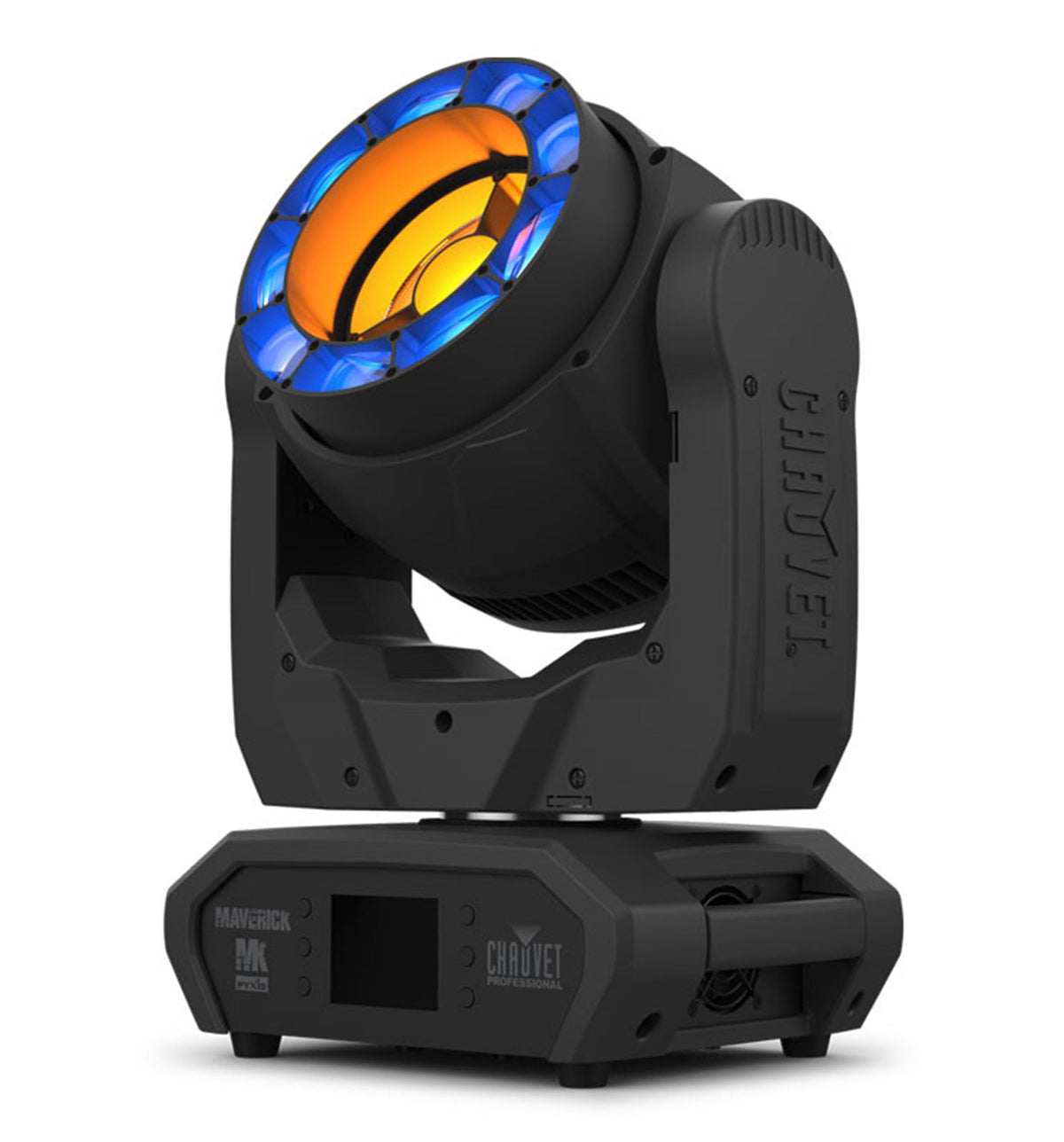

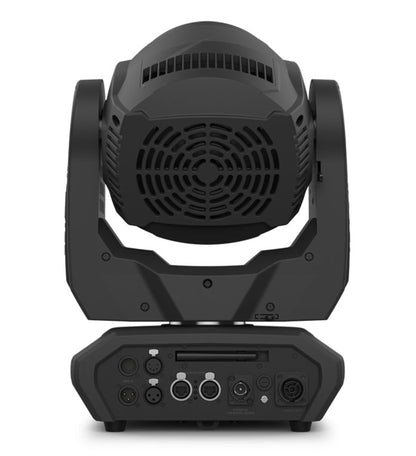

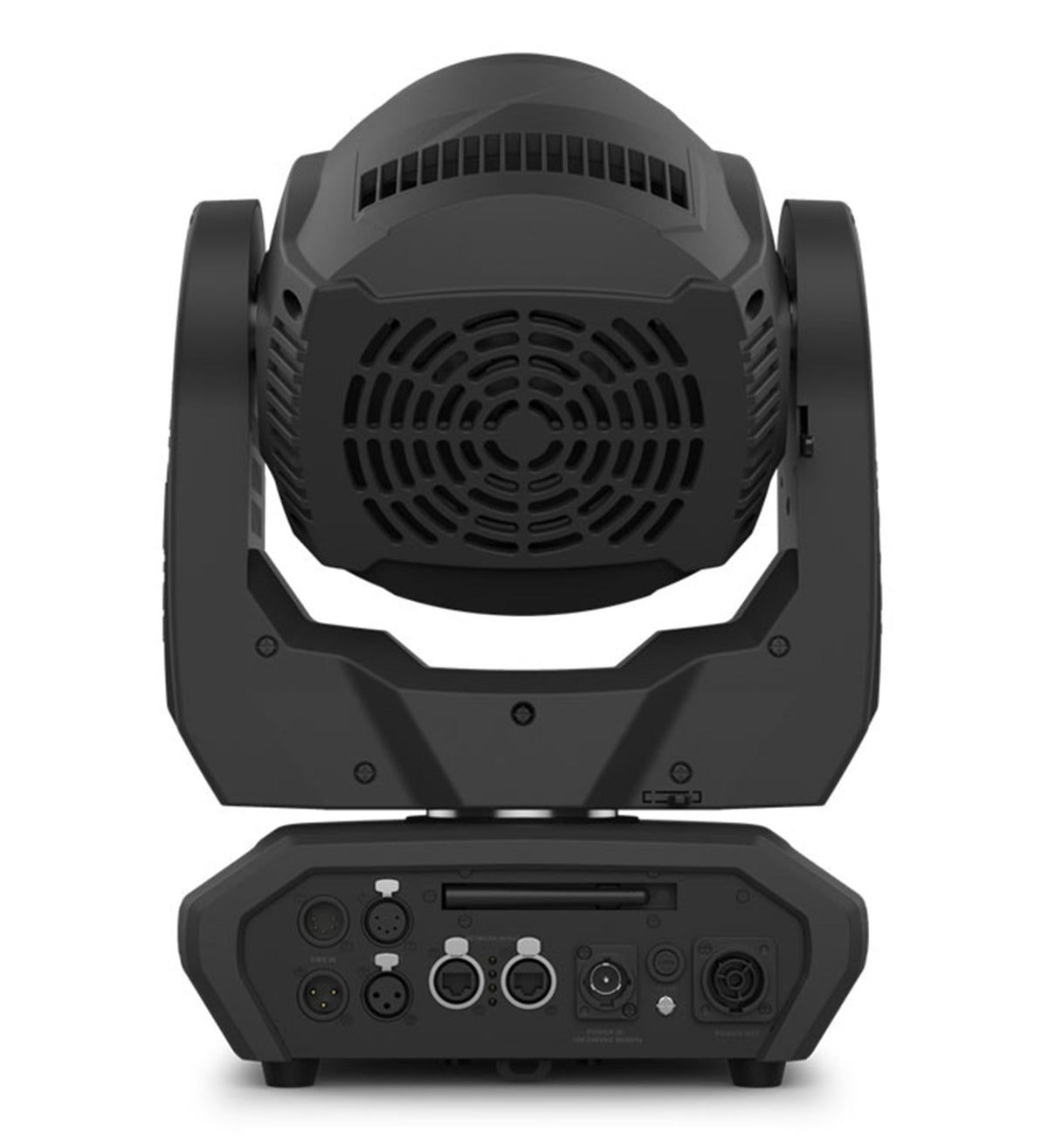

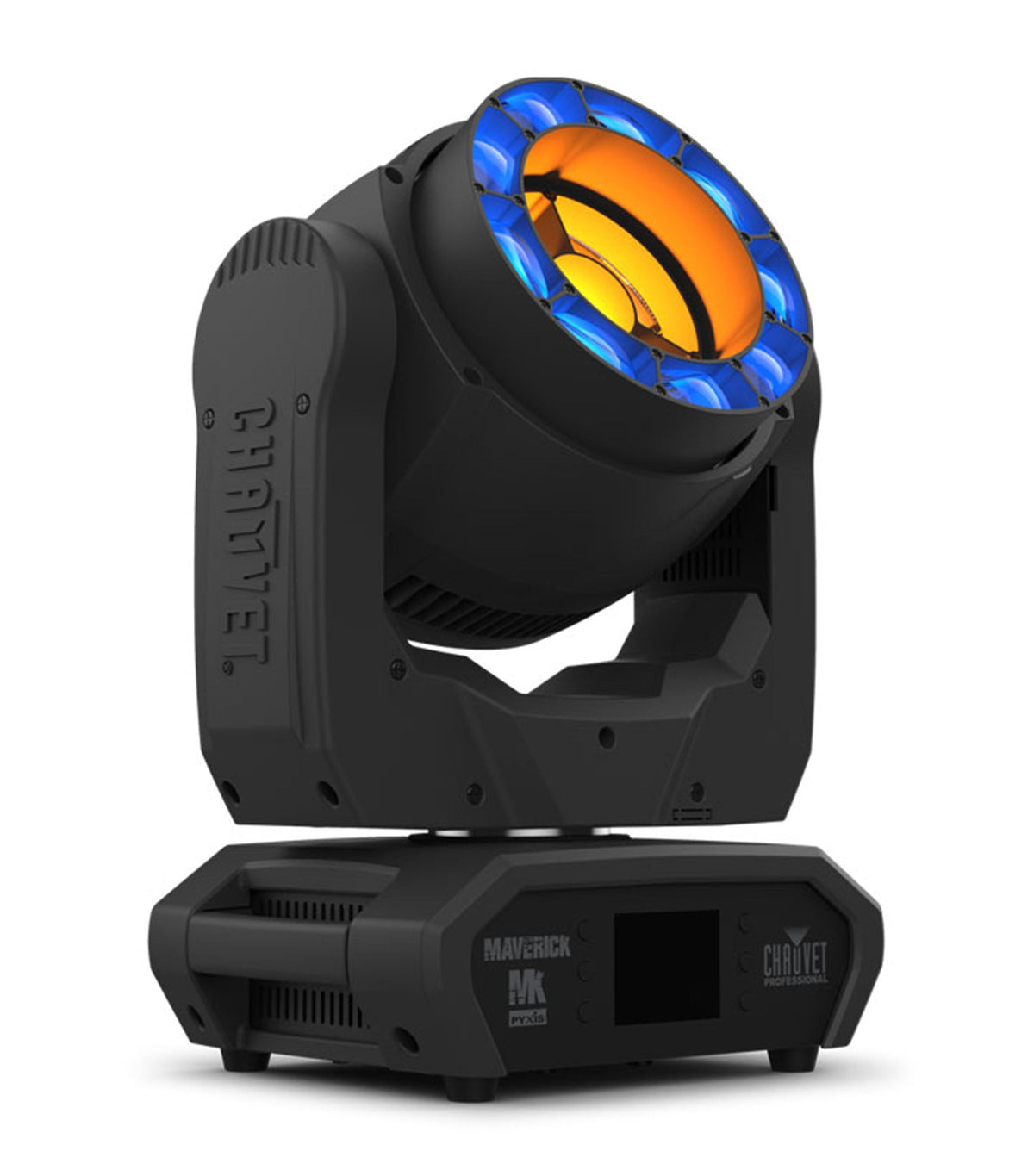

Chauvet Pro Maverick MK Pyxis RGBW LED Moving Head Wash Beam Fixture

The Chauvet Pro Maverick MK Pyxis RGBW LED Moving Head Wash and Beam Fixture empowers your creativity by giving you an endless array of incredible eye-candy looks with its epic beam and wash effects, wide zoom range, continuous 360° pan and tilt movement and awesome aerial and pixel-mapping effects. This revolutionary and compact moving head features a ring of nine 15 W RGBW LEDs with a zoom range of 4.9° to 58.4° and built in color macros and gobos, as well as a punchy 60 W RGBW LED serving as a center pixel with a 3° beam angle. Choose from DMX, sACN, Art-Net, or W-DMX for control.

Product Specifications:

Optical

Light Source: 9 LEDs outer ring (quad-color RGBW) 15 W, (1.29 A), 50,000 hours life expectancy

Light Source: 1 LED center pixel (quad-color RGBW) 60 W, (4.5 A), 50,000 hours life expectancy

Color Temperature (range): 2,800 to 10,000 K

Beam Angle (center pixel and outer ring): 2.8°

Beam Angle (center pixel): 2.7°

Beam Angle (outer ring): 4.9° to 32°

Field Angle (center pixel and outer ring): 6.7°

Field Angle (center pixel): 4.5°

Field Angle (outer ring): 7.9° to 47.8°

Cutoff Angle: 8.3° to 58.4°

Zoom Range: 4.9° to 58.4°

Lumens, Source: (center pixel) 1,700 (outer ring) 4,300

Lumens, Output: (center pixel) 1,100 (outer ring) 2,400

Illuminance (center pixel / outer ring): 11,267 lux @ 5 m

Illuminance (center pixel): 19,306 lux @ 5 m

Illuminance (outer ring): (7.9°) 4,724 lux @ 5 m, (47.8°) 437 lux @ 5 m

Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

Pan and Tilt: 540°/270°

Pan and Tilt Ranges: Infinite, 540°, 360°, 180° pan/ Infinite, 270°, 180°, 90° tilt

Dimmer: Electronic

Shutter/Strobe: Electronic

Zoom: Motorized

Strobe Rate: 0 to 20 Hz

Color Temperature Presets: Yes

Move-in-Black: Yes

Dim Modes: 2

Dim Curves: 4

Construction / Physical

Dimensions: 12.20 x 8.85 x 18 in (310 x 225 x 459 mm)

Weight: 31.96 lb (14.5 kg)

Exterior Color: Black

Housing Material: High-impact flame-retardant polymer

Connections

Power Connection: Edison plug to Seetronic Powerkon IP65

Power Input/Output: Seetronic Powerkon IP65

Data Connectors: 3- and 5-pin XLR, Amphenol XLR Net RJ45 Connectors in/out

Cable Length (power): 5 ft (1.5 m)

Control

Control Protocol: Art-Net, sACN, Kling-Net, DMX, W-DMX, RDM

DMX Channels Single Mode: 26,66,113,131

DMX Channels Dual Mode, Function: 13,26,33

DMX Channels Dual Mode, Pixel: 30,40,80

Art-Net Channels Single Mode: 26,66,113,131

Art-Net Channels Dual Mode, Function: 13,26,33

Art-Net Channels Dual Mode, Pixel: 30,40,80

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power Linking: 4 units @ 120 V;7 units @ 208 V; 8 units @ 230 V

Power and Current: 325 W, 2.726 A @ 120 V, 60 Hz

Power and Current: 322 W, 1.546 A @ 208 V, 60 Hz

Power and Current: 321 W, 1.395 A @ 230 V, 50 Hz

Certifications / Qualifications

CE

IP Rating: IP20, dry location

What's Included

Maverick PYXIS

Seetronic Powerkon IP65 power cord

Omega bracket with mounting hardware

Optional Accessories

Professional Clamp: CTC-50HC, CTC-50HCN

Safety Cable: SC-07

DMX Cables

IP Rated Seetronic Powerkon Extensions

Ethercon extension cables

UPLOAD 08 software uploader
