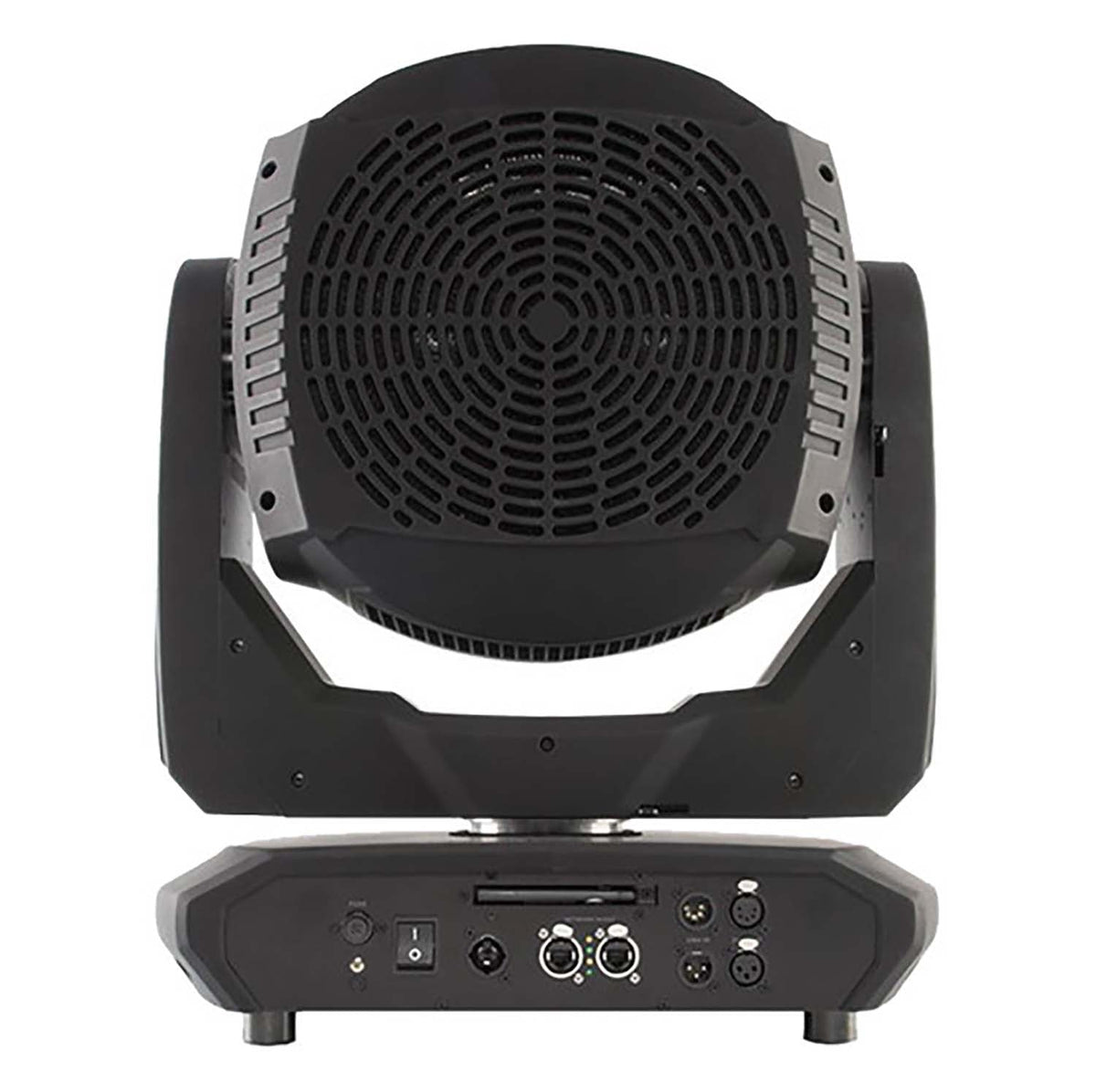

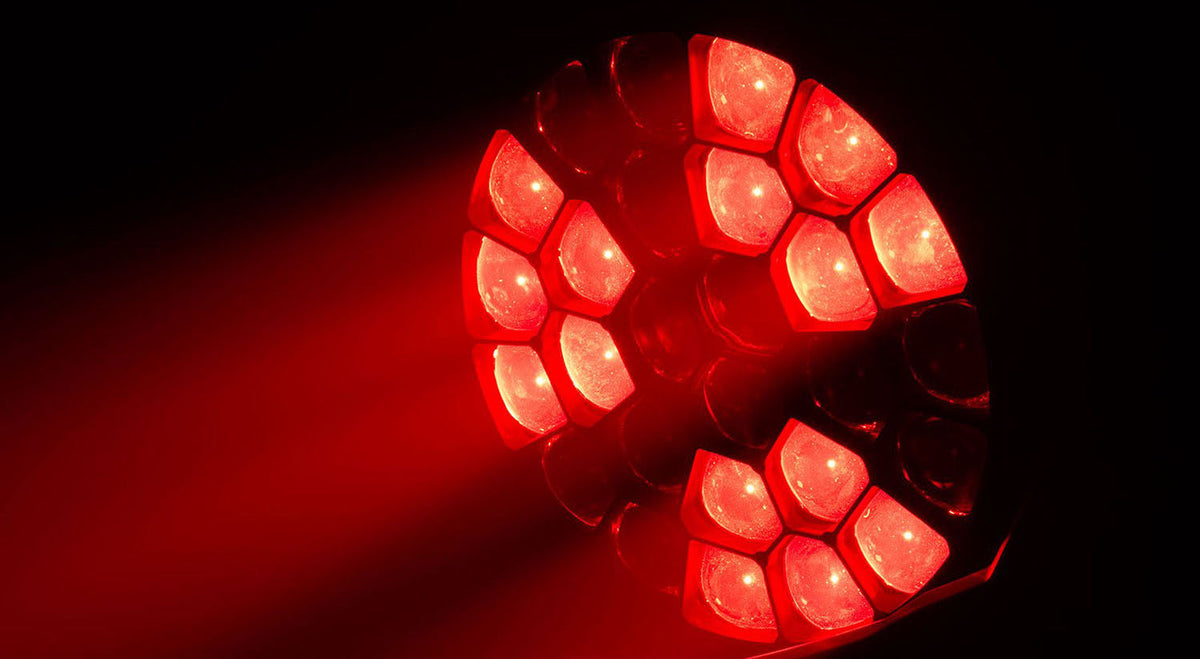

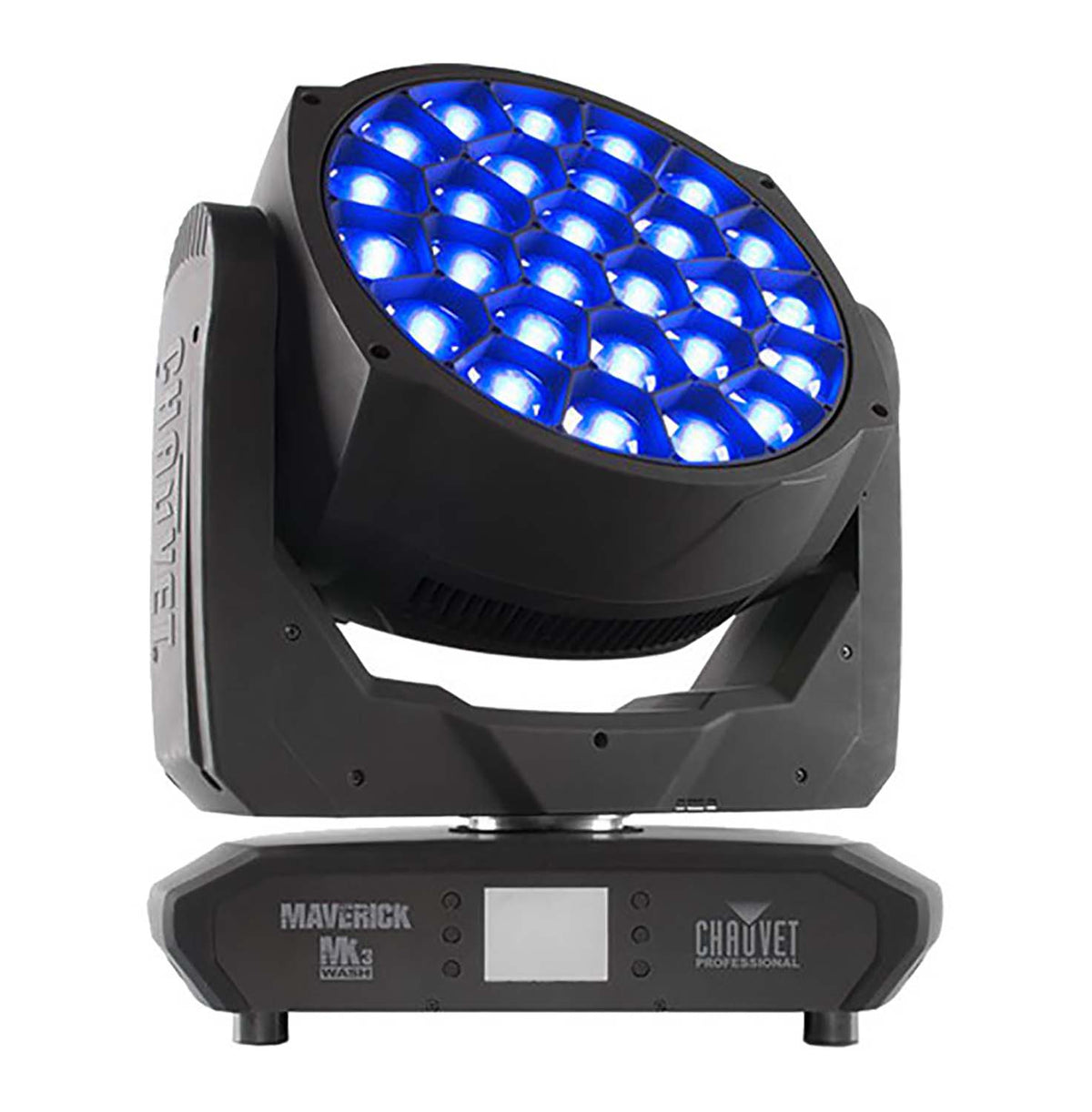

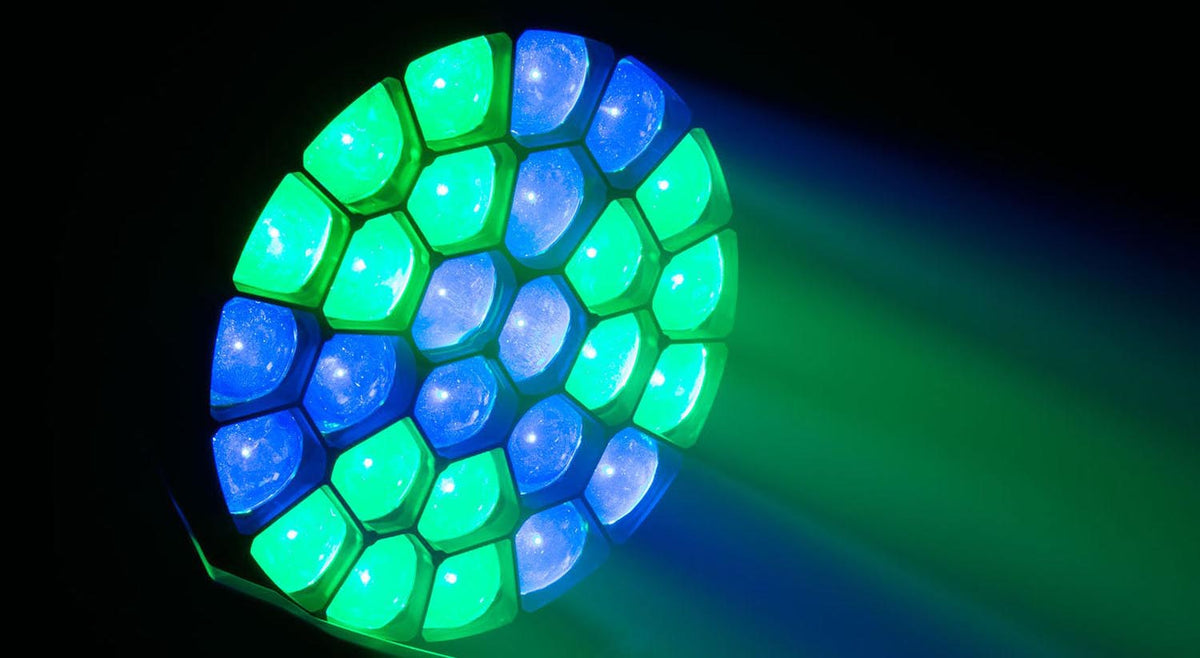

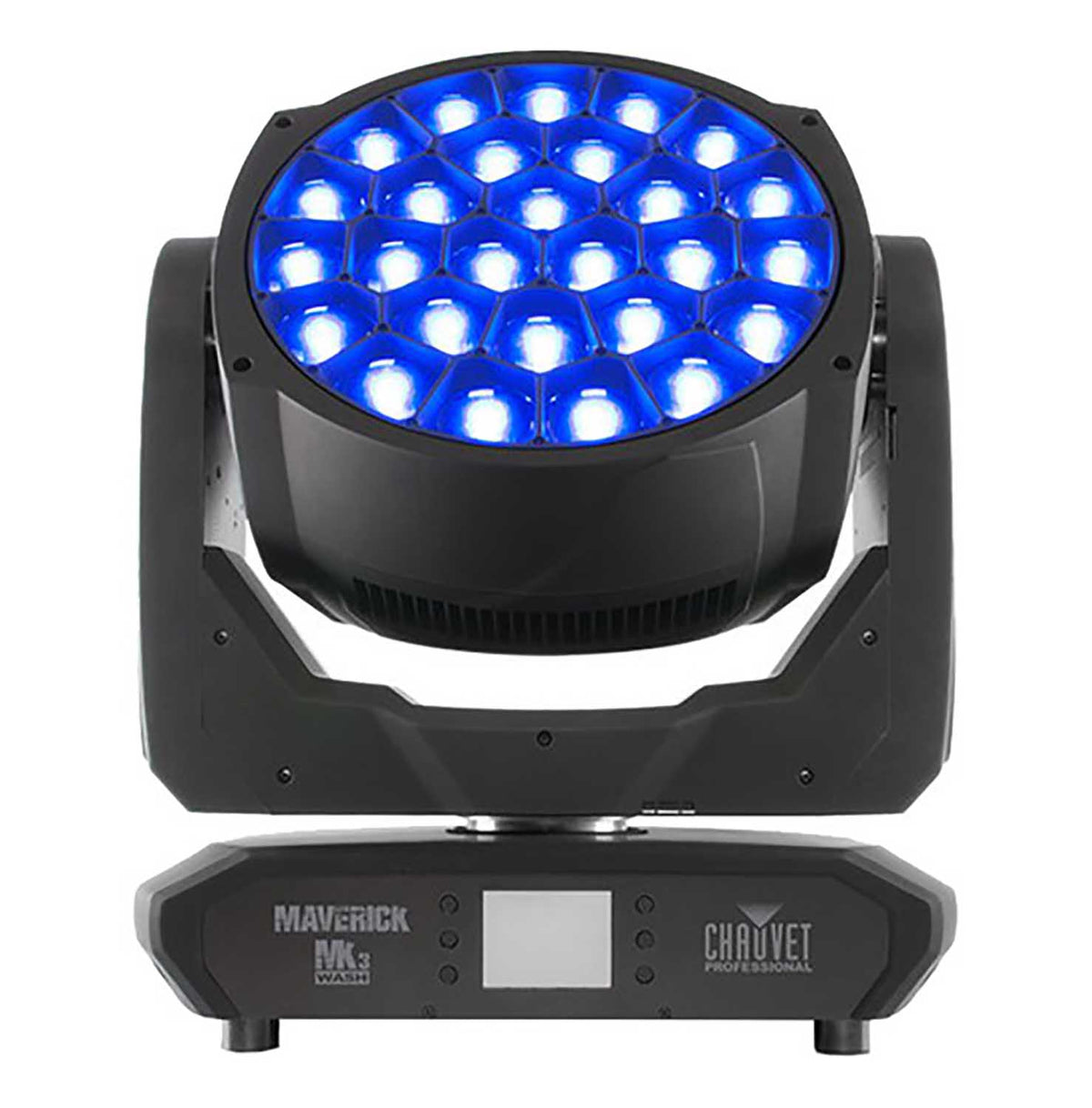

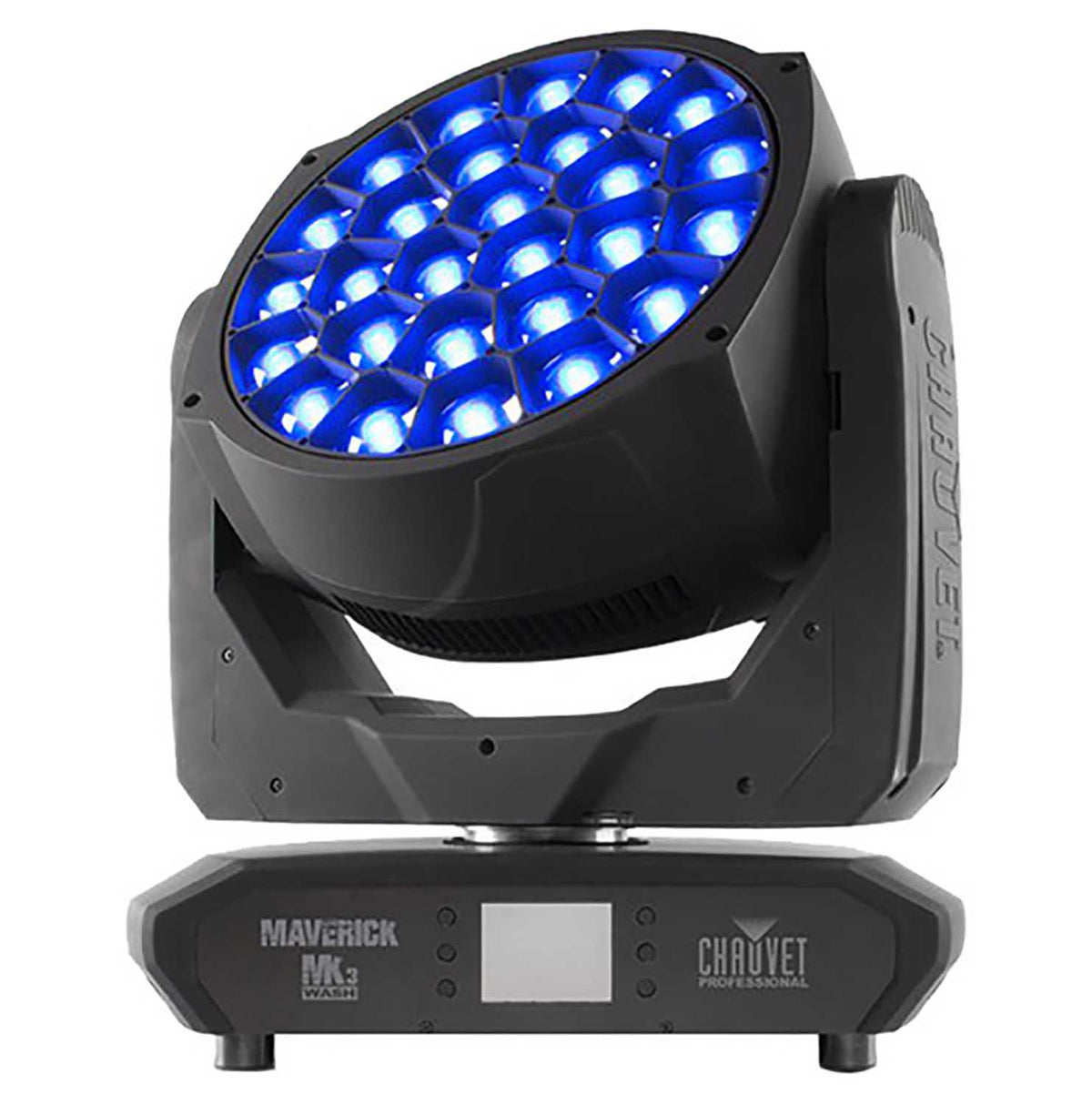

Chauvet Pro Maverick MK3 Wash RGBW LED Light Fixture

The Chauvet Pro Maverick MK3 Wash raises the bar on output, color consistency, and pixel effects. Powered by 27 (40 W) Osram RGBW LEDs, it has the muscle to handle any application, including long throw situations with ease. Pixel mapping effects, built in color macros and gobos, along with a CTO color mixing option make this powerhouse fixture the complete wash package. Control options include DMX, sACN, Art-Net, Kling-Net, W-DMX or RDM.

Product Specification:

Optical:

Light Source: 27 x 40 W LEDs (quad-color RGBW), 2.6 A

Life Expectancy: 50,000 hours

Color Temperature: 2800 to 10,000K

Beam Angle: 5 to 29°

Field Angle: 7 to 45°

Zoom Angle: 7 to 45°

Illuminance: 7°: 89,200 lux at 16.4' / 5 m, 45°: 2814 at 16.4' / 5 m

PWM Frequency: 600, 1200, 2000, 4000, 6000, and 15,000 Hz

Dynamic Effects:

Pan & Tilt: 540°/270°

Pan & Tilt Range: Pan: 540°, 360°, 180°, Tilt: 270°, 180°, 90°

Dimmer: Electronic

Shutter/Strobe: Electronic

Zoom: Motorized

Strobe Rate: 0 to 20 Hz

Dimmer Curves: 4

Connections:

Power Connections: Edison plug to Seetronic Powerkon IP65

Power Input: Seetronic Powerkon IP65

Data: Data Connectors: 3- and 5-pin XLR

Cable Length: 5' (1.5 m)

Control:

Control Protocol: Art-Net, Kling-Net, sACN, DMX, W-DMX

DMX Channels: Single Mode: 20, 129, 243, or 297

Dual Mode: 9, 21, 27 (Function), 81, 108, 216 (Pixel)

Channels: Art-Net Single Mode: 21, 129, 243, or 297

Art-Net Dual Mode: 9, 21, 27 (Function)

Art-Net Dual Mode: 81, 108, 216 (Pixel)

Electrical:

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power and Current: 1120 W, 9.51 A at 120 V, 60 Hz, 1100 W, 5.35 A at 208 V, 60 Hz, 1120 W, 4.84 A at 230 V, 50 Hz

General:

Certifications: CE, MET

IP Rating: IP20, dry location

Temperature: -4 to 113°F (-20 to 45°C)

Housing Material: High-impact flame-retardant polymer

Dimensions: 18.7 x 11.49 x 22.93" (459 x 292 x 583 mm)

Weight: 68.2 lb (31 kg)
