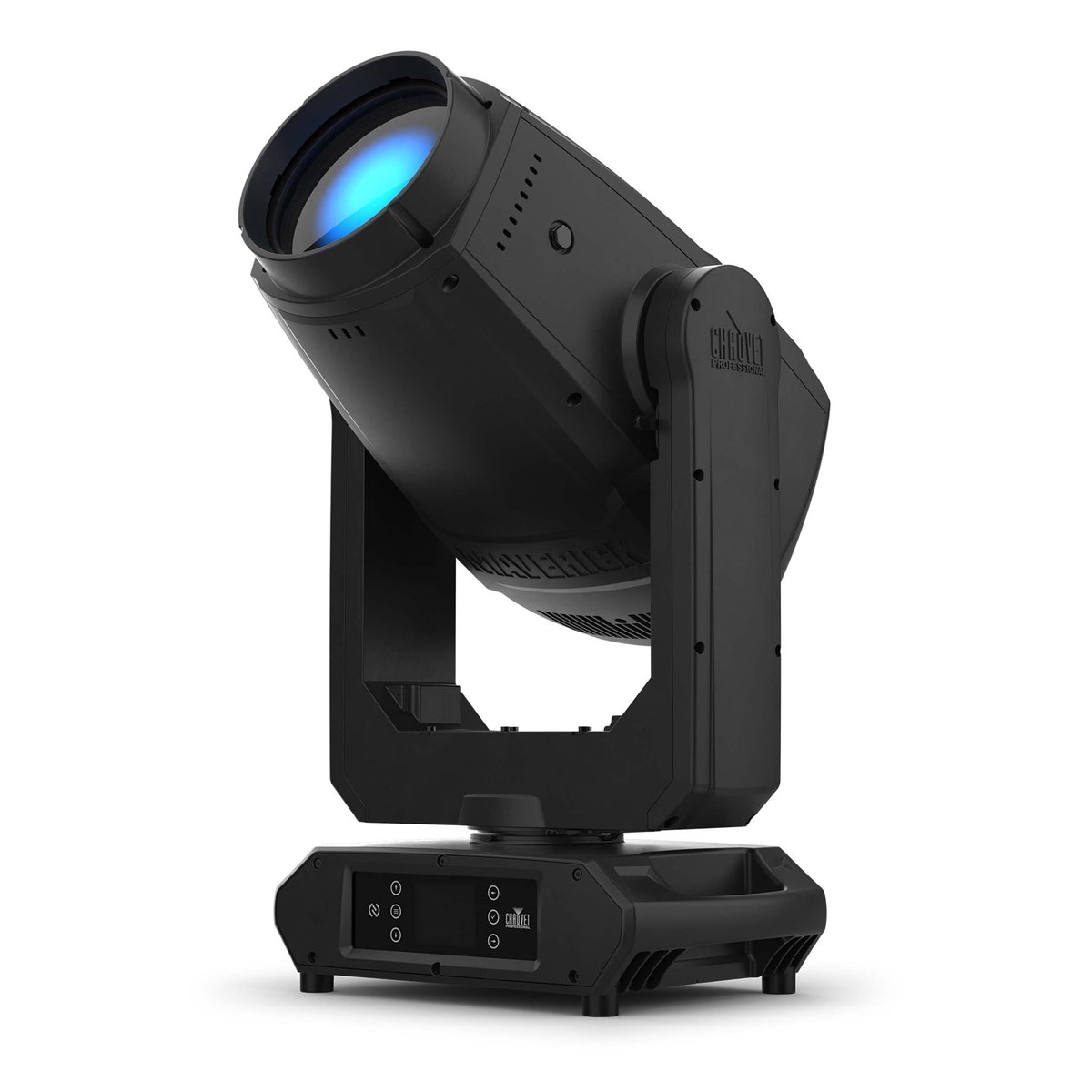

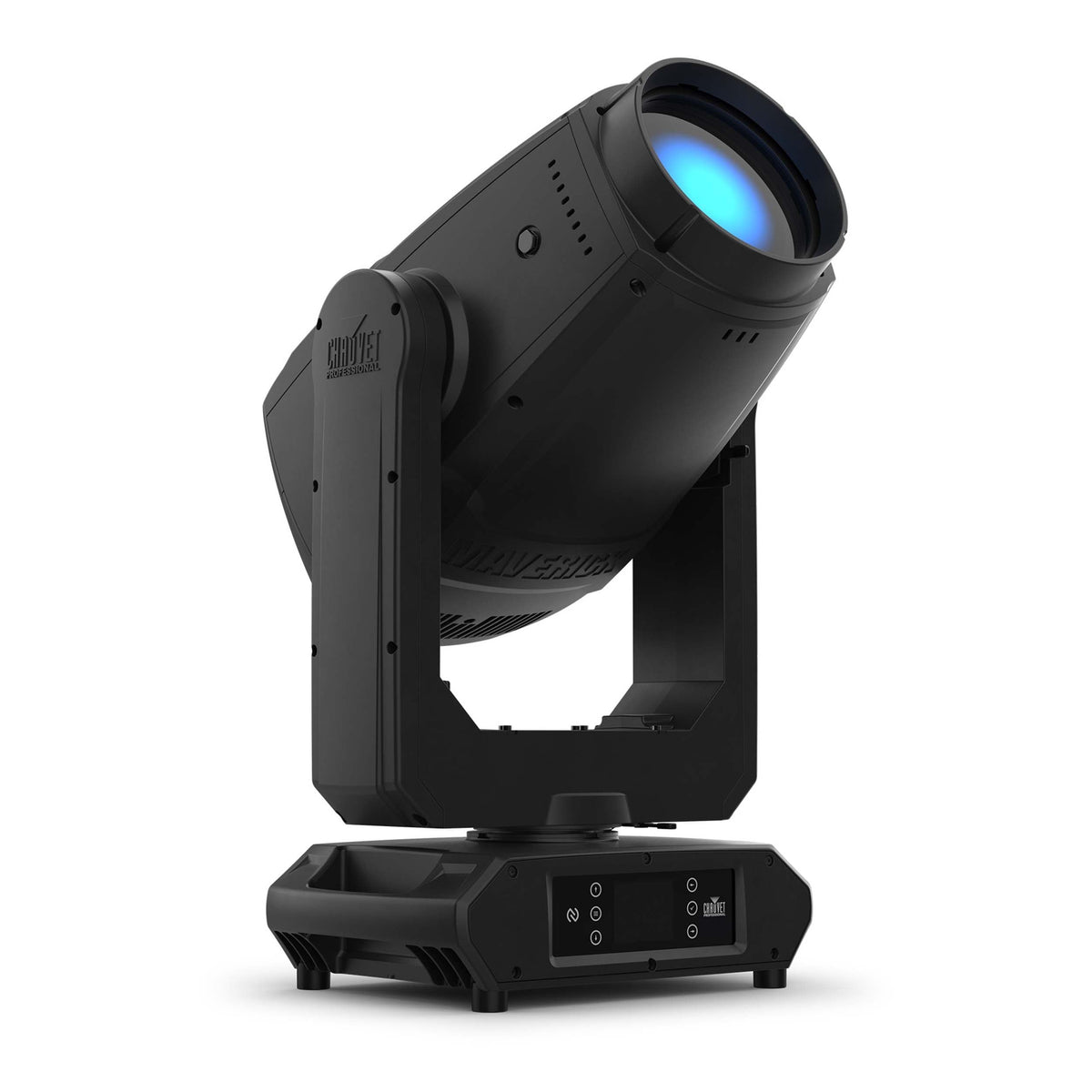

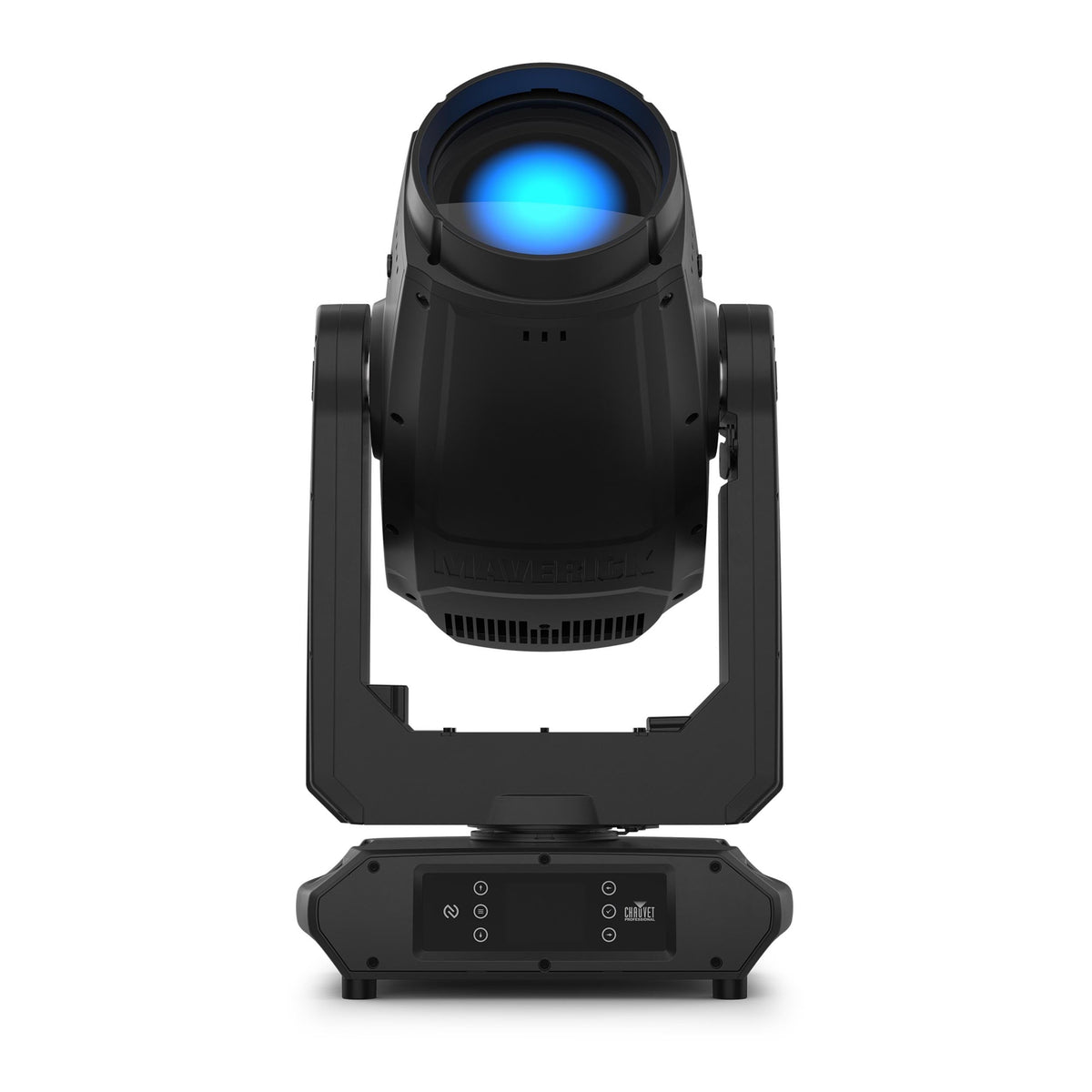

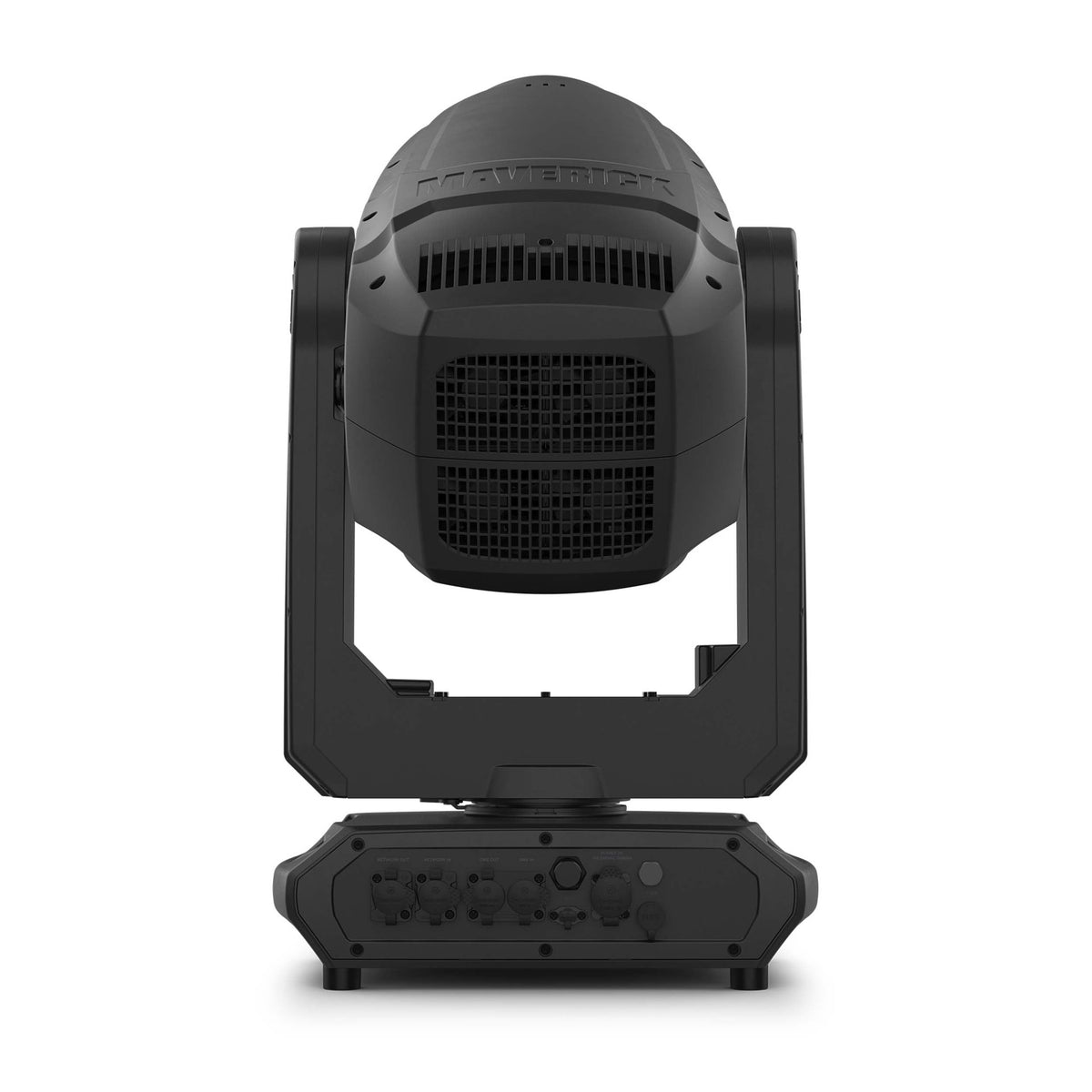

Chauvet Pro Maverick Storm 3 Profile 620W IP65 LED Moving Profile Fixture

The Chauvet Pro MAVERICKSTORM3PROFILE is a compact, high-output IP65-rated moving profile fixture engineered for demanding professional environments such as touring productions, outdoor festivals, theatrical stages, and large-scale installations. Delivering over 30,000 lumens from a powerful 620W 7500K LED engine, it combines exceptional brightness with a lightweight yet rugged build. Designed for both indoor and outdoor use, it provides the flexibility and reliability required for high-end lighting designers who need consistent performance in any weather condition.

At its core, the fixture offers an advanced 18:1 zoom range, allowing smooth transitions from a tight 3.4° beam to a wide 56.7° wash, making it highly versatile for both aerial effects and stage coverage. The precision four-blade framing shutter system with full rotation enables extremely accurate beam shaping, while CMY + CTO color mixing delivers a broad and refined color palette. Additional color capabilities include a dedicated color wheel with CRI and CTB filters for enhanced color rendering and temperature control, ensuring accurate skin tones and professional-grade visual consistency across different environments.

The MAVERICKSTORM3PROFILE is equipped with a comprehensive effects engine that includes rotating and static gobo wheels, a 5-facet prism, iris, and frost for layered and dynamic beam manipulation. Its smooth 16-bit dimming system ensures flawless fades, while 65,000 Hz PWM guarantees flicker-free operation for high-speed camera work. Advanced connectivity options including DMX, WDMX, sACN, and Art-Net provide full integration flexibility, while RDM support enables remote fixture monitoring. With integrated SunShield protection safeguarding internal optics during idle periods, this fixture is built for long-term reliability, delivering powerful, precise, and creative lighting control in the most demanding professional applications.

Product Specifications:

Light Source: 1 × 620W Cool White LED (7500K)

LED Lifespan: 50,000 Hours

Color Temperature (Full): 7062K

CRI: 72.3 (90.2 with CRI Filter)

CQS: 73 (89.2 with CRI Filter)

TLCI: 49 (79 with CRI Filter)

CTO: 3122K

CTB: 8307K

Lumens Output: 34,500 lm

Beam Angle: 3.5° to 51.5°

Field Angle: 4.1° to 54.3°

Cutoff Angle: 4.3° to 57.7°

Zoom Range: 3.5° to 57.7° (Motorized)

Front Lens Diameter: 165 mm

Dimmer: Electronic (4 Dim Curves)

Strobe Rate: 0 to 25 Hz (Electronic)

Pan: 540° / 360° / 180° selectable

Tilt: 270° / 180° / 90° selectable

Framing Shutters: 4-Blade Full Blackout (Dual Axis, ±60° rotation)

Color System: CMY + CTO Wheel + 7 Colors + White

Gobos (Wheel 1): 7 + Open (Rotating, Indexing, Interchangeable)

Gobos (Wheel 2): 9 + Open (Glass, Continuous Scroll)

Gobo Size: 25.5 mm outer / 18 mm image / 1.1 mm max thickness

Prism: 5-Facet Motorized Rotating

Focus: Motorized

Iris: Motorized

Frost: Motorized

Animation: Motorized

Control Protocols: DMX, RDM, Art-Net, sACN, W-DMX

DMX Channels: 34 / 50

Power Consumption: 1020W Max

Input Voltage: 100-240V AC, 50/60Hz

Power Connector: Seetronic PowerCON IP65

Data Connectors: 5-pin XLR IP Rated, RJ45 IP Rated In/Out

Housing Material: Aluminum Diecast, Steel, Flame-Retardant Polymer

IP Rating: IP65 (Outdoor Rated)

Noise Level (Full): 51.5 dB(A) @ 1m

Certifications: CE, MET, FCC, CB, UKCA

Weight: 31.3 kg (69 lbs)

Dimensions: 388 × 268 × 742 mm (15.27 × 10.55 × 29.21 in)

Shipping Weight: 82.67 lbs.

Shipping Dimensions (L x W x H): 33.27 x 13.98 x 22.05 in
