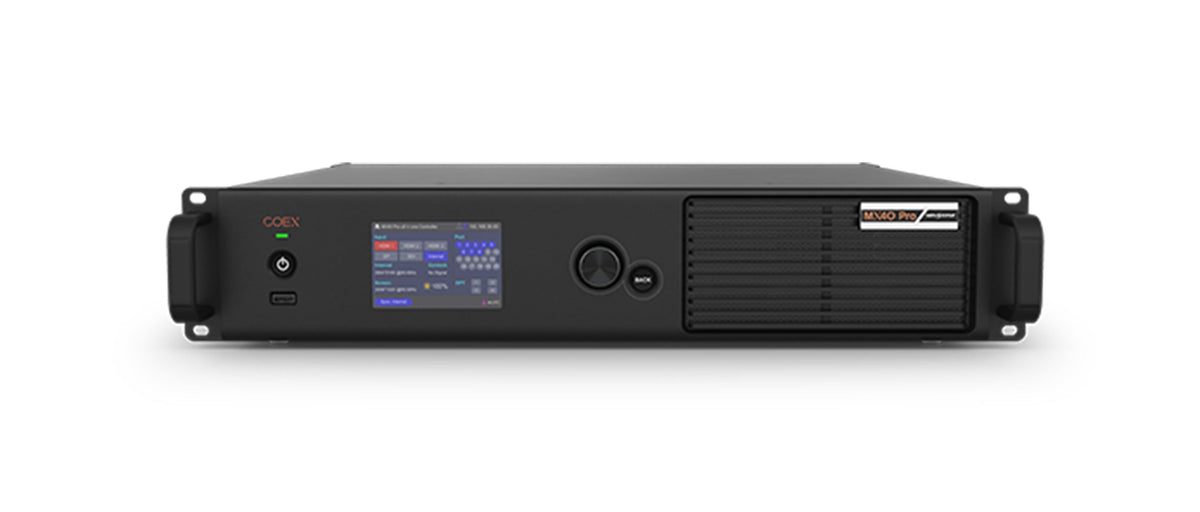

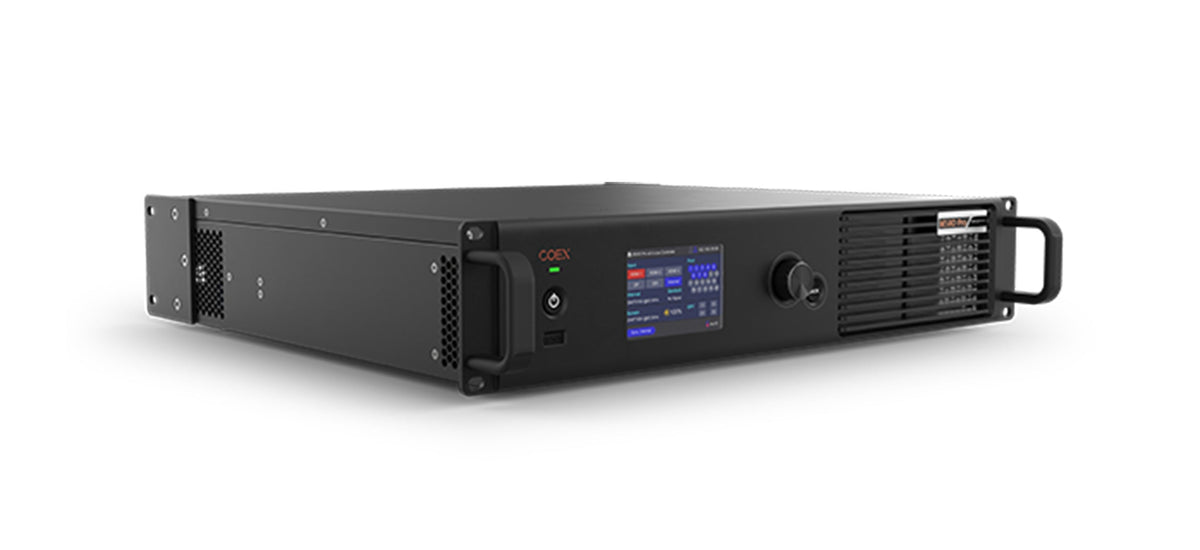

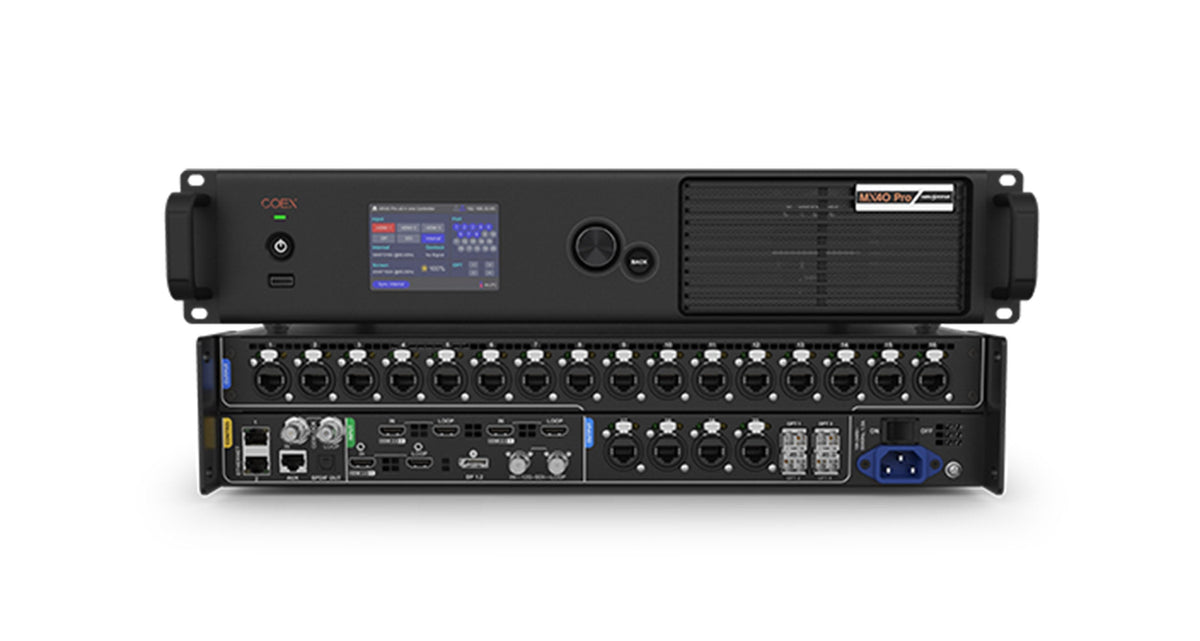

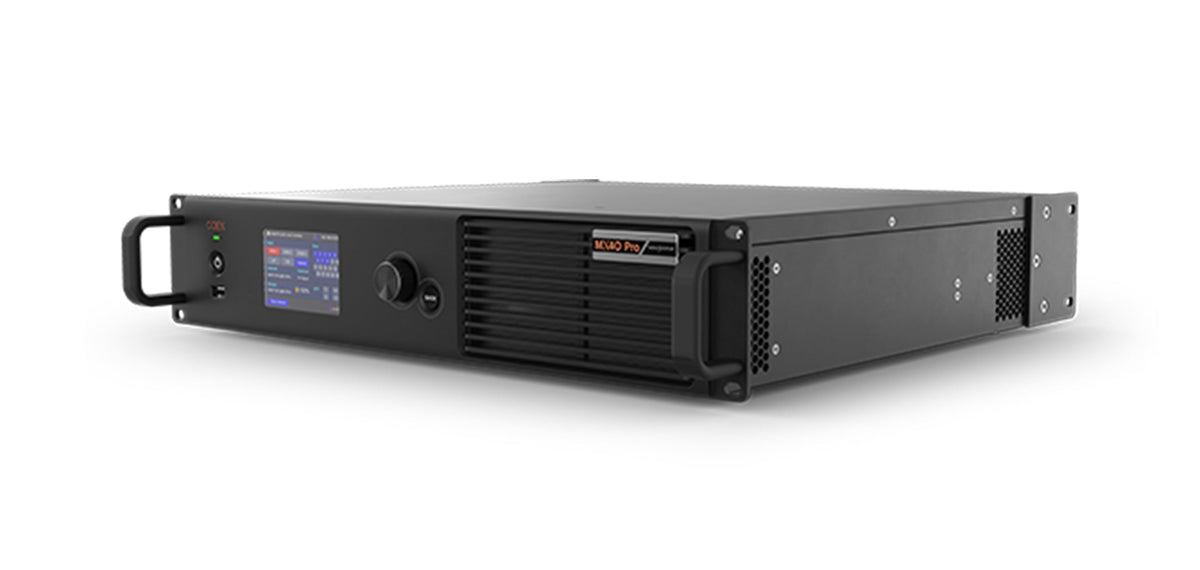

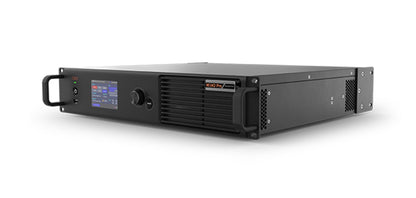

Chauvet Pro NOVASTAR MX40 PRO, Led Display Controller

Chauvet Pro NOVASTAR MX40 PRO, Led Display Controller

Request a quote

Model / SKU: H-CHAU-NOVASTARMX40PRO

In a hurry? Call us.

Free system design. Real people, Mon to Sat, 10 to 5 Pacific.

The Chauvet Pro NOVASTAR MX40 PRO, Led Display Controller is a flagship all-in-one controller with 20 Ethernet ports in the brand-new control system COEX series of Xi’an NovaStar Tech Co., Ltd. (hereinafter referred to as NovaStar). This controller integrates video processing and video control into one box and offers rich video input connectors (HDMI 2.0, DP 1.2 and 12G-SDI), 20x Ethernet output ports and 4x 10G optical ports. It can also work with the brand-new software VMP (Vision Management Platform) to provide a better operation and control experience.

Product Specifications:

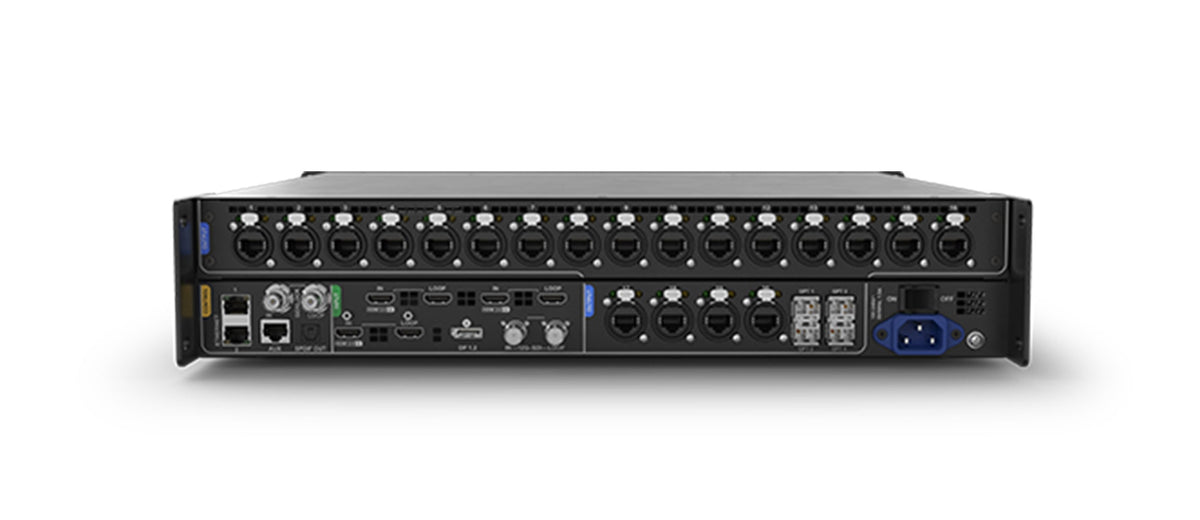

Connectors Inputs

3x HDMI 2.0 In + Loop

1x DP 1.2

1x 12G-SDI in + Loop

Connectors Outputs

20x Ethernet outputs

4x 10G OPT outputs

1x SPDIF audio port

Control

TFT menu display

2x Ethernet ports

Genlock in + Loop

1x Auxiliary port

Power

100-240VAC, 50-60 Hz

Power consumption: 70W, 2A

Warranty

3-year warranty

Dimensions & Weight

19" L x 18.4" W x 3.7" H

13.0 lbs
