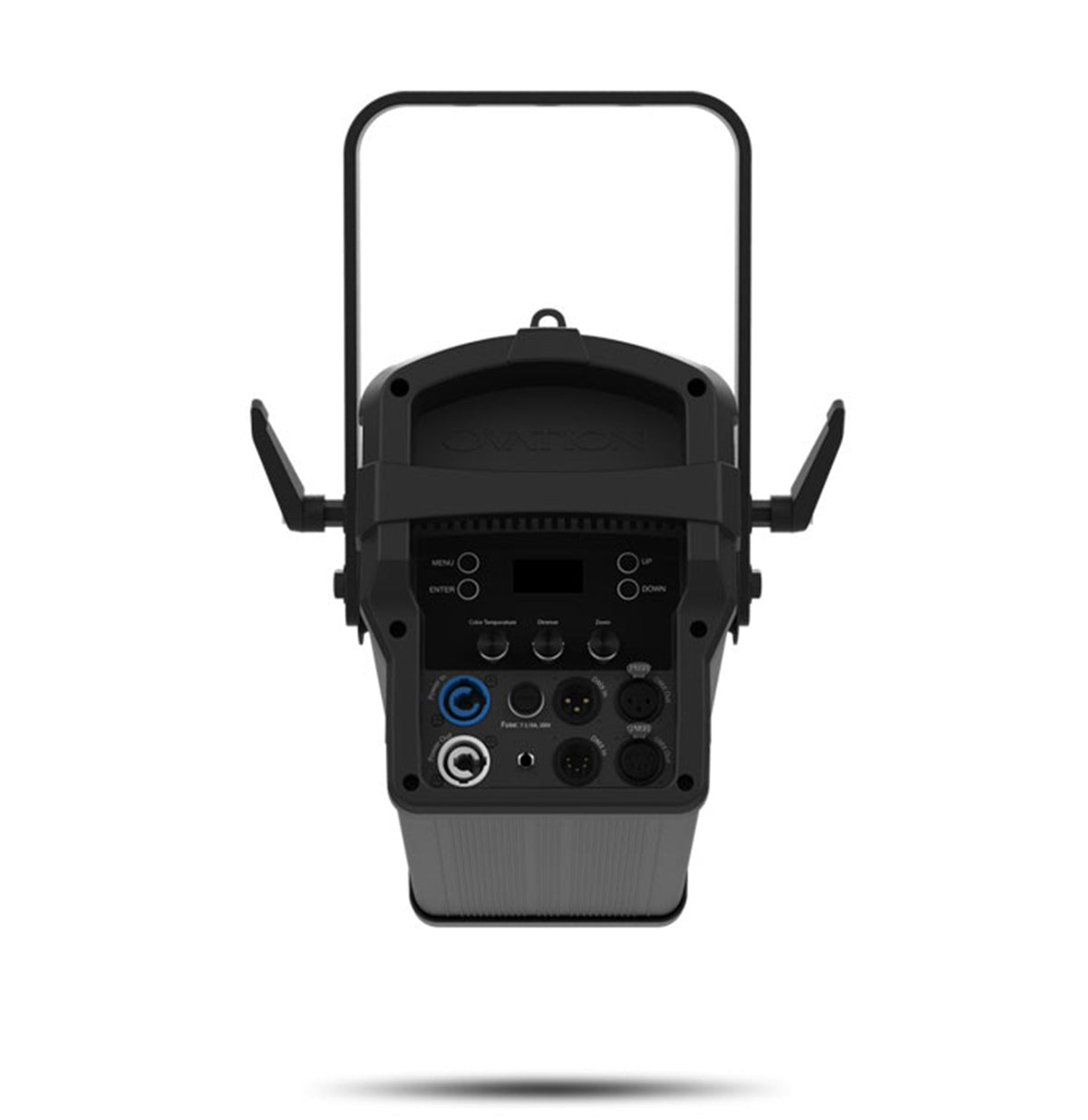

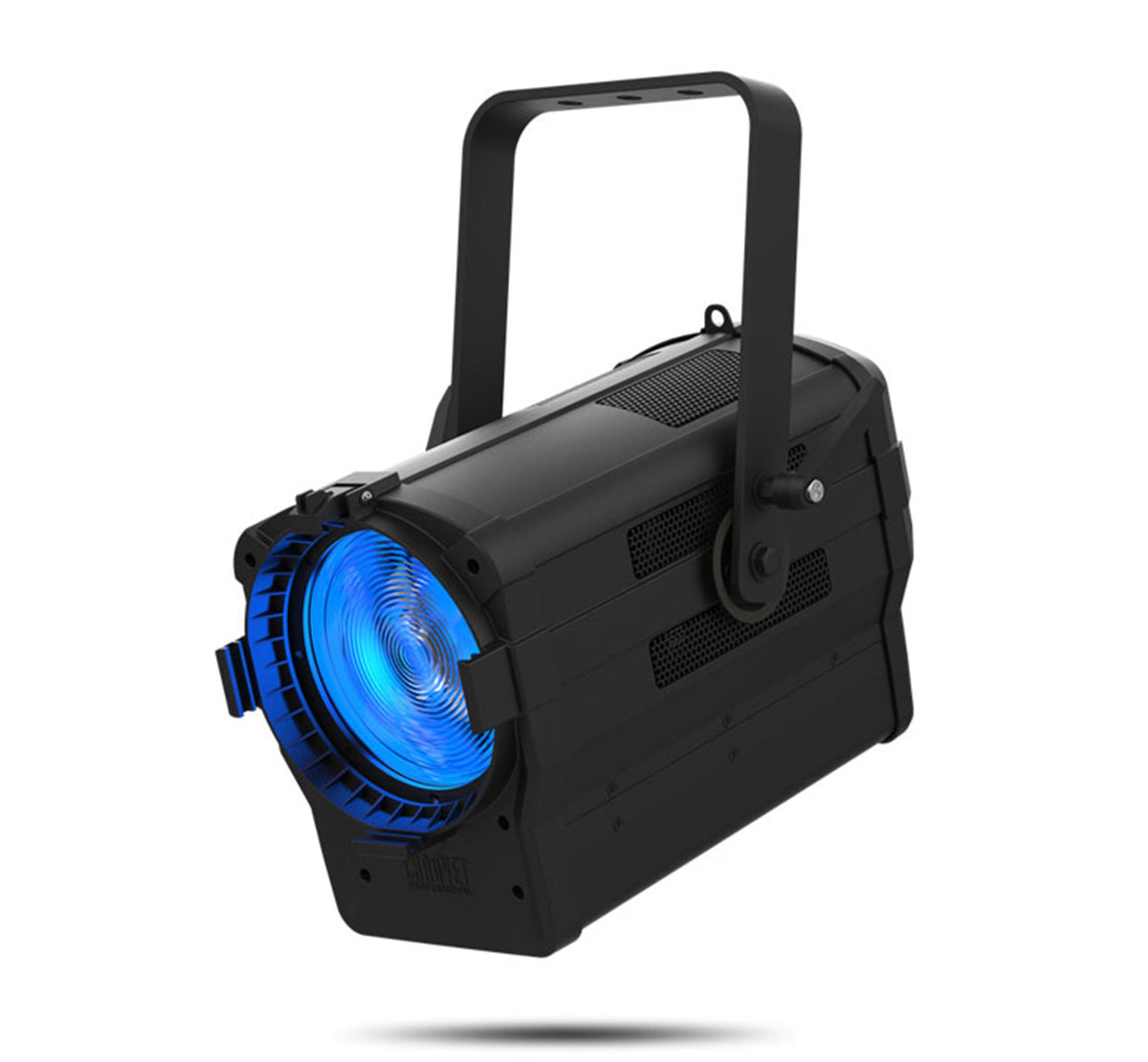

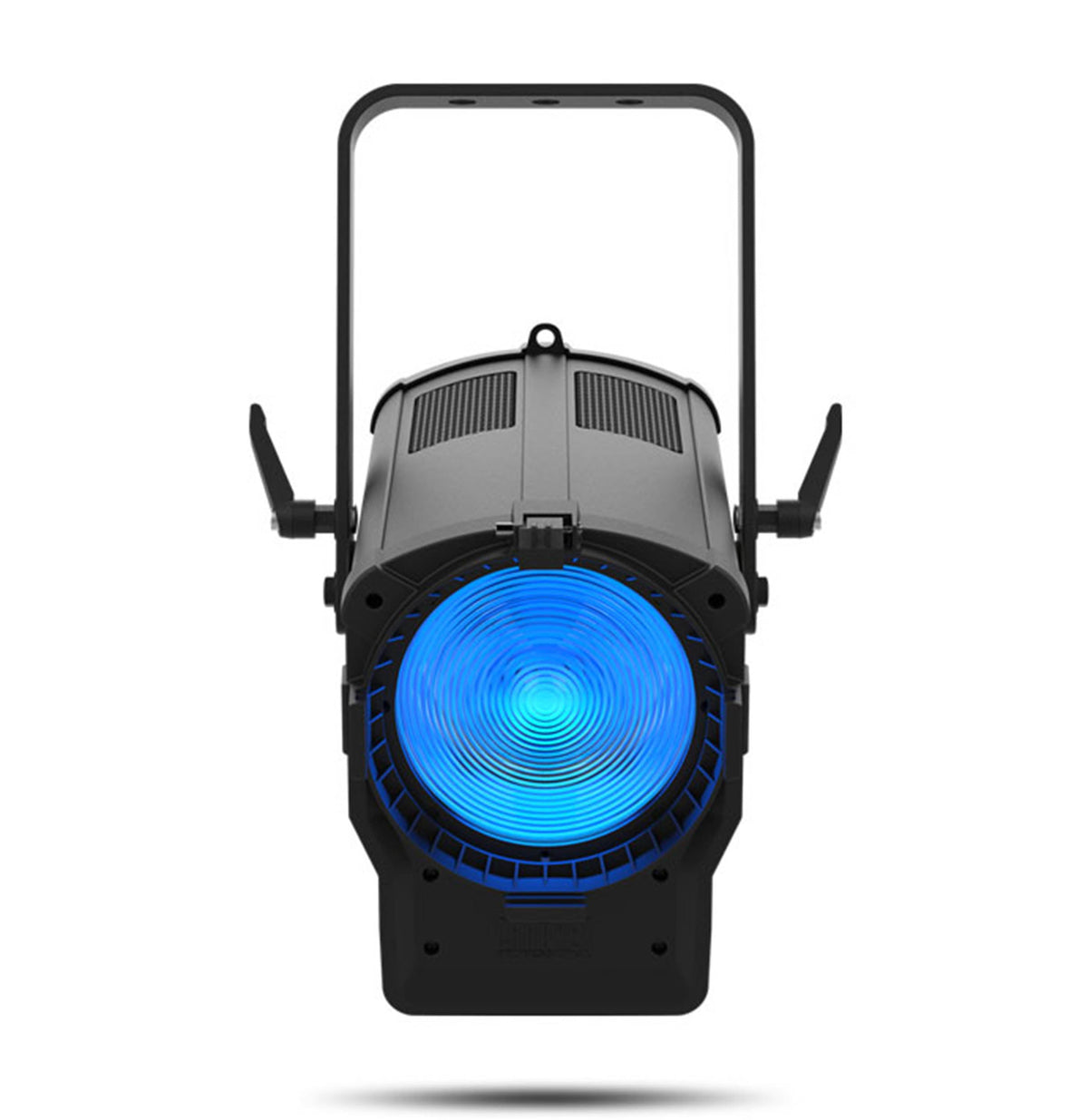

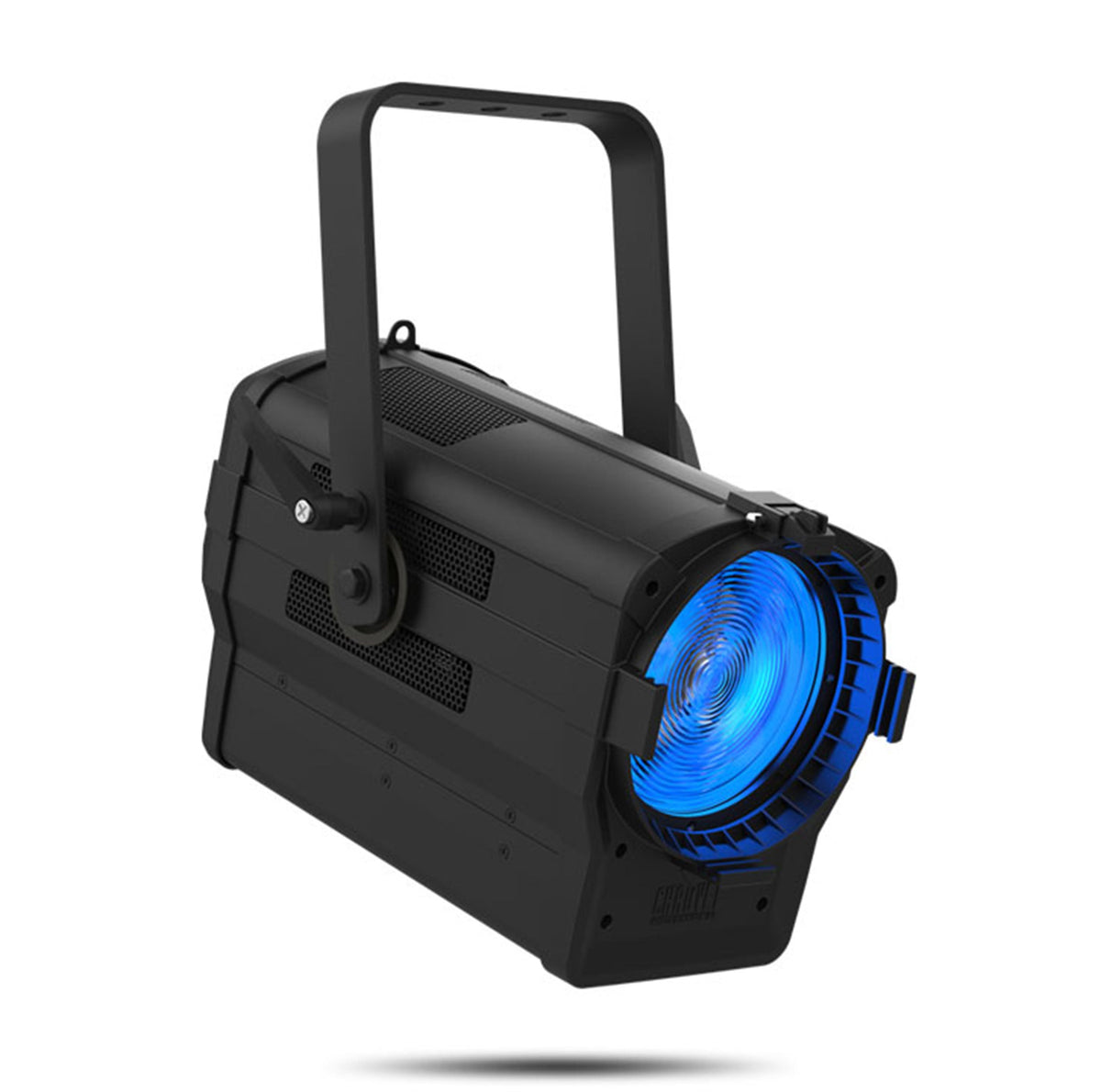

Chauvet Pro Ovation F-415FC Motorized RGBAL Fresnel-Style LED

The Chauvet Pro Ovation F-415FC Motorized RGBAL Fresnel-Style LED is a 6” Fresnel style fixture that features our advanced RGBAL LED system. The unit projects a bright, beautifully soft field of light from subtle pastels to punchy saturates, and nearly any temperature of white. A motorized zoom with a 14° to 68° field range allows you to add light where it is needed. Control of the virtual color wheel, zoom and output can be via DMX or on-board dials. It’s also RDM-enabled to ease installation and offers adjustable PWM for flicker-free use on camera.

Product Specifications:

Optical

Color Temperature (range): 2800 to 6500 K

CRI (3200 K): 91

Beam Angle: 14° to 43°

Field Angle: 27° to 68°

Zoom Range: 14° to 68°

Lumens (27°): 1,877
(68°): 2,815

Illuminance (27°): 915 lux @ 5 m
(68°): 190 lux @ 5 m

Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects

Dimmer: Electronic

Shutter/Strobe: Electronic

Zoom: Motorized

Strobe Rate: 0 to 27 Hz

Standalone Color Mixing: Yes

Color Temperature Presets: Yes

Dim Modes: 4

Built-in Automated Programs: Yes

Construction / Physical

Dimensions: 15.80 x 11.22 x 9.51 in (401.46 x 285 x 241.65 mm)

Weight: 12 lb (5.6 kg)

Exterior Color: Black

Housing Material: Aluminum alloy, Aluminum die-cast

Accessory Holder/Gel Frame Size: 6.25 in (158.75 mm)

Connections

Power Connection: Edison (Local) plug to Neutrik powerCON

Power Input: Neutrik powerCON

Power Output: Neutrik powerCON

Data Connectors: 3- and 5-pin XLR

Cable Length (power): 5 ft (1.5 m)

Control

Control Protocol: DMX, RDM

DMX Channels: 1, 3, 5, 7, 10, 12, 13 or 15

Modes/Personalities: 9 personalities (HSV, 1CH, 3CH, 5CH, 7CH, 10CH, 12CH, 13CH, 15CH)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power Linking: 10 units @ 120 V; 18 units @ 208 V; 20 units @ 230 V

Power and Current: 130 W, 1.101 A @ 120 V, 60 Hz

Power and Current: 127 W, 0.638 A @ 208 V, 60 Hz

Power and Current: 127 W, 0.585 A @ 230 V, 50 Hz

Certifications / Qualifications

CE, MET, FCC

IP Rating: IP20, dry location

Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

Ovation F-415FC

Neutrik powerCON power cord

Gel frame (6.25 in / 158.75 mm accessories)

Optional Accessories

Professional Clamps: CTC-50HC, CTC-50HCN

Neutrik powerCON cables

3-pin or 5-pin DMX Cables

Color Blending Filters: DF60X1D, DF20D

Ovation F6.25” Barndoor
