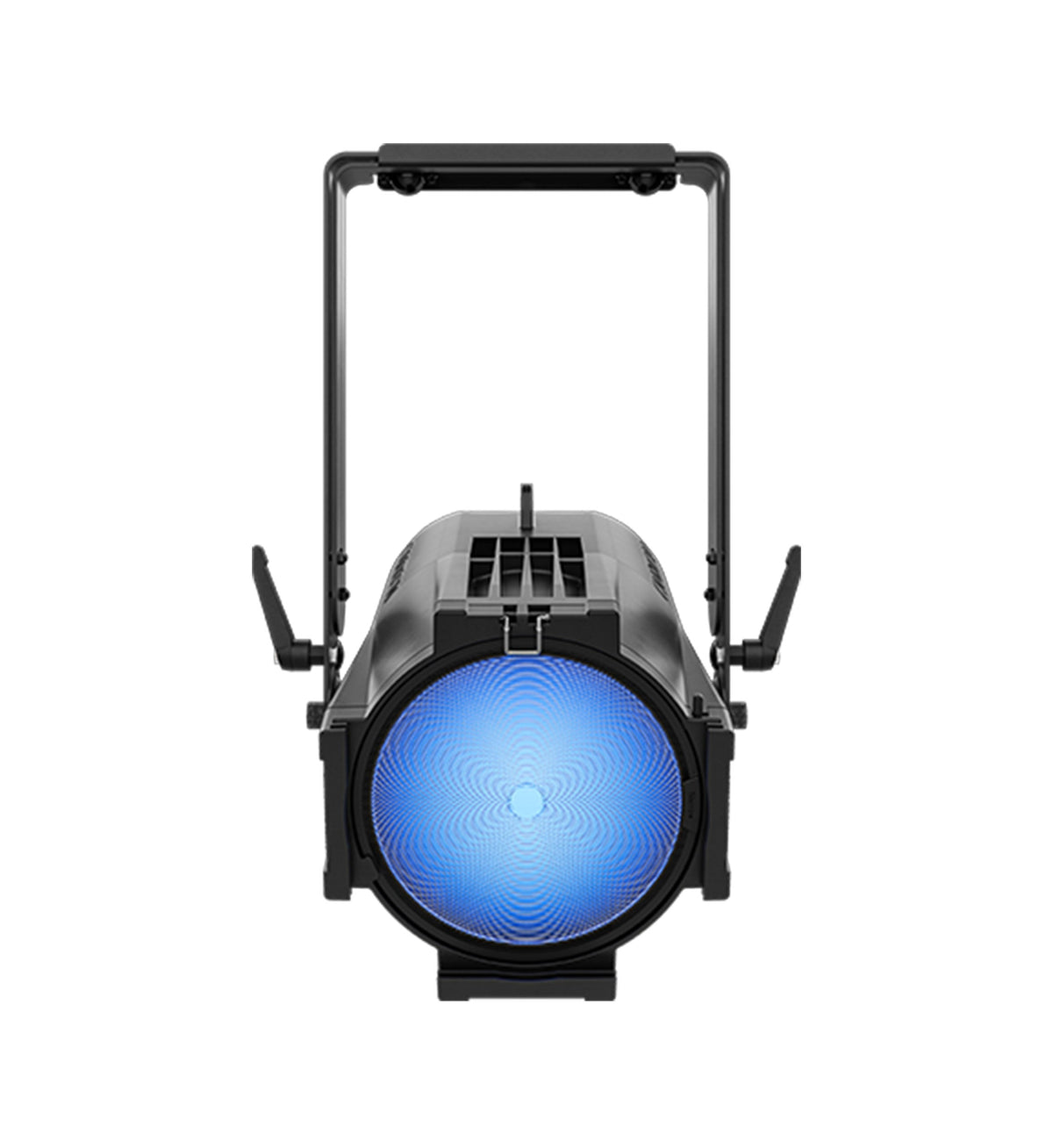

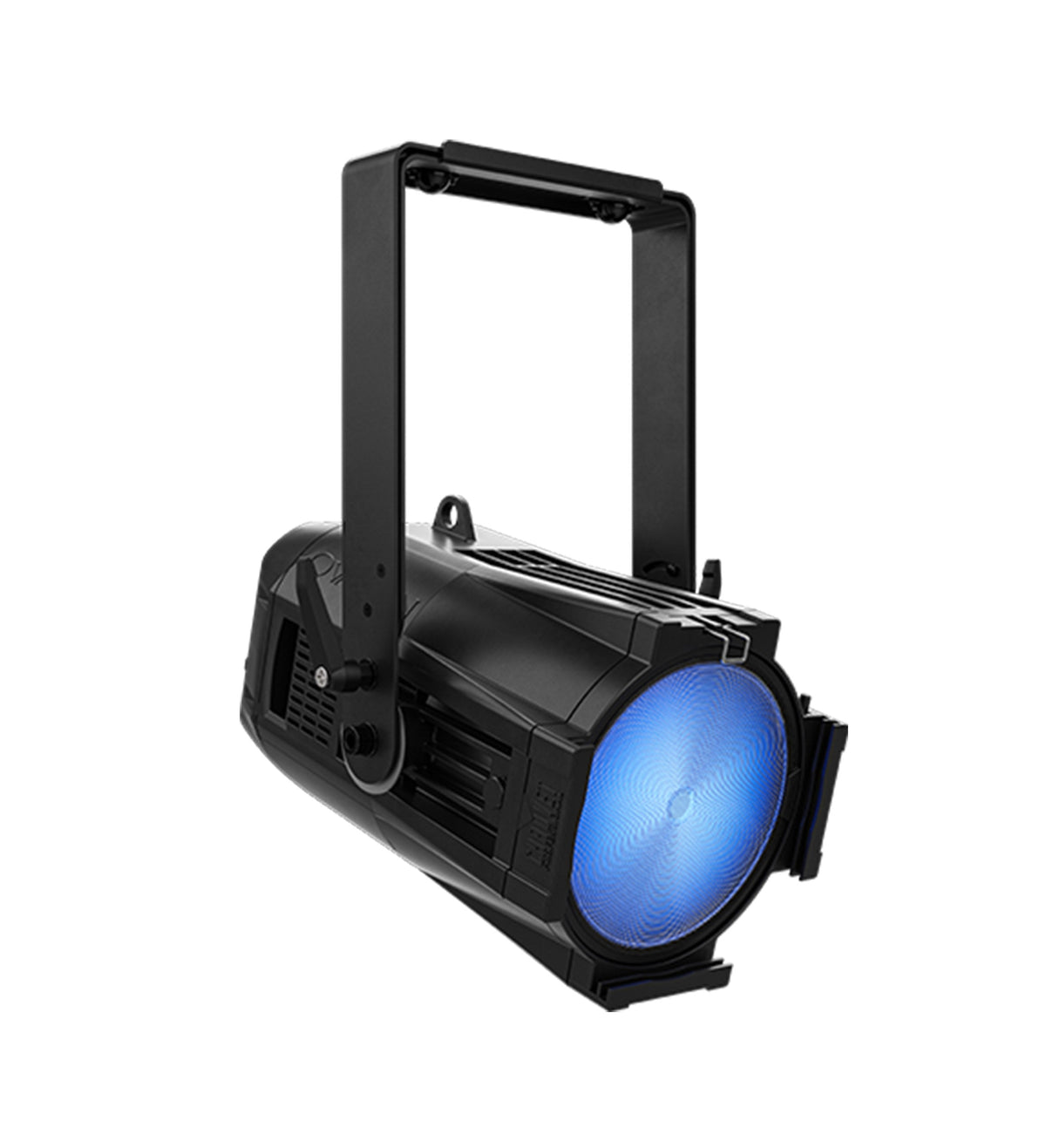

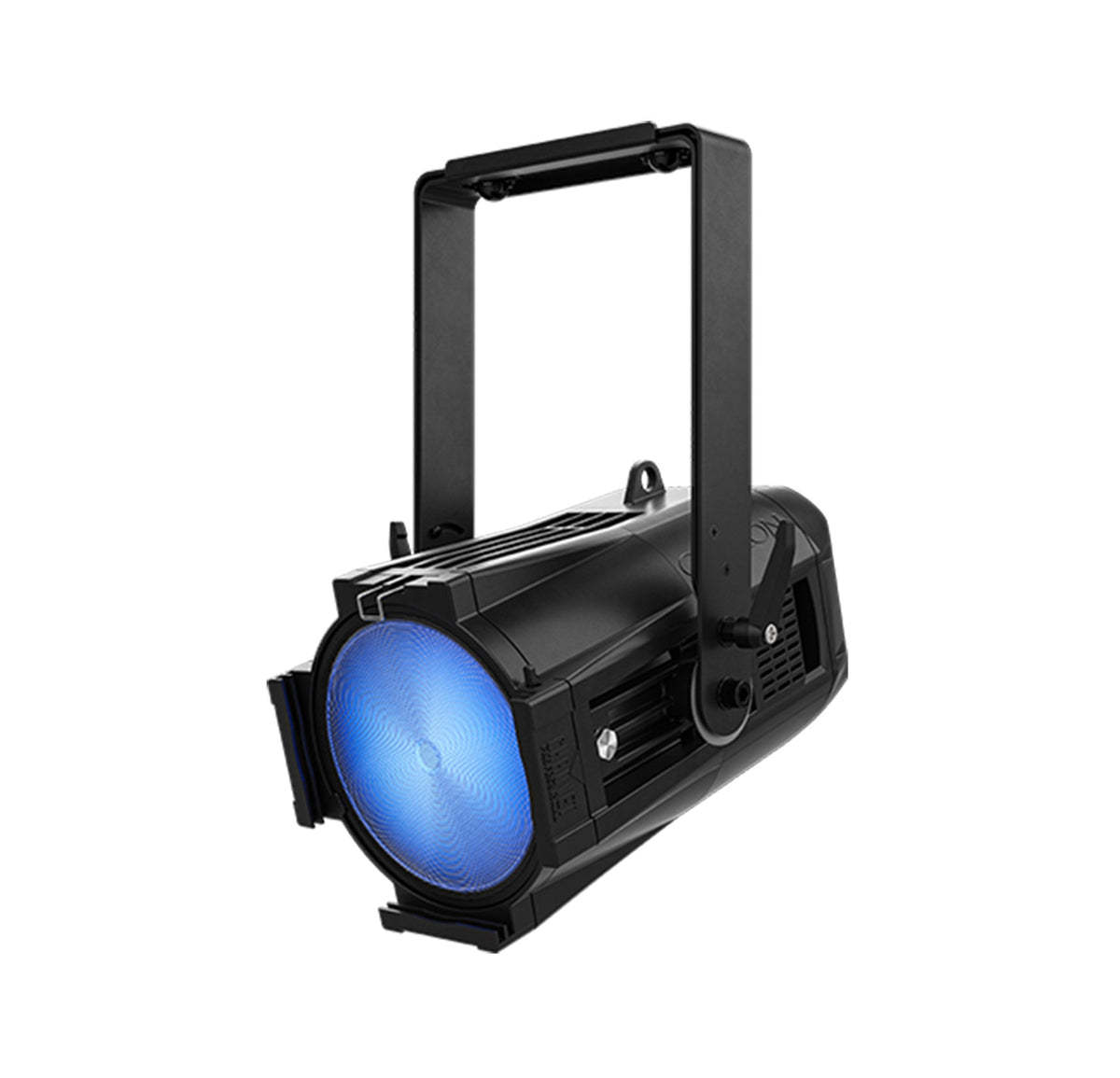

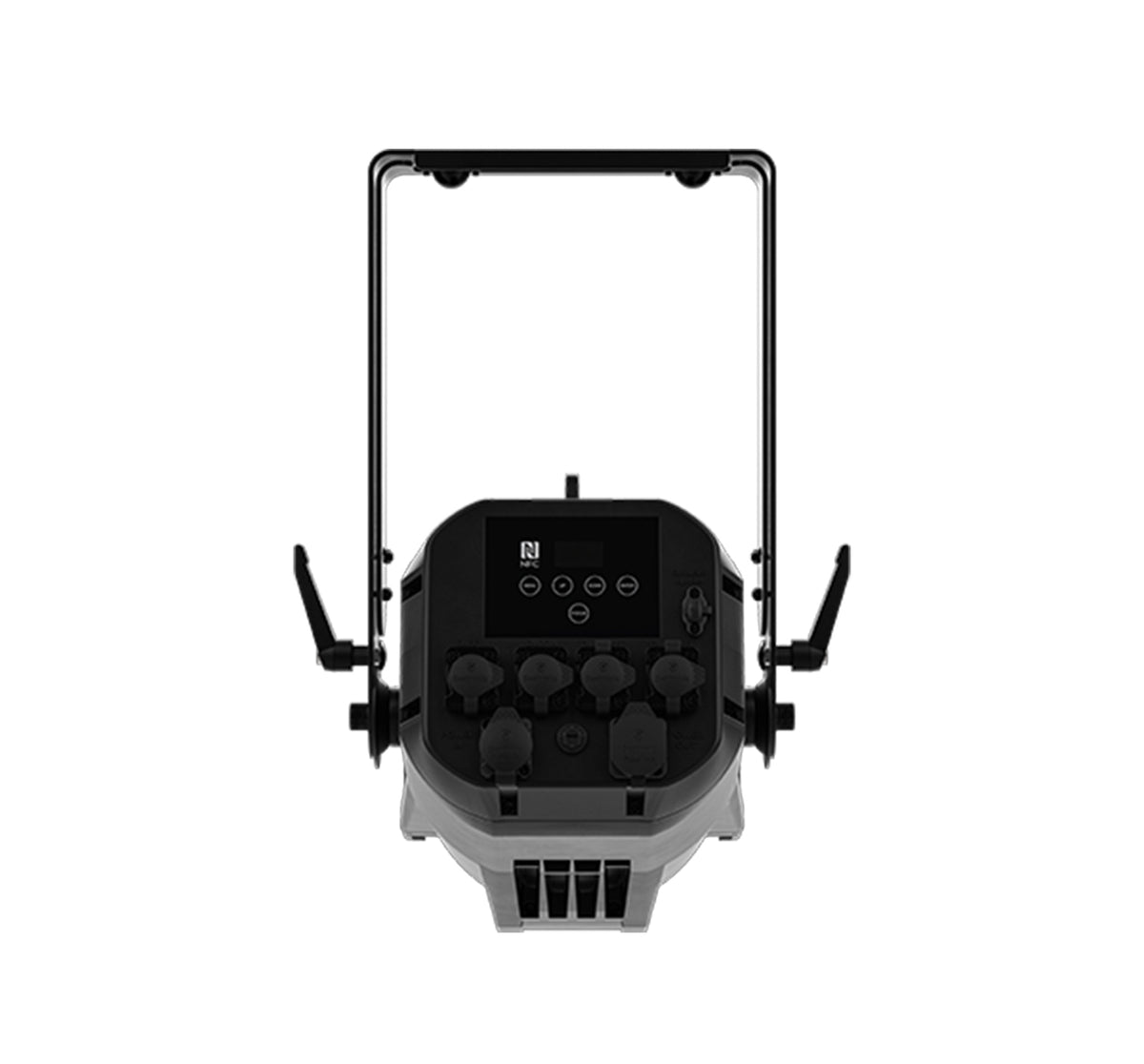

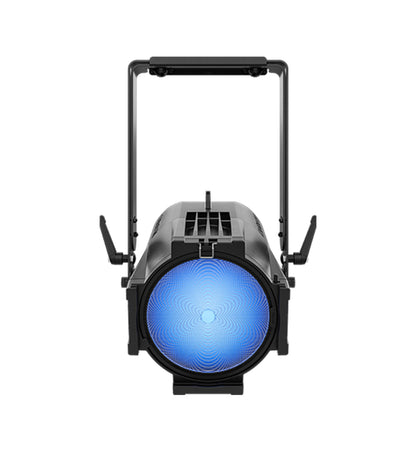

Chauvet Pro Ovation Reve P3 IP Led Lighting Fixture - Black

The Chauvet Pro Ovation Reve P3 IP Led Lighting Fixture - Black is our brightest IP65-rated multi-color full-spectrum-white LED PAR. An outdoor fixture with unsurpassed power and quality of light that incorporates all the advancements of our Ovation Rêve RGBAM LED source, and offers the versatility of Narrow, Medium, Wide and Very Wide lenses. Linear color temperature presets from 2800 K to 8000 K with high CRI and CQS. Adjustable PWM (Pulse Width Modulation) avoids on camera flicker. Indoors or out, a powerful instrument for theatrical, house of worship, special events, rental and production use.

Product Specifications:

Optical

Color Temperature (range): 2800 to 8000 K

Color Temperature (at full): 5399 K

Beam Angle (Narrow Lens): 11.9°

Beam Angle (Medium Lens): 25.6°

Beam Angle (Wide Lens): 29.3°

Beam Angle (Very Wide Lens): 43.5°

Field Angle (Narrow Lens): 20.8°

Field Angle (Medium Lens): 37.8°

Field Angle (Wide Lens): 43.1°

Field Angle (Very Wide Lens): 87.9°

Lumens (Narrow Lens): 10,051

Lumens (Medium Lens): 10,079

Lumens (Wide Lens): 9,936

Lumens (Very Wide Lens): 8,380

Illuminance (Medium Lens): 1,950 lux @ 5 m

Illuminance (Wide Lens): 1,475 lux @ 5 m

Illuminance (Very Wide Lens): 401 lux @ 5 m

Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects

Dimmer: Electronic

Shutter/Strobe: Electronic

Strobe Rate: 0 to 25 Hz

Standalone Color Mixing: Yes

Color Temperature Presets: Yes

Dim Modes: 4

Built-in Automated Programs: Yes

Construction / Physical

Dimensions: Dimensions: 18.82 x 11.81 x 8.27 in (478 x 300 x 210 mm)

Weight: 21.4 lb. (9.8 kg)

Exterior Color: Black

Housing Material: Aluminum diecast

Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

Connections

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65

Power Input: Seetronic Powerkon IP65

Power Output: Seetronic Powerkon IP65

Data Connectors: 5-pin XLR

Cable Length (power): 5 ft (1.5 m)

Software Connection: USB

Control

Control Protocol: DMX, RDM

DMX Channels: 1, 4, 5, 7, 11, 13ch1, 13ch2, 17 or HSV

Modes/Personalities: 9 personalities (1, 4, 5, 7, 11, 13ch1, 13ch2, 17, HSV)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power Linking: 5 units @ 120 V; 8 units @ 208 V; 9 units @ 230 V;

Power and Current: 274 W, 2.31 A @ 120 V, 60 Hz

Power and Current: 267 W, 1.38 A @ 208 V, 60 Hz

Power and Current: 265 W, 1.25 A @ 230 V, 50 Hz

Certifications / Qualifications

CE, MET, FCC, UKCA

IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve

Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

Ovation Reve P-3 IP

Seetronic Powerkon power cord

Narrow, Medium, Wide, Very Wide Lens

Gel Frame Holder

Optional Accessories

Professional Clamps: CTC-50HC, CTC-50HCN

Safety Cable: SC-07

TRUE1 Style Power Extension Cables

5-pin IP65 DMX Cables

RDM2go

USB Jump Drive

Ovation F 7.5” Barndoor V2
