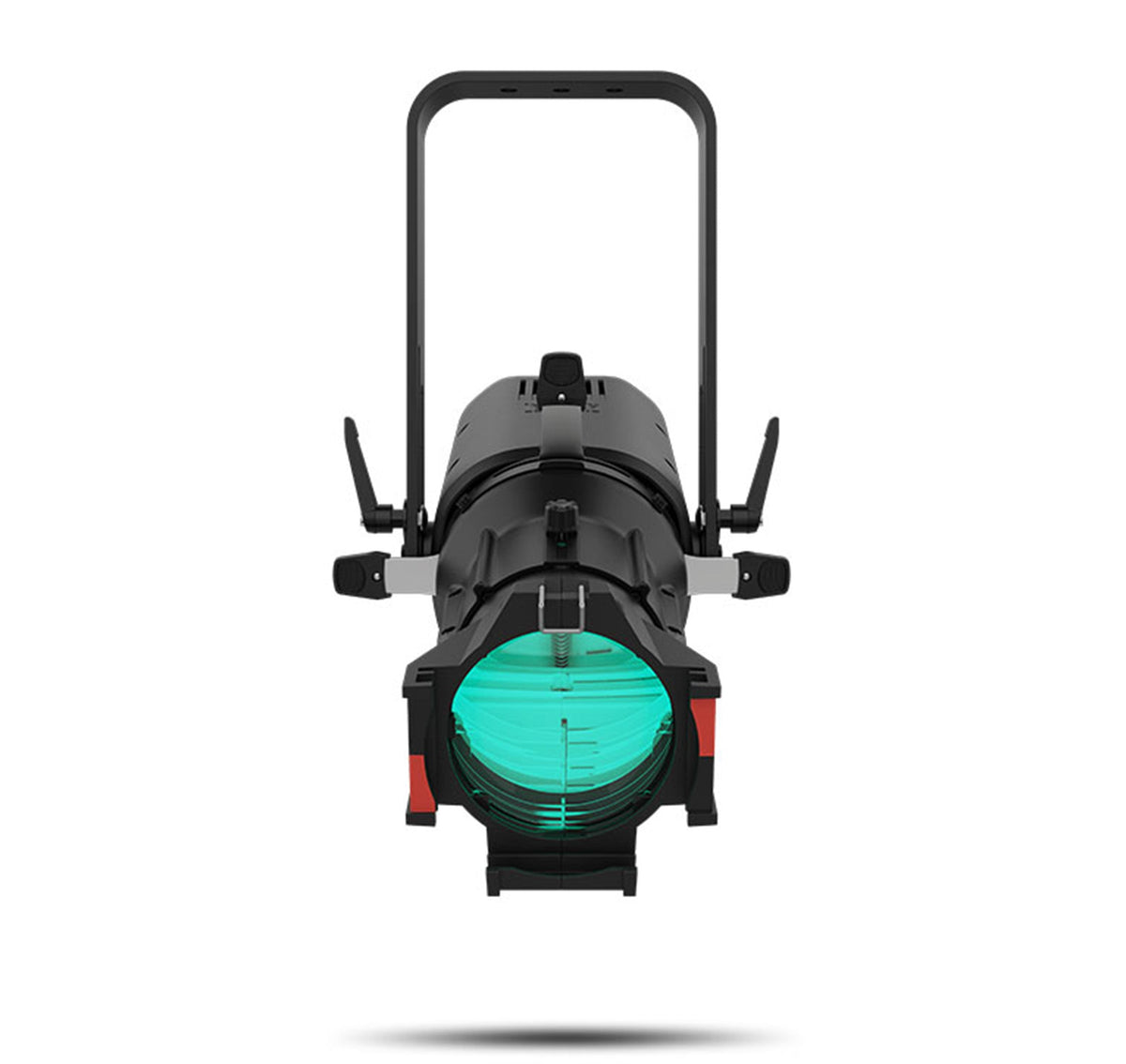

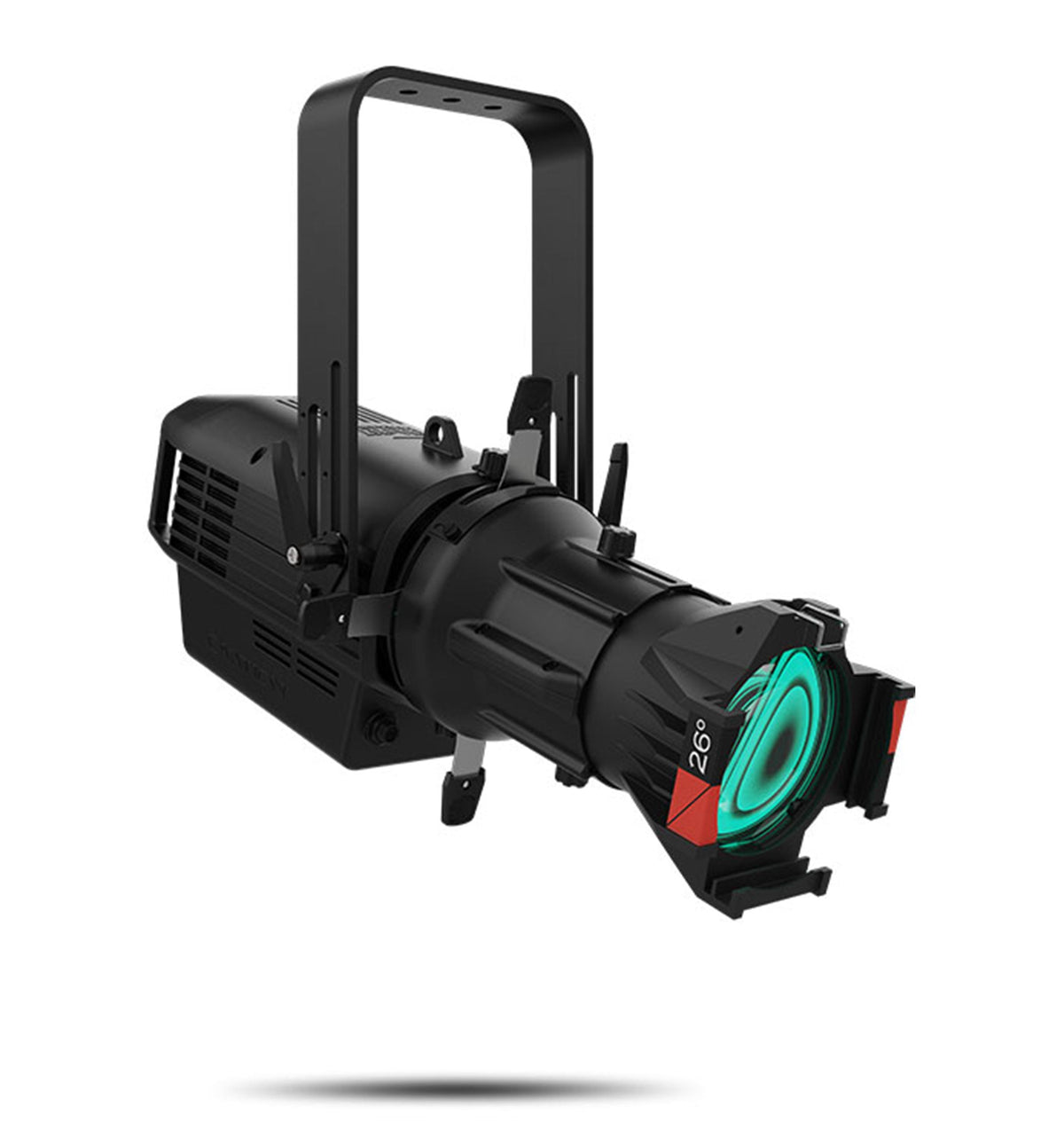

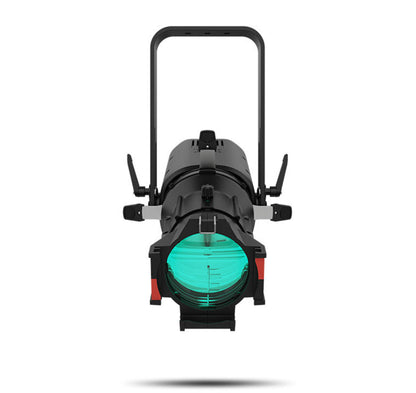

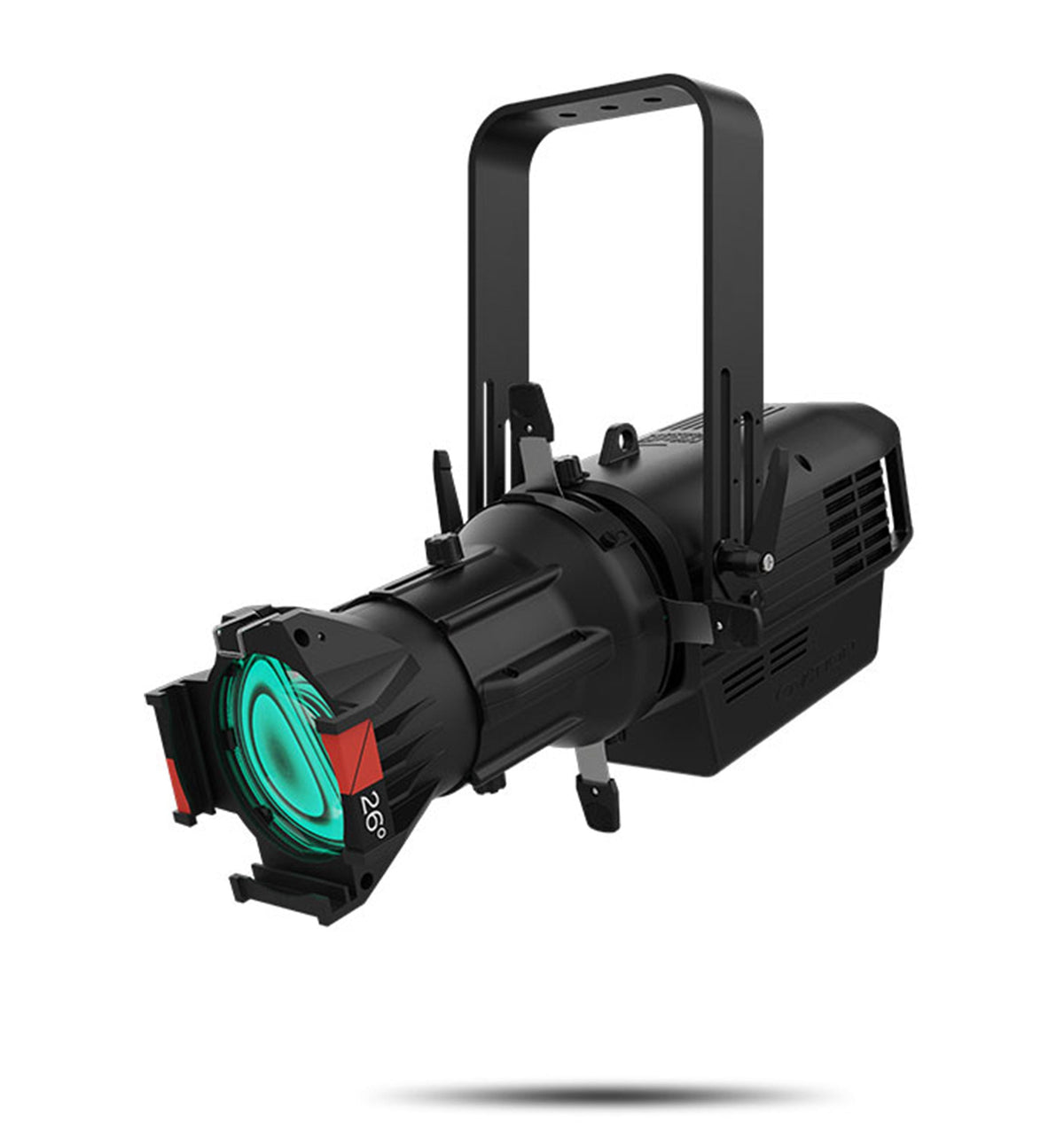

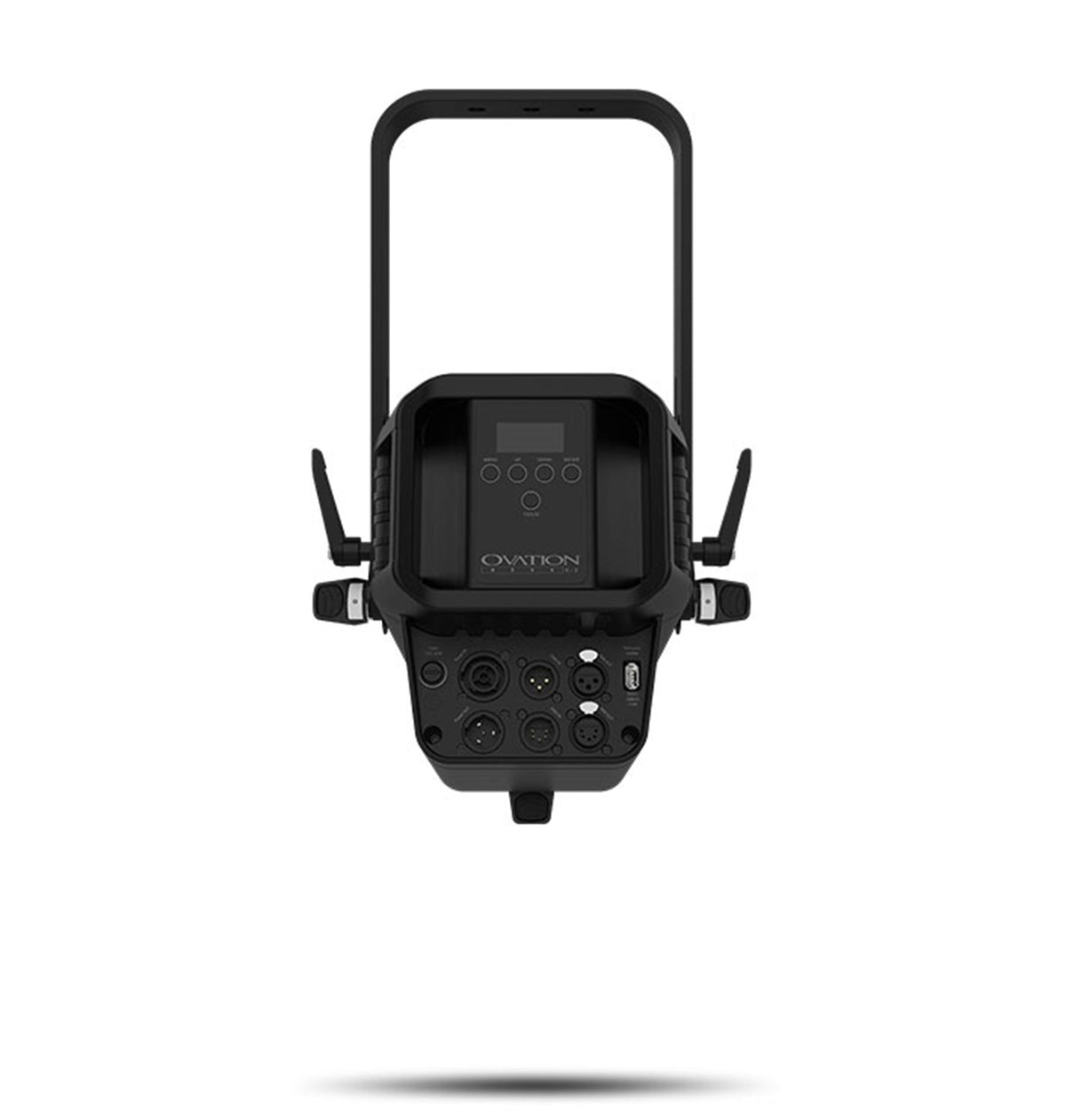

Chauvet Pro Ovation Reve E-3 Black Multicolor LED Ellipsoidal Lens not

The Chauvet Pro OVATIONREVEE3, Multicolor LED Ellipsoidal - Black is the brightest, multi-color LED ellipsoidal that also has the capability of producing perfectly tunable whites. It’s a new kind of epic story-telling machine that fuses the best of both worlds into one totally reimagined LED light source. Color Temperature presets ranging from 2800K to 8000K maintain outstanding brightness and a high quality of light, with an emulated “red shift” for a tungsten feel. Ovation Rêve E-3 also features several dimming curves, a virtually silent operation with fan-off modes, and a series of technician-friendly features such as an innovative, adjustable yoke that makes mounting in low clearance situations a breeze. With Ovation Rêve E-3 you can seamlessly transition from captivating a wide range of saturated colors in class-leading output to distinct whites with +/- green adjustments using one fixture. No ifs, or buts. Simply and categorically unrivaled.

Product Specifications:

Optical

Color Temperature (range): 2800 to 8000 K

Color Temperature (at full): 5470K

CRI (3200 K): 95.4

Beam Angle (w/5° lens): 4.6°

Beam Angle (w/10° lens): 10°

Beam Angle (w/14° lens): 14.8°

Beam Angle (w/19° lens): 18.5°

Beam Angle (w/26° lens): 26°

Beam Angle (w/36° lens): 33.3°

Beam Angle (w/50° lens): 49.5°

Field Angle (w/5° lens): 5.6°

Field Angle (w/10° lens): 11.1°

Field Angle (w/14° lens): 16°

Field Angle (w/19° lens): 21.6°

Field Angle (w/26° lens): 29.6°

Field Angle (w/36° lens): 37.1°

Field Angle (w/50° lens): 55.7°

Lumens (w/5° lens): 5,076

Lumens (w/10° lens): 11,250

Lumens (w/14° lens): 12,179

Lumens (w/19° lens): 12,156

Lumens (w/26° lens): 13,300

Lumens (w/36° lens): 13,223

Lumens (w/50° lens): 12,216

Lumens (w/15°, 30° lens): 12,057

Lumens (w/25°, 50° lens): 14,355

Illuminance (w/5° lens): 31,856 lux @ 5 m

Illuminance (w/10° lens): 18,924 lux @ 5 m

Illuminance (w/14° lens): 9,284 lux @ 5 m

Illuminance (w/19° lens): 5,635 lux @ 5 m

Illuminance (w/26° lens): 3,378 lux @ 5 m

Illuminance (w/36° lens): 2,085 lux @ 5 m

Illuminance (w/50° lens): 870 lux @ 5 m

Barrel Rotation: +/- 25°

Dynamic Effects

Dimmer: Electronic

Shutter/Strobe: Electronic

Focus: Manual

Strobe Rate: 0 to 30 Hz

Standalone Color Mixing: Yes

Color Temperature Presets: Yes

Dim Modes: 4

Dim Curves: 4

Built-in Automated Programs: Yes

Construction / Physical

Dimensions (fixture only, yoke up): 20.44 x 13.07 x 20.53 in (519 x 332 x 522 mm)

Dimensions (w/5° lens extended, yoke up): 41.60 x 14.17 x 21.42 in (1056 x 360 x 544 mm)

Dimensions (w/10° lens extended, yoke up): 32.87 x 13.07 x 20.01 in (835 x 332 x 510 mm)

Dimensions (w/14° lens extended, yoke up): 29.7 x 13.07 x 20.53 in (755 x 332 x 522 mm)

Dimensions (w/19°, 26°, 36° or 50° lens extended, yoke up):26.83 x 13.07 x 20.53 in (681 X 332 X 522 mm)

Weight (fixture only): 18.6 lb (8.4 kg)

Weight (w/5° lens): 26 lb (11.7 kg)

Weight (w/10° lens): 24 lb (10.8 kg)

Weight (w/14° lens): 25.6 lb (11.6 kg)

Weight (w/26° lens): 24.2 lb (10.9 kg)

Weight (w/15°, 30° lens): 32.3 lb (14.6 kg)

Weight (w/25°, 50° lens): 29.8 lb (13.5 kg)

Exterior Color: Black or White

Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)

Accessory Holder/Gel Frame Size (15°, 30° lens): 7.5 in (191 mm)

Accessory Holder/Gel Frame Size (25°, 50° lens): 7.5 in (191 mm)

Connections

Power Input: Seetronic Powerkon IP65

Power Output: Seetronic Powerkon IP65

Data Connectors: 3- and 5-pin XLR

Cable Length (power): 5 ft (1.5 m)

Software Connection: USB

Control

Control Protocol: DMX, RDM

DMX Channels: 1, 5, 6, 8, 12, 14ch1, 14ch2, 18 or HSV

Electrical

Power and Current: 367 W, 3.04 A @ 120 V, 60 Hz

Power and Current: 356 W, 1.76 A @ 208 V, 60 Hz

Power and Current: 353 W, 1.59 A @ 230 V, 50 Hz

Certifications / Qualifications

CE, MET, FCC

IP Rating: IP20, dry location

Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

Ovation Reve E-3

Seetronic Powerkon power cord

Ovation Metal Gobo Holder

Soft Focus Filter
