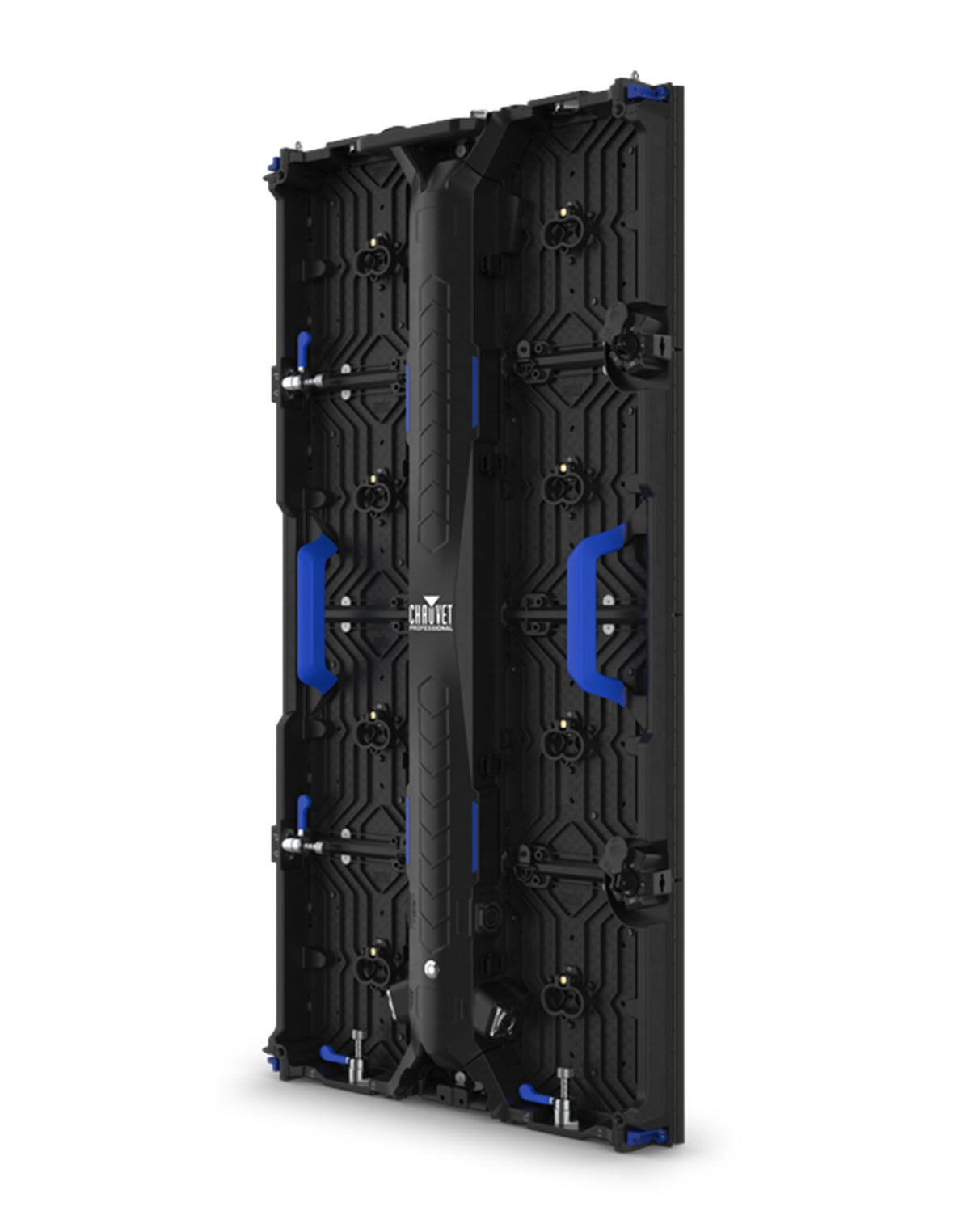

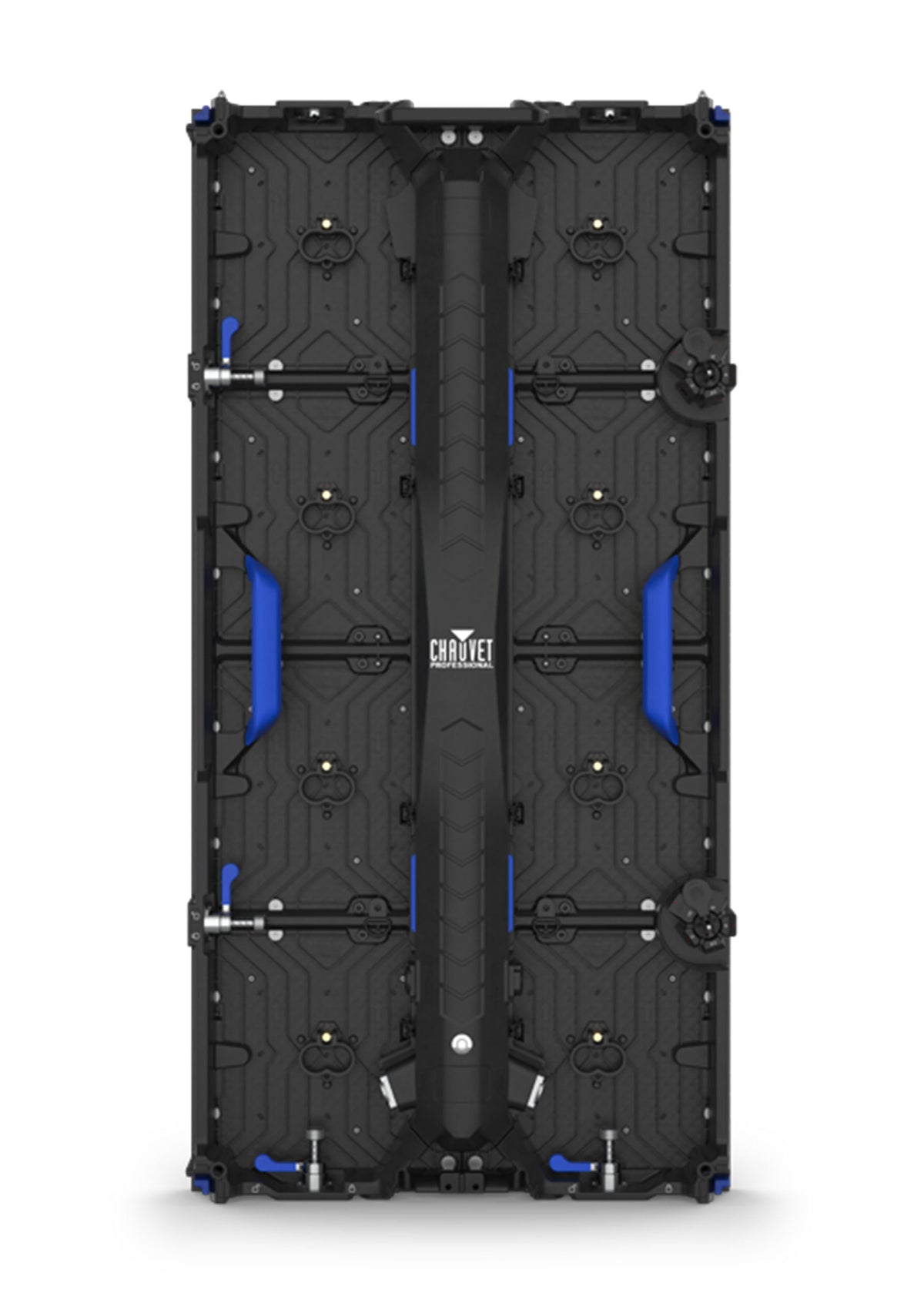

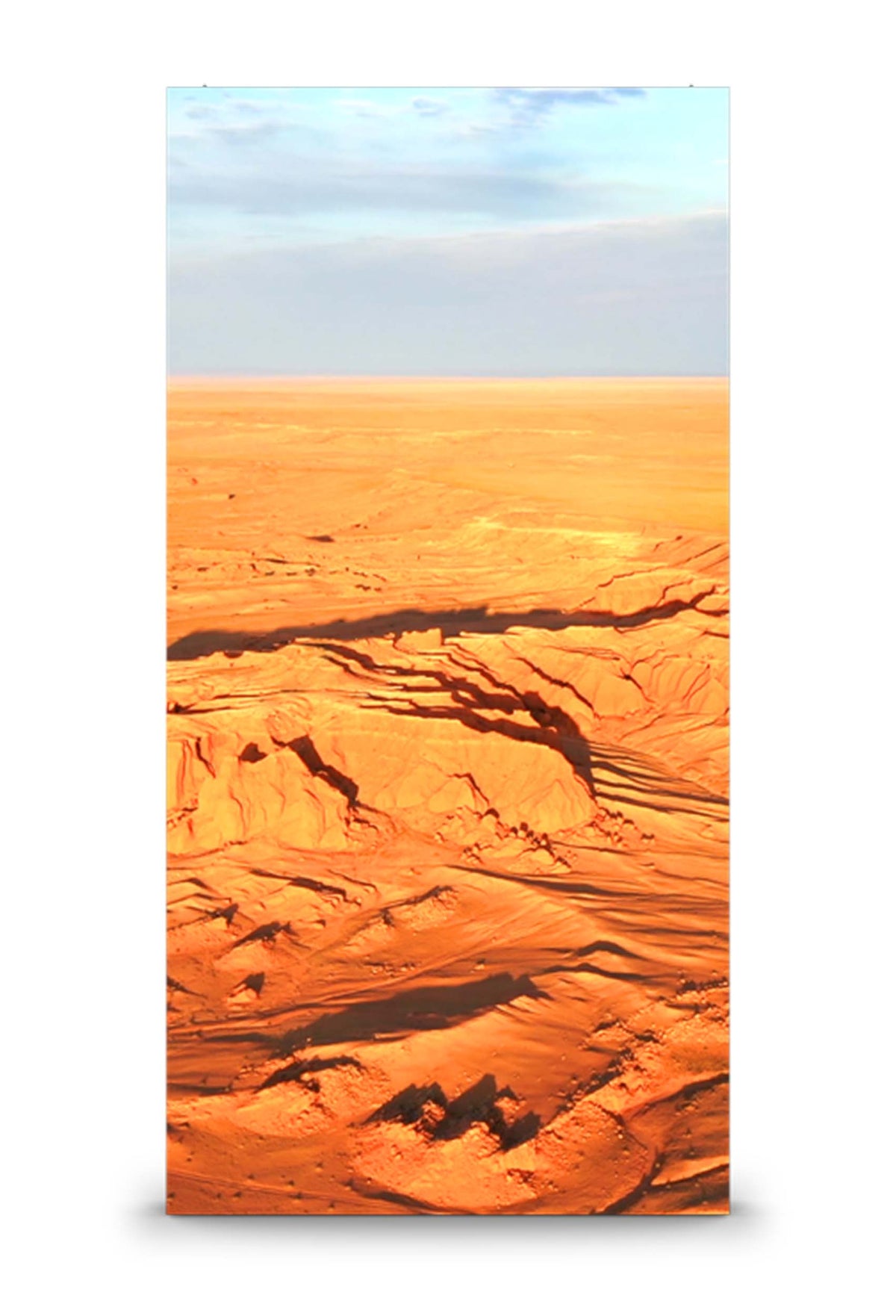

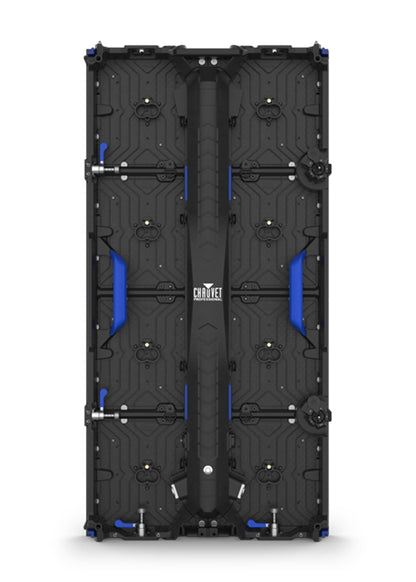

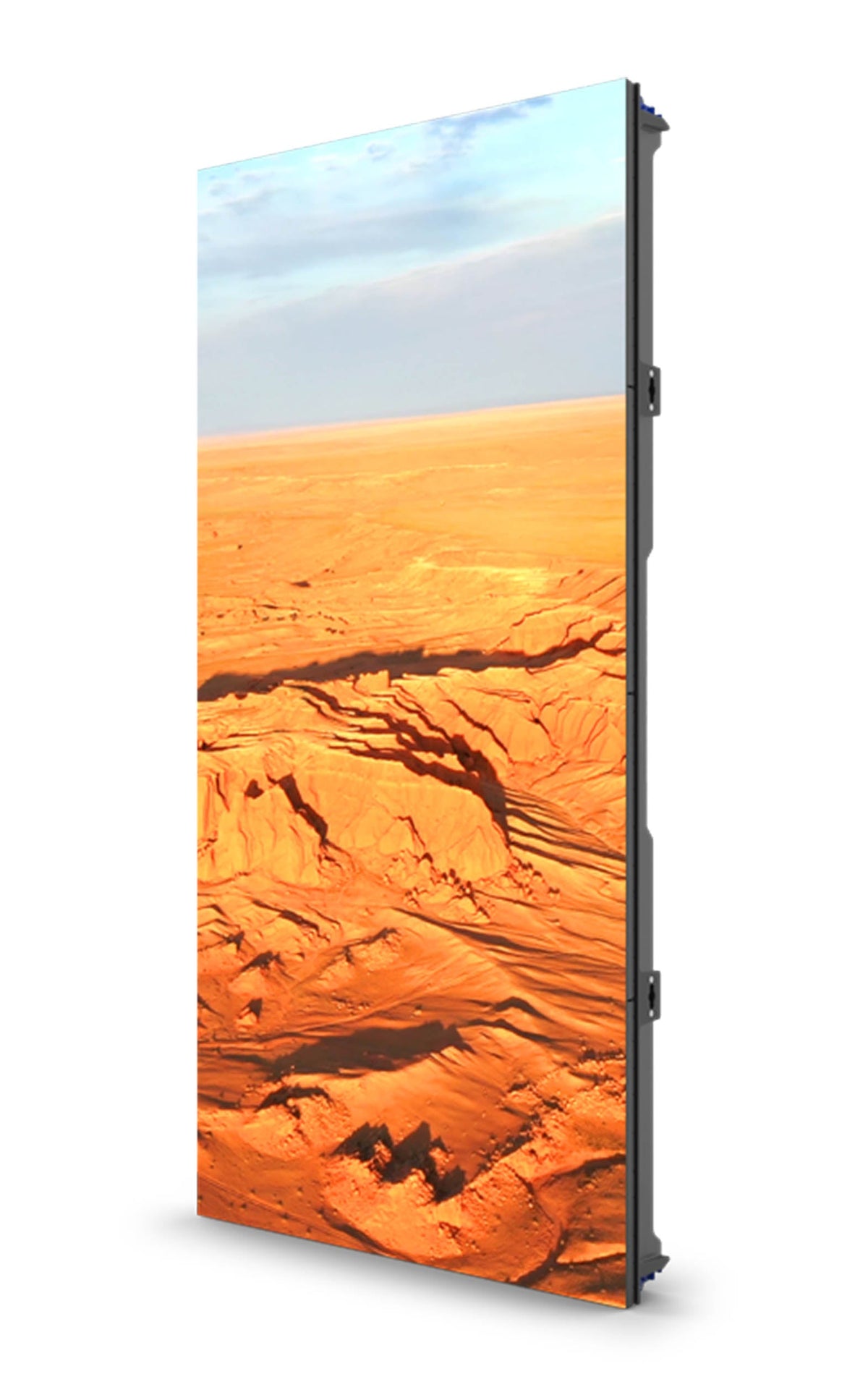

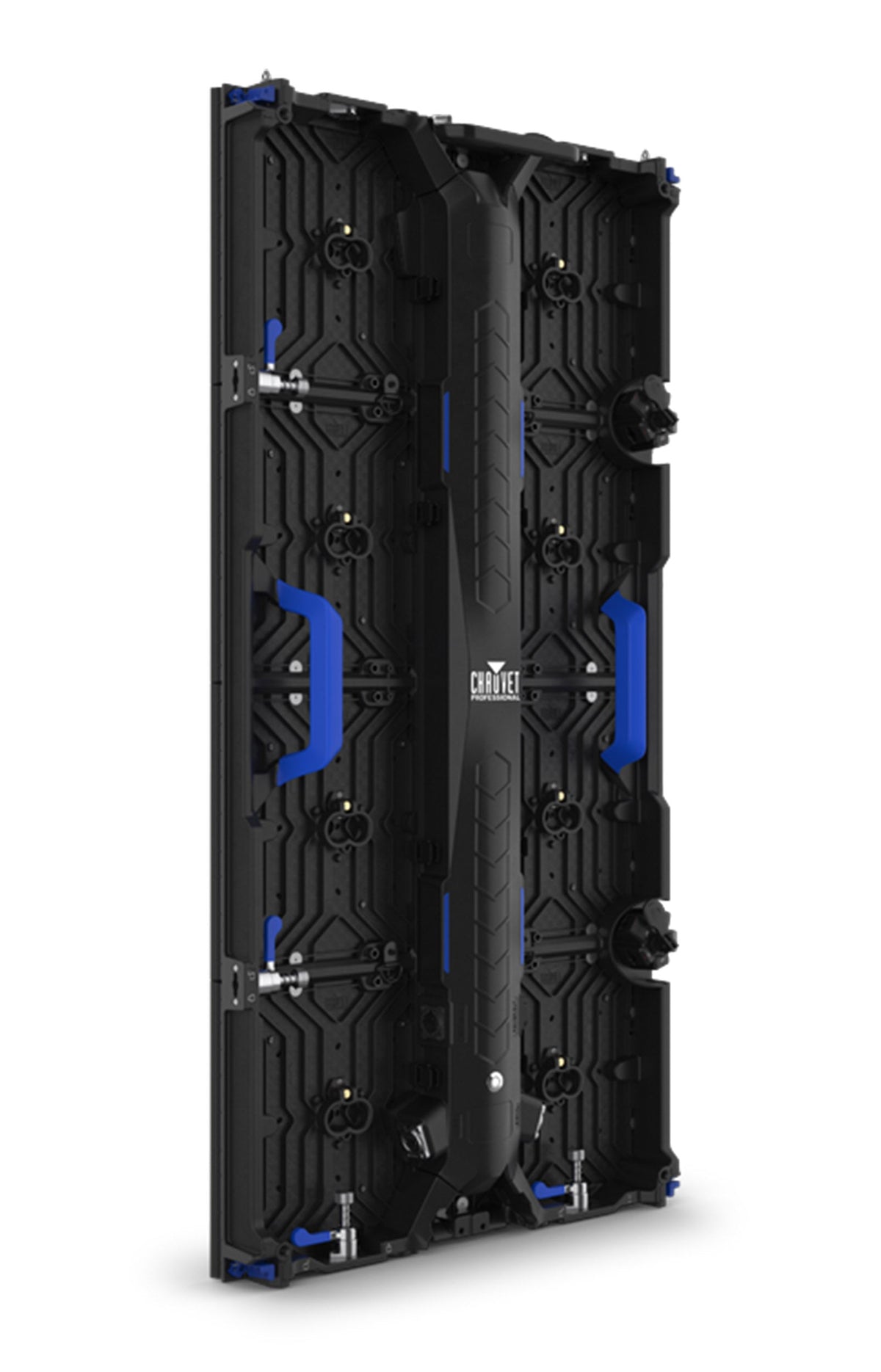

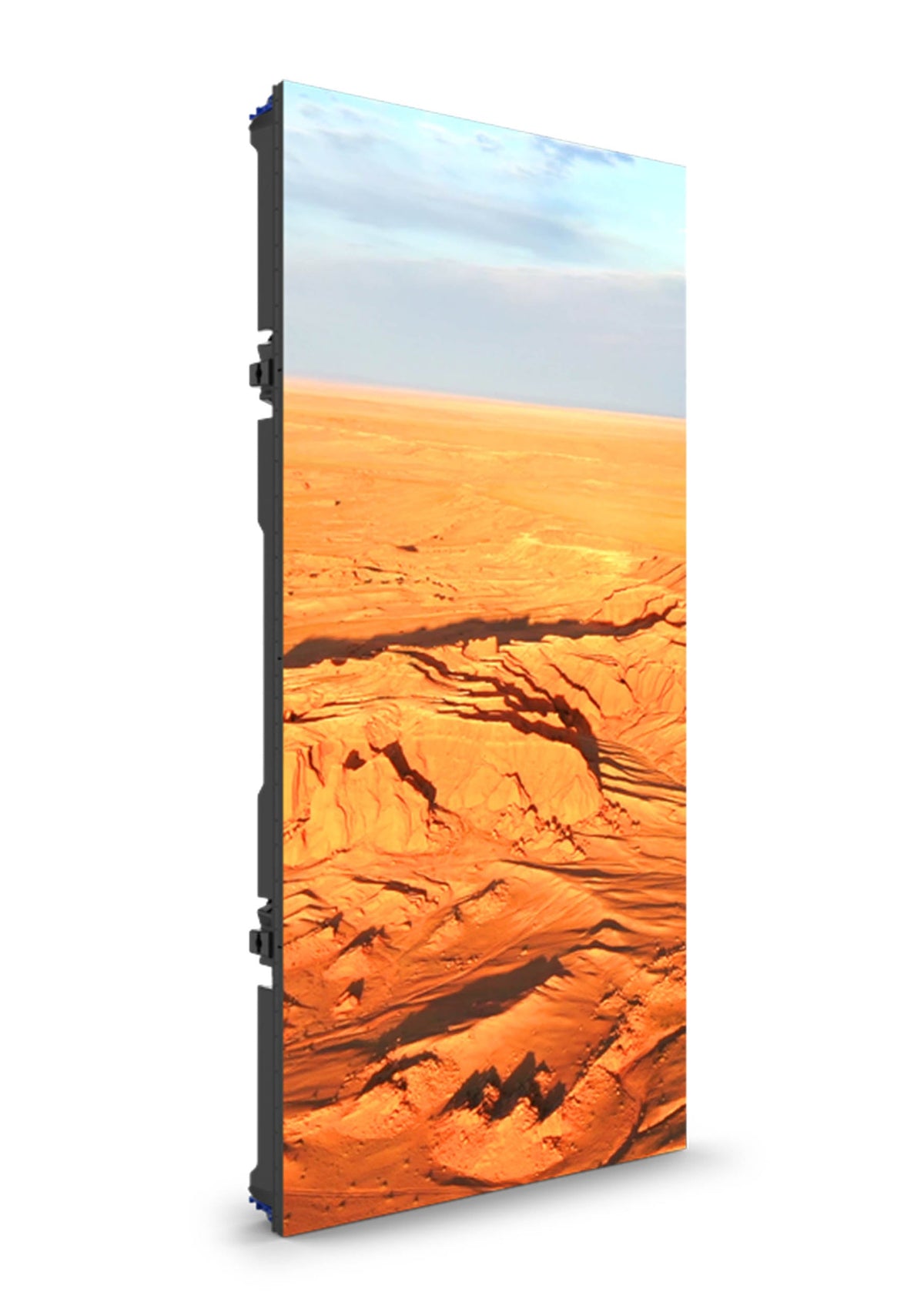

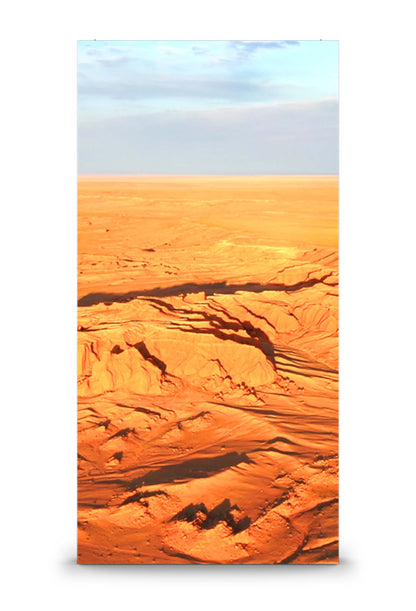

Chauvet Pro REM 1, SMD LED Video Panel - 4 Pack

The Chauvet Pro REM 1, SMD LED Video Panel - 4-Pack is a high-resolution 800 NITS indoor video wall solution with a 1.9mm pitch, integrated convex/concave curving capabilities, and universal magnetic LED modules. Its DCI-P3 color gamut LEDs offer 26% more color possibilities compared to standard sRGB/Rec.709 LEDs. With high-speed 7680Hz LED drivers, A10s Pro Novastar Receiving cards, and low latency, REM 1 offers top-tier performance and signal processing for VR/XR applications, exhibits, houses of worship, installations and indoor events.

Product Specifications:

Light Source: 131,072 LEDs (tri-color RGB) SMD 1212, 100,000 hours life expectancy

LED Color Wavelength: red (620 to 625 nm), green (510 to 535 nm), blue (485 to 475 nm)

Color Space: DCI-P3

Viewing Angle (H/V): 140°/140°

Calibrated Illuminance: 800 NITS (calibrated)

Maximum Illuminance: >1,000 NITS (calibration disabled)

Contrast Ratio:

Grayscale: 22-bit+

Receiver Card: A10s Pro

Drive Type: 1/21

Pixels: 256 x 512

Pixel Pitch: 1.9 mm

Minimum Viewing Distance: 7.5 ft (2.3 m)

Pixel Density: 262,144/m2

Display Refresh Rate: 7,680 Hz (S-PWM)

Power Connection: Edison (local) plug to Seetronic powerKON

Power Input: Seetronic powerKON

Power Output: Seetronic powerKON

Data Connectors: Seetronic etherKON

Cable Length (signal extension): 4 ft (1.2 m)

Cable Length (power): 4.6 ft (1.4 m)

Cable Length (power extension): 6 ft (1.8 m)

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power Linking: 7 units @ 120 V; 12 units @ 208 V; 14 units @ 230 V

Power and Current: 240 W, 2.0 A @ 120 V, 60 Hz

Power and Current: 240 W, 1.15 A @ 208 V, 60 Hz

Power and Current: 240 W, 1.04 A @ 230 V, 50 Hz

Dimensions: 19.69 x 39.37 in (500 x 1000 mm)

Weight: 31.2 lb (14.15 kg)

Threaded Bolt: M10, 1.5

Exterior Color: Black

Housing Material: Aluminum ADC12

LED Module Material: Glass filled Polycarbonate

Maximum vertical hang: 11 panels
