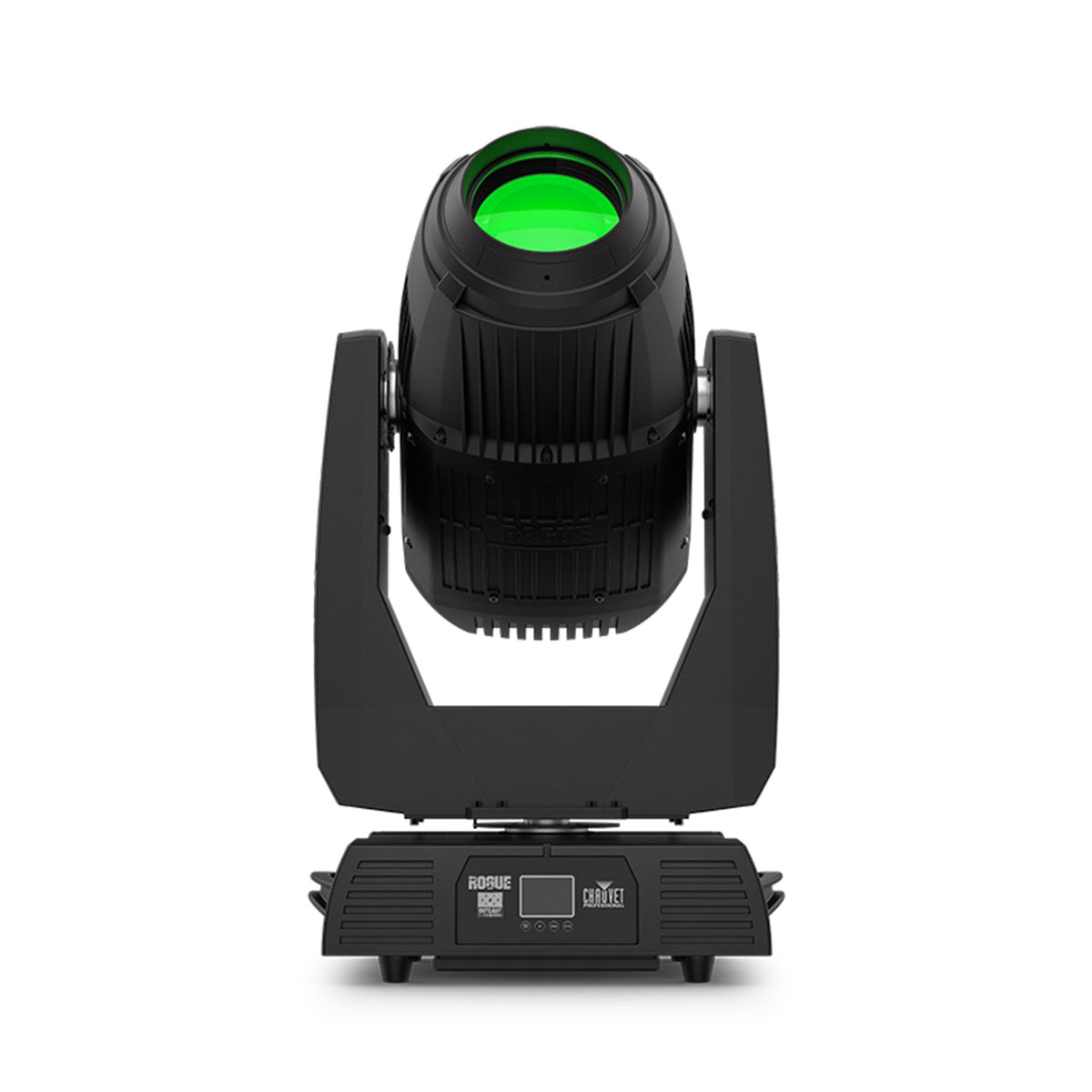

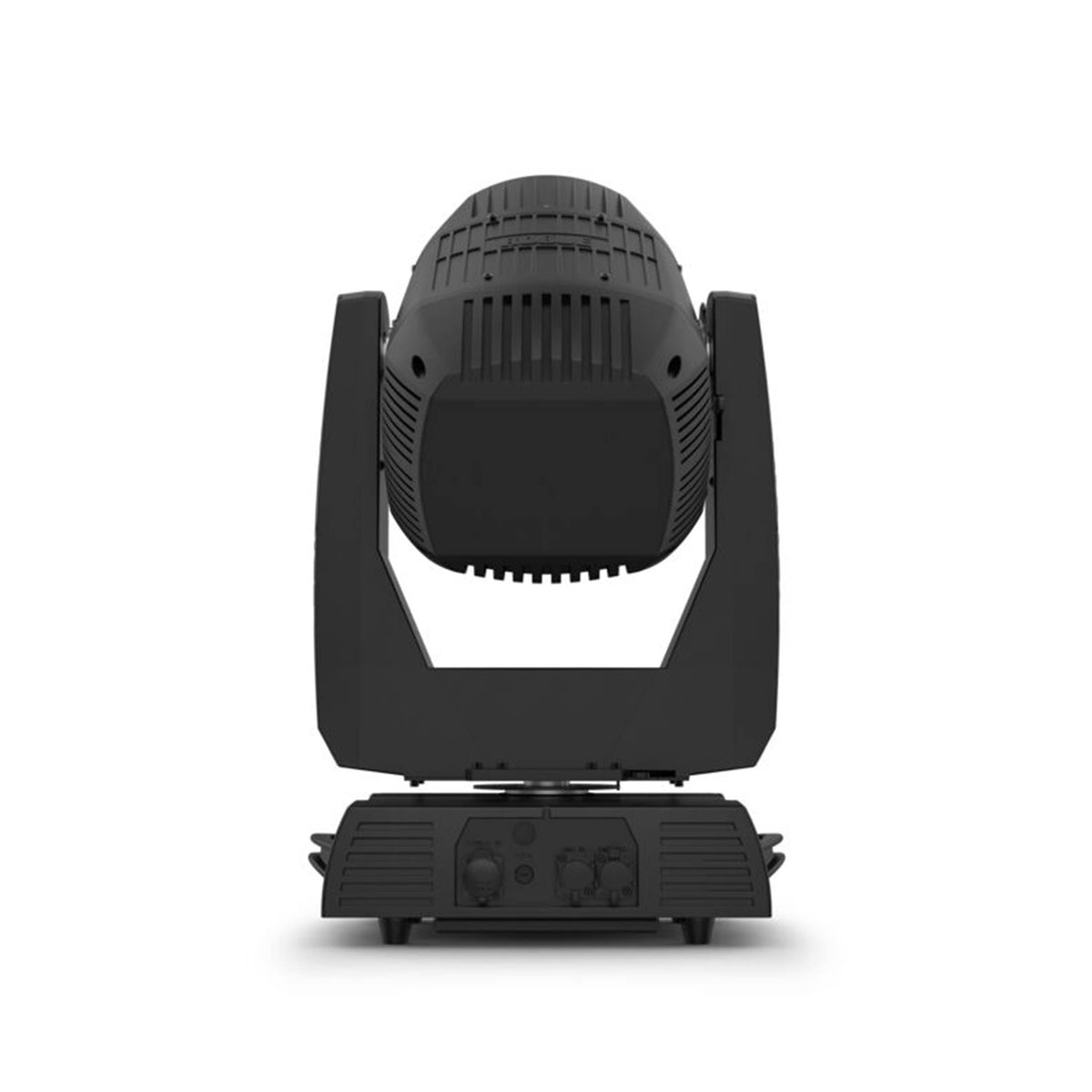

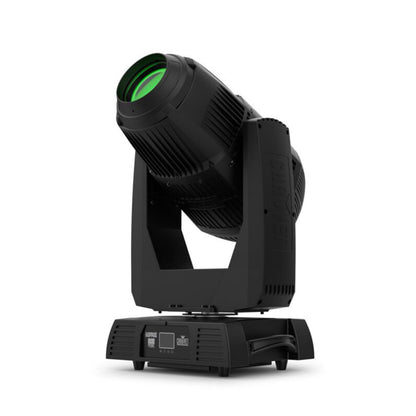

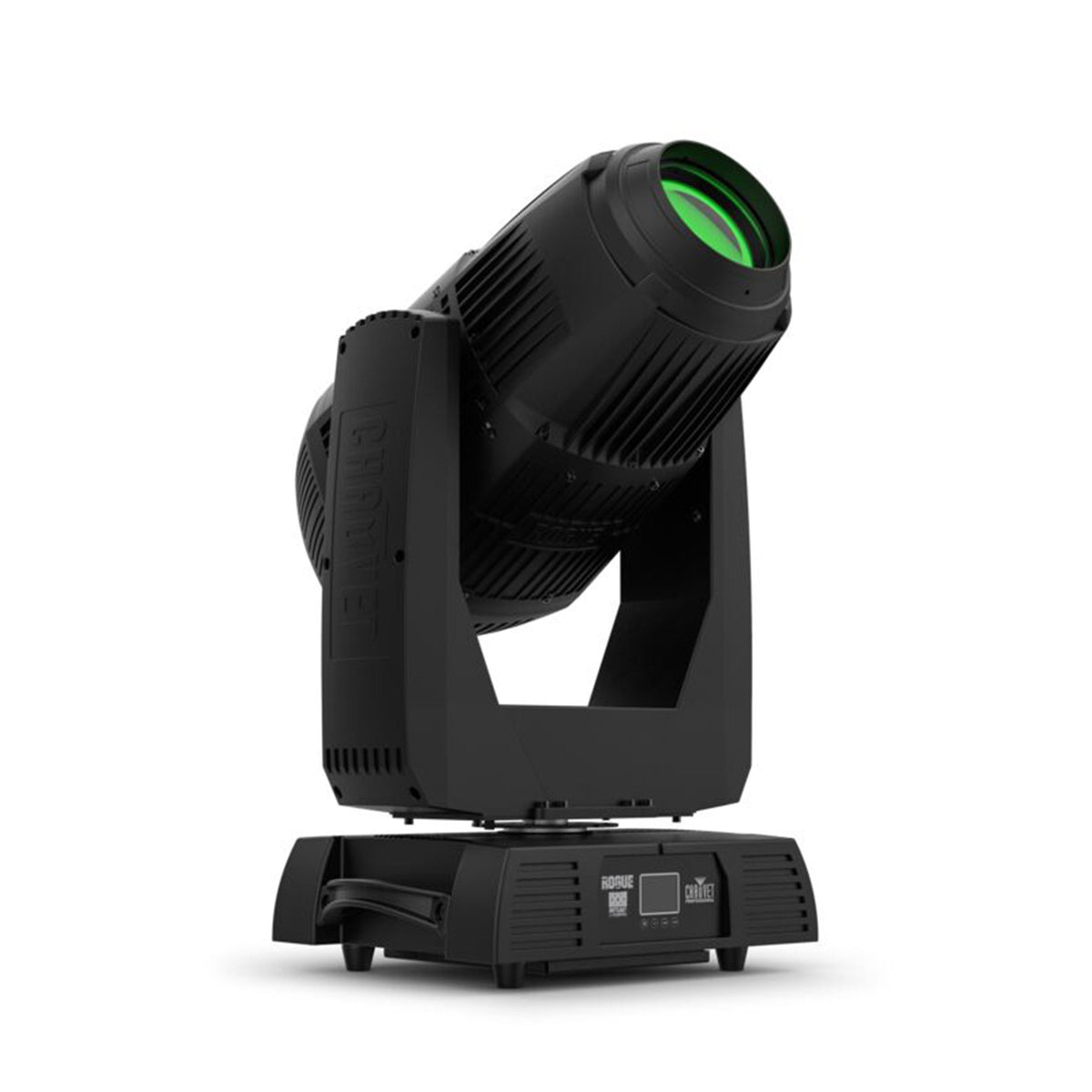

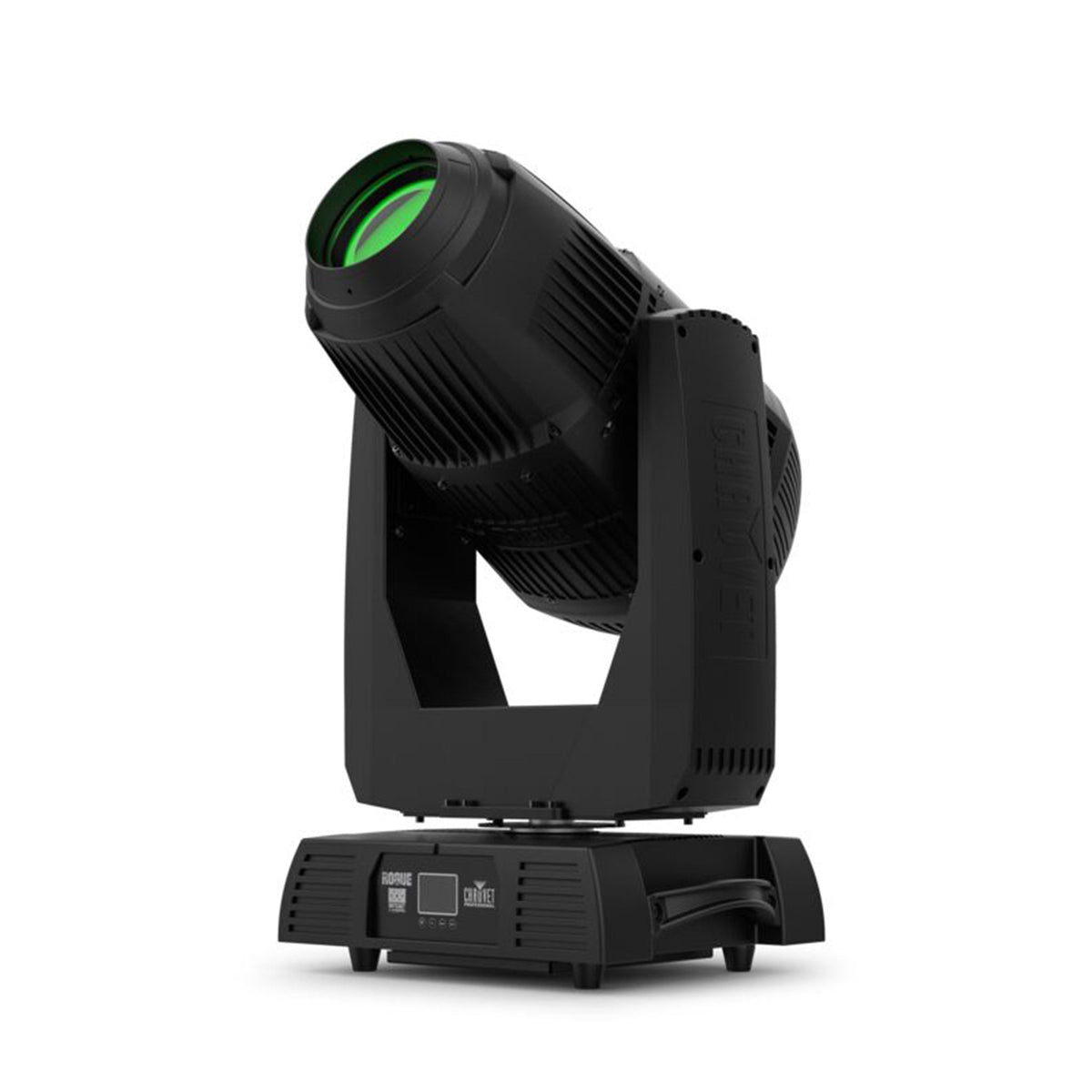

Chauvet Pro Rogue Outcast 1 Hybrid Outdoor-Ready IP65 Moving Head

The Chauvet Pro Rogue Outcast 1 Hybrid, Outdoor-Ready IP65 Spot/Beam/Wash Moving Head is an outdoor-ready, IP65 spot/beam/wash moving head ideal for small to medium festivals and events. Powered by an intense 400W lamp, Rogue Outcast 1 Hybrid delivers a 6500 K output with tight beam angles of 1° to 5° in Beam Mode and a zoom range of 2.2° to 29.1° in Spot Mode and 4.9° to 28.3° in Wash Mode for maximum visual impact. This feature-packed unit offers 1 rotating and 1 static gobo wheel, 2 individually controllable 8 and 5-facet layer able prisms, and a 14-hue color wheel for solid and split colors. Control is over DMX and RDM.

Product Specifications:

Optical

Light Source: USHIO NSL-400 W lamp, 6632 K, 6,000 hours life expectancy

Color Temperature (at full): 6483 K

Beam Angle: 2.2° to 12.4° (Spot mode)

Field Angle: 4.3° to 24.3° (Spot mode)

Cutoff Angle: 5.2° to 29.1° (Spot mode)

Beam Angle: 1° to 5.2° (Beam mode)

Field Angle: 1.8° to 12.6° (Beam mode)

Cutoff Angle: 2.1° to 15.3° (Beam mode)

Beam Angle: 4.9° to 18° (Wash mode)

Field Angle: 9.3° to 25.6° (Wash mode)

Cutoff Angle: 12.4° to 28° (Wash mode)

Zoom Range (Spot mode): 2.2° to 29.1°

Zoom Range (Beam mode): 1° to 15.3°

Zoom Range (Wash mode): 4.9° to 28.3°

Lumens, Source: 14,575

Lumens, Output: 9,263

Illuminance (4.3°): 209326 lux @ 5 m (Spot mode)

Illuminance (24.3°): 5742 lux @ 5 m (Spot mode)

Illuminance (1.8°): 123,124 lux @ 15 m (Beam mode)

Illuminance (12.6°): 3,517 lux @ 15 m (Beam mode)

Illuminance (9.3°): 17,118 lux @ 5 m (Wash mode)

Illuminance (25.6°): 1,570 lux @ 5 m (Wash mode)

Dynamic Effects

Pan and Tilt: 540°/260°

Pan and Tilt Ranges: 540°, 360°, 180° pan/260°, 180°, 90° tilt

Colors: 13 + white, split colors, continuous scroll at variable speeds

Gobos (1): 9 + open (9 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds

Gobos (2): 13 + open (13 metal), continuous scroll at variable speeds

Gobo Size: Gobo Wheel 1 (rotating glass): 15.9 mm (outside), 12 mm (image), 1.1 mm (max. thickness)

Dimmer: Motorized

Shutter/Strobe: Motorized

Zoom: Motorized

Focus: Motorized

Frost: Motorized

Prism: 6 Facets, motorized, rotating

Prism: 8 Facets, motorized, rotating

Move-in-Black: Yes

Construction / Physical

Dimensions: 15.91 x 12.20 x 30.16 in (404 x 310 x 766 mm)

Weight: 83.8 lb (38 kg)

Exterior Color: Black

Housing Material: Aluminum die-cast

Connections

Power Connection: Bare-wired to Seetronic Powerkon IP65

Power Input: Seetronic Powerkon IP65

Data Connectors: 5-pin IP rated

Cable Length (power): 5 ft (1.5 m)

Control

Control Protocol: DMX, RDM

DMX Channels: 20 or 25

Modes/Personalities: 2 personalities (20, 25)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power and Current: 514 W, 4.329 A @ 120 V, 60 Hz

Power and Current: 513 W, 2.501 A @ 208 V, 60 Hz

Power and Current: 520 W, 2.267 A @ 230 V, 50 Hz

Certifications / Qualifications

CE, MET

IP Rating: IP65, temporary outdoor/wet use

Temperature (Ambient): 14 °F to 104 °F (-10 °C to 40 °C)

What's Included

Rogue Outcast Hybrid IP

Seetronic Powerkon IP65 power cord

2 Omega brackets with mounting hardware

Quick Reference Guide
