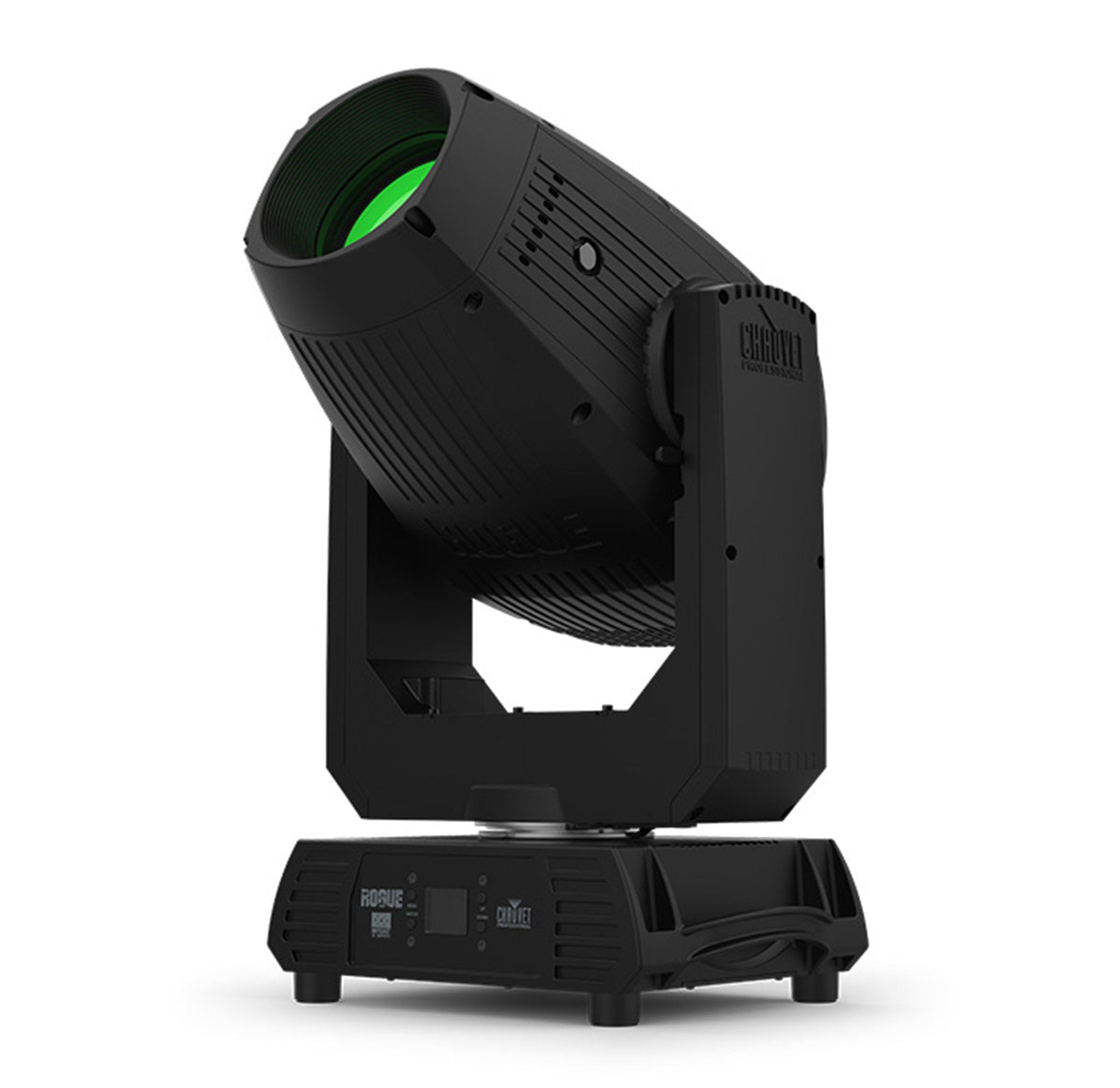

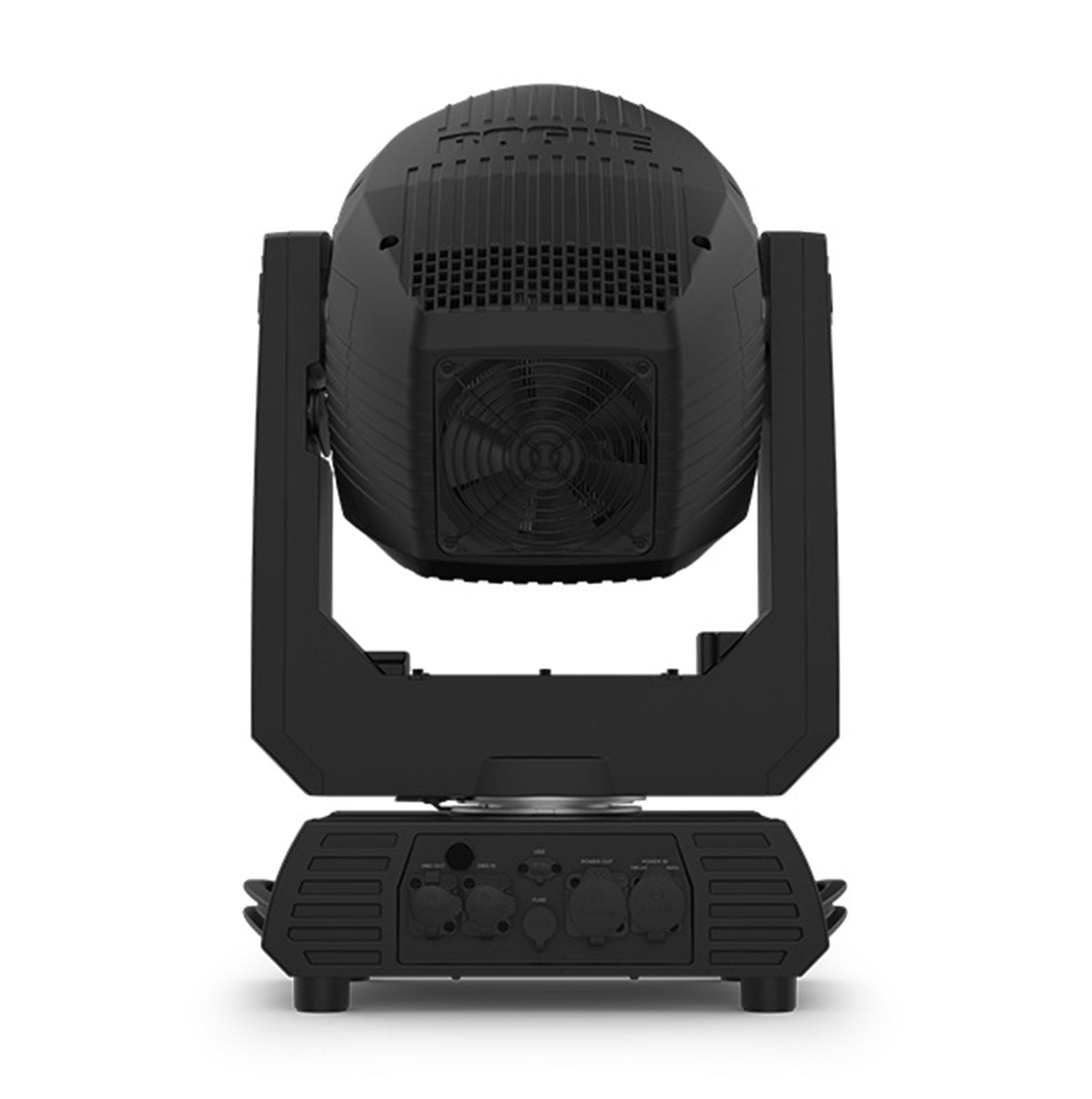

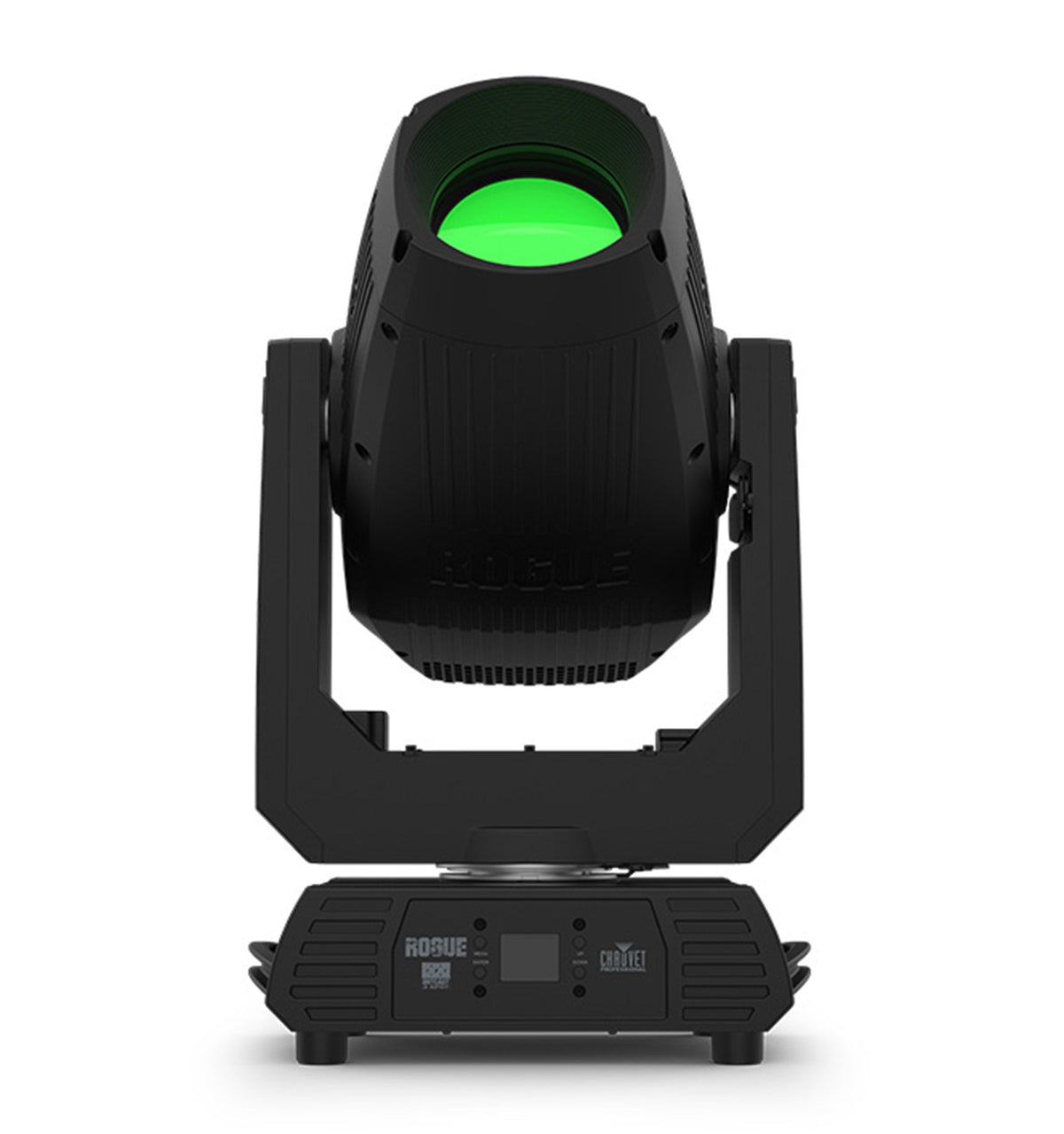

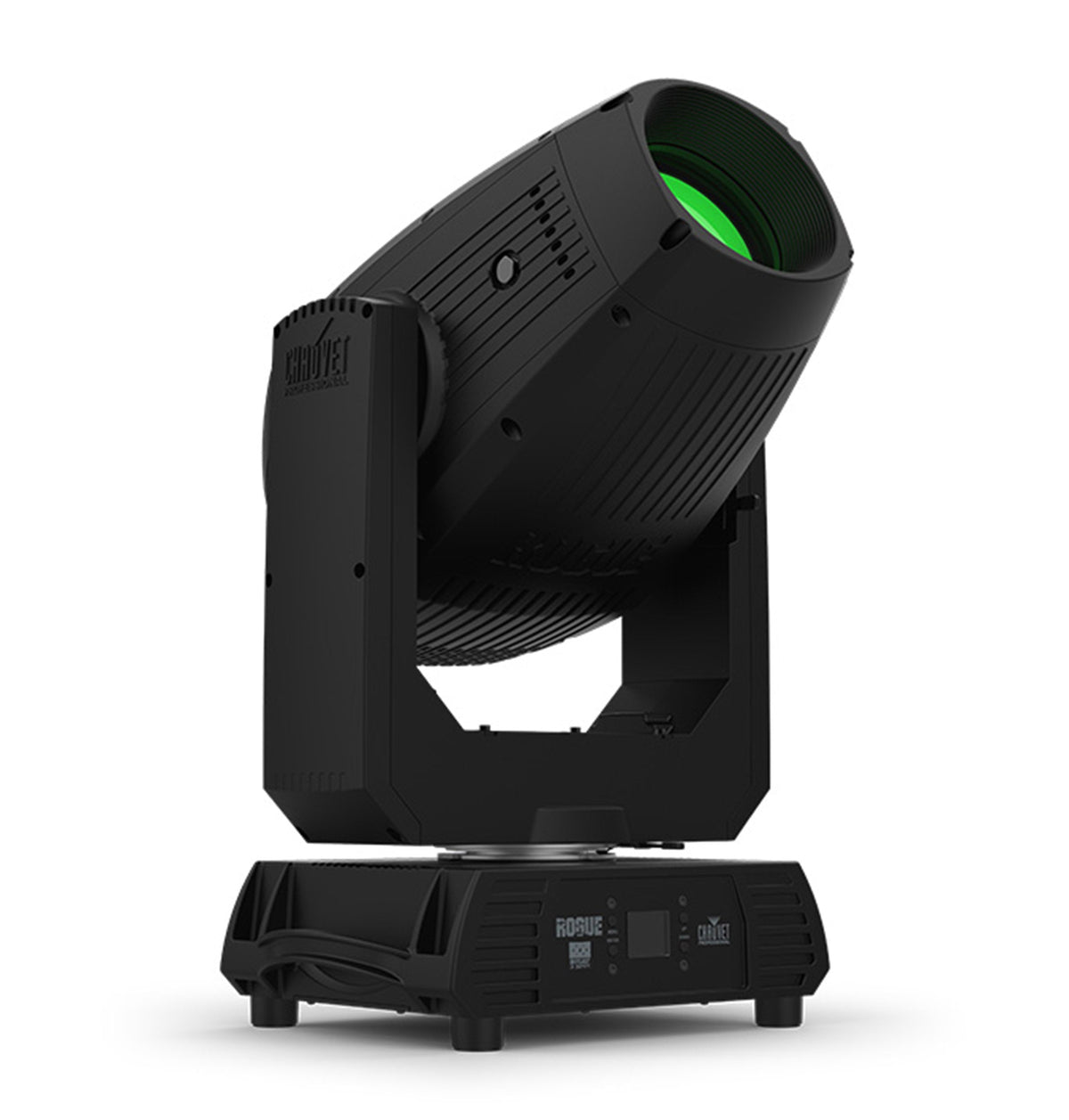

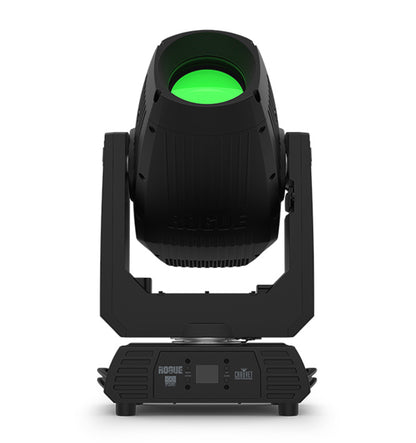

Chauvet Pro Rogue Outcast 3 Spot Outdoor-Ready IP65 Moving Head

The Chauvet Pro Rogue Outcast 3 Spot Outdoor-Ready IP65 Moving Head combines the latest lightweight alloy technology with a wheelhouse that delivers the color possibilities of dual color wheels, the dynamic morphing effects of dual gobo wheels, the beauty of smooth 16-bit fades, and a wide zoom range that adds flexibility to achieving desired coverage. Iris, prism and frost round out its effects, and its durable housing not only weathers outdoor elements but also brings advantages to indoor installations with a low-maintenance impervious design that withstands particulates such as fog and haze.

Product Specifications:

Optical

Light Source: 1 LED (CW) 300 W, (5 A), 7044 K, 50,000 hours life expectancy.

Color Temperature (at full): 7044 K

Front lens diameter: 119 mm

CRI: 70

Beam Angle: 4.9° to 33.7°

Field Angle: 5.5° to 38°

Cutoff Angle: 5.6° to 38.7°

Zoom Range: 4.9° to 38.7°

Lumens, Source: 20,000

Lumens, Output: 14,989

Illuminance (4.9°): 56,916lux @ 5 m

Illuminance (38.7°) 7,260 lux @ 5 m

Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

Pan and Tilt: 540°/270°

Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt

Colors (1): 7 + white, split colors, continuous scroll at variable speeds

Colors (2): 7 + white, split colors, continuous scroll at variable speeds

Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds

Gobos (2): 8 + open (8 metal), continuous scroll at variable speeds

Gobo Size: Gobo Wheel 1 (rotating); size: 25.5 mm (outside), 14.8 mm (image), 0.6 mm (max. thickness)

Gobo Size: Gobo Wheel 2 (static): size: 24 mm (outside), 16 mm (image), 0.6 mm (max. thickness)

Dimmer: Electronic

Shutter/Strobe: Electronic

Zoom: Motorized

Focus: Motorized

Frost: Motorized

Iris: Motorized

Prism: 5 Facets, motorized, rotating

Strobe Rate: 0 to 20 Hz

Move in Black: Yes

Construction / Physical

Dimensions: 14.41 x 9.61 x 25.16 in (366 x 244 x 639 mm)

Weight: 51 lb (23.2 kg)

Exterior Color: Black

Housing Material: High-impact flame-retardant polymer

Connections

Power Connection: Edison (local) plug to Seetronic Powerkon IP65

Power Input: Seetronic Powerkon IP65

Power Output: Seetronic Powerkon IP65

Data Connectors: 5-pin XLR

Cable Length (power): 5 ft (1.5 m)

Control

Control Protocol: DMX, RDM

DMX Channels: 20 or 25

Modes/Personalities: 2 personalities (20, 25)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power Linking: 3 units @ 120 V; 5 units @ 208 V; 6 units @ 230 V

Power and Current: 506 W, 4.24 A @ 120 V, 60 Hz

Power and Current: 493 W, 2.43 A @ 208 V, 60 Hz

Power and Current: 494 W, 2.19 A @ 230 V, 50 Hz

Certifications / Qualifications

CE, MET, UKCA

IP Rating: IP65, temporary outdoor/ wet, with pressure equalizing M12 GORE valve

Temperature (Ambient): -14 °F to 113 °F (-10 °C to 45 °C)

Maximum Exterior Surface Temperature (Tc): 80° C / 176° F

Maximum Ambient Temperature (ta): 45° C / 113° F

What's Included

Rogue Outcast 3 Spot

Seetronic Powerkon IP65 power cord

(2) Omega brackets with mounting hardware

Optional Accessories

Clamps

IP65 5 pin DMX Cables

IP65 PowerKon Extension cables

Flight Case
