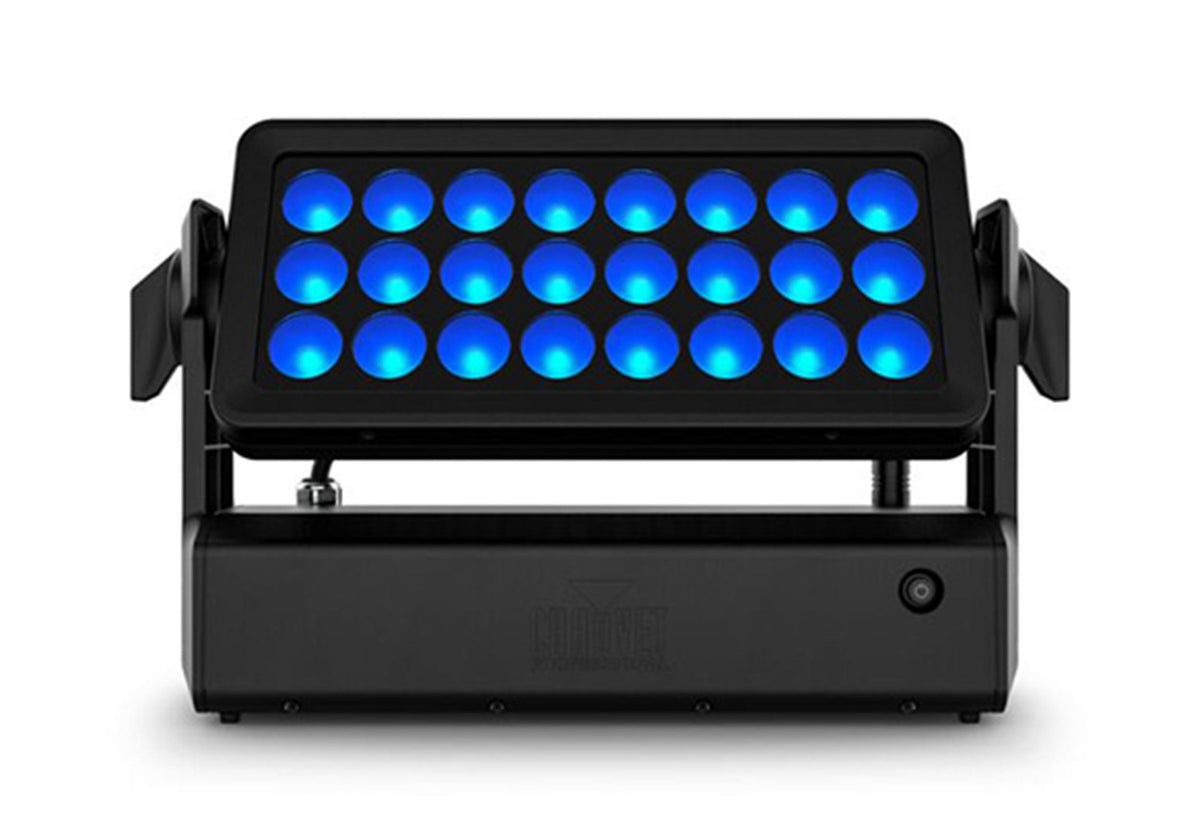

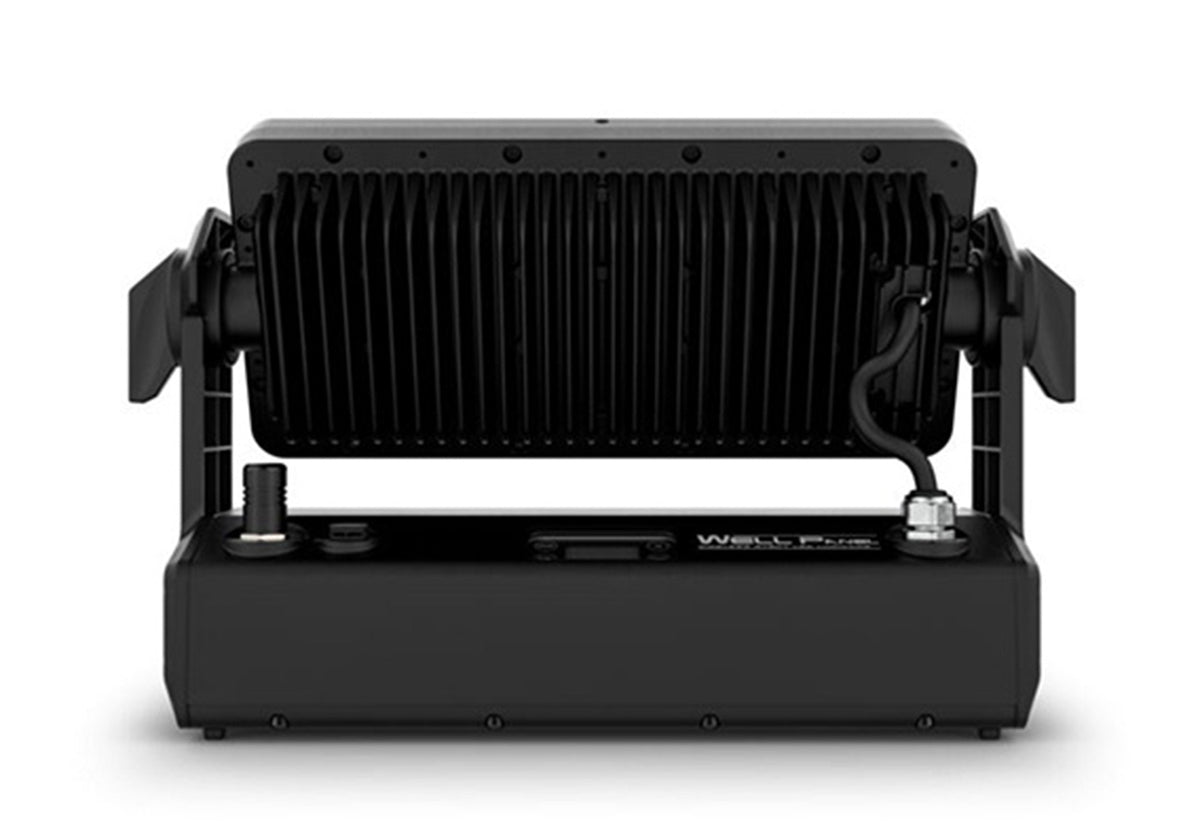

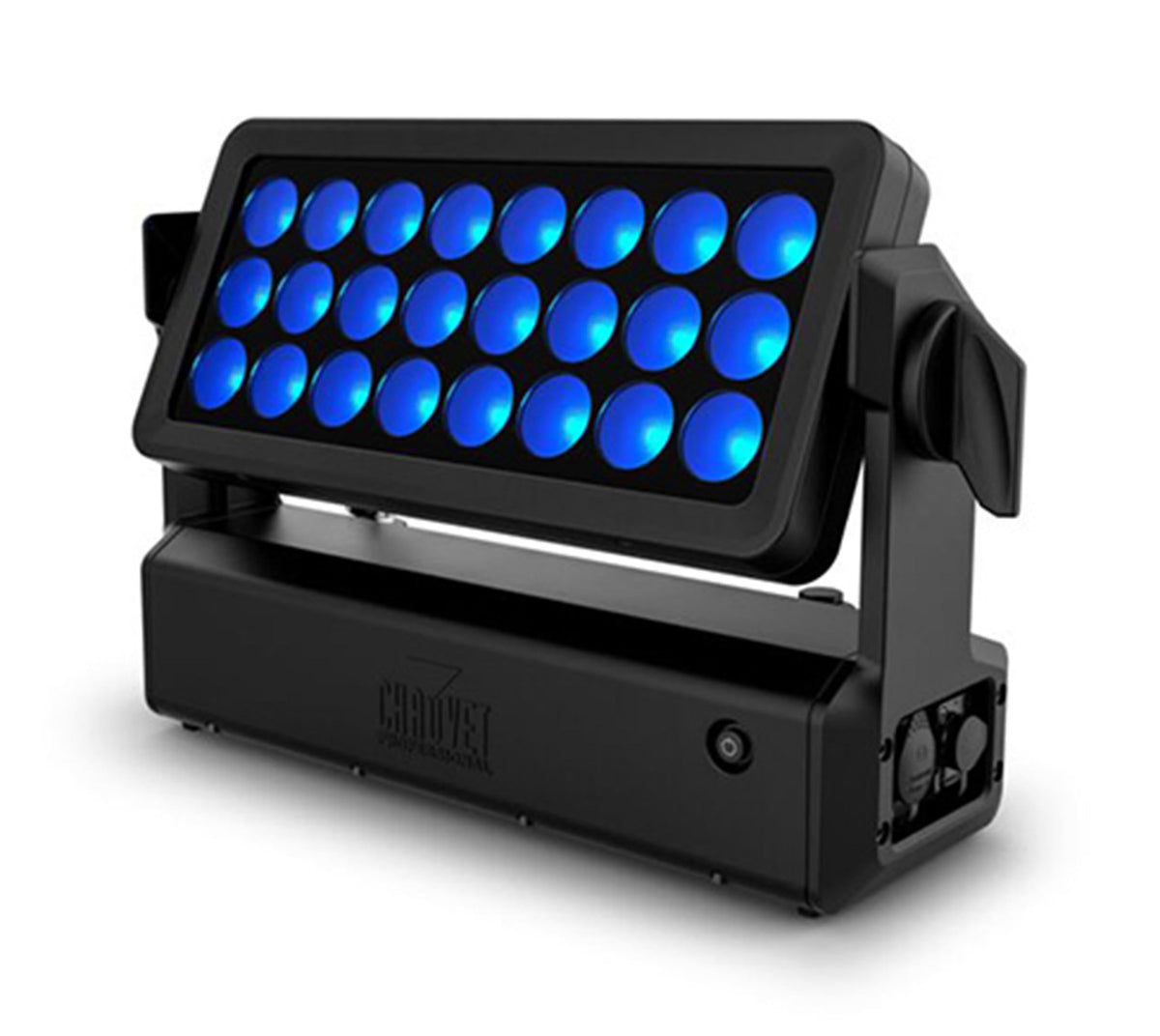

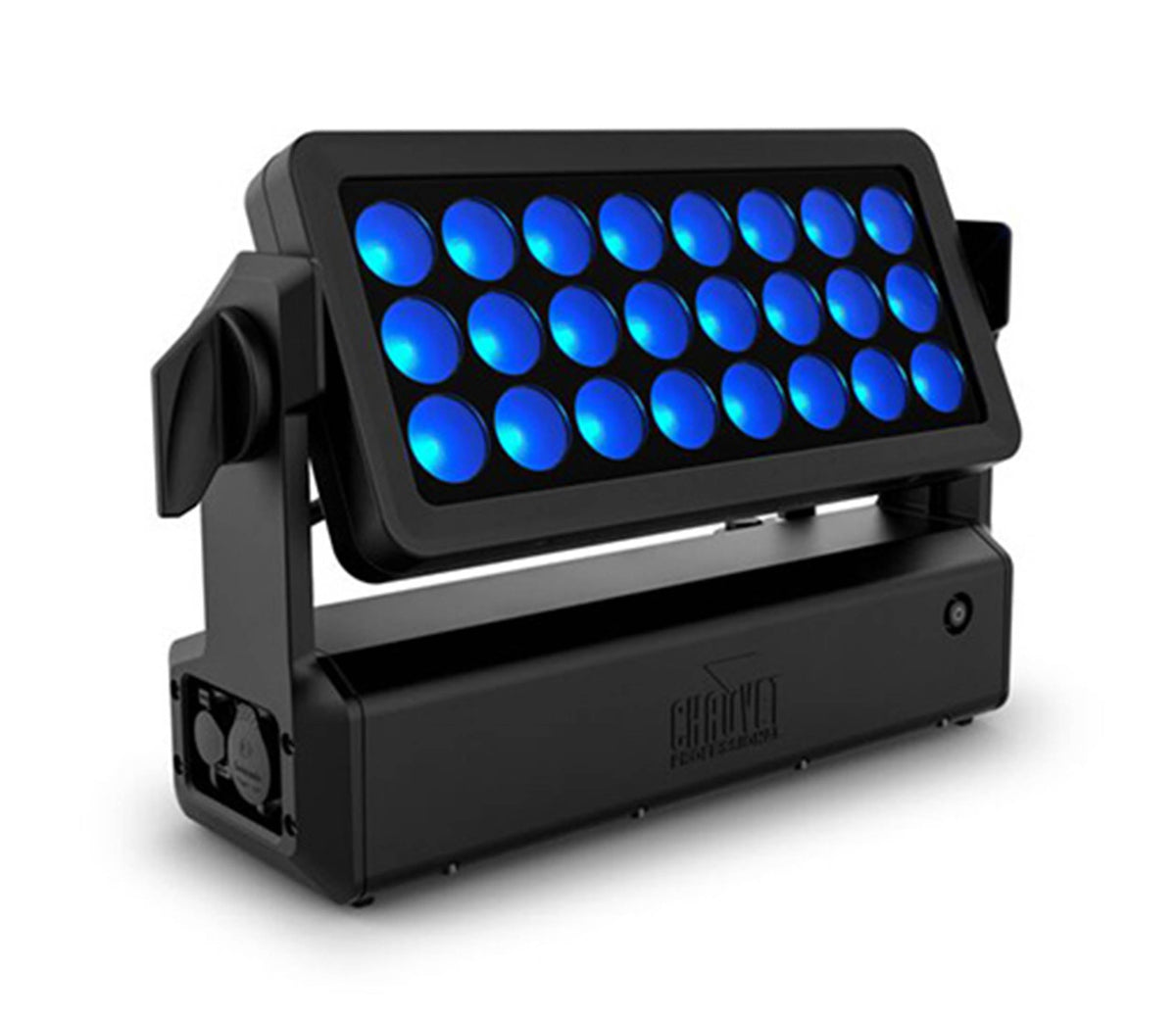

Chauvet Pro Well Panel Wireless IP65 Outdoor-Ready Battery Wash Light

The Chauvet Pro Well Panel Wireless IP65 Outdoor-Ready Battery-Powered Wash Light - RGBWW is a completely wireless, IP65-rated, battery-powered wash light with 24 quad-color LEDs. The robust unit delivers bright, fully saturate tones and pastel colors, casting it as the right tool for onstage productions or highlighting scenic and architectural pieces. Adjustable beam angles and the included magnetic diffuser adds even wider coverage. This truly versatile fixture is capable of selectable dimming, red shift emulation, and PWM settings. Control your way via W-DMX, IR remote, DMX.

Product Specifications:

Optical

Light Source: 24 LEDs (24 red, 24 green, 24 blue, 24 warms white) 1 to 3 W, (500 mA), 50,000 hours life expectancy.

Lumens: 5117 w/filter, 5773 w/o filter

Installed Optics: 15°

Beam Angle (w/o filter): 14°

Beam Angle (w/filter): 32.3°

Field Angle (w/o filter): 25.8°

Field Angle (w/filter): 54.4°

Illuminance (w/o filter): 2830 lux @ 5 m

Illuminance (w/ filter): 550 lux @ 5 m

Dynamic Effects

Tilt: 170°

Tilt Ranges: 0° to 170° tilt

Color Macros: 20 color macros

Dimmer: Electronic

Shutter/Strobe: Electronic

Strobe Rate: 0 to 30 Hz

Standalone Color Mixing: Yes

Color Temperature Presets: Yes

Built in red shift: yes

Dim Curves: 4

Dim Modes: 4

Built-in Automated Programs: Yes

Construction / Physical

Dimensions: 17.17 x 5.31 x 10.24 in (436 x 135 x 260 mm)

Weight (single unit): 22.6 lb (10.3 kg)

Exterior Color: Black

Housing Material: Aluminum die-cast

Connections

Power Connection: Seetronic PowerKon IP 65

Power Input/output: Seetronic PowerKon IP 65

Data input/output: 5-pin XLR

Cable Length (power): 5 ft (1.5 m)

Control

Control Protocol: DMX, W-DMX

DMX Channels: 4, 8, 12, 13 or 21

Modes/Personalities: 5 personalities (4Ch, 8Ch, 12Ch, 13Ch, 21Ch)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power Linking: 9 units @ 120 V; 17 units @ 208 V; 18 units @ 230 V

Power and Current (single unit charging): 147 W, 1.229 A @ 120 V, 60 Hz

Power and Current (single unit charging): 146 W, 0.700 A @ 208 V, 60 Hz

Power and Current (single unit charging): 146 W, 0.634 A @ 230 V, 50 Hz

Battery

Battery type: Lithium Ion

Rechargeable: Yes

Battery Charge Time: 4 hours

Battery Life: selectable: 3, 5, 8, 12 hrs.

Certifications / Qualifications

CE, FCC, UKCA

IP Rating: IP65, temporary outdoor/wet use with pressure equalizing M12 GORE valve

Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

WELL Panel

Magnetic filter

Omega bracket

QRG

Optional Accessories

Professional Clamps: CTC-50HC, CTC-50HCN

Safety Cable: SC-07

Accessory filter pack with 10 x 60 and 40R60 sold separately (Well Panel Filter Pack)
