Chauvet Pro Colorado PXL Bar 16-RGBW LED Batten
Chauvet Pro Colorado PXL Bar 16-RGBW LED Batten
Model / SKU: H-CHAU-COLORADOPXLBAR16
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.

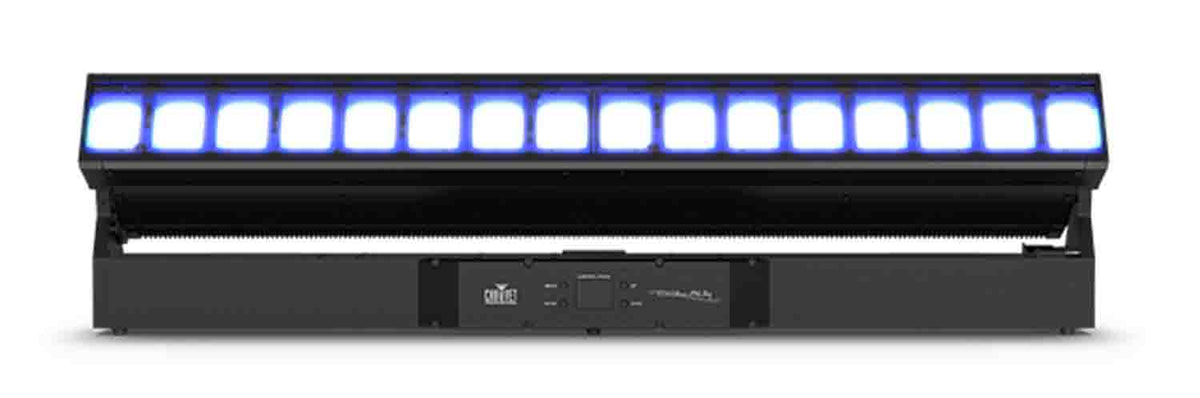

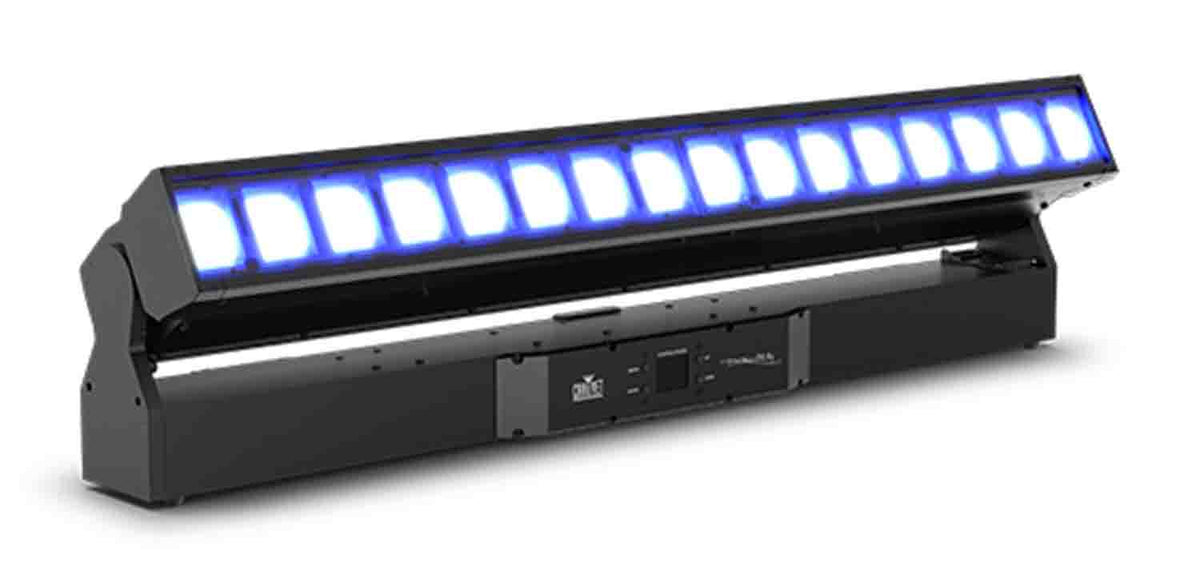

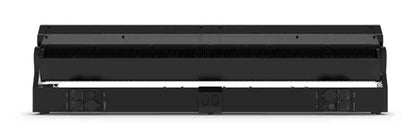

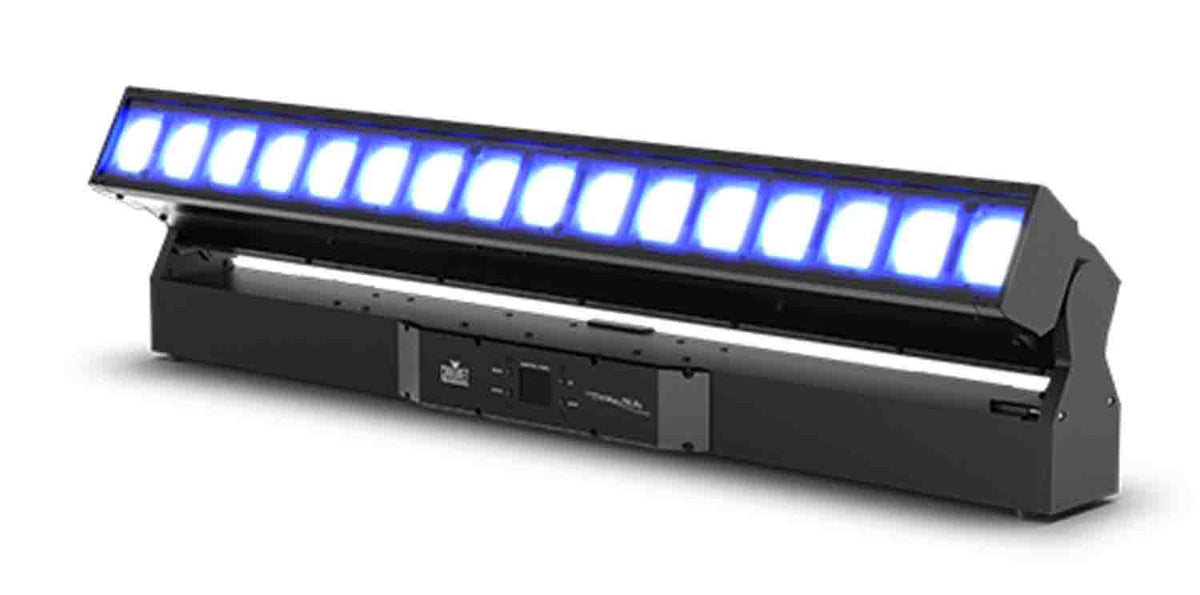

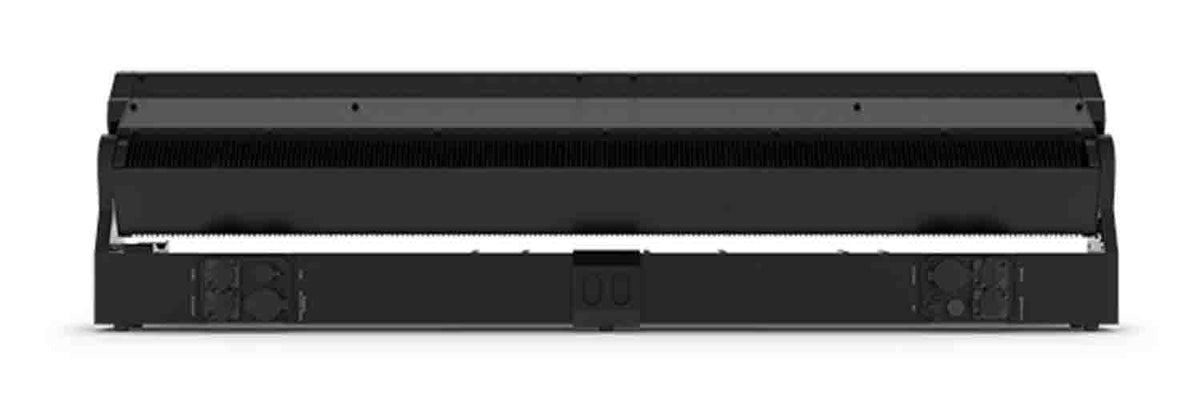

The Chauvet Professional Colorado PXL Bar 16 is a RGBW LED Batten. COLORado PXL Bar 16 is a motorized, outdoor-ready tilting batten with capabilities to zoom for tight and wide pixel-mappable looks. This bright, moving pixel bar also features seamless edge-to-edge mounting and includes virtual gobo and movement macros with separate foreground and background color control for more design options than ever before. Slotted Omega brackets make it quick and easy to hang the fixture on the truss. The COLORado PXL Bar 16 can also be positioned on the ground, which allows for a variety of different light angles. With two zones of control, the power is in your hands and the possibilities are endless.
What's Included
COLORado PXL Bar 16
Seetronic Powerkon IP652
Omega bracket with mounting hardware
Product Specifications:
Light
Light Type: Linear/Bar Light / Moving Head
Light Source: 16 x Color LED - 45 W / 3 A
Light Source Life Expectancy: 50,000 Hours
Colors:
Red
Blue
Green
White
Pixel Configuration: 16 x Zones
Color Temperature: 6122K
Lumen Output: 8959 Lumens
Beam Angle: 5.8 to 30.4°
Field Angle: 8.9 42.2°
Shutter / Strobe: Electronic
Iris: No
Zoom Adjustment: Motorized, 6 to 48°
Dimming: Electronic
Performance
Operating Modes: DMX
Macros / Programs: Color Macro
Effects: Strobe
Strobe Rate: 0 to 20 Hz
Gobos: None
PWM Frequency: 600 Hz to 15,000 Hz
Movement
Tilt Ranges: 200° / 180°
Control
Control Protocols: DMX512, RDM, Art-Net, Kling-Net, sACN
Remote Control: None
App Compatible: No
Connectivity
Inputs/Outputs:
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output
1 x etherCON/RJ45 Network Input
1 x etherCON/RJ45 Network Output
Power
AC Input Power: 100 to 240 VAC, 50/60 Hz
Power / Current Consumption:
120 VAC, 60 Hz: 790 W / 6.6 A
208 VAC, 60 Hz: 771 W / 3.8 A
230 VAC, 50 Hz: 230 W / 3.5 A
Power Linking:
2 Units at 208 VAC
2 Units at 230 VAC
Environmental
IP Rating: IP65
Physical
Mounting: Floor Base, Omega Bracket
Included Accessories: 1 x Power Cable
Duty Cycle: None
Exterior Color: Black
Cooling: Convection
Dimensions: 39.4 x 10.8 x 5.5" / 100.1 x 27.4 x 14 cm
Weight: 45.6 lb / 20.7 kg
