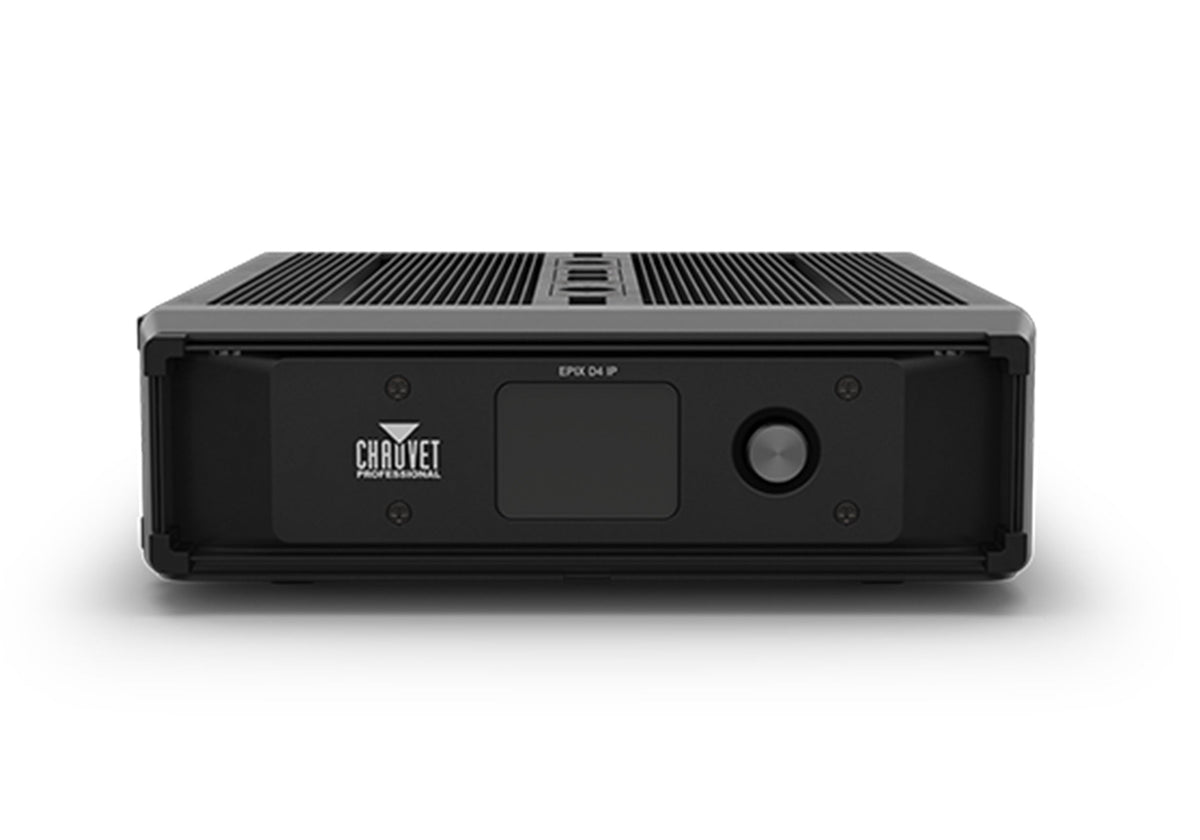

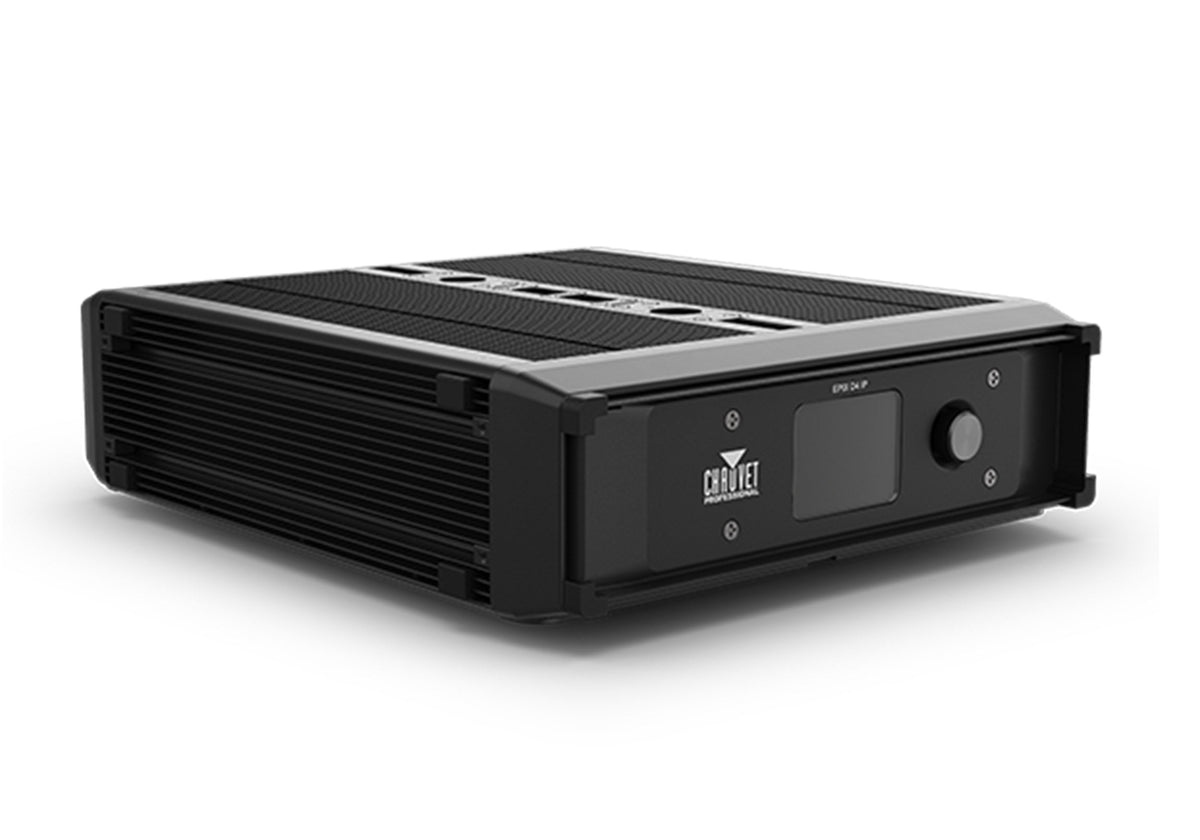

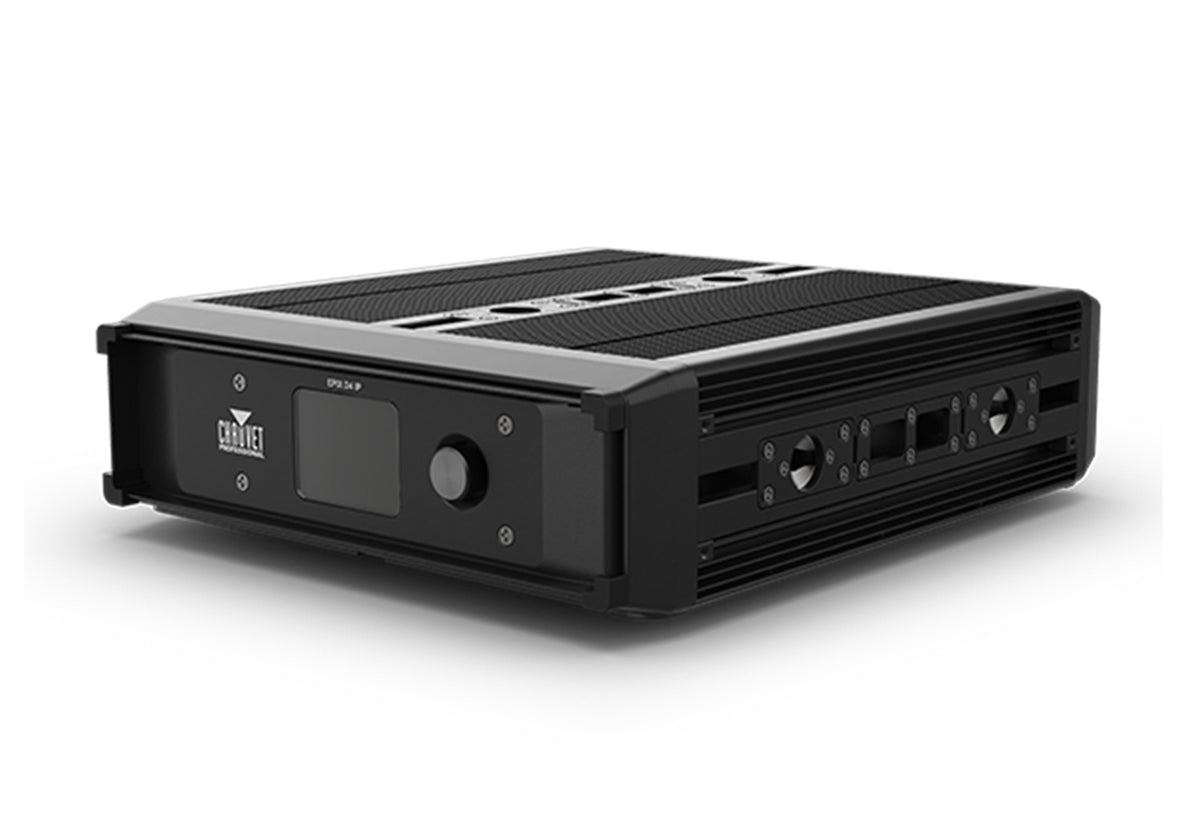

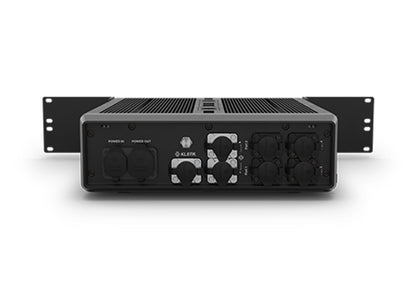

Chauvet Pro EPIX D4 IP 4-Port Pixel Drive

The Chauvet Professional EPIX D4 IP is a powerful, IP65-rated 4-port drive and processing unit that forms the core of the CHAUVET Professional ÉPIX mapping ecosystem. Designed to detect, configure, and control outdoor-rated ÉPIX Line 10 IP and ÉPIX Line 10 IP S linear pixel strips, it simplifies setup through the intuitive KLSTR push-and-pull mapping system. Its advanced processing engine handles addressing and playback, allowing designers to focus on creative layouts rather than technical complexity.

As the heart of the latest generation ÉPIX family, the ÉPIX D4 IP introduces a new standard in scalable video mapping. It supports industry-standard MVR files with onboard GDTF, enabling a seamless workflow from visualization and design to playback at the lighting console. Built for touring, rental, and permanent installations, its modular, serviceable design and universal connectivity provide unmatched flexibility, redundancy, and efficiency for lighting designers, system integrators, and production houses.

Product Specifications:

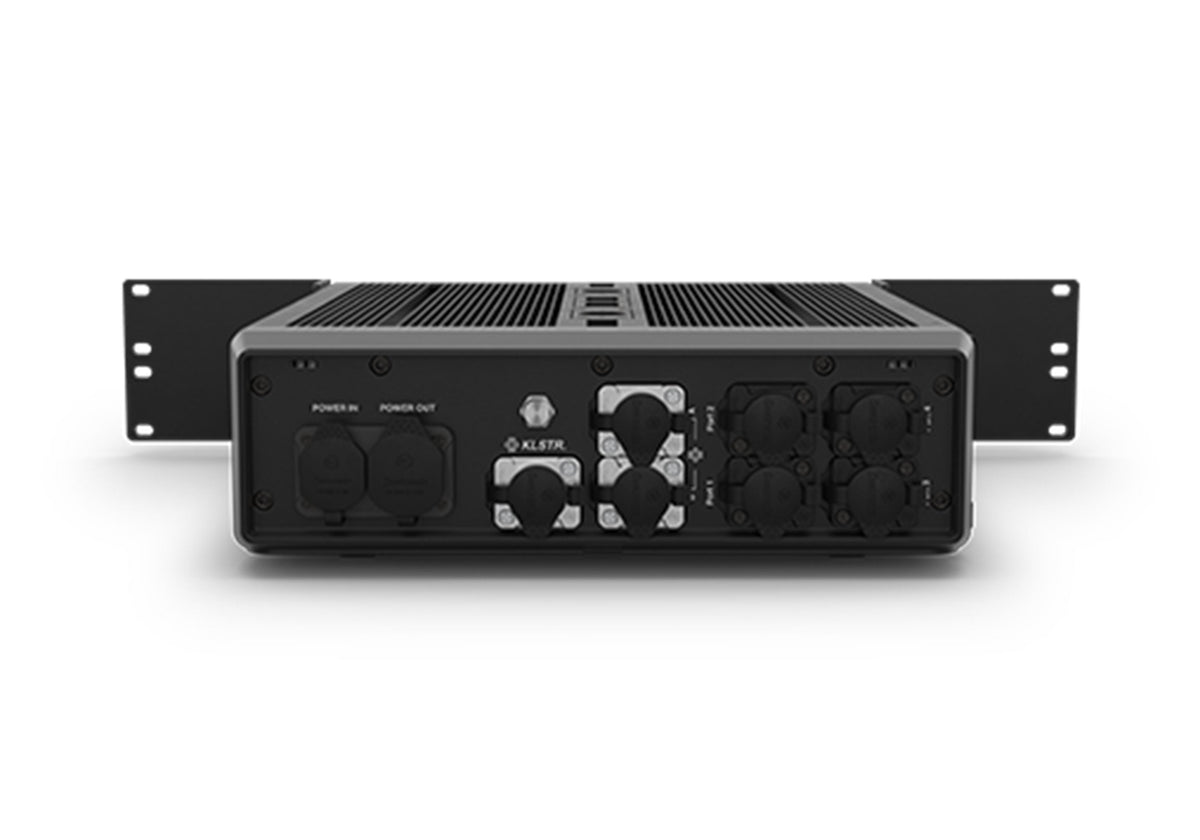

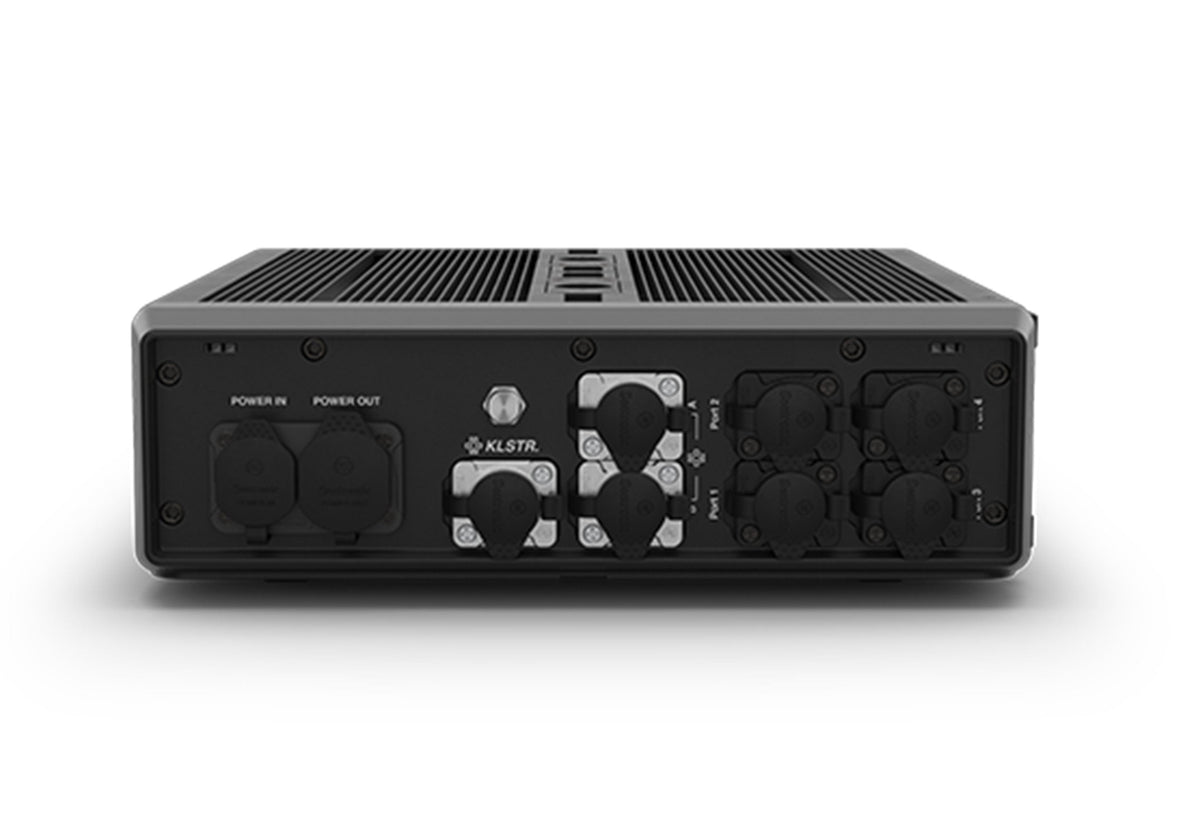

Connections:

Power Input: Seetronic Powerkon (powerCON compatible)

Power Output: Seetronic Powerkon (powerCON compatible)

Device Outputs (4): 4-pin XLR (IP65)

Data Connectors (3): Seetronic etherKON (etherCON compatible)

Intended Load: ÉPIX Line 10 IP, ÉPIX Line 10 IP S

Physical Linking Capacity:

ÉPIX Line 10 IP:

Standard Mode: 10 fixtures

Hi-Power Mode: 6 fixtures

ÉPIX Line 10 IP S:

Standard Mode: 20 fixtures

Hi-Power Mode: 13 fixtures

Cable Requirements:

Minimum cable size: 4-conductor (2 × 14 AWG, 2 × 16 AWG)

Max total cable length (shielded): 210 ft (64 m)

Max first-fixture distance (shielded): 65 ft (20 m)

Maxtotal cable length (unshielded): 300 ft (91 m)

Max first-fixture distance (unshielded): 150 ft (45 m)

Max distance between fixtures: 100 ft (30 m)

Control:

Control Protocols: Art-Net, sACN, Art-RDM, KLSTR, ÉPIX Mapping System

DMX Channel Modes: 2, 18, groups of 5 / 10 / 50 / 255, or 300

Video Refresh Rate: 60 Hz

Electrical:

Input Voltage: 100-240 VAC, 50/60 Hz (auto-ranging)

Power Linking:

0 units @ 120 V

3 units @ 208-240 V

Power Consumption:

1,200 W, 12 A @ 100 V

1,200 W, 10 A @ 120 V

1,200 W, 5.77 A @ 208 V

1,200 W, 5.22 A @ 230 V

1,200 W, 5 A @ 240 V

Certifications / Qualifications:

Compliance: CE, MET, RoHS

Operating Temperature: -4 °F to 122 °F (-20 °C to 50 °C)

What’s Included:

ÉPIX D4 IP

Seetronic Powerkon power cord

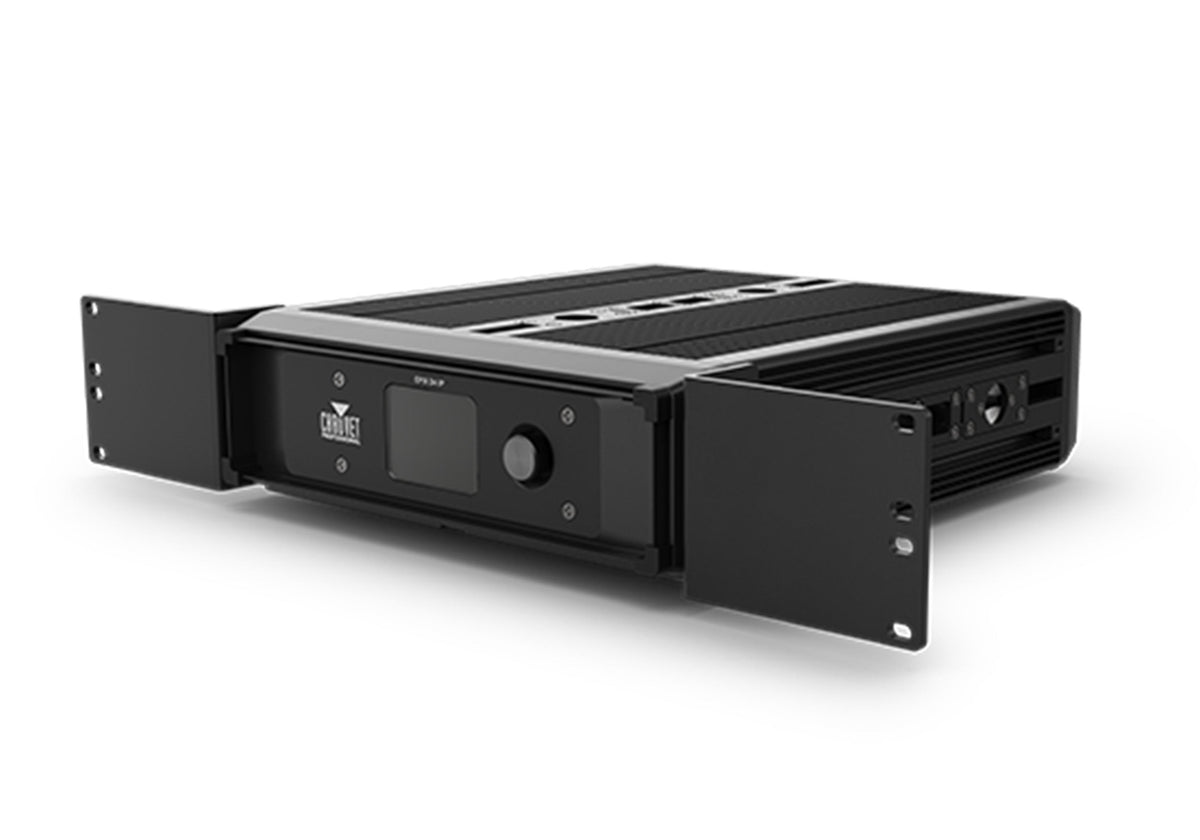

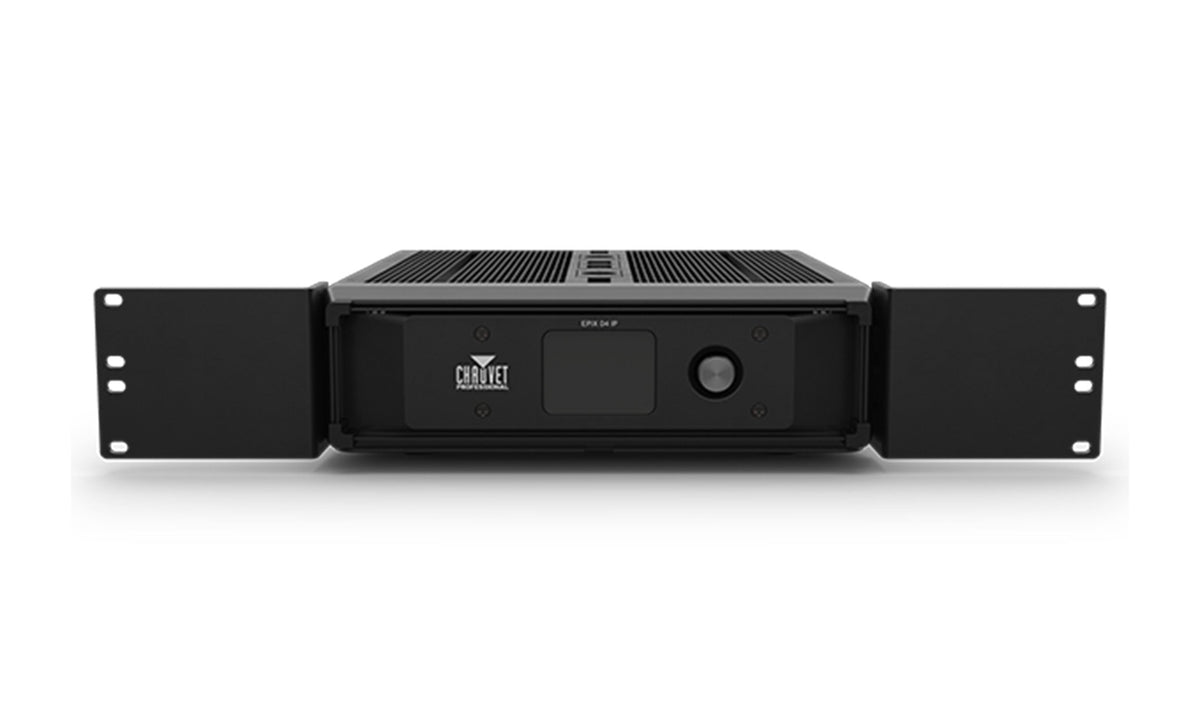

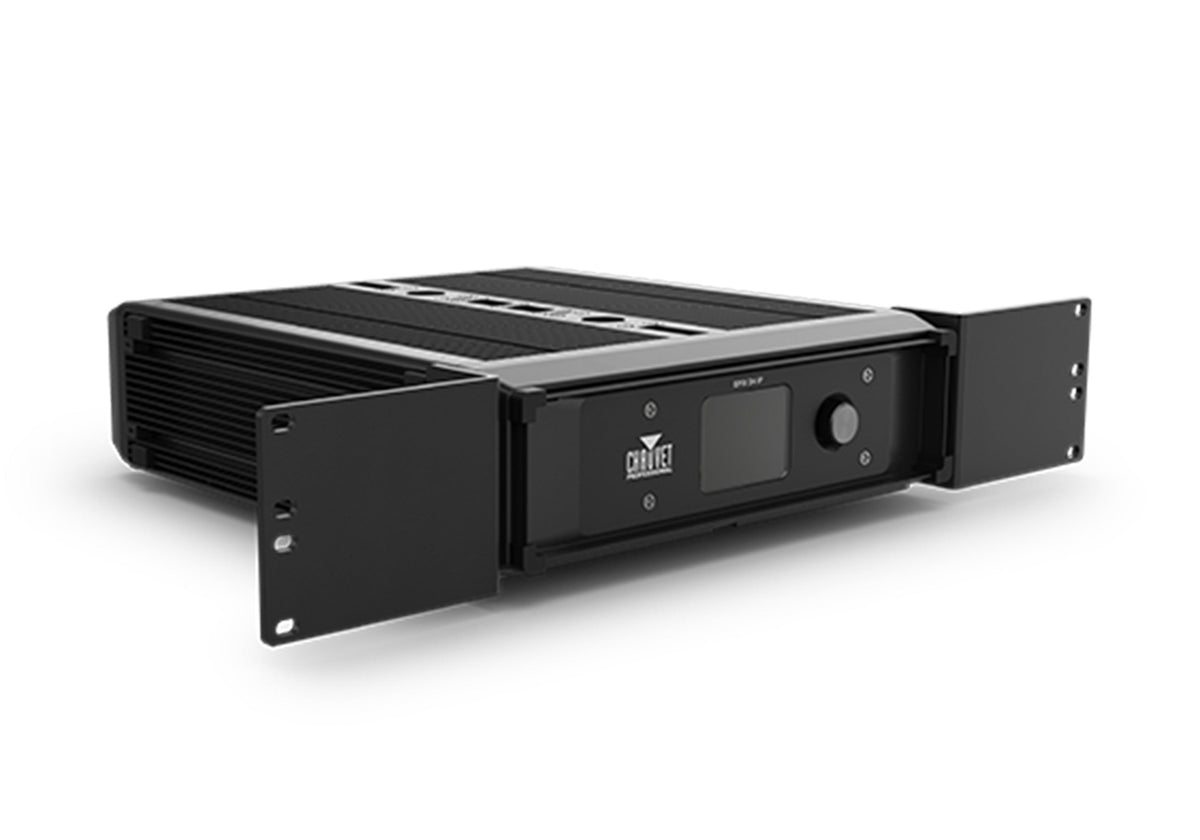

Rack ears with screws (2)

Omega bracket

Optional Accessories

CTC-50HC Professional Clamp

RIGLINK Powerkon Cables

RIGLINK Combo Cables

Construction / Physical:

Housing Material: Aluminum extrusion, aluminum die-cast, rubber

Exterior Color: Black

Rackmount: 2U

IP Rating: IP65

Dimensions: 14.05 × 11.8 × 11.4 in (357 × 300 × 289 mm)

Dimensions (with rack ears): 20.24 × 11.8 × 11.4 in (514 × 300 × 289 mm)

Weight: 15 lbs (6.8 kg)

Shipping Weight: 19 lbs

Shipping Dimensions: 24 × 16 × 14 inches
