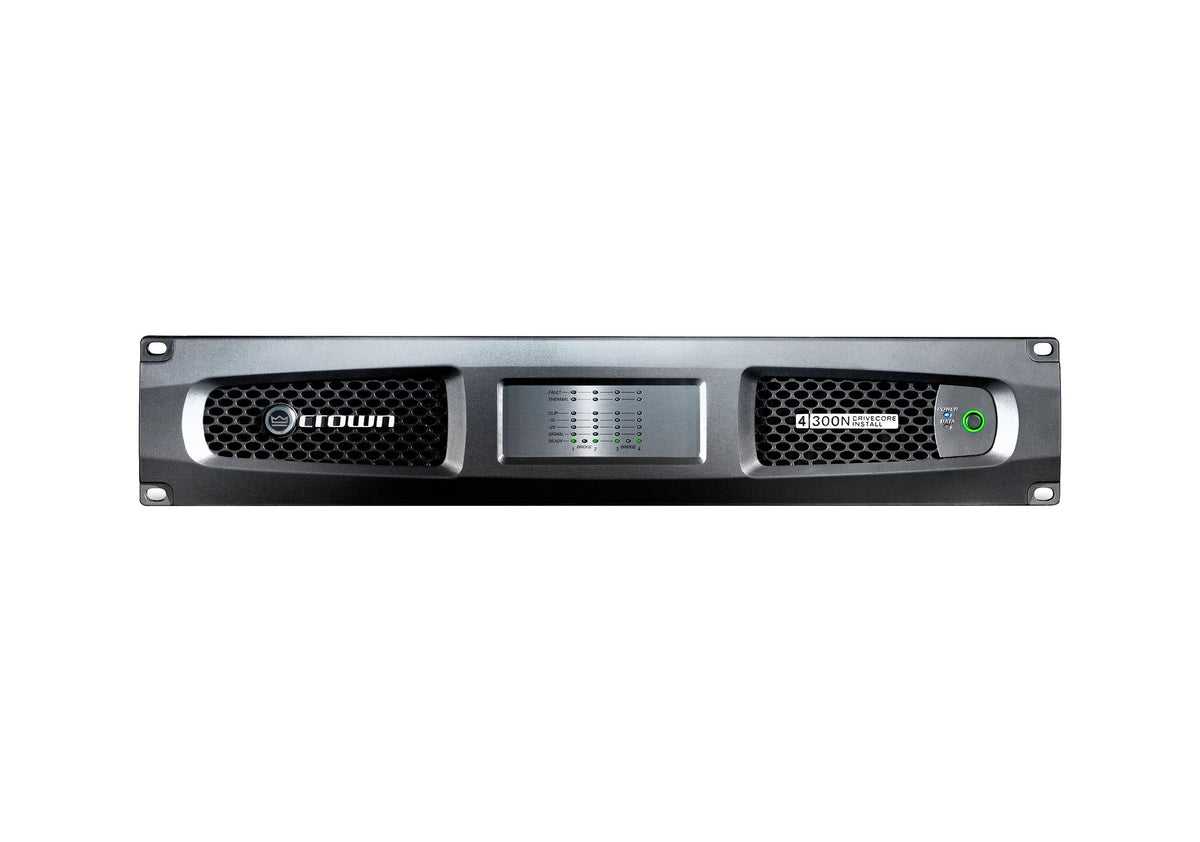

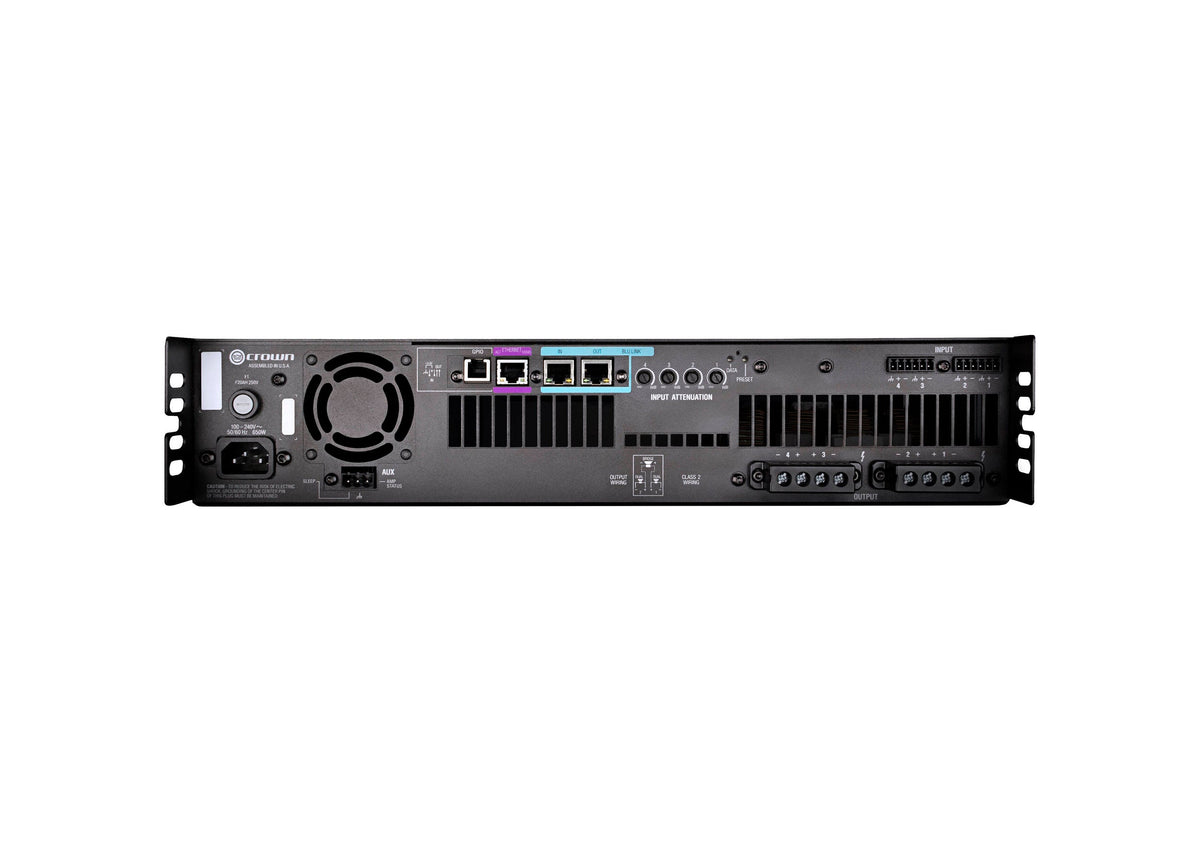

Crown Audio DCI4X300 DriveCore Install Series Power Amp - 4 Channel
Crown Audio DCI4X300 DriveCore Install Series Power Amp - 4 Channel
Model / SKU: H-CROW-DCI4X300
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The Crown DCI4X300 is a high-performance 4-channel, 300W power amplifier designed for flexible and efficient sound installations. Part of the DriveCore Install series, this amplifier operates in both low-Z and high-Z modes, allowing it to drive one or two speakers in low impedance or hundreds of speakers in 70Vrms or 100Vrms high impedance. With the ability to bridge channels even in high-Z mode, the DCI4X300 offers exceptional adaptability for a range of power applications, including subwoofers. The compact 2 RU form factor enables more channels in a single unit, optimizing space and reducing operational costs. Enhanced with features such as remote on/off capability, advanced power factor correction (PFC) for power efficiency, and a highly efficient cooling system, the DCI4X300 exemplifies Crown’s industry-leading standards in professional and commercial audio.
Product Specifications:
Output Channels: 4
Frequency Response: ±0.25dB (8Ω, 20Hz - 20kHz)
Total Harmonic Distortion: 0.35% (20Hz - 20kHz, full power)
Damping Factor: >1000 (20Hz - 100Hz)
Load Impedance (Stereo/Dual Mode): 2Ω - 16Ω; 70Vrms and 100Vrms
Load Impedance (Bridge Mono): 4Ω - 16Ω; 140Vrms and 200Vrms
Cooling: Variable-speed forced air, front-to-back airflow
Maximum Fan Noise: 45 dBA SPL at 1 meter
AC Mains Requirement: 100V-240V ~ 50/60Hz (±10%)
Power Connector: 15A IEC
Dimensions: 19" W x 3.5" H x 14.25" D
Product Weight: 20.1 lbs
Shipping Weight: 21 lbs.
Shipping Dimensions: 19 x 4 x 15 inches
