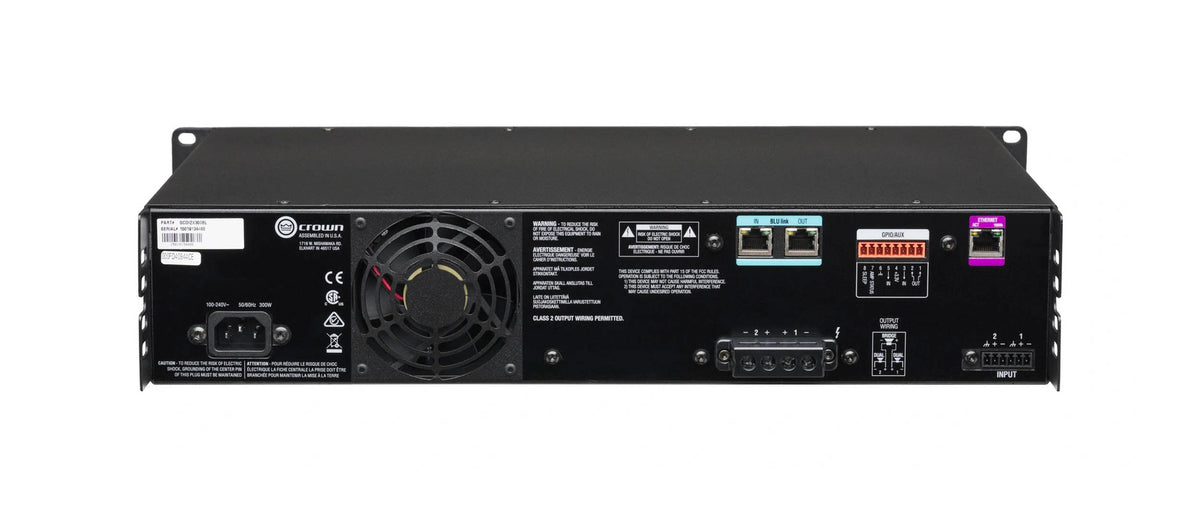

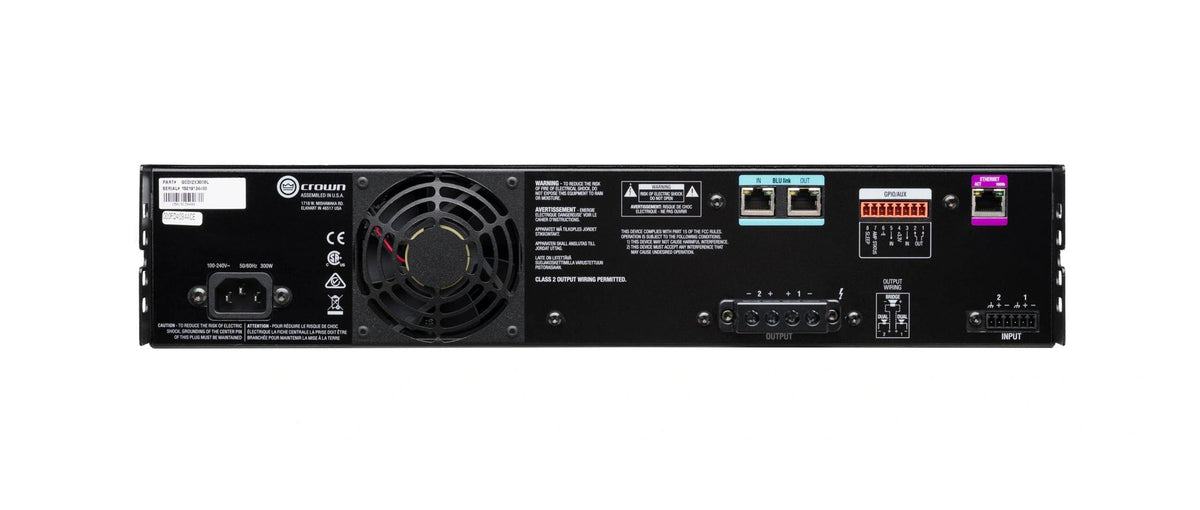

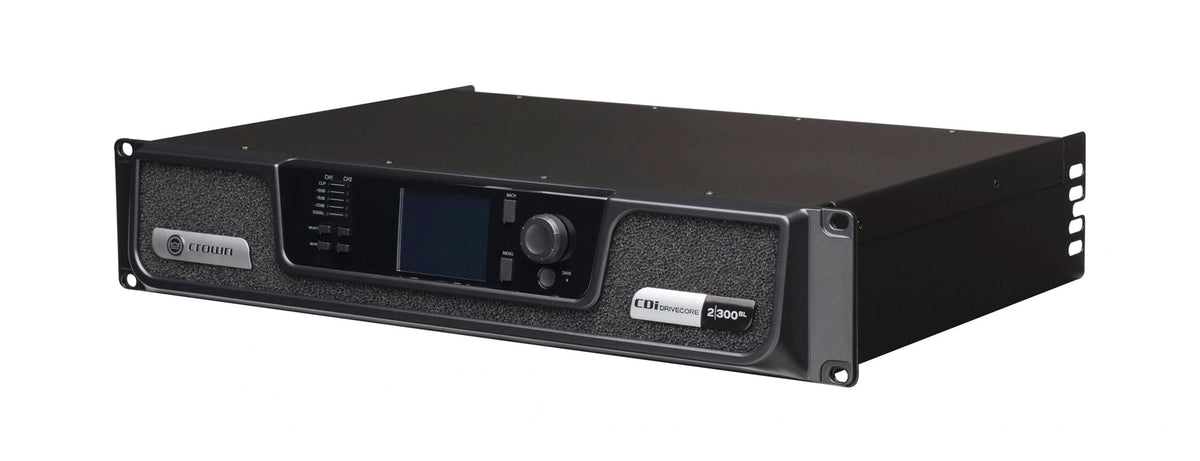

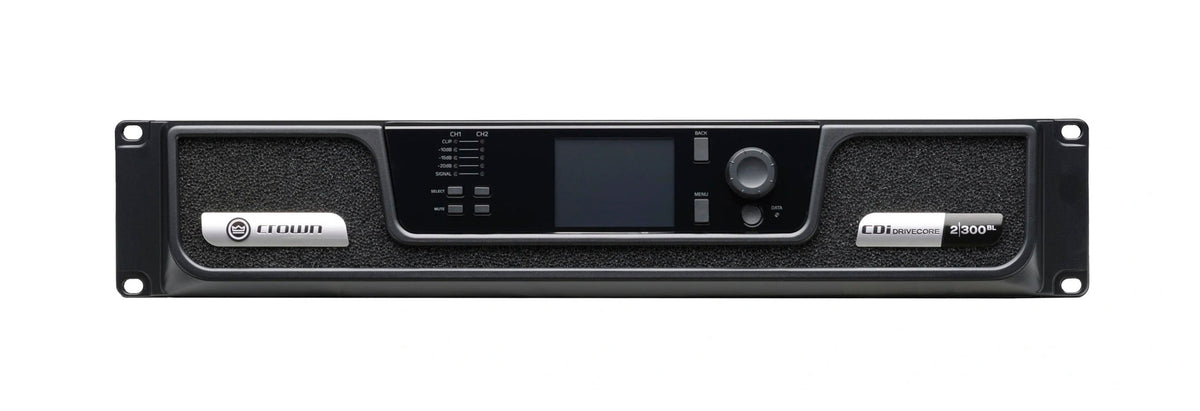

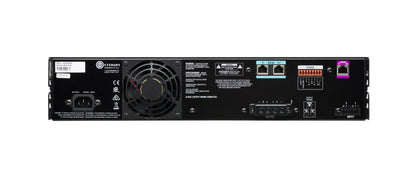

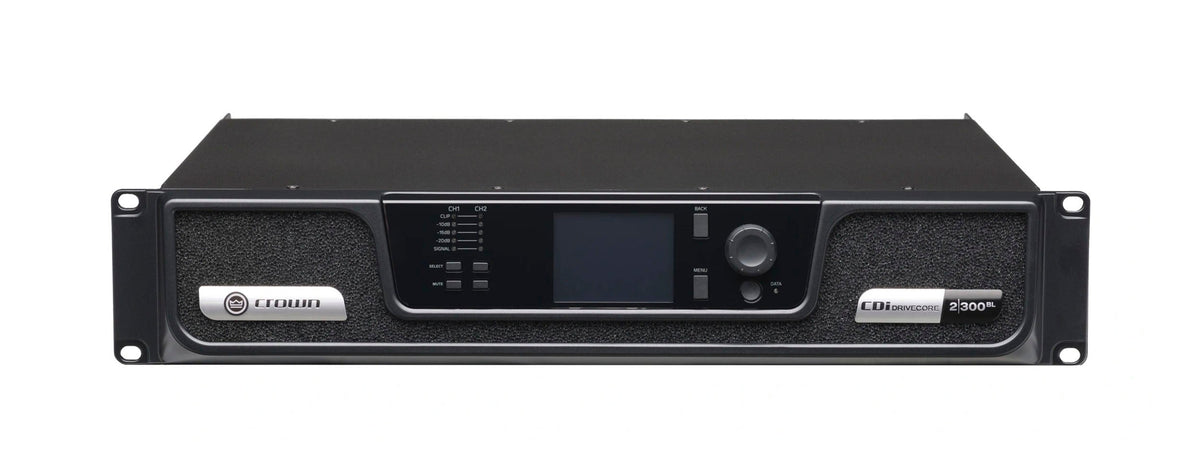

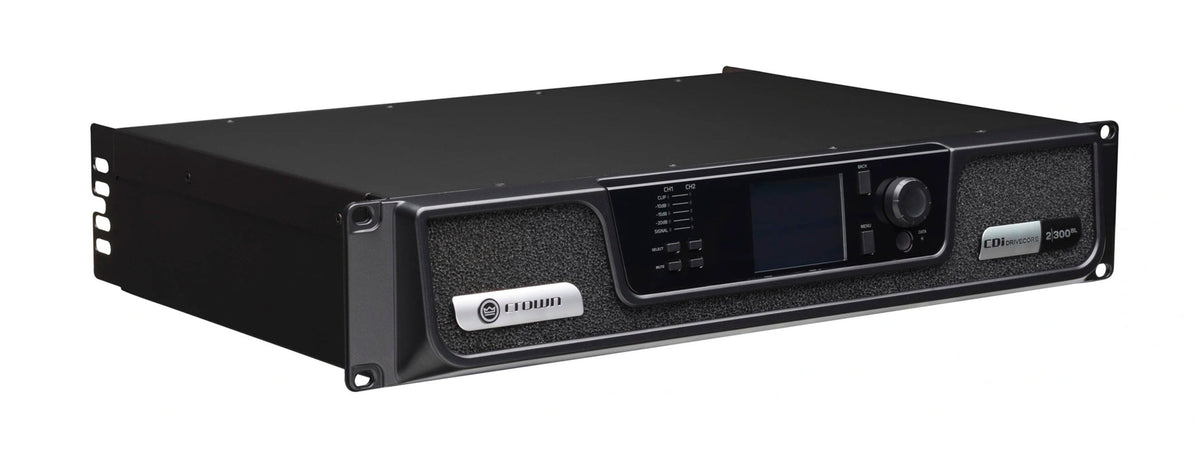

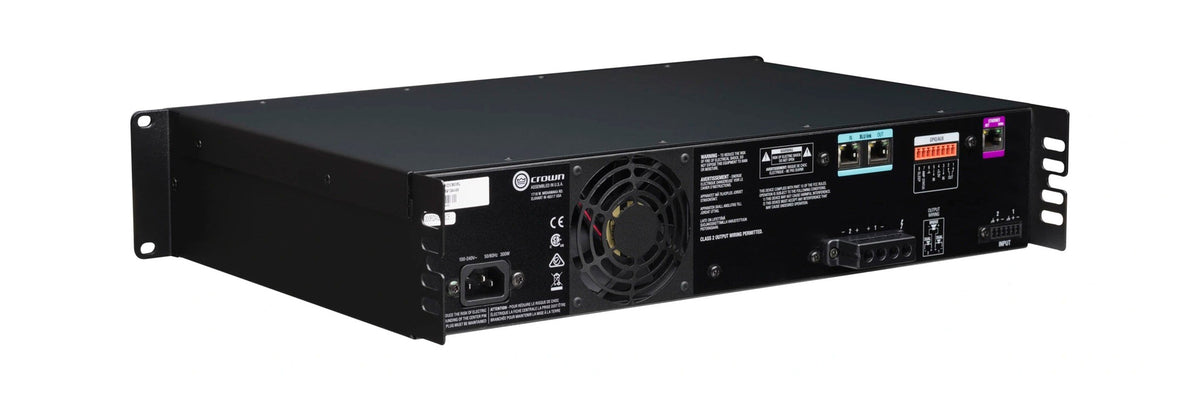

Crown CDI2X300BL 2-Channel Drive Core Series Power Amplifier - 300W
Crown CDI2X300BL 2-Channel Drive Core Series Power Amplifier - 300W
Model / SKU: H-CROW-CDI2X300BL
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The Crown CDI2X300BL 2-Channel Drive Core Series Power Amplifier - 300W is a next-generation installed sound amplifier engineered to deliver exceptional performance, advanced DSP control, and outstanding value for small to medium-sized commercial applications. Leveraging technology from Crown’s flagship Drive Core Install series, this amplifier offers a powerful combination of efficiency, reliability, and sonic clarity. Its 2-channel architecture supports direct 70V/100V operation without external transformers, making it ideal for restaurants, retail environments, corporate spaces, and other distributed audio installations. With BLU link connectivity, the 2|300BL seamlessly integrates into HARMAN’s digital audio ecosystem, enabling flexible audio routing over a robust 256-channel network.
Driven by proprietary Drive Core technology, the CDi Drive Core 2|300BL eliminates hundreds of internal components, significantly reducing complexity while enhancing long-term reliability and consistency. The onboard high-performance DSP provides extensive customization options, including input and output parametric EQ, crossovers, advanced LevelMAX limiting, and precise input/output delays. These tools allow installers to optimize system performance with ease, particularly when paired with the amplifier’s pre-loaded JBL loudspeaker tunings that streamline setup and ensure accurate, high-quality sound. Network control and monitoring through Harman’s HiQnet Audio Architect software give users complete command over system configuration and performance from any standard TCP/IQ network.
Designed for real-world flexibility, the 2|300BL also features a fully functional front-panel interface for local configuration, as well as a versatile GPIO/AUX port that enables external control of presets, muting, fault monitoring, and amplifier power management. Whether used as part of a distributed audio system or a multi-zone installation, the Crown CDi Drive Core 2|300BL delivers the powerful blend of performance, durability, and user-focused functionality that modern integrators demand.
Product Specifications:
BLU link: Yes
Channels: 2
Display: Backlit LCD
Rackmount Size: 2 U
Cooling: Fan (Variable Speed)
Sensitivity (for full rated power at 8 ohms): 0.7V RMS
Rated Power Output (per channel @ 4 ohms): 300W
Analog Input Signal to Noise Ratio (ref. rated power, 100V, 20Hz - 20kHz) at 8 ohms): > 104dB
THD (full rated power, 20 Hz - 20 kHz): 0.0035
Damping Factor (20 Hz to 100 Hz): > 1000
Frequency Response (8Ω, 20 Hz - 20 kHz): +/-0.5dB
Crosstalk (below rated power) 20 Hz to 1 kHz: > 80dB
Input Impedance (nominally balanced, nominally unbalanced): 20 kΩ balanced, 10 kΩ unbalanced
Power Supply Connector: Standard IEC type 320 inlet for detachable connector 100 to 240V~
Protections: DC Fault, Low Impedance, Open Circuit, Overcurrent, Overvoltage, Ultrasonic, Undervoltage
Product Weight: 14.56 lbs.
Product Dimensions (L x W x H): 12.25 in x 19 in x 3.5 in
Shipping Weight: 18.4 lbs.
Shipping Dimensions (L x W x H): 22 in x 20 in x 7.9 in
