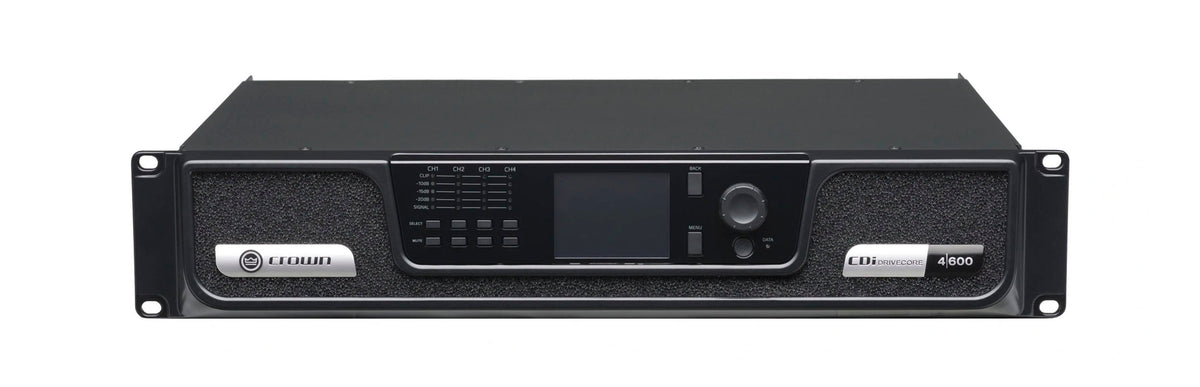

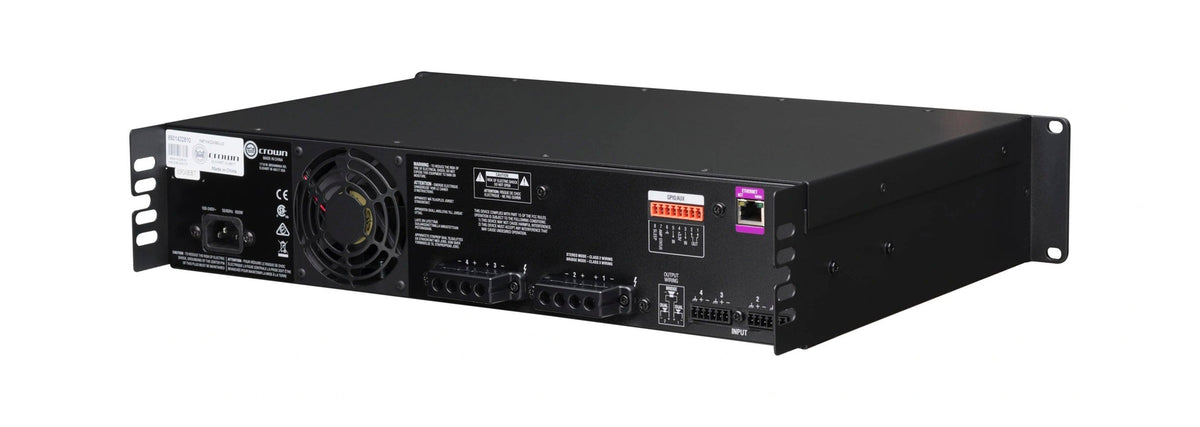

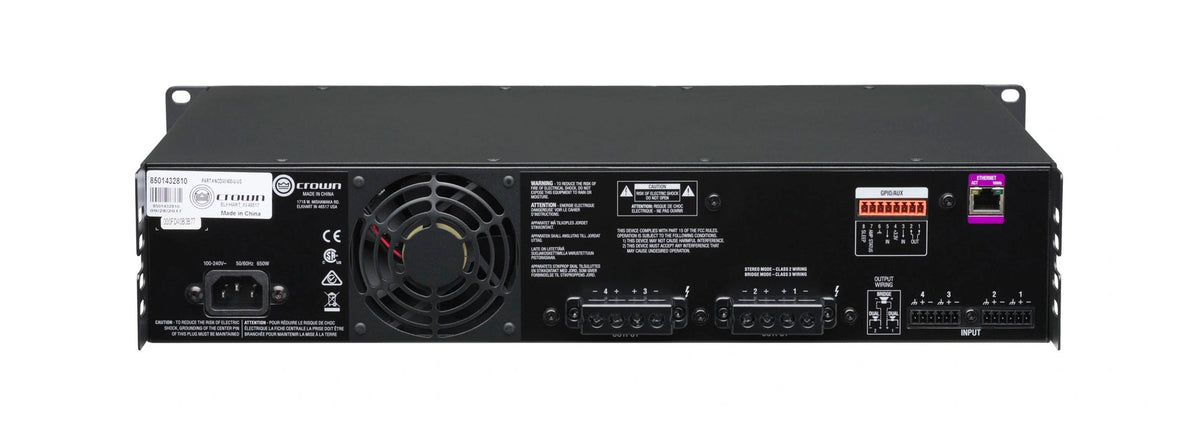

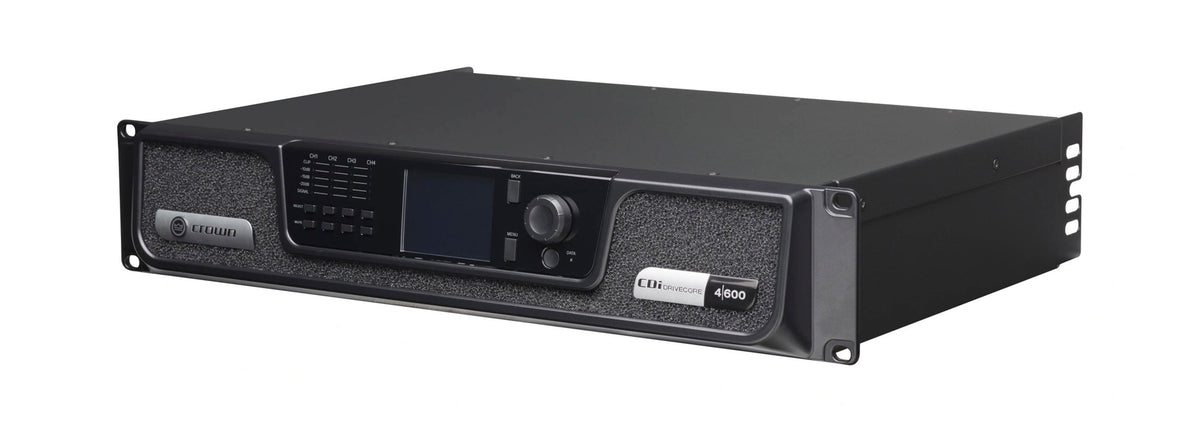

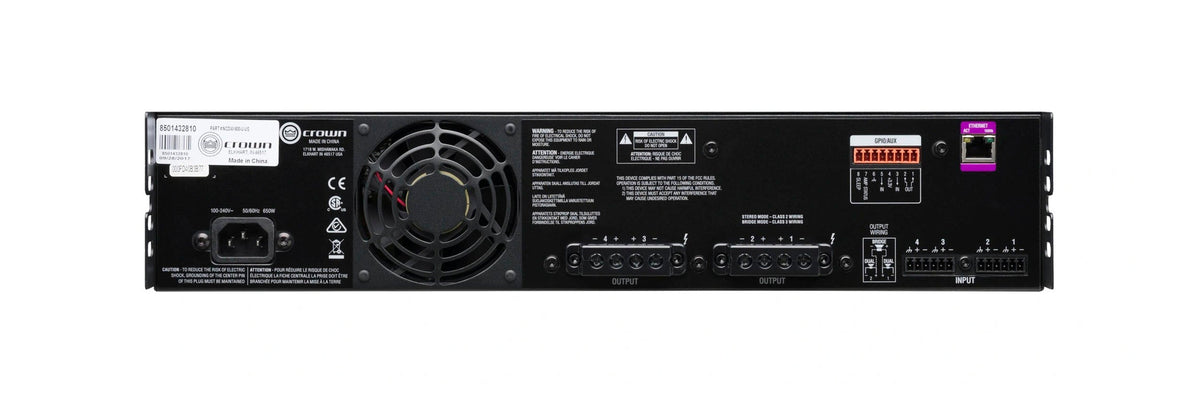

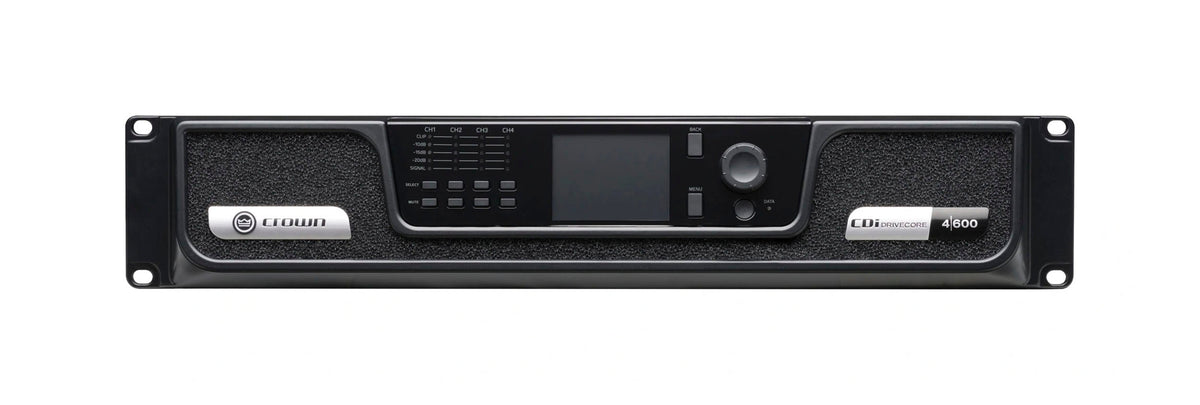

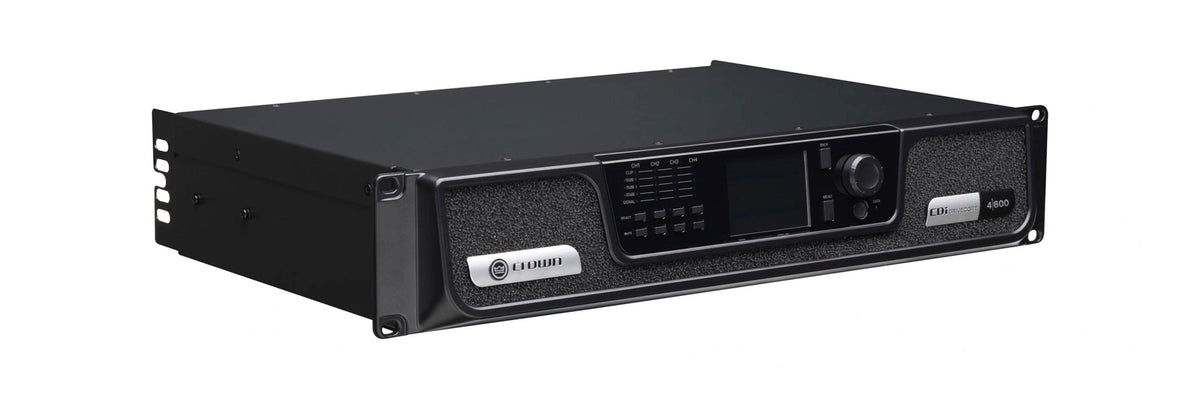

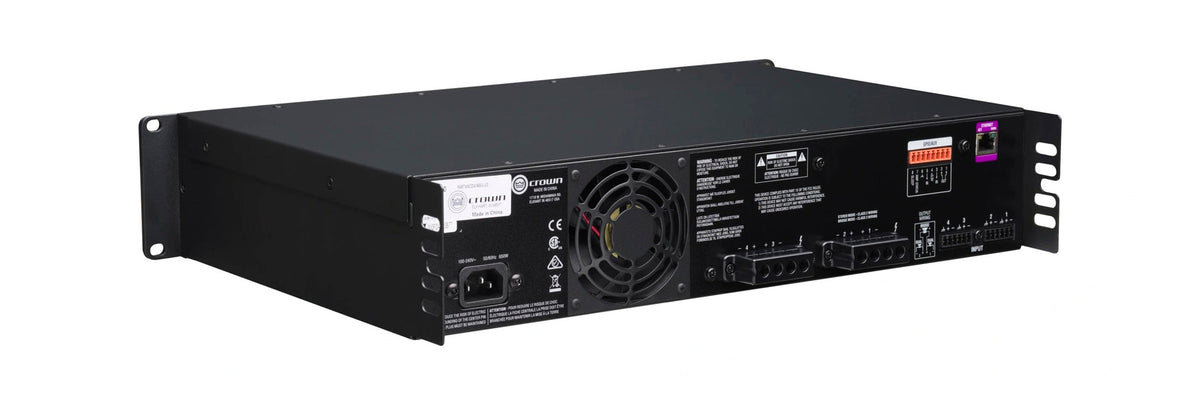

Crown CDI4X600 4-Channel Drive Core Series Power Amplifier - 600 Watt
Crown CDI4X600 4-Channel Drive Core Series Power Amplifier - 600 Watt
Model / SKU: H-CROW-CDI4X600
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The Crown CDI4X600 is a 600W, 4-channel Drive Core Series power amplifier engineered for medium-sized installations including cinemas, houses of worship, bars, lounges, and similar venues. Built on technology derived from Crown’s flagship Drive Core Install series, it delivers high performance, a rich feature set, and strong value. Its integrated Drive Core circuitry replaces hundreds of traditional components, increasing reliability and ensuring clean, accurate audio reproduction from an efficient design.
This amplifier offers intuitive operation with network control and monitoring, advanced onboard DSP, and a color LCD front panel interface. It supports HiQnet Audio Architect for configuration over standard TCP/IP networks and includes programmable GPIO ports for system integration. DSP capabilities include EQ filters, crossovers, delays, LevelMAX limiters, and support for FIR filter imports. With 20 presets (1 factory, 19 user), installers can quickly adapt the amplifier to different environments and system needs.
The CDi 4|600 is designed for flexibility and protection. Each channel can independently operate in low-Z or 70/100V high-Z mode without the need for transformers, and the unit comes preloaded with JBL speaker tunings to streamline setup. A universal power supply with PFC, power-saving modes, and remote sleep functionality ensures efficient operation. Multiple protection circuits safeguard against shorted outputs, overheating, DC, mismatched loads, and voltage irregularities. It supports BSS Sound web controllers, meets HARMAN Green Edge standards, and is backed by a three-year, no-fault transferable warranty.
Product Specifications:
BLU link: No
Channels: 4
Display: Backlit LCD
Rackmount Size: 2 U
Cooling: Fan (Variable Speed)
Sensitivity (for full rated power at 8 ohms): 0.7V RMS
Rated Power Output (per channel @ 4 ohms): 600W
Analog Input Signal to Noise Ratio (ref. rated power, 100V, 20Hz - 20kHz) at 8 ohms): > 104dB
THD (full rated power, 20 Hz - 20 kHz): 0.0035
Damping Factor (20 Hz to 100 Hz): > 1000
Frequency Response (8Ω, 20 Hz - 20 kHz): +/-0.25dB
Crosstalk (below rated power) 20 Hz to 1 kHz: > 80dB
Input Impedance (nominally balanced, nominally unbalanced): 20 kΩ balanced, 10 kΩ unbalanced
Power Supply Connector: "15A IEC connector, 100 to 240V "
Product Weight: 16.3 lbs.
Product Dimensions (L × W × H): 12.25 × 19 × 3.5
