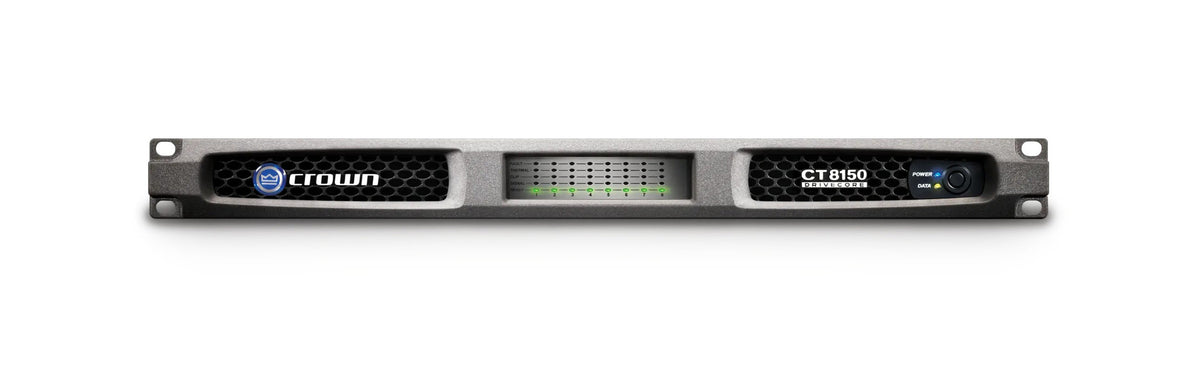

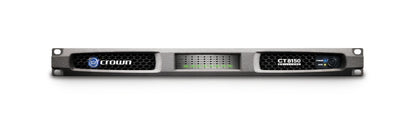

Crown CT8150, 8-Channel Rackmount Power Amplifier - 150 Watt
Crown CT8150, 8-Channel Rackmount Power Amplifier - 150 Watt
Model / SKU: H-CROW-CT4150
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
TheCrown CT8150, 8-Channel Rackmount Power Amplifier - 150 Watt from the ComTech DriveCore series, designed for premium audio quality in a compact, professional package. With a slim 1 RU chassis, the CT8150 provides 125W per channel at 8 ohms, delivering strong, clear sound with low distortion. Powered by advanced DriveCore™ technology, this amplifier achieves over 90% efficiency, offering high performance with minimal power draw. DriveCore's innovative circuitry combines the amplifier drive stage with the power output stage, resulting in the audio fidelity of a refined Class AB design within a Class D efficiency profile. The CT8150’s fan-free, convection-cooled design ensures quiet operation, making it suitable for noise-sensitive environments. Flexible input routing allows input signals to be directed to any of the eight outputs, while integrated life-safety and patented protection circuits guard against potential damage. With a universal power supply, the CT8150 is ideal for global applications.
At a Glance
The Crown CT8150 amplifier features flexible input routing, allowing any input to be sent to any of its eight outputs, and operates with a fanless, convection-cooled design for silent performance. It includes a universal power supply, suitable for international use, and integrated life-safety features to protect the amplifier. With eight channels providing 125W each in a compact 1 RU chassis, the CT8150 employs DriveCore technology, achieving over 90% efficiency without compromising audio quality. Patented feedback and protection circuits ensure reliable performance, and the amplifier is stable for 2- to 16-ohm loads, making it versatile for various applications. Additionally, an XFMR 4/8 accessory is available for 70/100V installations.
Product Specifications:
Number of Channels: 8
Power Rating: 125W per channel at 8 ohms
Amplifier Class: Class-D
Input Impedance: Balanced 3-pin barrier block-type line inputs
Outputs: 4-pin Phoenix-type speaker outputs
Frequency Response: 20 Hz to 20 kHz ±0.5 dB
Input Sensitivity: 1.4 V
Signal to Noise Ratio (SNR): 110 dB
Total Harmonic Distortion (THD): < 0.05%
Product Weight: 10 lbs.
Shipping Weight: 11 lbs.
