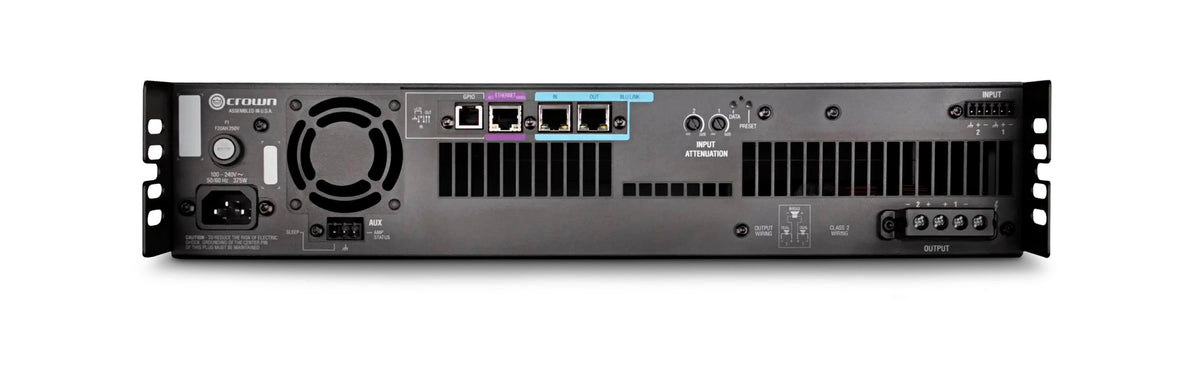

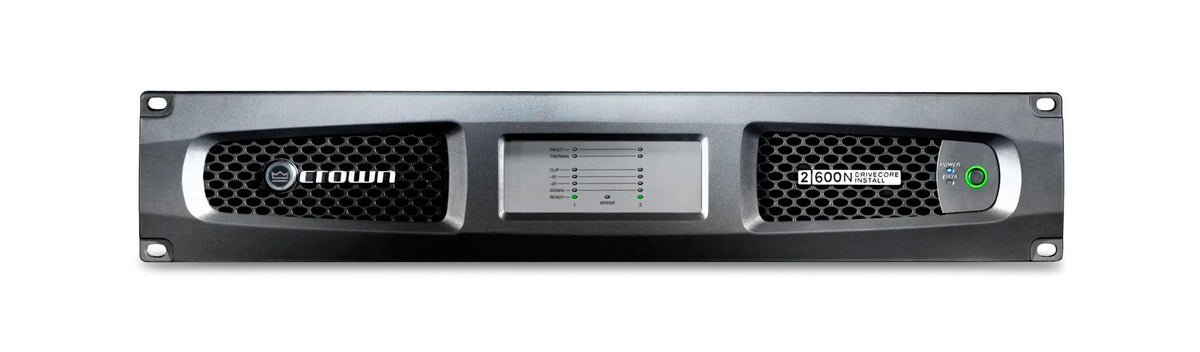

Crown DCI2X600N-U-EKFX 2-Channel Power Amp w/ BLU Link - 600 Watt
Crown DCI2X600N-U-EKFX 2-Channel Power Amp w/ BLU Link - 600 Watt
Model / SKU: H-CROW-DCI2X600NUEKFX
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The Crown DCI2X600N-U-EKFX is part of the high-performance DriveCore Install series, engineered to deliver exceptional efficiency, power, and reliability for modern installed sound systems. Built on Crown’s proprietary DriveCore technology, it maintains outstanding audio quality while offering a compact and energy-efficient design. This amplifier is crafted to meet the demanding standards of today's commercial and professional installations, making it ideal for environments where consistent performance and long-term stability are essential.
The DCI2X600N-U-EKFX supports both analog and digital audio through HARMAN’s BLU-Link transport, giving integrators flexibility in system design. Its priority input router ensures uninterrupted audio by automatically switching to a backup input if the main source fails. Network monitoring and control are enabled via the HiQnet protocol over standard TCP/IP, providing remote access to device status, configuration, and real-time adjustments. Compatibility with Audio Architect software and the Powered by Crown app enhances workflow efficiency.
Advanced onboard DSP provides powerful audio management tools, including LevelMAX limiters, input/output EQ, delay, crossover settings, matrix mixing, and speaker line monitoring. Programmable GPIO ports allow custom system behavior such as preset recall or error reporting. Fully EN 54-16 compliant, the TMP-DCI2X600N-U-EKFX meets stringent voice alarm requirements, making it suitable for safety-critical installations like hospitality venues, large public spaces, and life-safety systems.
Product Specifications:
Output Channels: 2
Display: Single-LED Indicators Only
Rackmount Size: 2 U
Frequency Response (8Ω, 20Hz - 20kHz): ±0.25dB
Total Harmonic Distortion (at full rated power, 20Hz - 20kHz): 0.0035
Damping Factor (20Hz to 100Hz): >1000
Load Impedance (Stereo/Dual Mode): 2Ω - 16Ω; 70Vrms and 100Vrms
Load Impedance Bridge Mono: 4Ω - 16Ω; 140Vrms and 200Vrms
Cooling: Continuously variable speed forced air, front to back airflow
Maximum Fan Noise (re dBA SPL @ 1M): 45
Required AC Mains (±10%): 100V-240V ~ 50/60Hz
Power Connector: 15A IEC
Product Weight: 18.8 lbs.
Product Dimensions (L × W × H): 14.25 in × 19 in × 3.5 in
