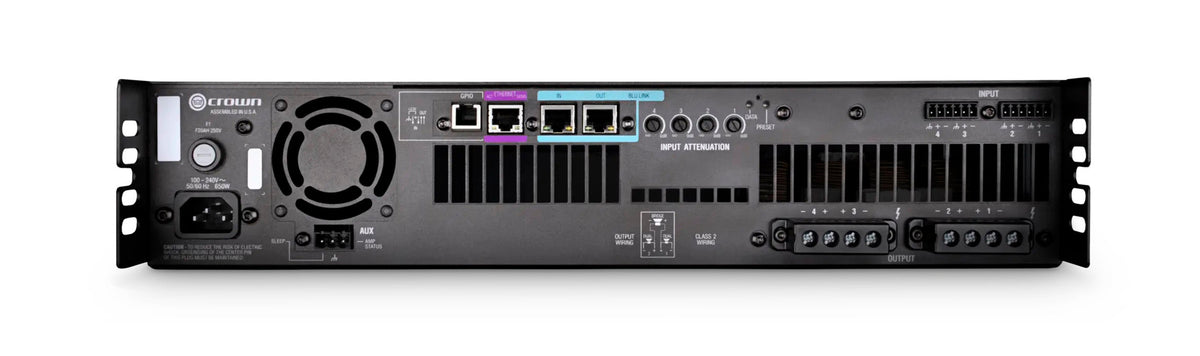

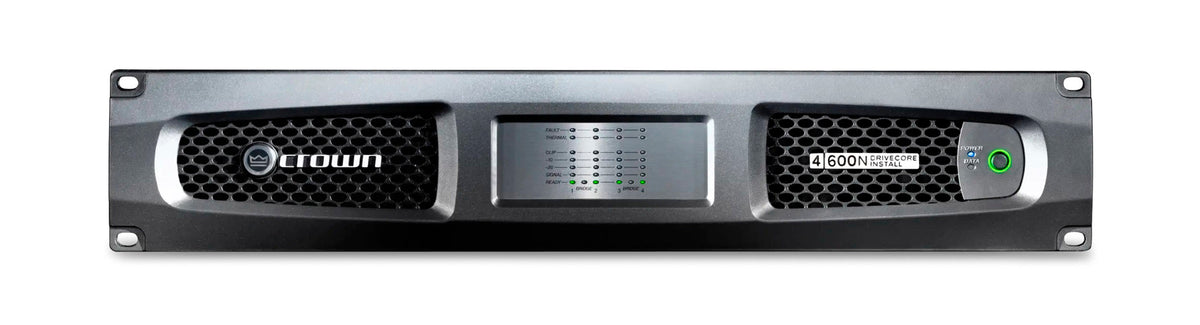

Crown DCI4X600N 4-Channel Power Amplifier with BLU Link - 600 Watt
Crown DCI4X600N 4-Channel Power Amplifier with BLU Link - 600 Watt
Model / SKU: H-CROW-DCI4X600N
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The Crown DCI4X600N is engineered for modern, demanding installed-sound applications, offering unmatched versatility, efficiency, and reliability. This 4-channel, 600W Drive Core Install amplifier provides both analog and digital inputs, network monitoring, programmable GPIO ports, and robust onboard DSP. Meeting EN 54-16 life-safety compliance, it is ideal for hospitality, large venues, corporate spaces, and other professional environments where dependable audio performance is essential.
Designed for flexible system integration, the DCI 4|600N delivers up to 600W per channel at 2, 4, 8, or 16 ohms, as well as 70/100V operation. It supports Harman’s BLU Link digital audio transport, enabling sophisticated networked control, recallable presets, and seamless input failover. Integrated DSP provides LevelMAX limiting, input/output EQ, delay, a matrix mixer, and speaker line monitoring. Channel pairs can also be bridged for higher-power applications such as subwoofers, and each channel allows independent Hi-Z/Low-Z selection for maximum design flexibility.
Operational convenience and protection are at the core of the 4|600N's design. The front panel offers clear indicators for signal, level, clip, thermal, and fault status, ensuring quick system assessment at a glance. The unit supports remote on/off control, an automatic 30-minute standby mode, and efficient internal cooling for low-noise airflow. With advanced protection against short circuits, overheating, voltage irregularities, and load mismatches, the Crown DCI 4|600N delivers reliable long-term performance in any professional installation.
Product Specifications:
Output Channels: 4
Cooling: Continuously variable speed forced air, front to back airflow
Display: Single-LED Indicators Only
Rackmount Size: 2 U
Frequency Response (8Ω, 20Hz - 20kHz): ±0.25dB
Total Harmonic Distortion (at full rated power, 20Hz - 20kHz): 0.0035
Damping Factor (20Hz to 100Hz): >1000
Load Impedance (Stereo/Dual Mode): 2Ω - 16Ω; 70Vrms and 100Vrms
Load Impedance Bridge Mono: 4Ω - 16Ω; 140Vrms and 200Vrms
Maximum Fan Noise (re dBA SPL @ 1M): 45
Required AC Mains (±10%): 100V-240V ~ 50/60Hz
Power Connector: 15A IEC
Product Weight: 20.1 lbs.
Product Dimensions (L × W × H): 14.25 in × 19 in × 3.5 in
