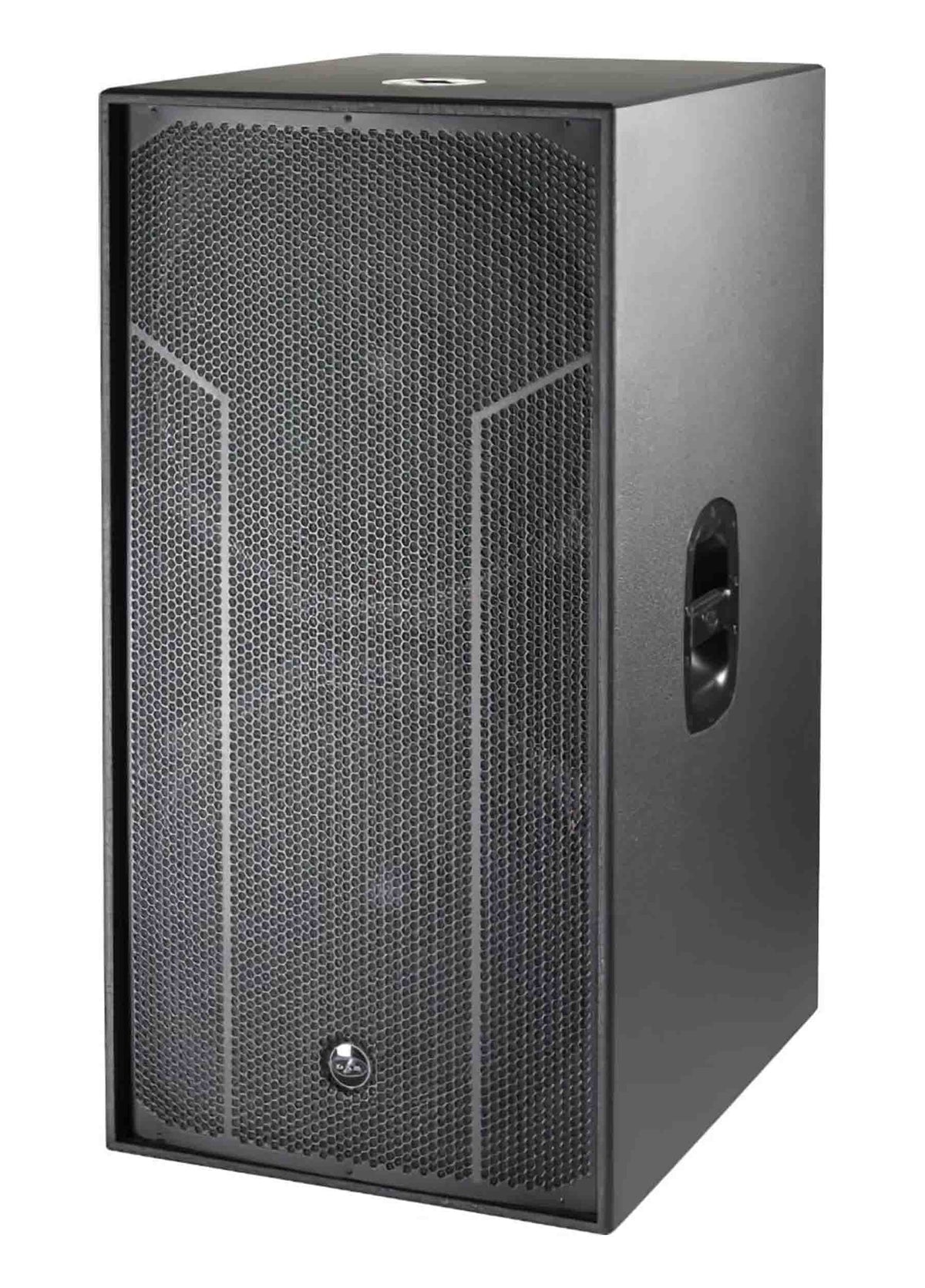

DAS Audio ACTION-S218A-115 Dual 18" 3200W Powered Sub System w/ DSP
DAS Audio ACTION-S218A-115 Dual 18" 3200W Powered Sub System w/ DSP
Model / SKU: H-DAS-ACTIONS218A115
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The ACTION-S218A is a high-power active subwoofer system that incorporates a 3200 W peak amplifier and two 18FW4 speakers with a 3” coil and 20 mm winding depth, double layer and sandwich to boost system power, as well as a new forced convection circuit that works to reduce the effects of coil heating.
As part of our company culture, all our systems are developed under a single philosophy: to deliver the highest possible quality in terms of both materials and overall system design. In the ACTION-500 series we use the same birch plywood as our touring systems for a tight, natural warm sound found nowhere else on the market.
Product Specifications:
Frequency Range (-10 dB): 35 Hz -125 Hz (variable LPF)
Maximum Peak SPL at 1 m: 140 dB
Nominal Amplifier Power (continuous): 1600 W
Nominal Amplifier Power (peak): 3200 W
Input Type: Balanced
Input Impedance: 20 kOhms
Input Sensitivity: 1.95 V (+8 dBu)
Audio Signal Input Connector: 2 x Female XLR
Audio Signal Loop Thru Connector: 2 x Male XLR
AC Output Connector: powerCON NAC3MPB
Current Draw 230 V / 115 V: -/6.0 A
Enclosure Construction: Birch Plywood
Enclosure Geometry: Rectangular
Finish: ISO-flex Paint
Color: Black
Dimensions (H x W x D): 42,1 x 21,5 x 26,6 in"
Net Weight: 60,5 kg (133,4 lb)
Components:
LF Driver: 18FW4
Shipping Dimensions (H x W x D): 45,1 x 23,4 x 28,4 in"
Shipping Weight: 65,0 kg (143,3 lb)
