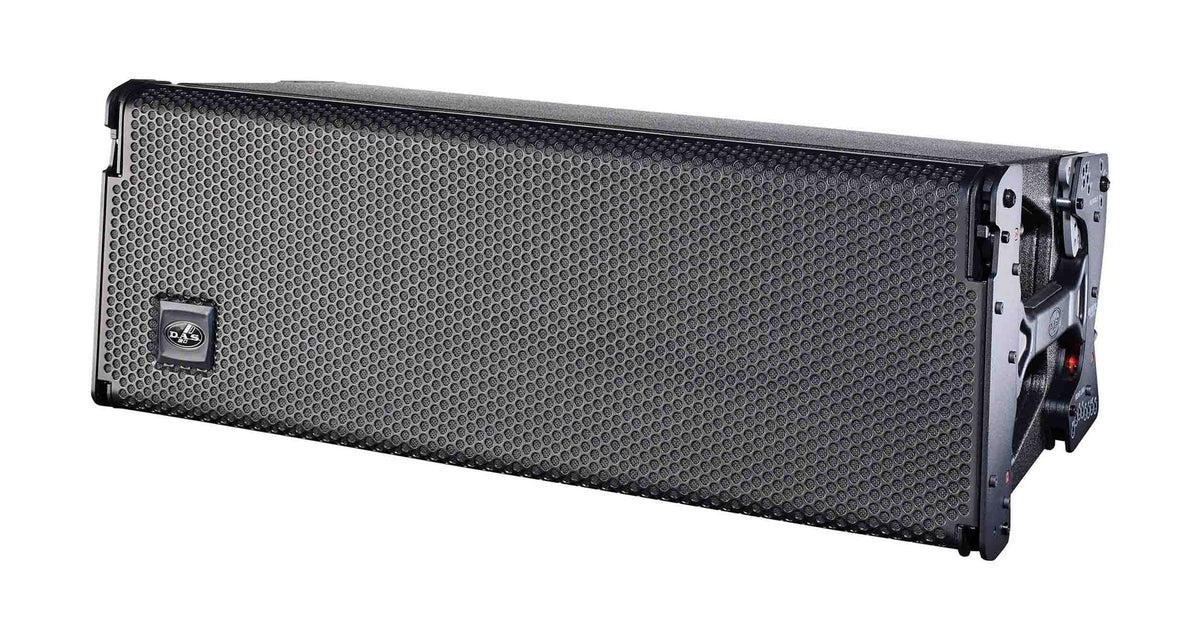

DAS Audio EVENT-210A-115 Powered 3-Way Compact Line Array Module

The EVENT-210A Line is a three-way powered line array in a double 10” “dual-band” configuration which provides a wider frequency range. The DAS loudspeaker units has been teamed up with a single M-75 compression driver and purpose-designed injected aluminum high frequency waveguide.

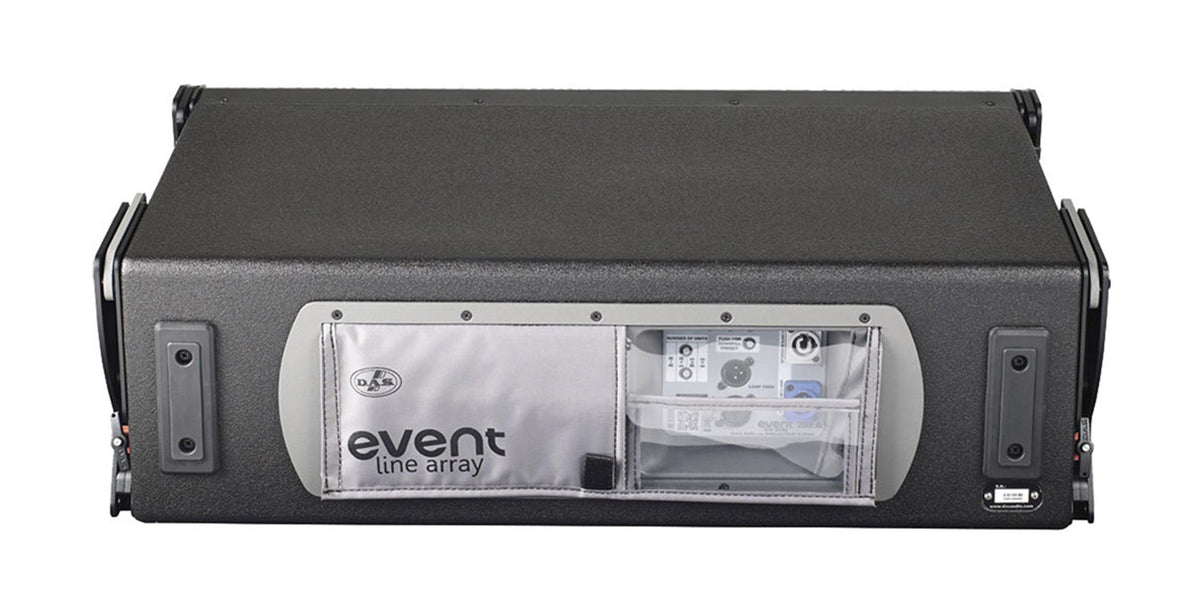

The EVENT-210A line array is powered by a three channel Class D amplifier which provides 360 W peak per channel. The amp´s rear panel includes quality Neutrik XLR and powerCON connectors, status LEDS to facilitate setup and DAS’s Easy-DSP™ interface which simplifies preset selection for the number of units and throw depth.

Product Specifications:

Frequency Range (-10 dB): 70 Hz, 20 kHz

Horizontal Coverage (-6 dB): 90º

Vertical Coverage: Splay Dependent

Maximum Peak SPL at 1 m: 134 dB

Nominal Amplifier Power LF (continuous): 180 W

Nominal Amplifier Power LF (peak): 360 W

Nominal Amplifier Power MF (continuous): 180 W

Nominal Amplifier Power MF (peak): 360 W

Nominal Amplifier Power HF (continuous): 180 W

Nominal Amplifier Power HF (peak): 360 W

Input Type: Balanced

Input Impedance: 20 Kohms

Input Sensitivity: 6.2 V (+18 dBu)

Audio Signal Input Connector: 1 x Female XLR

Audio Signal Loop Thru Connector: 1 x Male XLR

AC Output Connector: powerCON NAC3FCB

Current Draw 230 V / 115 V: -/3.0 A

Certification Number: NRTL US&CA SGSNA/19/SUW/00109

Enclosure Construction: Birch Plywood

Enclosure Geometry: Trapezoidal

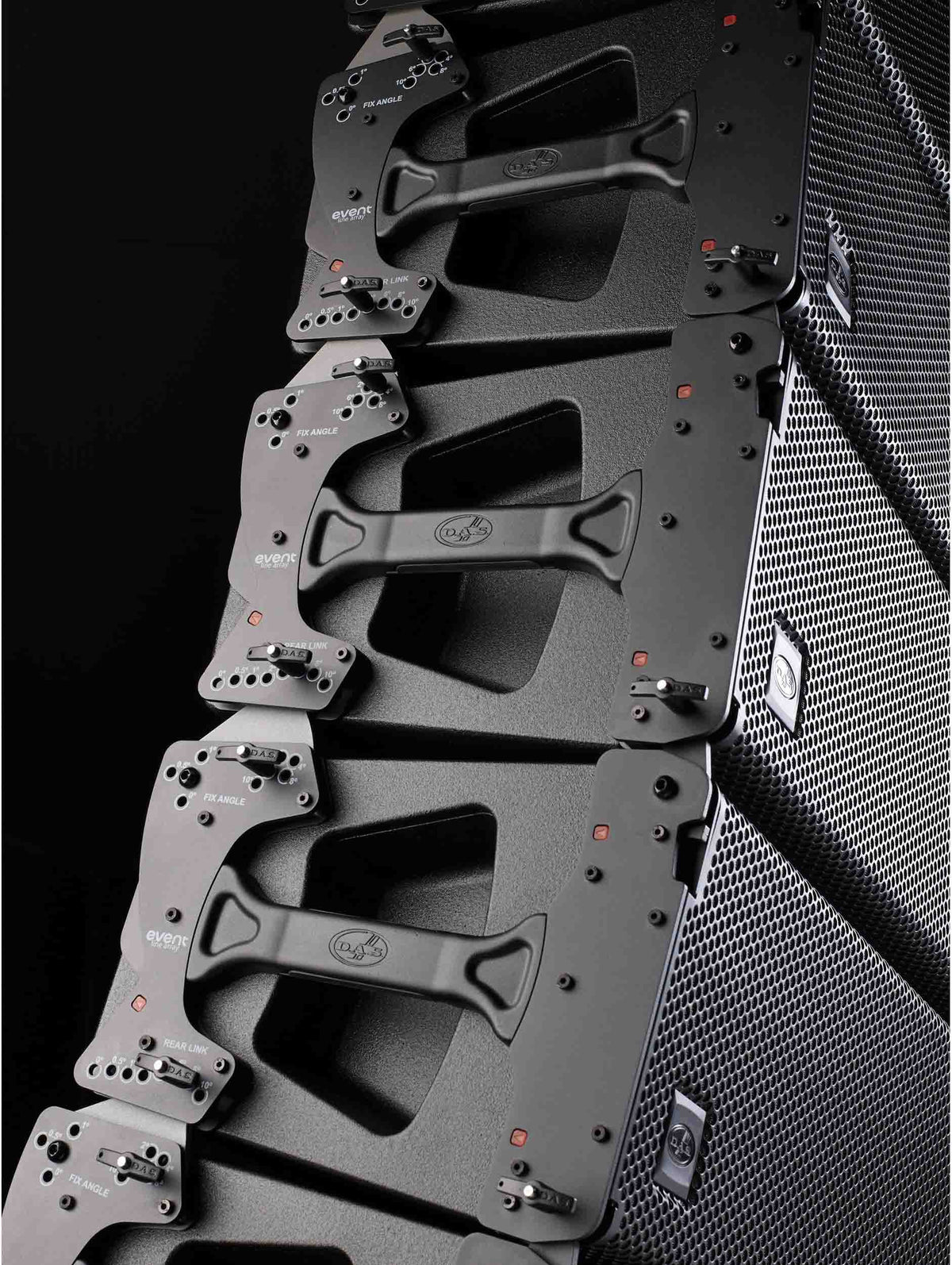

Rigging: Captive Rigging System

Finish: ISO-flex Paint

Color: Black

Dimensions (H x W x D): 10,8 x 28,9 x 14,6 in"

Net Weight: 32,5 kg (71,7 lb)

Components:

LF Driver: 10MI4

MF Driver: 10MI4

HF Driver: M-75

Horn/Waveguide: BPS-90AR

Carton Dimensions (H x W x D): 31,5 x 12,6 x 16,1 in"

Shipping Weight: 34,5 kg (76,1 lb)
