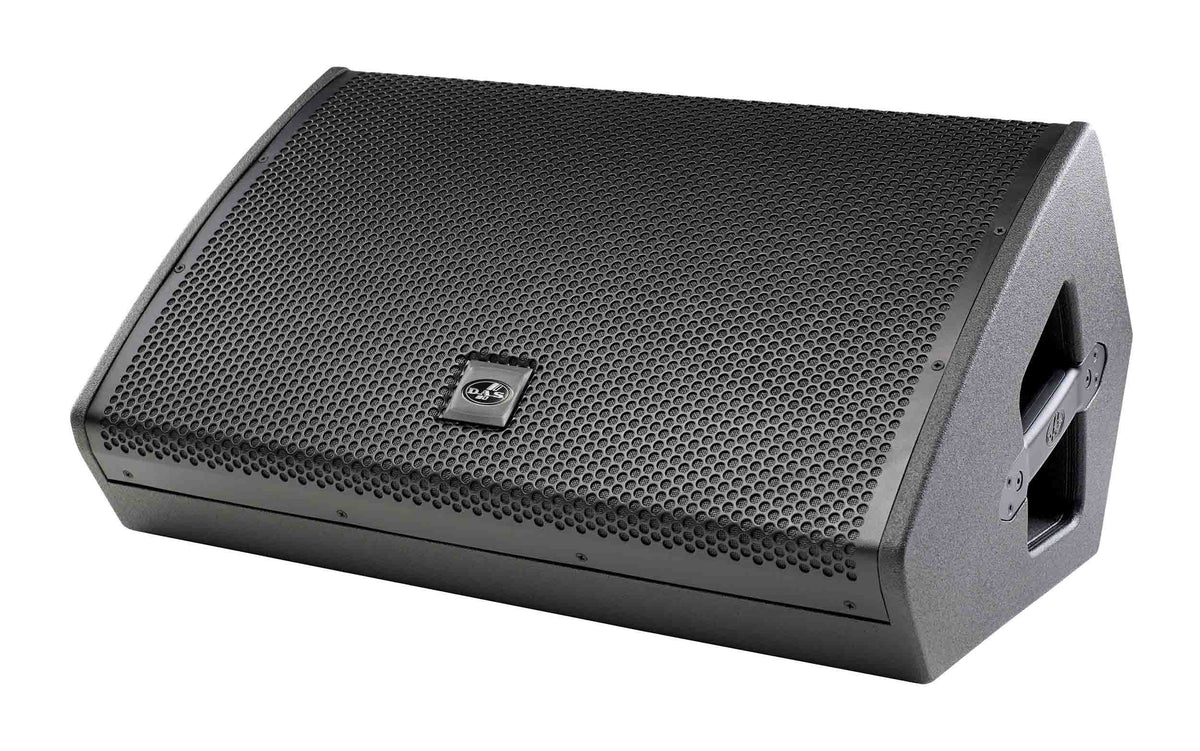

DAS Audio EVENT-M210A-115 Powered Full-Range 3-Way Stage Monitor

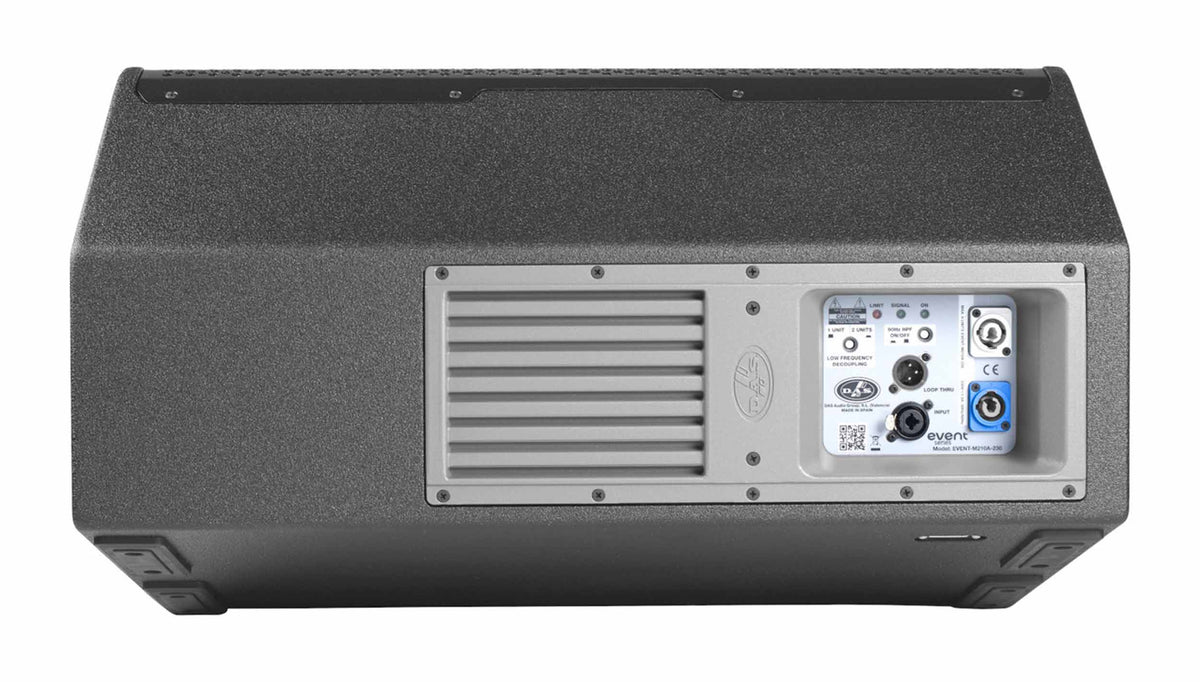

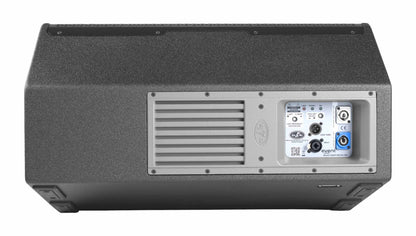

The EVENT-M210A is a three-way stage monitor in a double 10” “dual-band” configuration providing a wide frequency range. The DAS loudspeaker units have been teamed up with a single M-60 compression driver and purpose-designed injected aluminum high frequency waveguide. The EVENT-M210A wedge is powered by a three channel Class D amplifier which provides 360 W peak per channel. The amp´s rear panel includes quality Neutrik® XLR and powerCON connectors, status LEDS to facilitate setup.

Product Specifications:

Frequency Range (-10 dB): 70 Hz, 20 kHz

Horizontal Coverage (-6 dB): 60º

Vertical Coverage: 20ºUp/30ºDown

Maximum Peak SPL at 1 m: 132 dB

Nominal Amplifier Power LF (continuous): 180 W

Nominal Amplifier Power LF (peak): 360 W

Nominal Amplifier Power MF (continuous): 180 W

Nominal Amplifier Power MF (peak): 360 W

Nominal Amplifier Power HF (continuous): 180 W

Nominal Amplifier Power HF (peak): 360 W

Input Type: Balanced

Input Impedance: 20 kOhms

Input Sensitivity: 6.2 V (+18 dBu)

Audio Signal Input Connector: 1 x Female XLR

Audio Signal Loop Thru Connector: 1 x Male XLR

AC Output Connector: powerCON NAC3FCB

Current Draw 230 V / 115 V: -/3.0 A

Enclosure Construction: Birch Plywood

Enclosure Geometry: Trapezoidal

Rigging: Captive Rigging System

Finish: ISO-flex Paint

Color: Black

Dimensions (H x W x D): 13,4 x 25,6 x 18,1 in"

Net Weight: 23,5 kg (51,8 lb)

Components:

LF Driver: 10MI4

MF Driver: 10MI4

HF Driver: M-60

Horn/Waveguide: BC-632

Carton Dimensions (H x W x D): 29,1 x 14,6 x 19,3 in"

Shipping Weight: 26,0 kg (57,3 lb)
