DB Technologies DVA MS12 12" 2-Way Active Line Array Module System
DB Technologies DVA MS12 12" 2-Way Active Line Array Module System
Model / SKU: H-DBTE-DVAMS12
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.

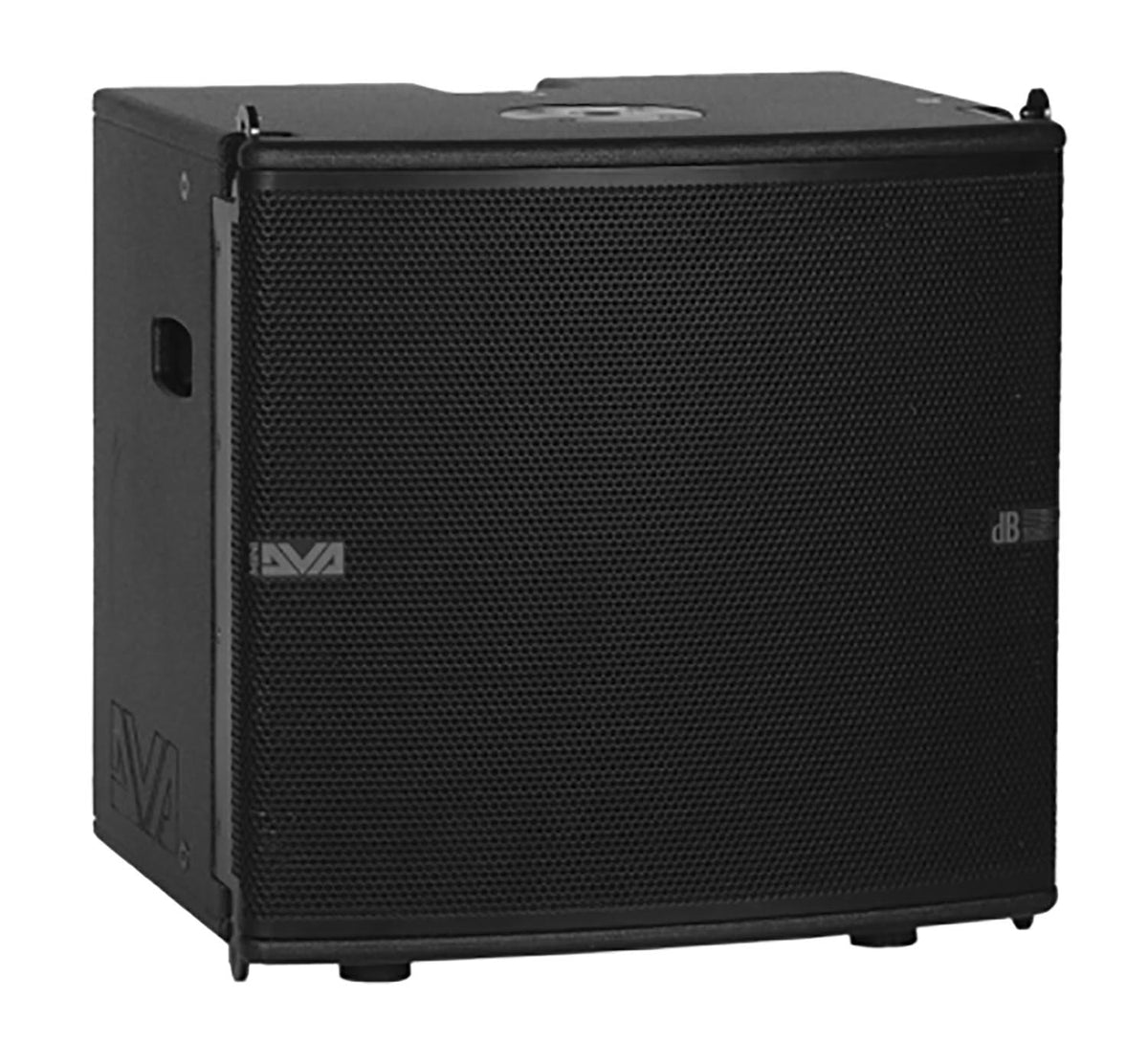

The dB Technologies DVA MS12 subwoofer delivers an incredible SPL considering its very compact dimensions, and it can be easily used both flown and ground stacked. The smart design of the feet allows the user to avoid the dull removal of the flying brackets: it is possible to remove the feet in few seconds and screw them again upside-down. In this way any contact between the flying brackets and the ground is avoided, as only the rubber feet will touch it. A practical X-over out can be used to feed signal straight to the line arrays modules, simplifying considerably the signal and power cabling.
DVA MS12 comes with the new generation of exclusive digital amplifiers Digipro G3, engineered by dBTechnologies and distinguished by an exceptionally lightweight design and a very remarkable efficiency. An integrated USB B-type port on the DVA MS12 amplifier allows the user to access the complete telemetry of the sub, monitoring the status of the speaker, including total playing hours, temperatures and performances reports.
Product Specification:
Technical Data
Speaker Type Active bass reflex flyable subwoofer
Acoustical data
Frequency Response [-6dB] 45 - 140 Hz
Frequency Response [-10dB] 40 - 165 Hz
Max SPL 131 dB
LF 12"
Voice Coil LF 3"
Directivity Omni directional
Amplifier
Amp Technology Digipro G3
Amp Class Class D
Power Supply 700W SMPS with PSU Auto-range (110V~ and 220V~)
LF Amp 700 W RMS (1400 W Peak)
Cooling Convection
Processor
Controller DSP 56 bit
AD/DA Converter 24 bit/48 kHz
Controls X-Over frequency selection, Phase selection (0° or 180°), Outputs mode selection (Link/X-over), Mini-USB type “B” port (service data)
Limiter Dual active, RMS/Peak, Thermal
Crossover Frequency LF-HF 90 - 120 Hz
LF X-over out slope 24 dB/Octave
Mechanics
Housing Multiplex plywood - Polyurea painting
Handles 1x left side, 1x right side
Feet 4x Dual Position Reversable Feet (flying/stacking mode)
Fittings M20 screw for pole mount on top side, integrated hardware with fast lock mechanics
