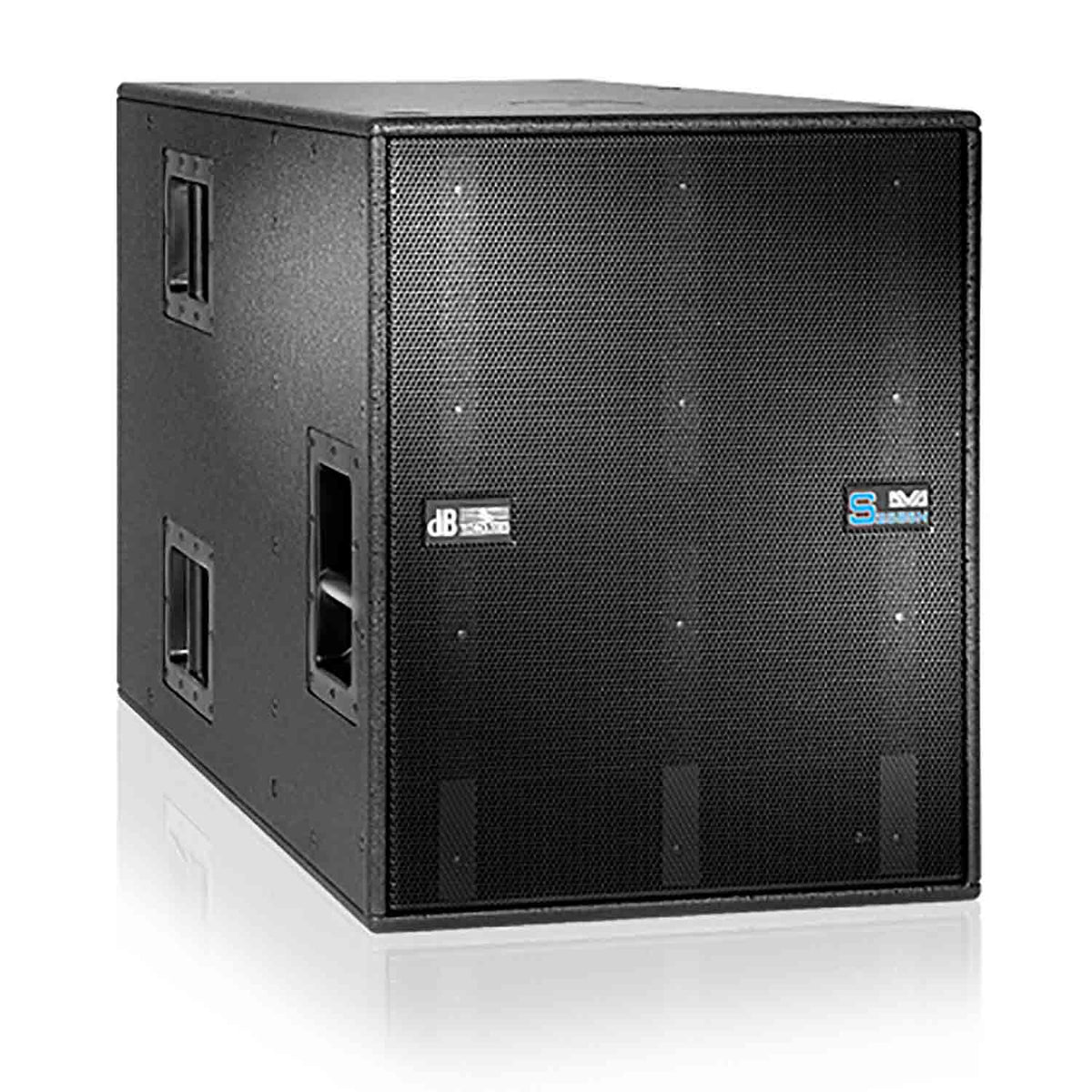

dB Technologies DVA S2585 N, 2500W Powered Subwoofer - 18 Inch
dB Technologies DVA S2585 N, 2500W Powered Subwoofer - 18 Inch
Model / SKU: H-DBTE-DVAS2585N
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The dB Technologies DVA S2585N is a compact subsystem featuring a cardioid layout designed for utmost directivity. The system consists of two separate chambers, one loaded with a forward facing 18“ woofer and another with a rearward facing 15" woofer.
Product Specification:
Speaker: TypeActive Cardiod-Subwoofer
Frequency Response [+/- 3dB]: 35 - 120 Hz
Max SPL: 140 dB
Directivity: Cardiod
LF: 18+15 "
Voice Coil LF: 4 "
Amp Class: Class D
Power Supply: 2.5 kW SMPS
LF Amp: 2500 W RMS
Cooling: Convection
Controller: DSP 56 bit
AD/DA Converter: 24bit/ 96 kHz
System Presets: X-Over,Delay
Phase: 0, 180 °
Limiter: RMS, Peak, Thermal
Delay Option: 0-4.5 ms internal
Crossover Frequency LF-MF: 75-120Hz | steps of 5Hz
LF-Xover out slope: 24 dB/Octave
Housing: Multiplex plywood
Housing Design: Rectangular
Handles: 3x Per Side
Accessory: Dolly, Dust Cover, Rain Cover
Pole Mount: M20
Rigging Points: Integrated for SRK10 fly kit
2xPick Points on top to fix
DRK10/20 rigging frames
