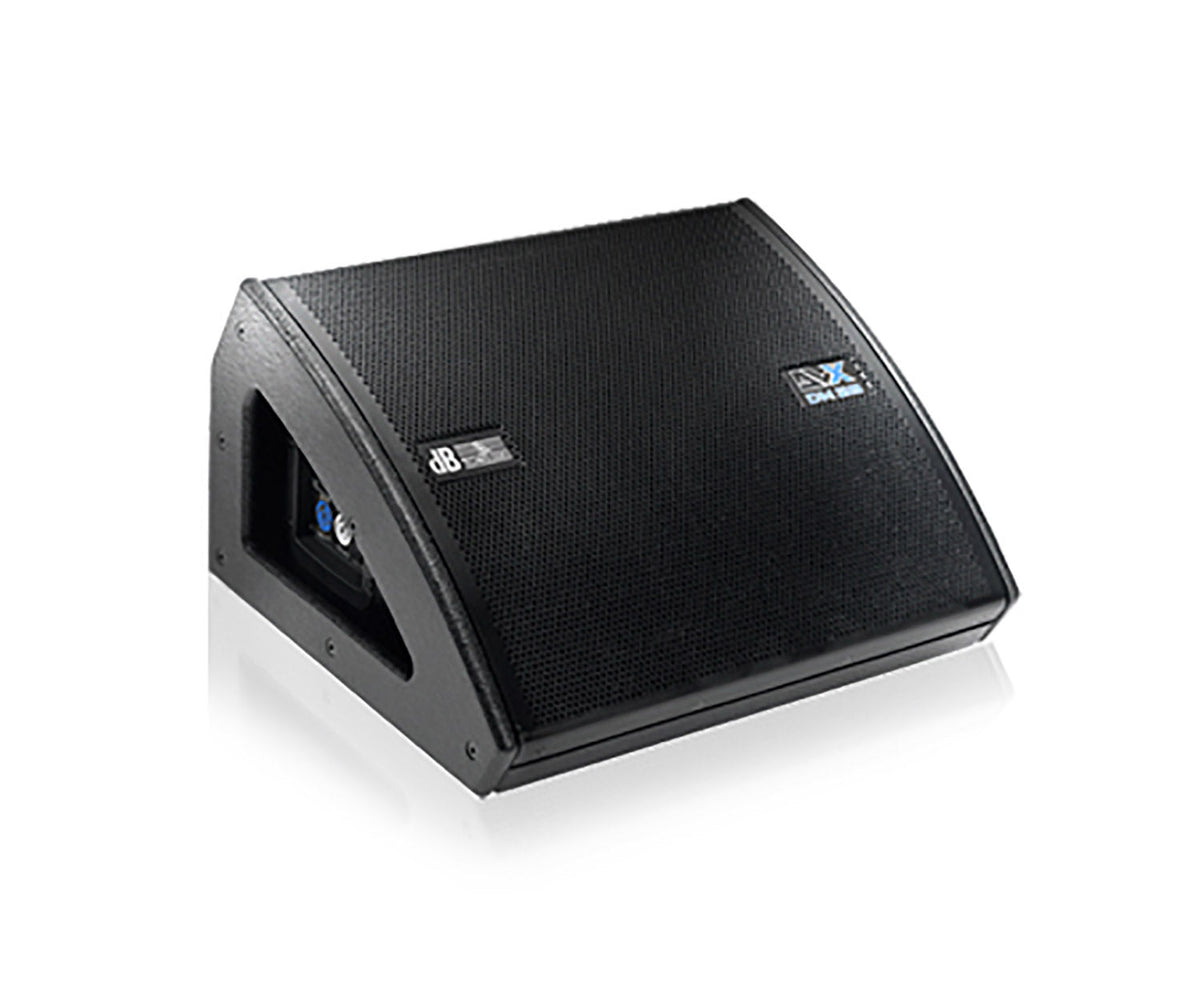

dB Technologies DVX DM 28, 2 x 8" 2-Way Active Floor Monitor - 750W
dB Technologies DVX DM 28, 2 x 8" 2-Way Active Floor Monitor - 750W
Model / SKU: H-DBTE-DVXDM28
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The dB Technologies DVX DM28 excels at rendering speech and vocals. Users’ search for natural response, dynamic balance, and high SPL in a compact, inconspicuous package ends with this stage monitor. The ultra low-profile enclosure sports two 8“ neodymium woofers with large 2.5“ voice coils that go about their business of rendering signals with impressive precision.
Product Specification:
Technical Data
Speaker Type2-Way Active Stage Monitor
Acoustical data
Frequency Response [-10dB] 60 - 20.000 Hz
Frequency Response [+/- 3dB] 70 - 19.000 Hz
Max SPL 130 dB
HF 1 "
Type HF Neodymium Compression Driver
Voice Coil HF Titanium 1.75 "
Directivity 90x60/40 °
Horn Aysmmterical
LF 2x8 "
Type LF Neodymium
Voice Coil LF 2.5 "
Amplifier
Amp Technology Digipro
Amp Class Class D
Power RMS 750 W
Peak Power 1500 W
Cooling Convection
Processor
Controller DSP 24 Bit/48 kHz
System Presets Flat, Monitor
Limiter RMS, Peak. Thermal, Multiband
Crossover Frequency MF-HF 1600 Hz
Slope MF-HF 24 dB/Octave
Mechanics
Housing Multiplex plywood
Housing Design Low Profile Multifunctional
Angles Up 30, 60 °
