dB Technologies DVX DM15, 15" 2-Way Active Floor Monitor - 750W
dB Technologies DVX DM15, 15" 2-Way Active Floor Monitor - 750W
Model / SKU: H-DBTE-DVXDM15
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.

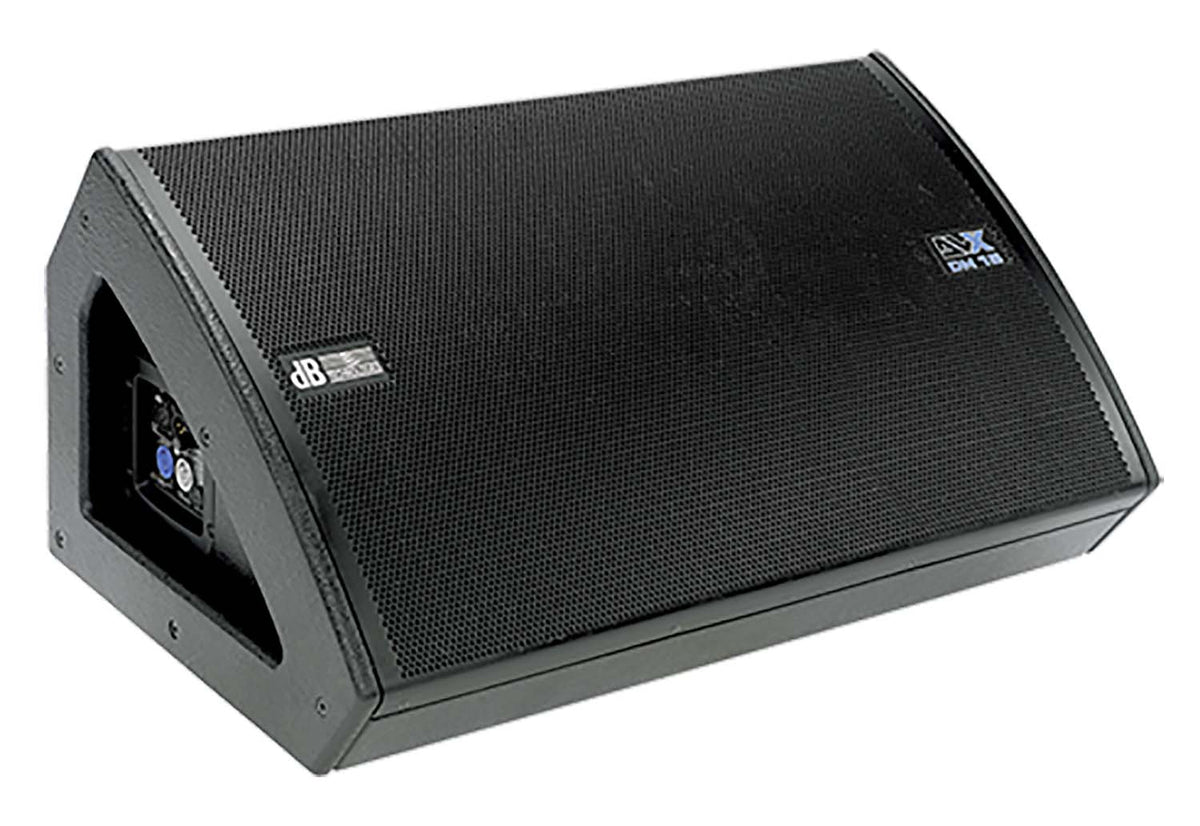

The dB Technologies DVX DM15 is a low-profile stage monitor. Unobtrusive yet very muscular, it is designed for sound reinforcement applications that require powerful low-end performance without added subwoofers. It sports a high-performance 15“ neodymium woofer and a 1.4“ neodymium compression driver, coupled to an aluminum“ CD horn.
Product Specification:
Technical Data
Speaker Type2-Way Active Stage Monitor
Acoustical data
Frequency Response [-10dB] 50 - 20.000 Hz
Frequency Response [+/- 3dB] 59 - 19.000 Hz
Max SPL 132 dB
HF 1.4 "
Type HF Neodymium Compression Driver
Voice Coil HF Titanium 2.5 "
Directivity 60x40 °
Horn CD Horn Aluminium
Rotatable Horn YES
LF 15 "
Type LF Neodymium
Voice Coil LF 3.5 "
Amplifier
Amp Technology Digipro
Amp Class Class D
Power RMS 750 W
Peak Power 1500 W
Cooling Convection
Processor
Controller DSP 24 Bit/48 kHz
System Presets Flat, Monitor
Limiter RMS, Peak. Thermal, Multiband
Crossover Frequency MF-HF 1320 Hz
Slope MF-HF 24 dB/Octave
Mechanics
Housing Multiplex plywood
Housing Design Low Profile Multifunctional
Angles Up 35, 55 °
Rigging Points 6x M8
