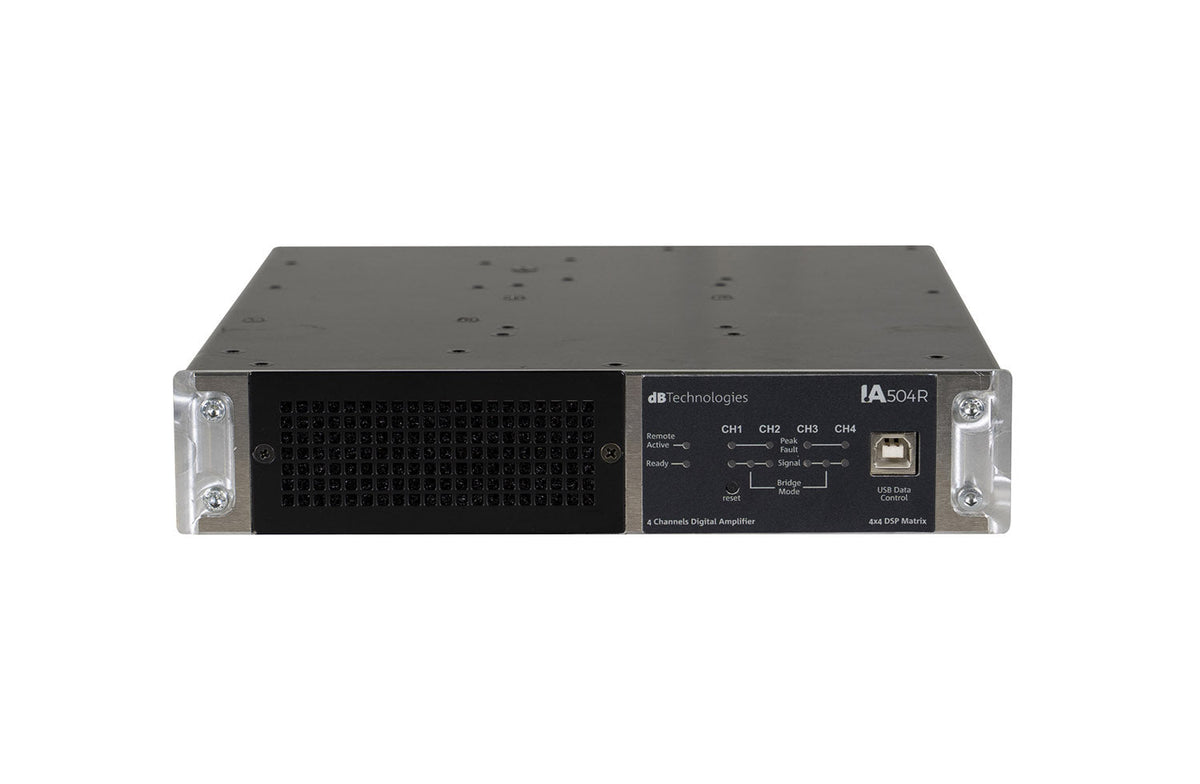

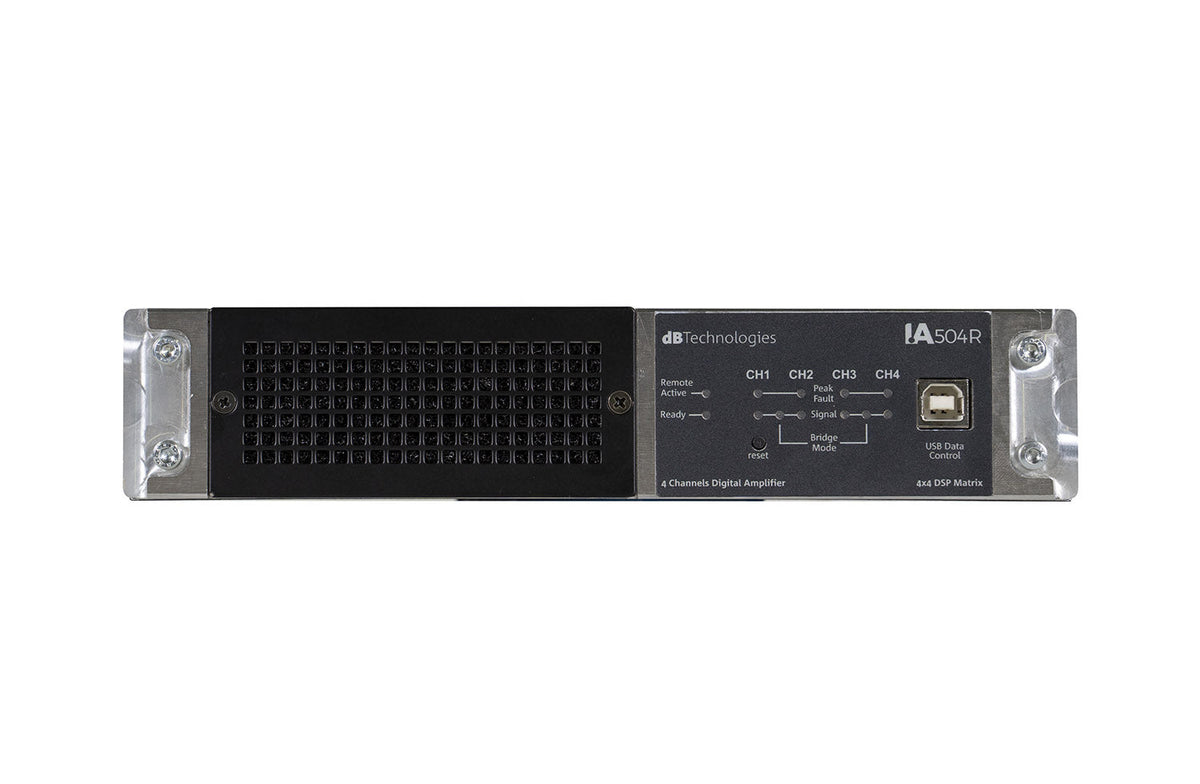

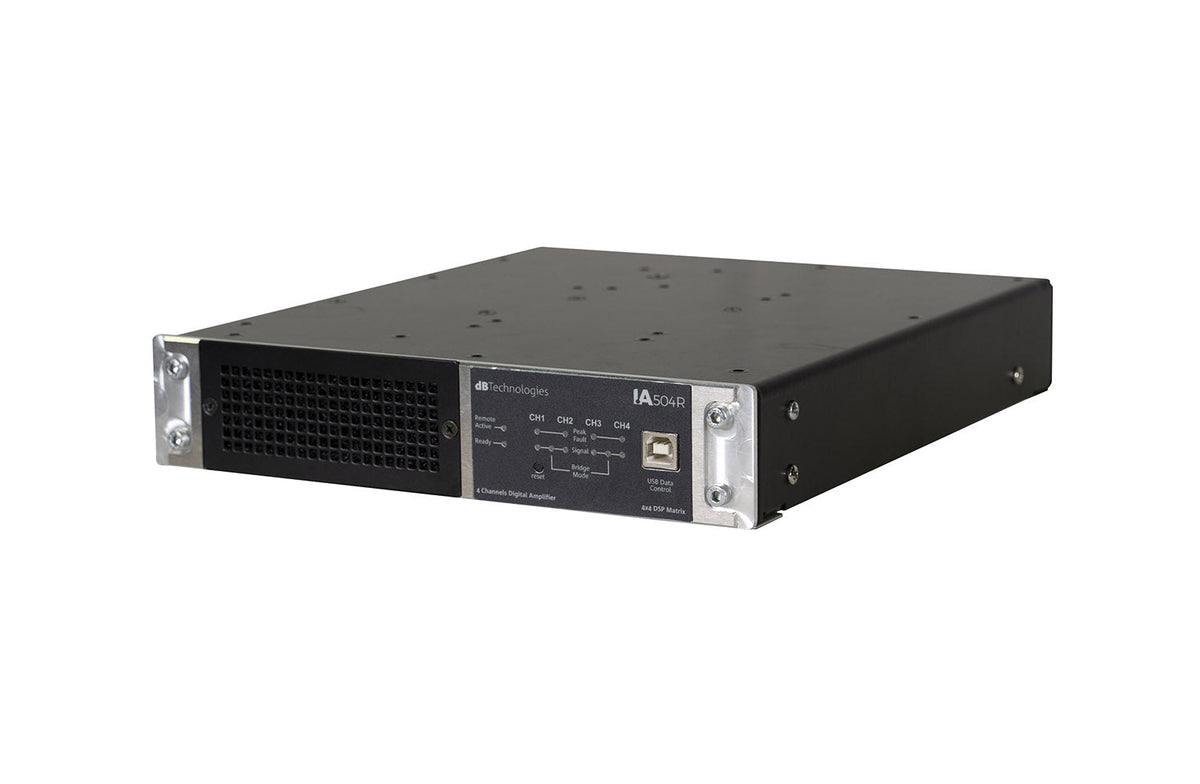

dB Technologies IA504R Class D Half-Rack Amplifier

The dB Technologies IA504 is a half rack sized class-D power amplifier that can work both for constant voltage systems (70 or 100 Volts) as well as professional audio applications with 4 time 125 W 4 ohms, fit for stereo or bridge configuration. Two versions are available: both are equipped with onboard DSP, full range PSU with Power factor correction and a GPIO interface, but they differ on the networking side. In facts, IA504R version comes with RDNet ports, and IA504D with Dante ports, able to embed remote control and digital audio-in.

Product Specification:

Technical Data

Type CLASS D Half-rack Amplifier

Acoustical data

Single channel mode 4 Ohm / 8 Ohm / 16 Ohm (no 70V / 100V)

Bridged mode 8 Ohm / 16 Ohm

Preset Flat, dBTechnologies speaker, User preset

Input Impedance 20 kOhm balanced

Frequency Response 20 - 20.000 Hz

Amplifier

Total rated power 280 W RMS @ 230Vac / 250 W RMS @ 120Vac

Single channel driven 4 Ohm: 425W Peak / 280W RMS

8 Ohm: 245W Peak / 245W RMS

16 Ohm: 135W Peak / 135W RMS

8 Ohm (Bridge): 619W Peak / 280W RMS

70V: 250W RMS

100V: 240W RMS

All channels driven4 Ohm: 225W Peak / 70w RMS

8 Ohm: 180W Peak /70 W RMS

16 Ohm: 125W Peak / 70W RMS

8 Ohm (Bridge): 440W Peak / 140W RMS

70V: 140W RMS

100V: 140W RMS

Mains connections IEC 10A connector

PFC Yes

Nominal Voltage115Vac - 240Vac @50/60Hz

Operating Voltage90Vac - 264Vac @50/60Hz

Processor

AD 24 Bit @48kHz

DA 24 Bit @48kHz

Limiters Compressor on processing channels

Peak limiter on output channel (also used in dBTechnologies preset)

Input

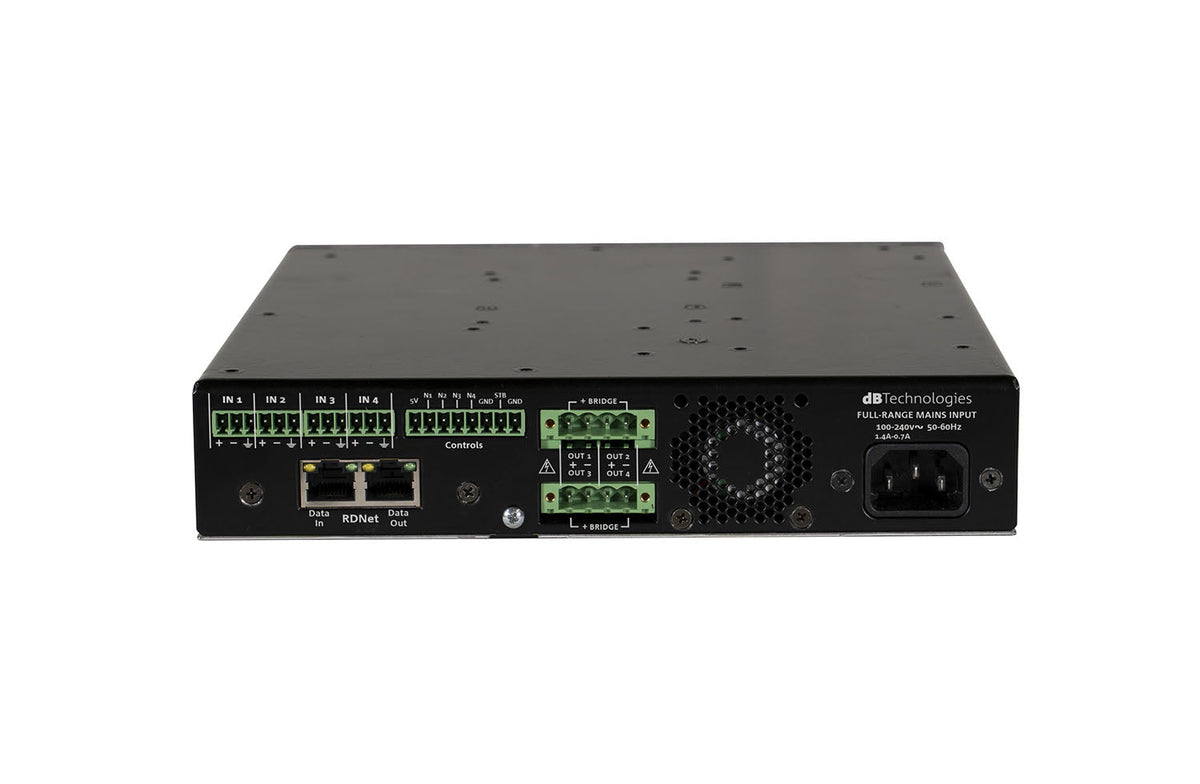

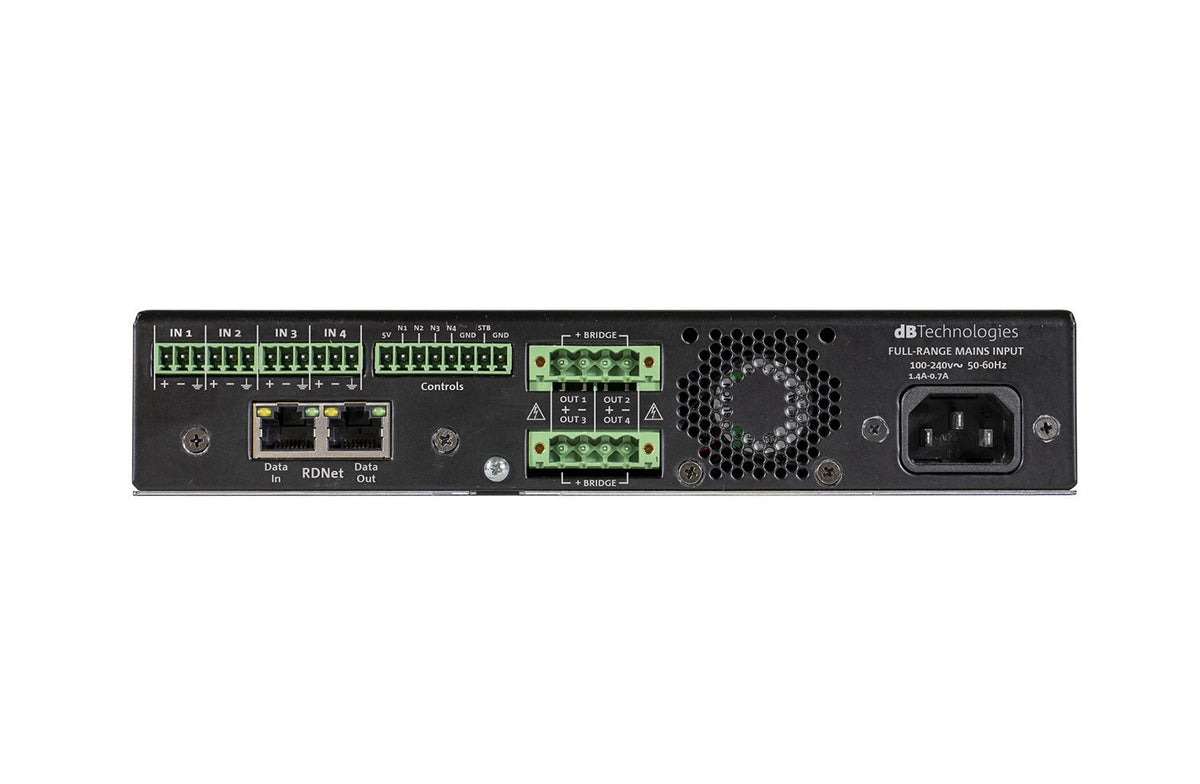

Input Channel 4 Analog Balanced (EuroBlock 3.81mm)

Output Channel 4 (EuroBlock 5.08mm)

Service Data Frontal USB

(AuroraNet setup & control)

Networking 2 x RJ45 RDNet

(AuroraNet setup & control)
