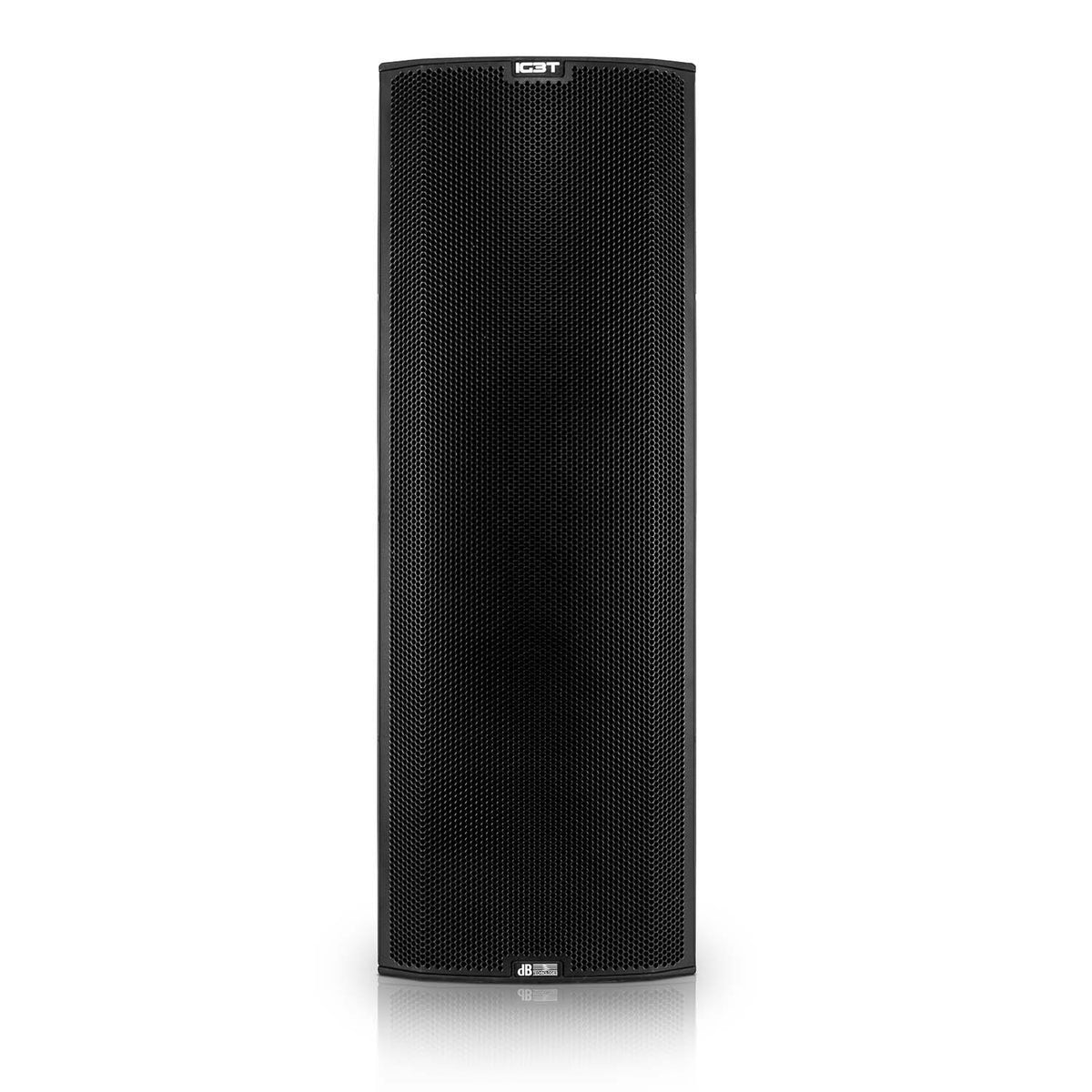

dB Technologies IG3T, 2x10" 2-Way Active Column Array Speaker - 900W

The dB Technologies IG3 T is equipped with 2 premium 10" low frequency transducers and 1 1.4"compression driver. All models of the series are designed to work individually, but they can also be coupled by simply turning one speaker upside down and placing it upon the other one. Thanks to infrared technology, INGENIA detects the presence of a second speaker, and an onboard-configuration wizard automatically sets up the system in order to ensure the best coverage and acoustic coherence. INGENIA’s horn design is horizontally symmetric and vertically asymmetric: this way, horizontal dispersion is wide and constant while vertical dispersion is narrow in the upper part and wider in the lower part. Thanks to such feature, when 2 Ingenias are coupled high frequencies add up avoiding any interferences. In addition to that, a sophisticated digital steering function process each way of the speaker in order to adjust the dispersion without moving the box. As a result, the whole audience enjoys a perfect intelligibility. Users can easily control the system through an intuitive OLED display. In fact, behind the simple interface runs a cutting-edge processing which manages mix, coverage steering, EQs levels and input devices.INGENIA can be easily and safely coupled through a LP-IG accessory which fits all the 4 INGENIA models. Moreover, feet and recessions on the top and the bottom of the enclosure ensure the speakers to be perfectly aligned, avoiding any incorrect setup operation. Ingenia DRK-IG flybar adapts to all the speakers of the series allowing to fly coupled speakers in a vertical array.

Product Specification:

Technical Data

Speaker Type2-Way Active Speaker

Acoustical data

Frequency Response [-10dB] 53 - 20.000 Hz

Frequency Response [-6dB] 57- 19.200 Hz

Max SPL 132 dB

HF 1.4"

HF Voice Coil 3''

Directivity (HxV) 110 x 90° (+20°/- 70°)

HF Type Neodymium compression driver

Horn Vertical asymmetric

Crossover Frequency 1100 Hz

LF 2x10”

LF Voice Coil 2.5"

LF Type Neodymium

Amplifier

Amp Technology Digipro G3

Amp Class Class-D

Peak Power 1800 W

RMS Power 900 W

User Interface OLED display + rotative knob w/switch

Self-rotating display Yes

Positioning EPD (Element Position Detection)

Display Mirroring Yes

Processor

Controller DSP 56 bit

AD/DA Converter 24bit/48kHz

System Presets Factory presets + User defined

Limiter Dual Active Peak, RMS, Thermal

DSP Processing FIR Linear Phase

Input

Signal Input 1 x Combo IN (XLR + Jack 6.3mm)

Signal Out 1 x XLR link OUT

USB connector Yes - mini USB

Mechanics

Housing Polypropylene PP reinforced

Grille FULL /Invisible screws

Flyable Yes

Handles 1x on top / 1x on bottom

Pole Mount Yes
