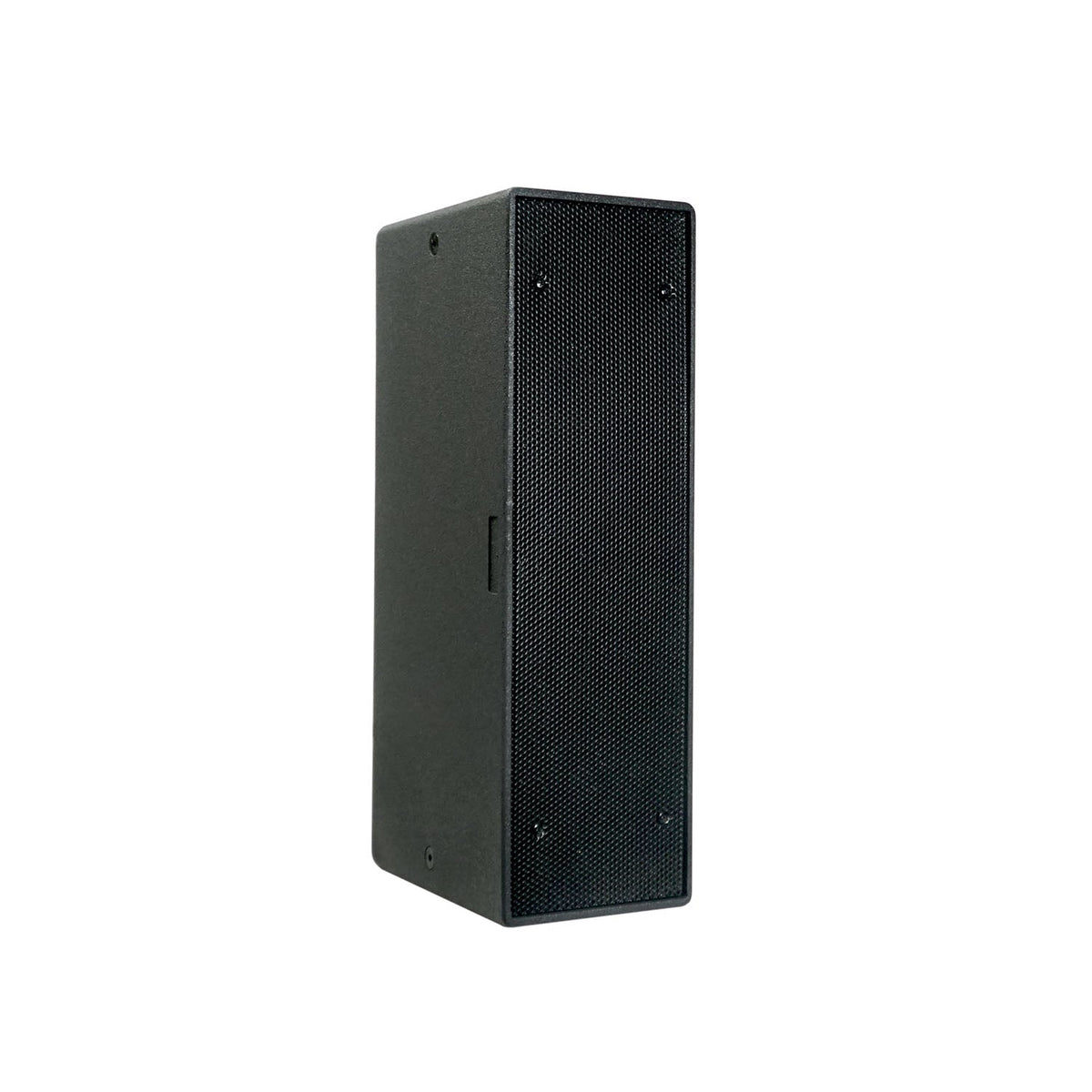

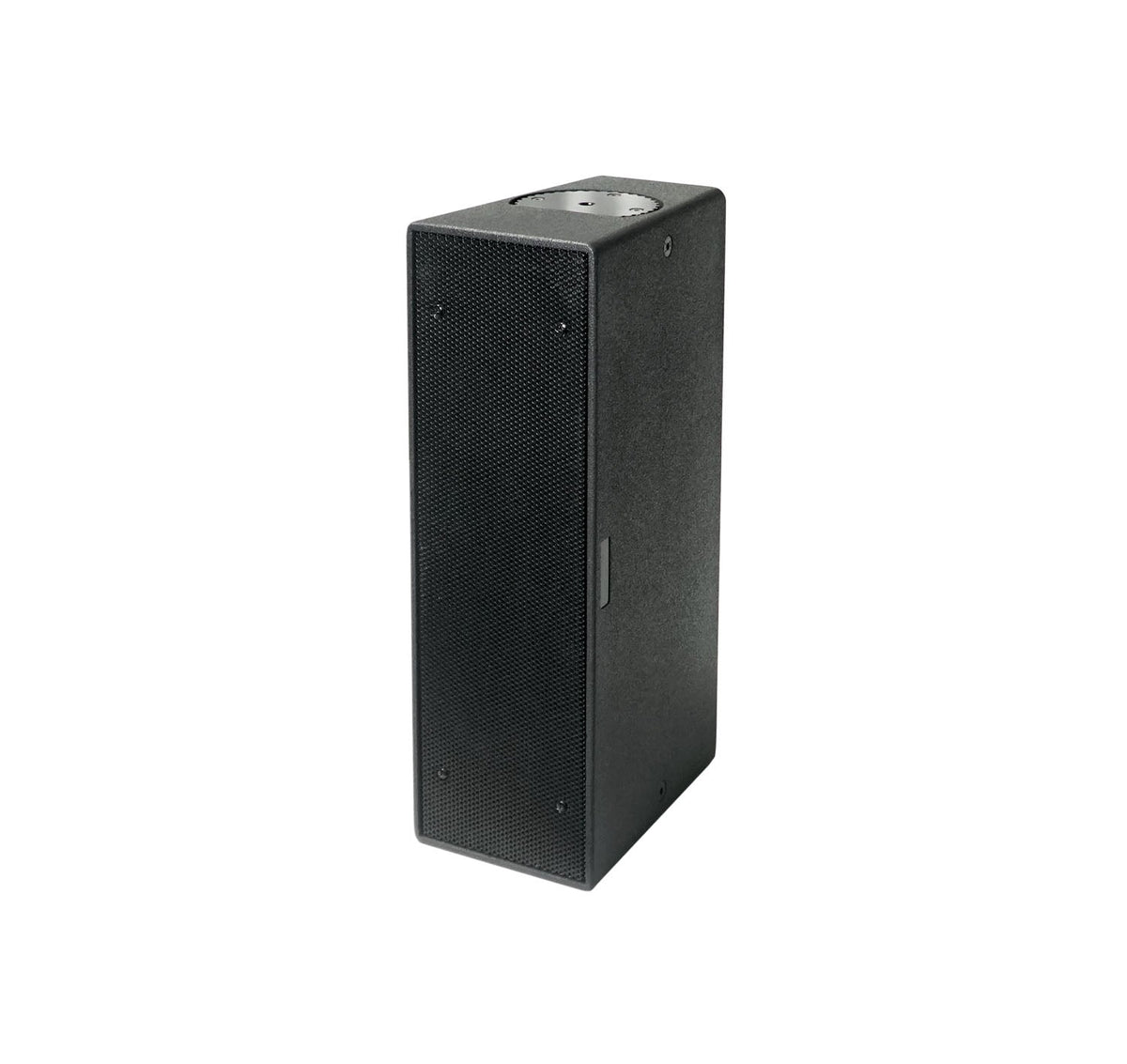

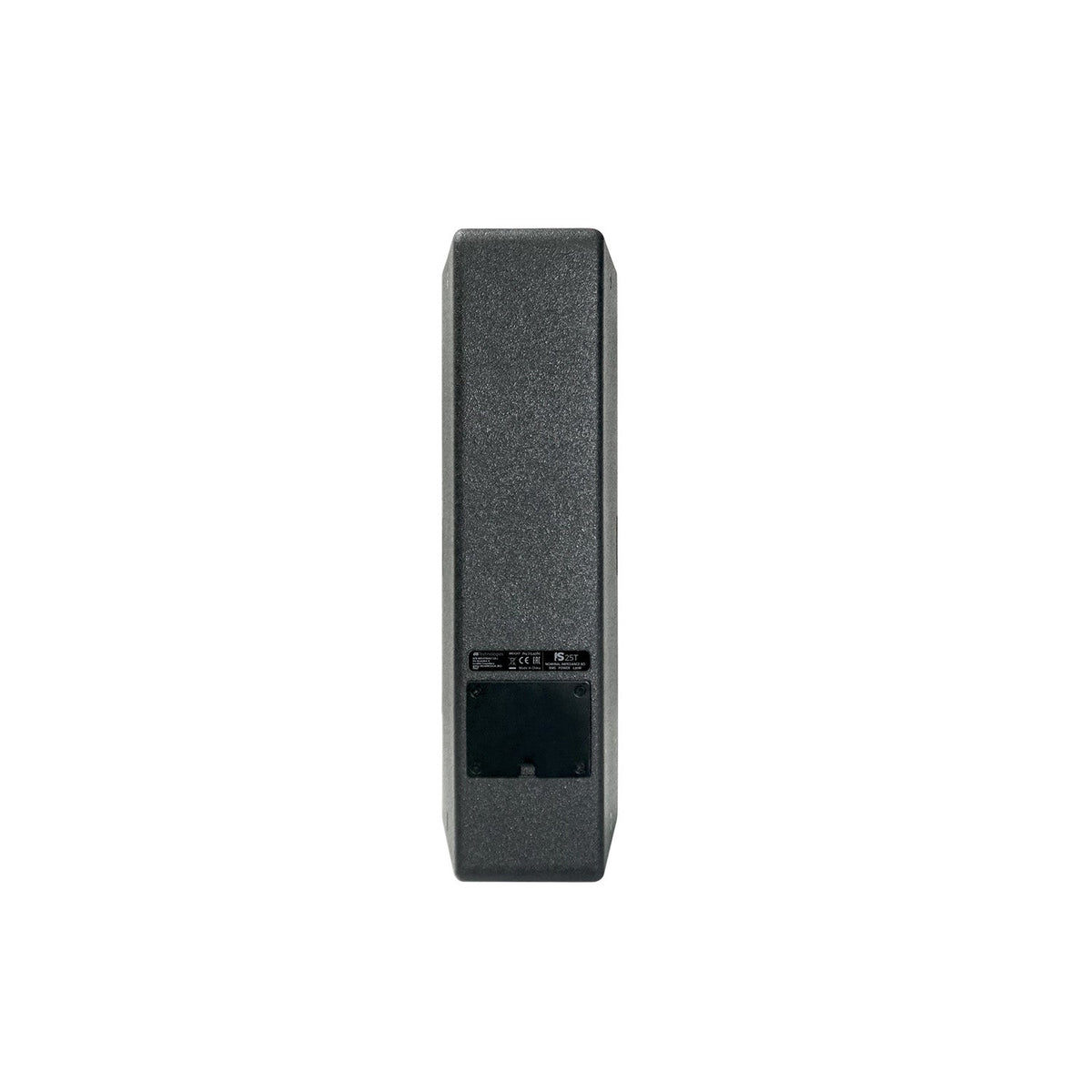

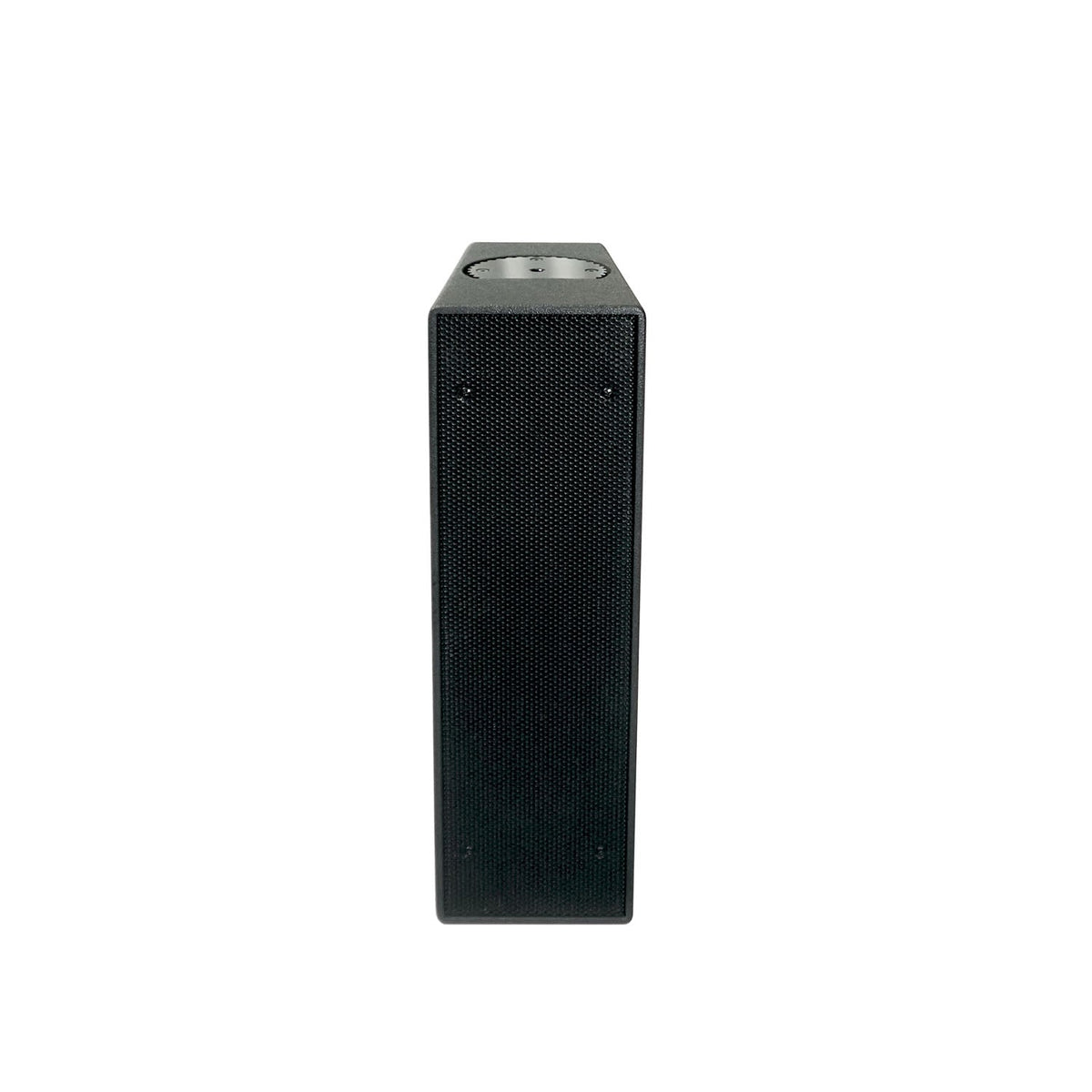

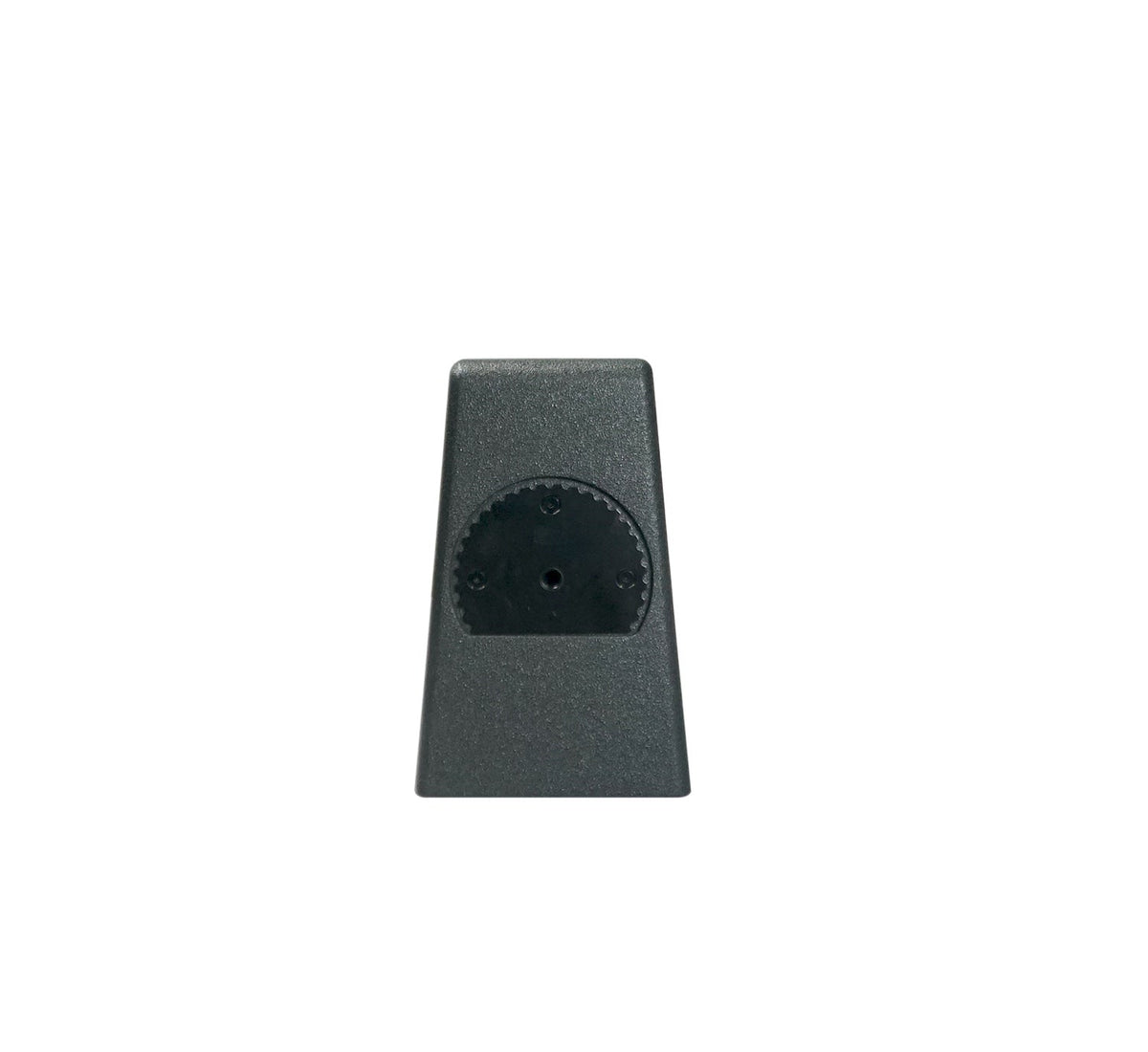

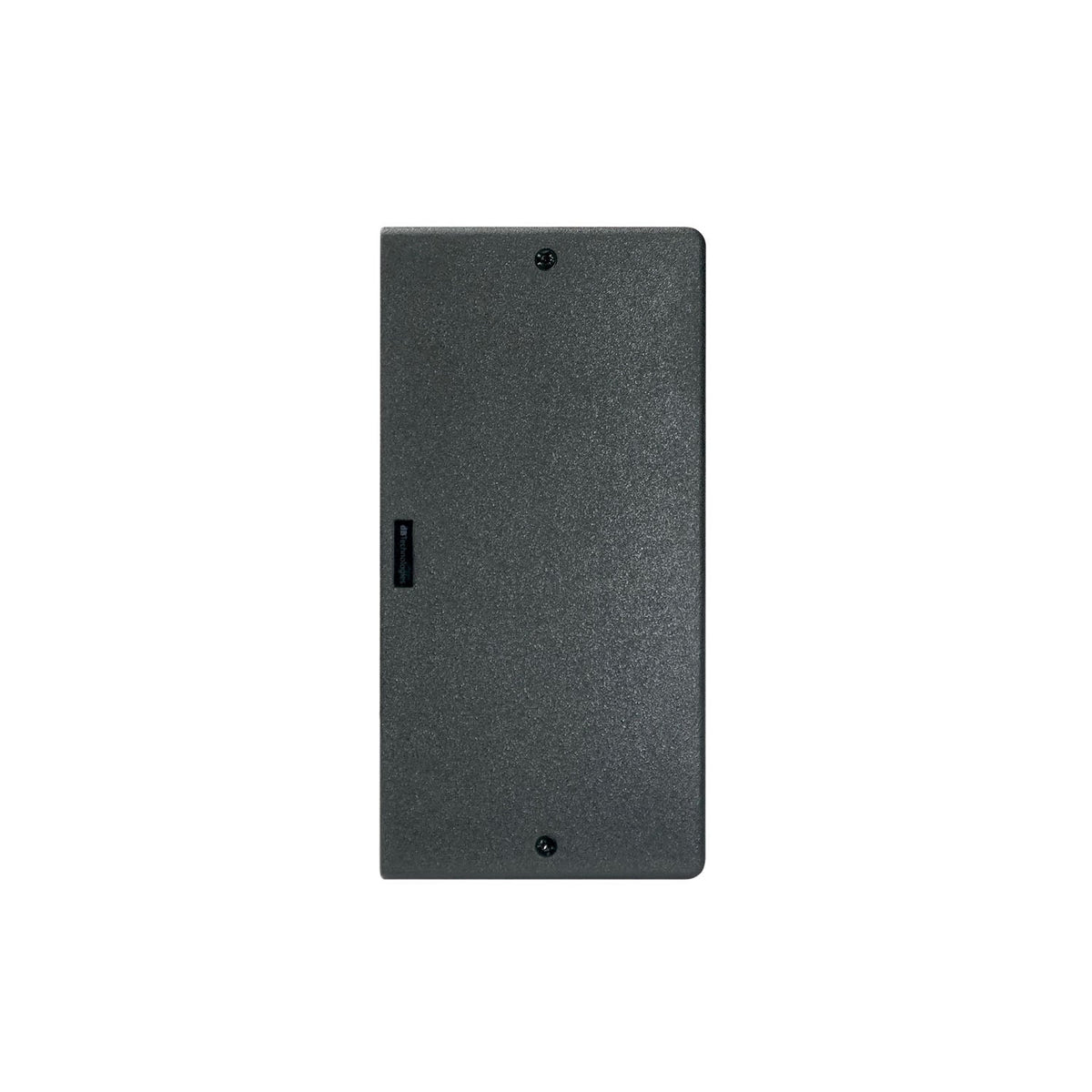

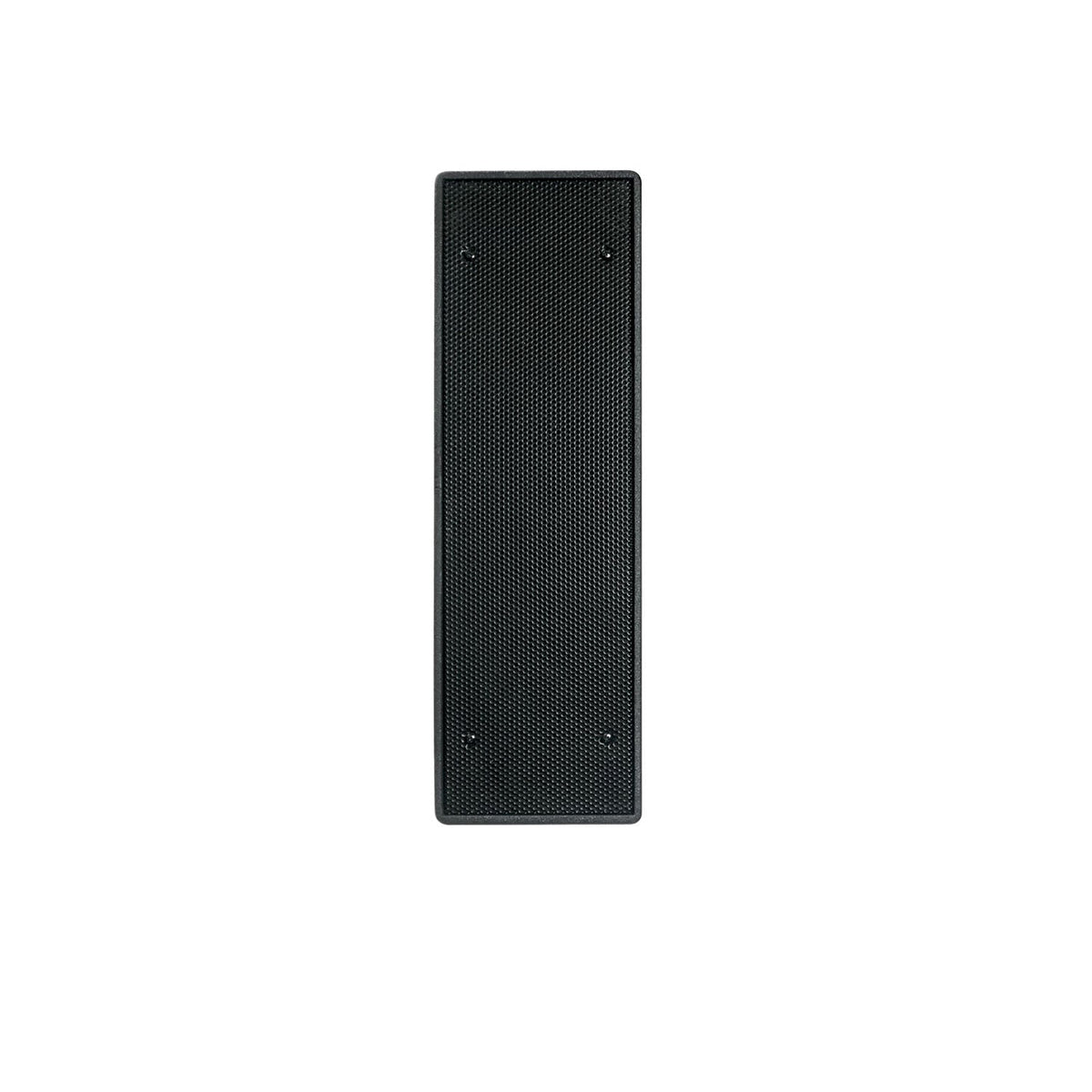

dB Technologies IS 25TB, 2x5" Passive 2-Way Speaker 120W - Black
dB Technologies IS 25TB, 2x5" Passive 2-Way Speaker 120W - Black
Model / SKU: H-DBTE-IS25TB
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The dB Technologies IS25T is equipped with two times 5" woofers plus a 1" compression driver for the higher end. This box provides a 60 x100° constant dispersion, and you can easily install it either vertically or horizontally using the same accessories of VIO X205. Needless to say the keyword here is: ease of installation and unobtrusiveness. That's why each single system in IS series comes with a smooth design with few invisible pin points, Phoenix or Speakon connectors, black or white version.
Product Specification
| Technical Data | Specification |
|---|---|
| Speaker Type | Passive 2-way Speaker |
| Acoustical data | Specification |
|---|---|
| RMS Power | 120 W |
| Peak Power | 480 W |
| Frequency Response [-6 dB] | 85 Hz - 20,000 Hz |
| Impedance | 8 Ohm |
| Sensitivity 1Wm | 94.5 dB |
| Max SPL | 121.5 dB |
| HF | 1x 1", 1.4" v.c. |
| LF | 2x 5", 1" v.c. |
| Dispersion | 100x60° [Rotatable Horn] |
| X-Over Frequency | 1500 Hz (internal X-Over) |
| Input | Specification |
|---|---|
| Connections | Phoenix |
| Mechanics | Specification |
|---|---|
| Housing | Plywood, water-painted coating |
| Rigging points | 2x M10 threaded nut (top and bottom) |
