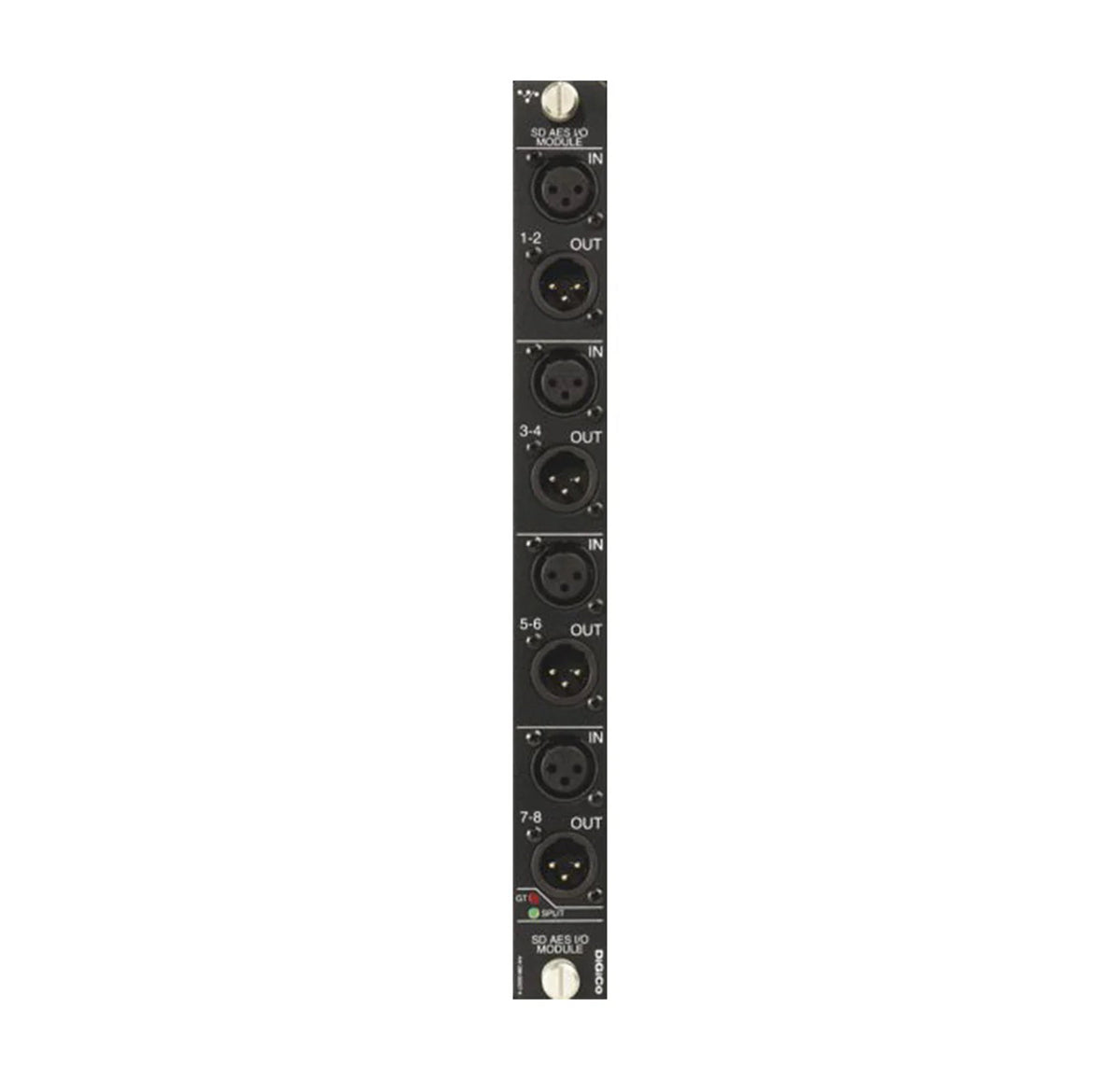

DiGiCo AES3/EBU 4 Stereo Input / 4 Stereo Output Card Bi-Directional
DiGiCo AES3/EBU 4 Stereo Input / 4 Stereo Output Card Bi-Directional
Model / SKU: H-DIGI-MODSDRAESIO
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
This card offers users 4 stereo AES input channels and 4 stereo AES output channels for the DiGiCo SD-Rack, Sd-MiNi Rack, SD-Nano Rack and 4REA4. Features: 4 (stereo) AES input channels and 4 (stereo) AES output channels Sample rate conversion on inputs and outputs Compatible with SD-Range.
Product Specifications:
Standards: Complies with Or Exceeds AES3 (Or IEC-60958 Type I) 2003.
Input Impedance: 110 Ohm Transformer Balanced +/- 5%. Optional: 75 Ohm Unbalanced +/- 5%
Sample Rate, Input Range: 32 Khz to 99 Khz (Sample Rate Conversion On). Sample Rate
Conversion Switchable Per AES Input
Sample Rate, Operating Rate: 44.1 Khz, 48 Khz, 96 Khz +/- 2Hz @ 48 Khz
Frequency Response: 20 Hz to 20 Khz (0dbfs)
Resolution: 24db (Sample Rate Conversion Off)
Standards: Complies with Or Exceeds AES3 (Or IEC-60958 Type I) 2003.
Output Impedance: 110 Ohm Transformer Balanced +/- 5%. Optional: 75 Ohm Unbalanced +/- 5%
Sample Rate, Operating Rate: 44.1 Khz, 48 Khz, 96 Khz +/- 2Hz @ 48 Khz
Output Jitter: 120-100K Peak 3ns Average 800ns. 50-100K Peak 5ns Average 2.2ns
Frequency Response: 20 Hz to 20 Khz (0dbfs)
Resolution: 24db (Sample Rate Conversion Off). Sample Rate Conversion Switchable Per AES Output On Appropriately Specified Output Modules Only
