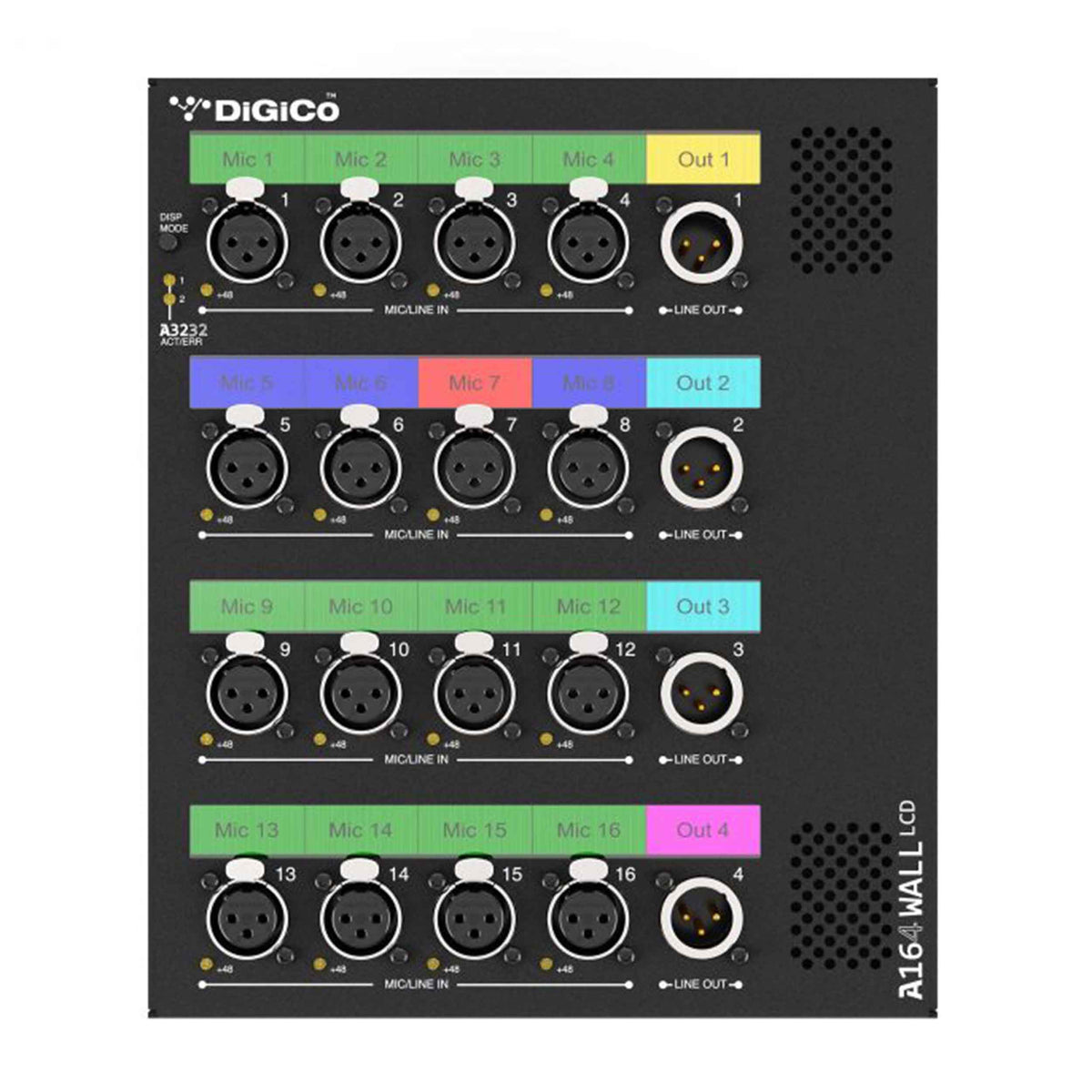

DiGiCo X-A-164-W-L, 16 Input/4 Output Wall-Mounted I/O Expander
DiGiCo X-A-164-W-L, 16 Input/4 Output Wall-Mounted I/O Expander
Model / SKU: H-DIGI-XA164WL
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The DiGiCo X-A-164-W-L is a wall-mounted 16-input/4-output I/O expander designed to provide fixed additional I/O anywhere on a compatible DiGiCo A3232 network. It features 16 mic/line inputs with phantom power status LEDs and 4 XLR line outputs. Two A3232 ports support daisy-chaining or redundant network configurations, while customizable and dimmable LCD labels provide clear channel identification through 4REA4 software.
16-Channel Input Section
The X-A-164-W-L provides 16 mic/line inputs with professional preamps and phantom power status indication. The inputs provide flexible connectivity for microphones and line-level sources in installed audio systems.
4-Channel Output Section
Four XLR line outputs provide balanced analogue signal distribution for loudspeakers, amplifiers, monitors, and other connected equipment.
A3232 Network Connectivity
Two proprietary A3232 ports provide CAT5e/etherCON RJ45 connectivity for integration with compatible DiGiCo systems. The second port can be used to daisy-chain another unit or create a redundant network connection.
Customizable LCD Labelling
Integrated S-LCD displays provide intelligent channel labelling and system interrogation. Labels can be customized and dimmed using DiGiCo 4REA4 software, making the unit suitable for fixed installations where clear identification is important.
Flexible Installation
The X-A-164-W-L can be installed on a wall or floor, providing convenient fixed I/O expansion for commercial audio, conference rooms, educational facilities, theatres, and other permanent installations.
Product Specifications:
Product Type: Wall-Mounted 16 Input / 4 Output I/O Expander
Input Channels: 16 x Mic/Line
Mic/Line Inputs: 16 x XLR with Phantom Power Status LEDs
Output Channels: 4 x Line Outputs
Analogue Outputs: 4 x XLR
Network Connectivity: 2 x A3232 Ports
Network Connection: CAT5e / etherCON RJ45
Network Protocol: DiGiCo A3232
LCD Displays: Customizable and Dimmable S-LCD Labels
LCD Control: 4REA4 Software
Networking: Daisy-Chain or Redundant Configuration
Mounting: Wall or Floor Mountable
Compatible System: DiGiCo 4REA4 / A3232 Network
Product Weight: 7.7 lbs
Product Dimensions (L x W x H): 11.8" x 8.7" x 3.5"
