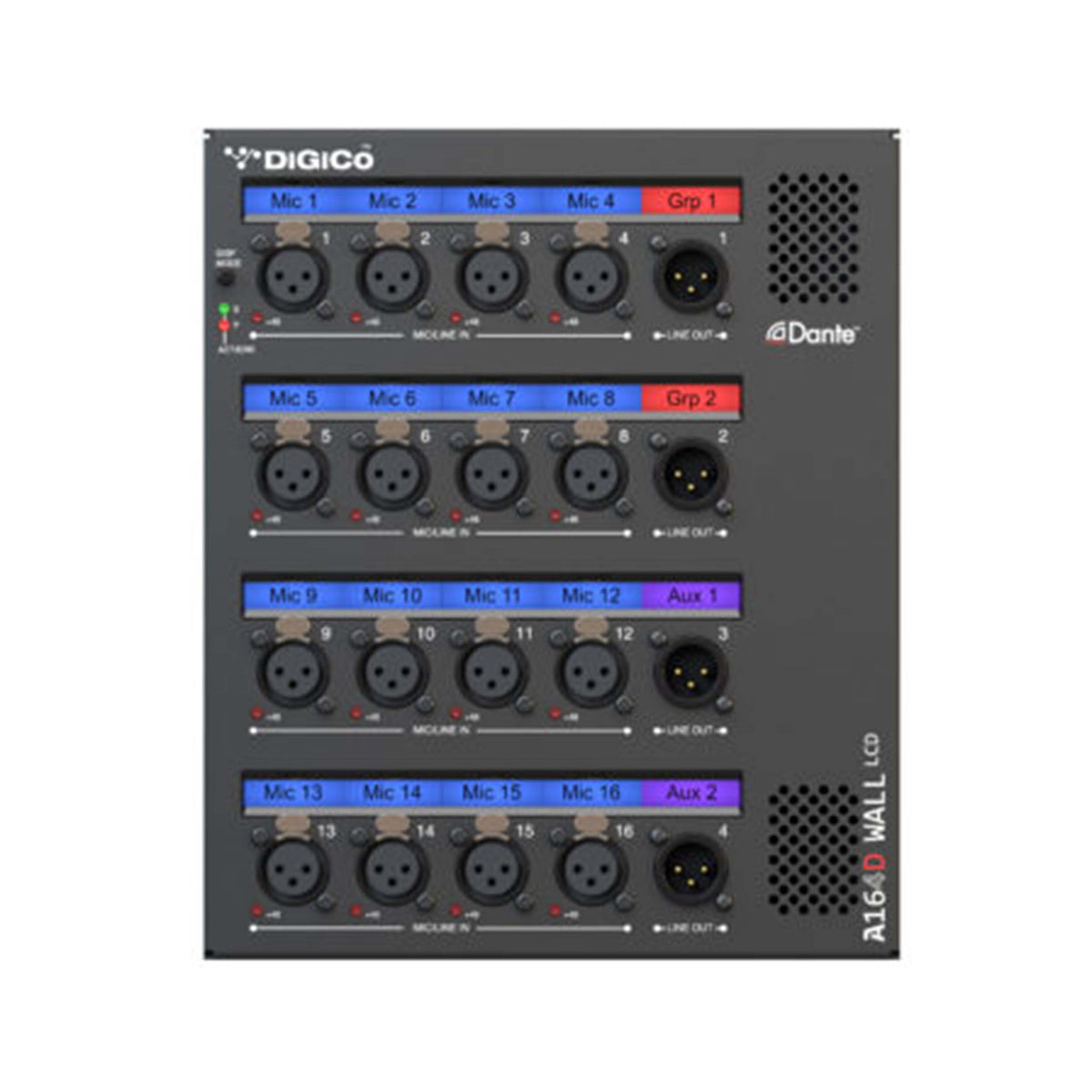

DiGiCo X-A-164D-W-L, A164D WALL LCD 16 Input 4 Output Dante I/O Expander
DiGiCo X-A-164D-W-L, A164D WALL LCD 16 Input 4 Output Dante I/O Expander
Model / SKU: H-DIGI-XA164DWL
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The DiGiCo X-A-164D-W-L is a 16 input and 4 output I/O expander designed to provide fixed local connectivity for remote performance and installation areas. It combines 16 mic/line inputs and 4-line outputs with Dante networking for flexible digital audio distribution. Integrated S-LCD displays provide intelligent labeling and visual feedback, while customizable and dimmable LCD labels can be configured using 4REA4 software.
Flexible Remote I/O
The X-A-164D-W-L provides 16 microphone-line inputs and 4-line outputs for convenient local audio connectivity. It is designed for remote performance areas where accessible fixed I/O is required.
Dante Network Connectivity
Built-in Dante connectivity allows the unit to integrate with compatible Dante audio networks. AES67 compatibility further expands its suitability for professional networked audio installations.
Intelligent LCD Feedback
Integrated S-LCD displays provide clear channel labeling and visual feedback. Labels can be customized and dimmed through 4REA4 software, allowing the unit to be tailored to different installation requirements.
Professional Microphone Inputs
The 16 XLR microphone inputs provide integrated microphone preamps and phantom power. Individual phantom power status LEDs provide clear visual indication during operation.
Flexible Installation
The unit can be mounted on a wall or positioned for floor-mounted applications. Its fixed I/O design makes it suitable for performance spaces, conference environments, installed audio systems, and other professional applications.
Product Specifications:
Product Type: Wall Mounted I/O Expander
Input Channels: 16
Output Channels: 4
Input Type: Mic/Line
Microphone Inputs: 16x XLR
Line Outputs: 4x XLR
Microphone Preamps: 16
Phantom Power: Yes
Phantom Power Indicators: Status LEDs
Network Connectivity: Dante
Network Audio Compatibility: AES67
Display Type: S-LCD
LCD Labels: Customizable and Dimmable
LCD Configuration: 4REA4 Software
Mounting Options: Wall or Floor Mounting
Application: Remote Performance Areas and Fixed Local I/O
Audio Networking: Dante and AES67
Software Compatibility: DiGiCo 4REA4
Product Weight: 6.6 lbs.
Product Dimensions (L × W × H): 15.7" × 7.9" × 3.9"
Shipping Weight: 8 lbs.
Shipping Dimensions (L × W × H): 19" × 12" × 7"
