DiGiCo X-A-168D, 16x8 Dante I/O Expander with AES67 Support
DiGiCo X-A-168D, 16x8 Dante I/O Expander with AES67 Support
Model / SKU: H-DIGI-XA168D
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.

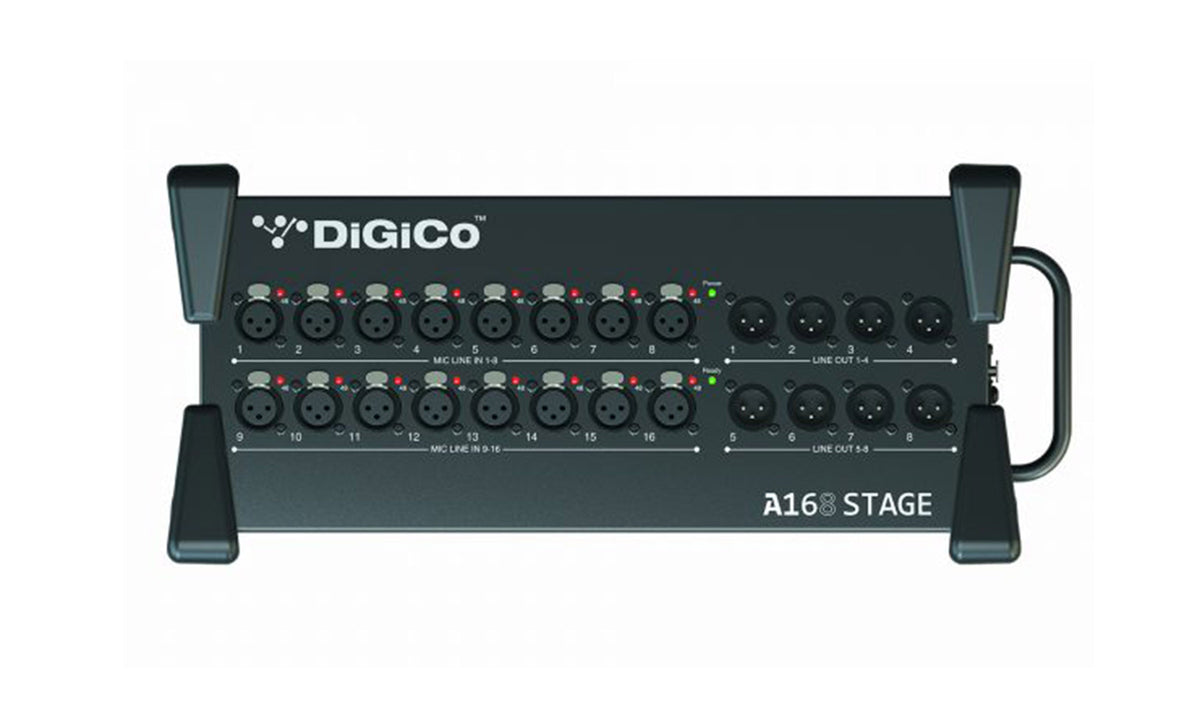

The DiGiCo X-A-168D is a portable 16-input/8-output I/O expander designed to provide additional analogue I/O anywhere on a compatible DiGiCo network. Using the A3232 network protocol over CAT5e cabling, the unit provides 16 microphone/line inputs and 8 line outputs. Up to two A168 STAGE units can be daisy-chained through A3232, while the second port can also be used to create a redundant network connection.
16-Channel Mic/Line Inputs
The X-A-168D features 16 microphone preamps on XLR connectors with phantom power status LEDs, providing clear visual indication during operation.
8-Channel Line Outputs
Eight XLR line outputs provide flexible signal distribution for monitors, amplifiers, processors, and other professional audio equipment.
A3232 Network Connectivity
Two A3232 ports provide flexible networking over CAT5e cabling. The ports support daisy-chaining of up to two A168 STAGE units or redundant network operation.
Product Specifications:
Product Type: 16-Input / 8-Output I/O Expander
Input Channels: 16 Mic/Line Inputs
Input Connectors: 16 x XLR
Phantom Power: +48V
Output Channels: 8 Line Outputs
Output Connectors: 8 x XLR
Network Protocol: DiGiCo A3232
Network Connections: 2 x A3232
Network Cable: CAT5e
Network Mode: Expansion / Redundancy
Product Weight: 7.7 lbs
Product Dimensions (L x W x H): 11.8" x 8.7" x 3.5"
