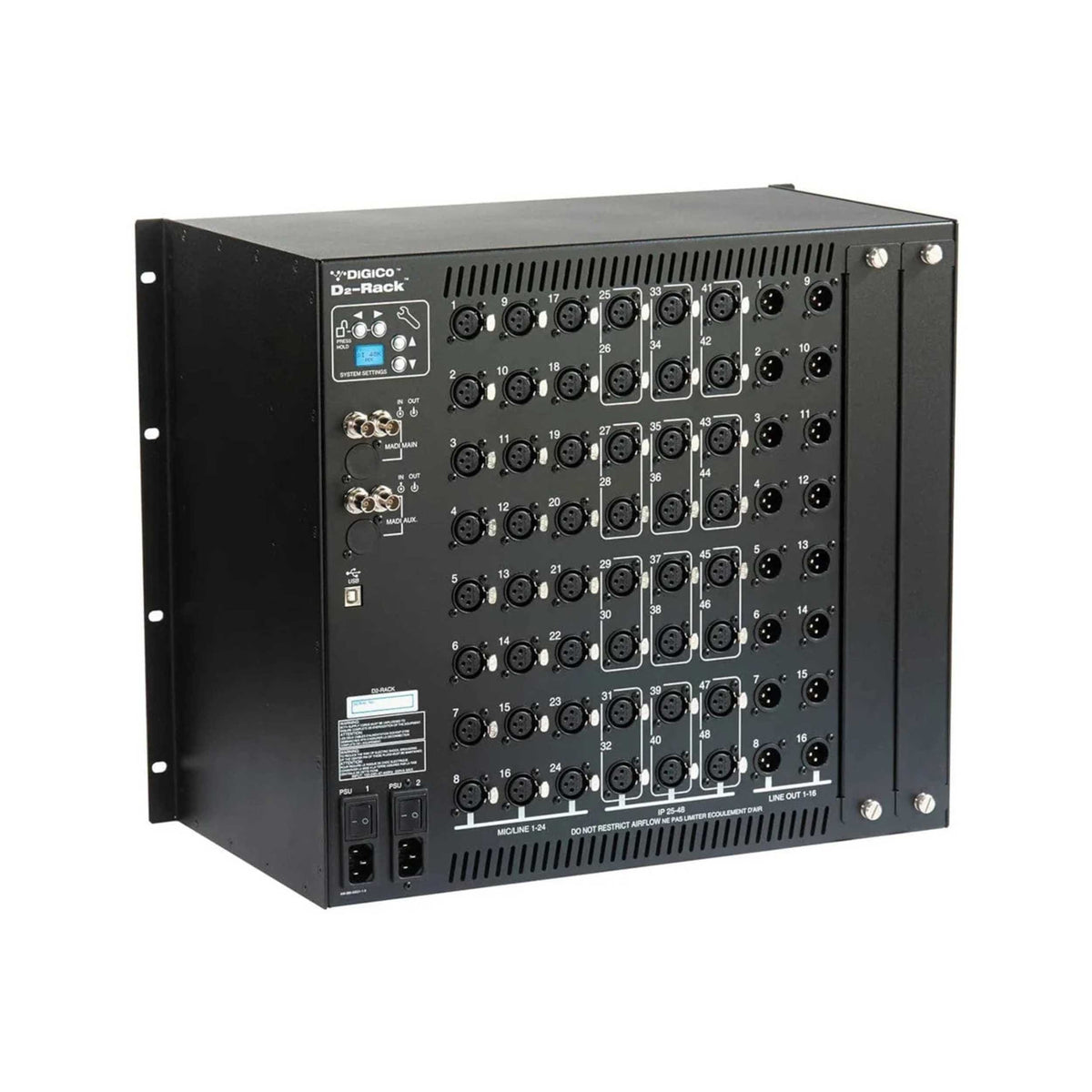

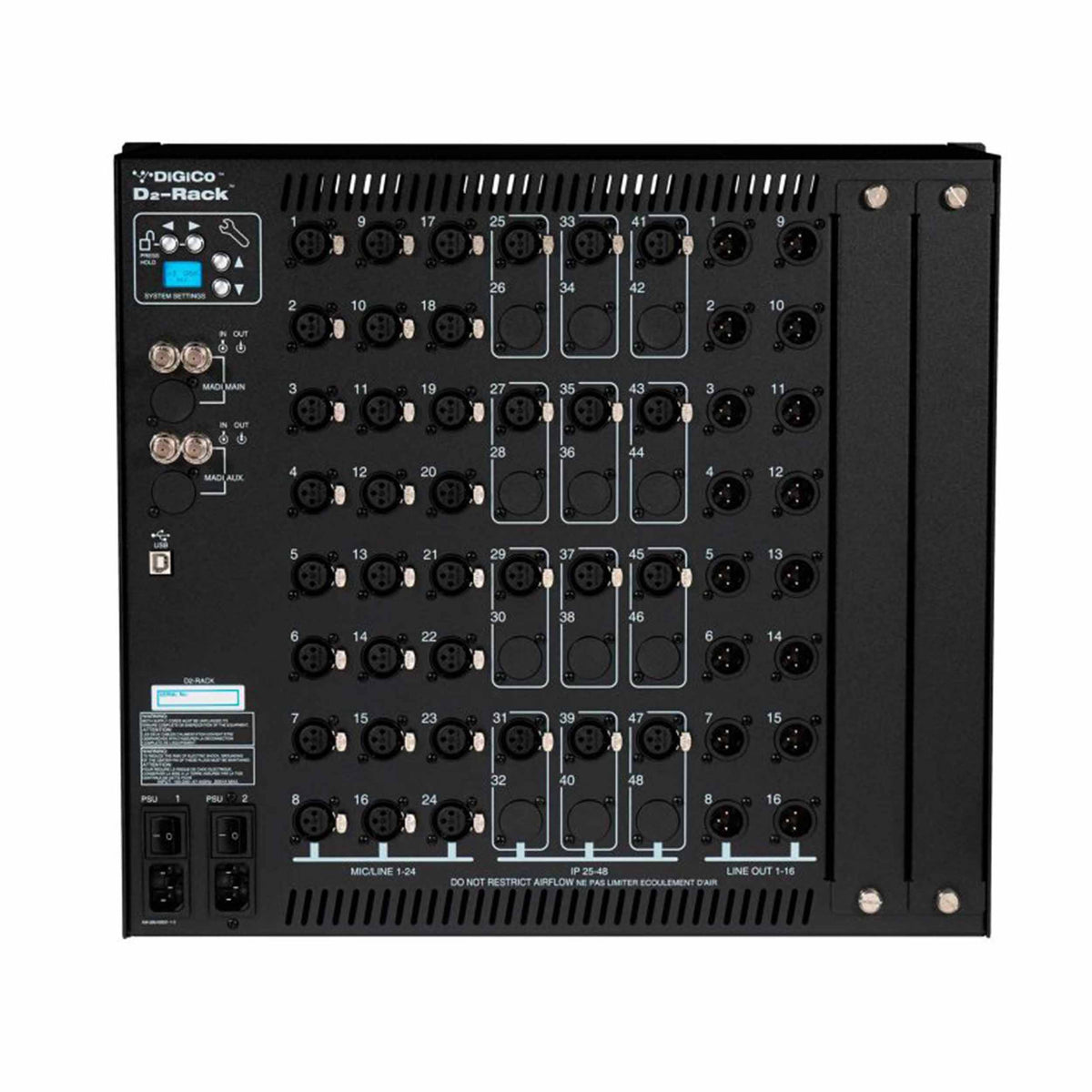

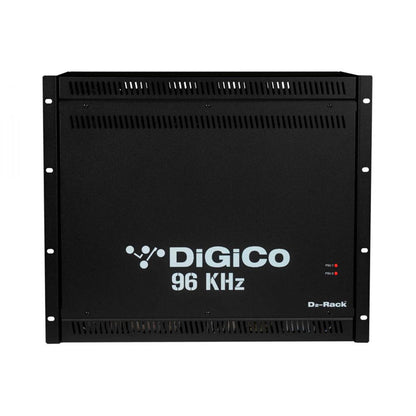

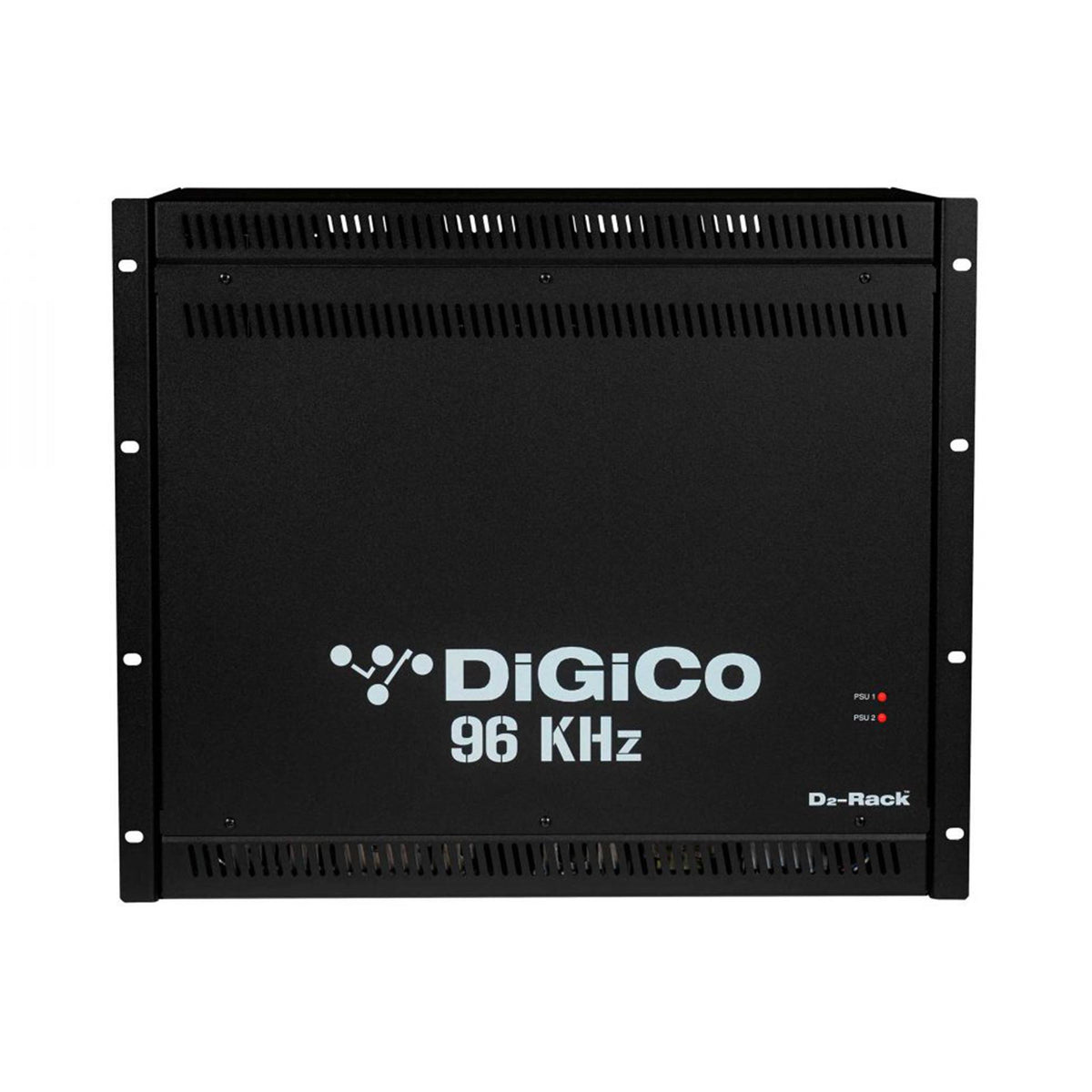

DiGiCo X D2 DI C, D2 Rack with 24 Analogue and 24 AES Inputs and RJ45 MADI

The DiGiCo X-D2-DI-C is a professional 9U D2-Rack configured with 24 analogue microphone inputs, 24 AES/EBU digital inputs, and 16 analogue outputs. It uses dual RJ45 Cat5e MADI connections for digital audio transport, rack sharing, and recording splits. The rack is designed for professional live sound, touring, broadcast, and installation applications.

Flexible Input Configuration

The X-D2-DI-C combines 24 analogue microphone inputs with 24 AES/EBU inputs, providing a flexible interface for systems requiring both analogue and digital sources. The rack maintains 48 total input channels while allowing engineers to connect microphones, digital consoles, processors, and other AES-equipped equipment.

RJ45 MADI Connectivity

Two DiGiCo Cat5e MADI connections provide the primary digital connection between the D2-Rack and compatible DiGiCo equipment. At 48 kHz, the connections can be used for rack sharing or digital splits, while both connections combine for 96 kHz operation without reducing the available I/O.

High-Resolution Audio

The D2-Rack supports 44.1, 48, 88.2, 96, 176.4, and 192 kHz sample rates. It provides a 113 dB dynamic range, 127 dB analogue EIN, and maximum input and output levels of +22 dBu. System delay is approximately 2 ms at 48 kHz and 1.1 ms at 96 kHz.

Output Expansion

Sixteen analogue line outputs are included as standard, while two additional output expansion slots can increase the rack's output capacity to 32 channels. Compatible expansion options include line output, AES output, and Aviom modules.

Reliable Professional Operation

The X-D2-DI-C includes dual redundant internal power supplies for dependable operation in demanding production environments. Gain Tracking™, an internal oscillator, LCD menu controls, and locked controls provide additional tools for configuration and system management.

What’s in the Box:

• Connections D-MADI
• Connectors EtherCON x 2 for 96kHZ (splitter @ 48kHz) *Need 2 x CAT6 cables for 96kHz

Product Specifications:

Product Type: 9U Digital Stage Rack

Input Configuration: 24 Analogue Inputs and 24 AES/EBU Inputs

Analogue Inputs: 24 x XLR Mic Inputs

Digital Inputs: 24 x AES/EBU Channels

Analogue Outputs: 16 x XLR Line Outputs

Maximum Output Capacity: 32 Outputs

Output Expansion Slots: 2

MADI Main Connection: 1 x RJ45, Cat5e

MADI Auxiliary Connection: 1 x RJ45, Cat5e

MADI Type: DiGiCo MADI over Cat5e

Sample Rates: 44.1, 48, 88.2, 96, 176.4, and 192 kHz

Phantom Power: 48.3 V

Gain Range: -10 dB to +60 dB

Maximum Input Level: +22 dBu

Maximum Output Level: +22 dBu

Input Impedance: 2500 Ω, 2650 Ω with Pad

Analogue EIN: 127 dB, 150 Ω

Dynamic Range: 113 dB

Crosstalk: >90 dB, 100 Hz to 10 kHz

CMRR: >71 dB at 1 kHz, 150 Ω

Analogue Input Frequency Response: ±1 dB, 10 Hz to 20 kHz

AES Input Frequency Response: ±0.1 dB, 10 Hz to 20 kHz

AES Noise: < -140 dB

Analogue Distortion: <0.01%

AES Distortion: <0.00015%

AES Cable Length: Up to 100 m

System Delay: Approximately 2 ms at 48 kHz, 1.1 ms at 96 kHz

Oscillator Level: -96 dB to 0 dB

Oscillator Frequency: 20 Hz to 22 kHz

Power Requirements: 100 to 240 VAC, 47 to 440 Hz, 200 VA Maximum

Power Supplies: 2 x Internal Redundant PSUs

Rack Size: 9U

Compatible Expansion Cards: 8-Channel Line Output, 8-Channel AES Output, 16-Channel Aviom

Standalone Operation: Yes

Product Weight: 28.66 lbs. (13 kg)

Product Dimensions (L × W × H): 19.00" × 9.76" × 15.72"
