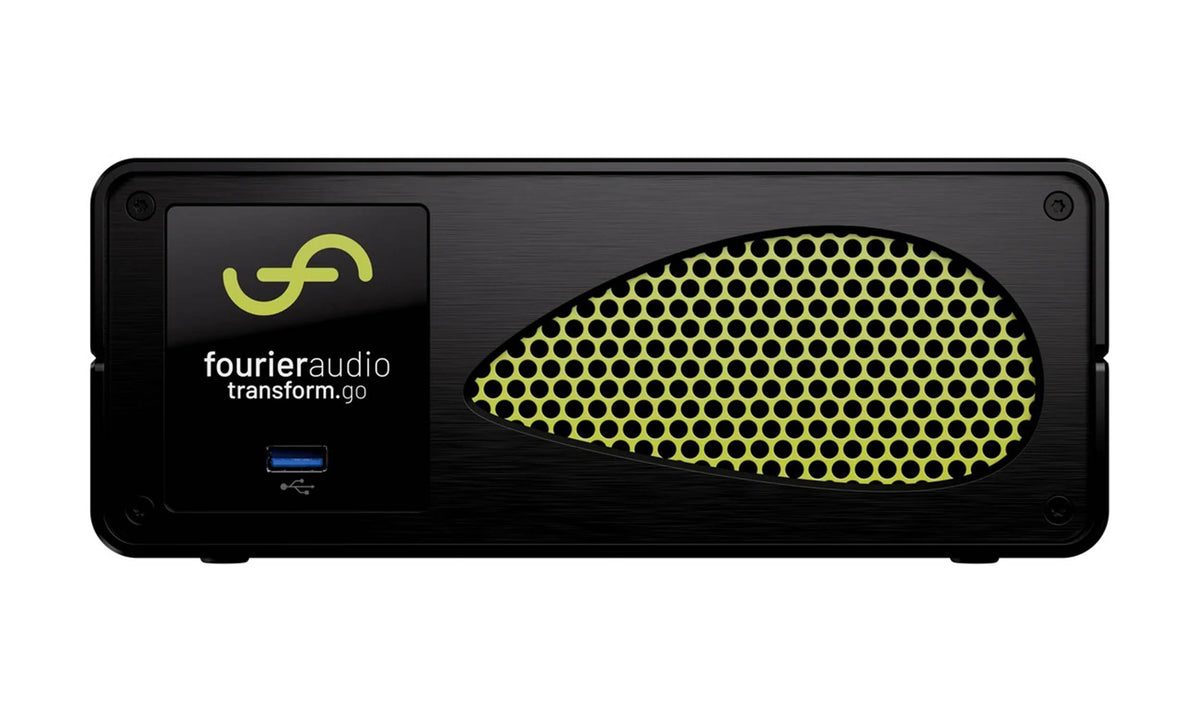

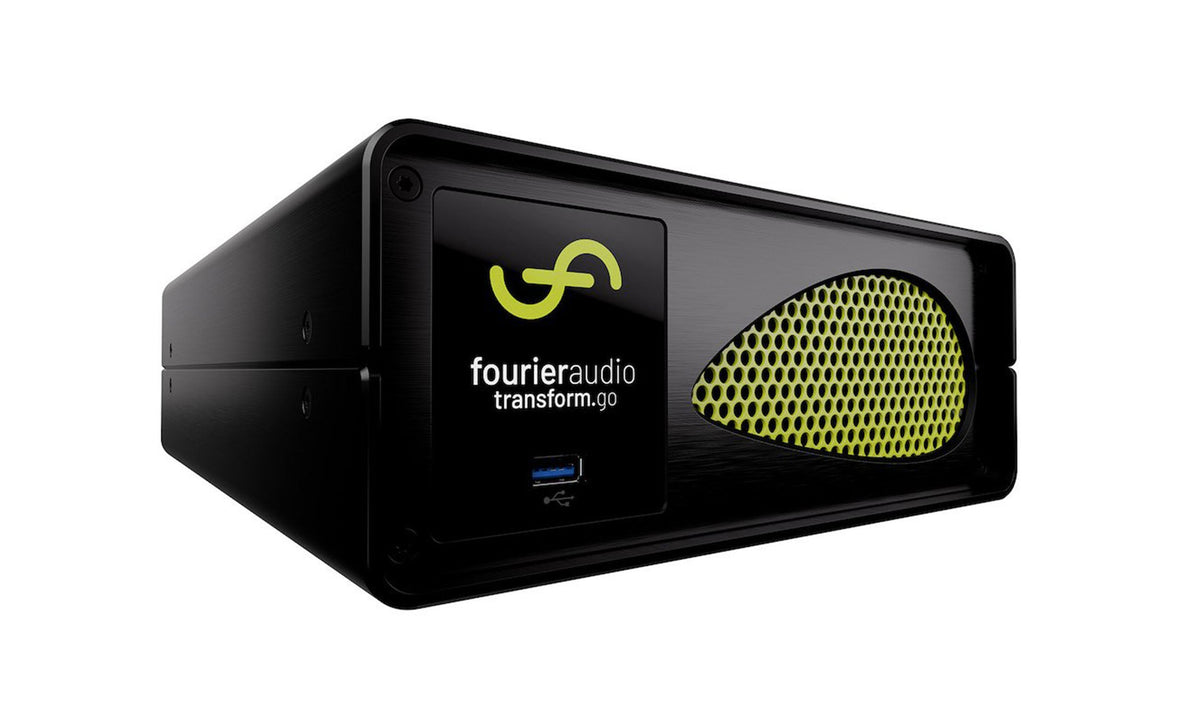

DiGiCo X-FA-TG Audio Networking and Gateway System
DiGiCo X-FA-TG Audio Networking and Gateway System
Model / SKU: H-DIGI-XFATG
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The DiGiCo X-FA-TG transform.go is a compact, tour-grade plugin server designed to run professional VST3 and CLAP audio plugins in live sound and broadcast applications. It provides 16 channels of audio I/O at sample rates up to 96 kHz and achieves roundtrip latency down to 1.2 ms. The compact 2U half-width chassis is designed for flypack systems, touring engineers, broadcast applications, and productions where portability is important.
Plugin Hosting
The X-FA-TG runs Windows 10-compatible VST3 and CLAP plugins that can be installed and licensed offline. Fourier Audio's plugin sandbox isolates individual plugin failures and automatically restarts a failed plugin without affecting the rest of the system.
Audio Networking
The X-FA-TG provides 16 channels of audio I/O with dual-redundant EtherCON networking. It supports Dante and AES67 via Dante, while HYPERPORT, Allen & Heath gigaACE, and DX connectivity provide additional integration options.
DiGiCo Integration
The X-FA-TG supports integration with DiGiCo Quantum consoles, allowing plugins to be controlled directly from compatible console worksurfaces. This makes the system suitable for live mixing workflows where external plugin processing needs to be integrated into the console environment.
Portable Design
The X-FA-TG uses a compact 2U half-width chassis and weighs 3.5 kg (7.7 lbs). Two units can be installed side-by-side using an optional custom 19-inch rack shelf, making it suitable for compact multi-engine systems.
Product Specifications:
Product Type: Compact Live VST3/CLAP Plugin Server
Audio I/O: 16 Channels
Maximum Sample Rate: 96 kHz
Period Sizes: 32 / 64 / 128 / 256 / 512
Processor: Intel Core Ultra 5 125H
Isolated DSP Cores: 2
Roundtrip Latency: Down to 1.2 ms

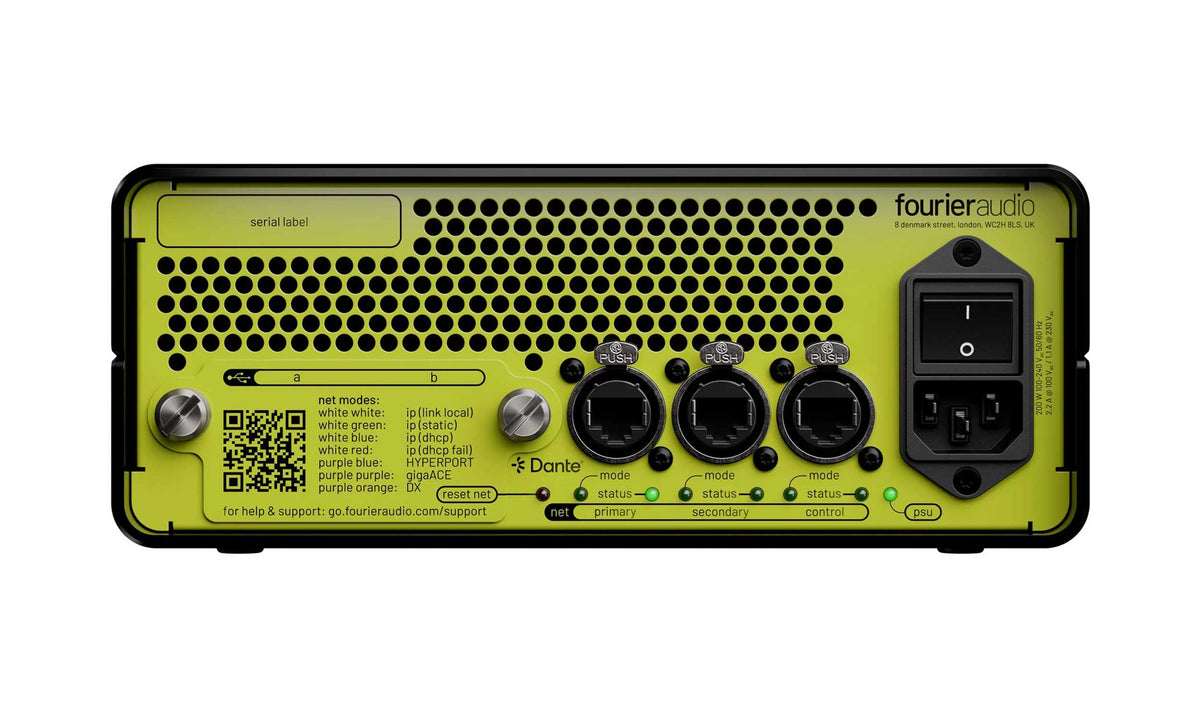

Audio Network Connections: Dual-Redundant EtherCON
Control Connection: EtherCON Gigabit Network
Additional Control I/O: Allen & Heath MIDI Over TCP/IP
Compatible Plugins: Windows 10-Compatible VST3 and CLAP Plugins
Plugin Installation: Offline Installation and Licensing
Remote Client: macOS 11+ / Windows 10+
DiGiCo Integration: DiGiCo Quantum Console Integration
Power: IEC Mains
Rack Format: 2U Half-Width
Product Weight: 7.7 lbs
Product Dimensions (L x W x H): 8.54" x 8.54" x 3.46"
